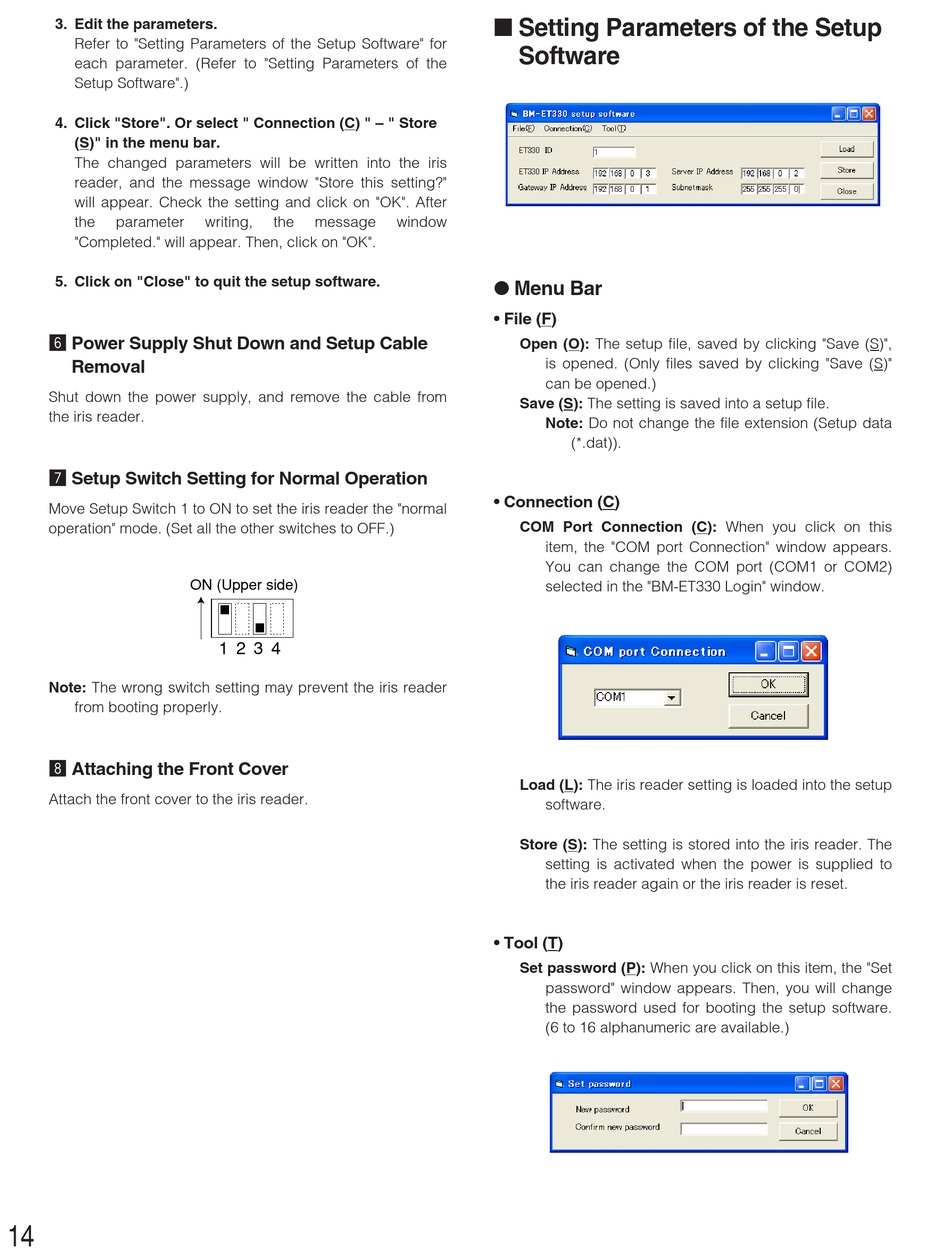

3. Edit the parameters.
Refer to "Setting Parameters of the Setup Software" for
each parameter. (Refer to "Setting Parameters of the
Setup Software".)
4. Click "Store". Or select " Connection (C) " – " Store
(S)" in the menu bar.
The changed parameters will be written into the iris
reader, and the message window "Store this setting?"
will appear. Check the setting and click on "OK". After
the
parameter
"Completed." will appear. Then, click on "OK".
5. Click on "Close" to quit the setup software.
n Power Supply Shut Down and Setup Cable
Removal
Shut down the power supply, and remove the cable from
the iris reader.
m Setup Switch Setting for Normal Operation
Move Setup Switch 1 to ON to set the iris reader the "normal
operation" mode. (Set all the other switches to OFF.)
Note: The wrong switch setting may prevent the iris reader
from booting properly.
, Attaching the Front Cover
Attach the front cover to the iris reader.
14
writing,
the
message
ON (Upper side)
1 2 3 4
■ Setting Parameters of the Setup
Software
window
● Menu Bar
• File (F)
Open (O): The setup file, saved by clicking "Save (S)",
is opened. (Only files saved by clicking "Save (S)"
can be opened.)
Save (S): The setting is saved into a setup file.
Note: Do not change the file extension (Setup data
(*.dat)).
• Connection (C)
COM Port Connection (C): When you click on this
item, the "COM port Connection" window appears.
You can change the COM port (COM1 or COM2)
selected in the "BM-ET330 Login" window.
Load (L): The iris reader setting is loaded into the setup
software.
Store (S): The setting is stored into the iris reader. The
setting is activated when the power is supplied to
the iris reader again or the iris reader is reset.
• Tool (T)
Set password (P): When you click on this item, the "Set
password" window appears. Then, you will change
the password used for booting the setup software.
(6 to 16 alphanumeric are available.)
