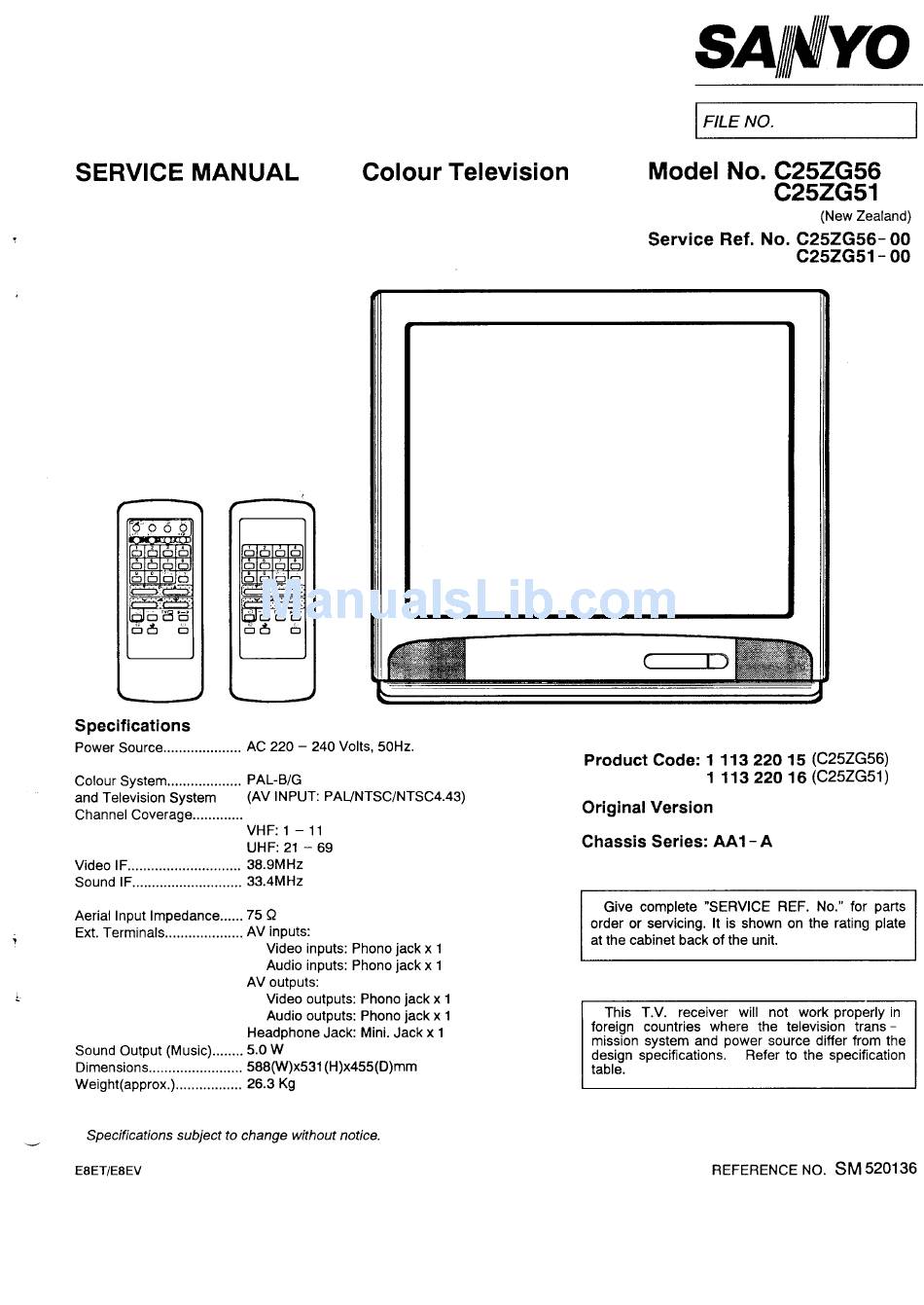

Sanyo C25ZG56 Service Manual

FILE NO.
SERVICE MANUAL
Colour Television
Model No. ::::::?
(New Zealand)
Service Ref. No. C25ZG56- 00
C25ZG51 -00
1
J
1
J
Specifications
Power
Source ... .. . .. .. ..
.......
.
AC
220 – 240
volts,
50 Hz.
Product Code: 111322015 (C25ZG56)
Colour System ................... PAL-B/G
111322016 (C25ZG51)
and Television System
(AV INPUT: PAUNTSC/NTSC4.43)
Channel Coverage .............
Original Version
VHF: l–11
UHF: 21 – 69
Chassis Series: AAl -A
Video IF ............................. 38.9 MHz
Sound IF ............................ 33.4 MHz
)
1
Aerial Input Impedance ...... 75 Q
Ext. Terminals ....................
i
AV inputs:
Video inputs: Phono jack x 1
Audio inputs: Phono jack x 1
AV outputs:
~.
Video outputs: Phono jack x 1
Audio outputs: Phono jack x 1
Headphone Jack: Mini. Jack x 1
Sound Output (Music) ........ 5.0 W
Dimensions .,....!..... ............ 588(W)X531 (H)x455(D)mm
Weight(approx.) ................. 26.3 Kg
Give complete "SERVICE REF. No." for parts
order or servicing. It is shown on the rating plate
at the cabinet back of the unit.
This T.V. receiver will not work properly in
foreign countries where the television trans -
mission system and power source differ from the
design specifications. Refer to the specification
table.
Specifications subject to change without notice.
E8ETIE8EV
REFERENCE NO. SM 520136
