Acer Liquid Z530 Quick Guide
Model: T02
This revision: 09/2015
Product information
For detailed product information, please go to www.acer.com.
For service and support information, or to download the User
Guide, drivers and applications, please follow the instructions
below:
1. Go to www.acer.com and click Support > DRIVERS AND
MANUALS.
2. Select appropriate items from Group > Series > Products.
3. Select the operating system from the drop-down menu.

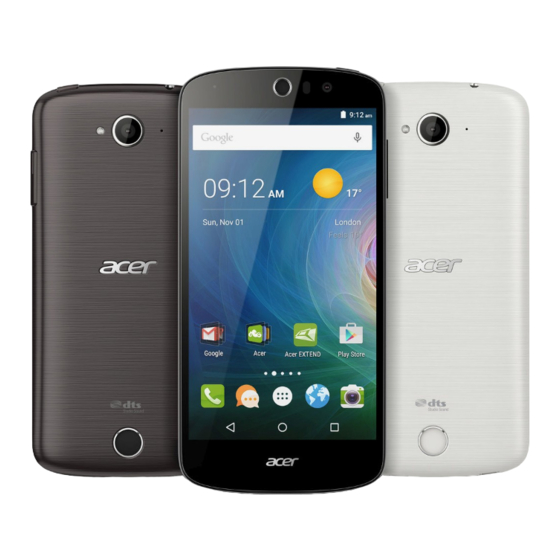

Acer Liquid Z530 Smartphone
Model number:____________________________________
Serial number: ____________________________________
Date of purchase: _________________________________
Place of purchase: ________________________________
Android is a trademark of Google Inc. Use of this trademark is
subject to Google Permissions.
1
Advertisement
Table of Contents
Related Manuals for Acer T02
Summary of Contents for Acer T02
-
Page 1: Product Information
For service and support information, or to download the User Guide, drivers and applications, please follow the instructions below: 1. Go to www.acer.com and click Support > DRIVERS AND MANUALS. 2. Select appropriate items from Group > Series > Products. -
Page 2: Your S Martphone
Your s martphone Item Description 3.5 mm Connects to stereo headphone headphones. jack Micro USB Connects to a USB cable/ connector charger. Front camera Front-facing camera suitable for video chats and self-portraits. Phone Emits audio from your speaker smartphone; suitable for holding to your ear. - Page 3 A camera for taking high- resolution images. Note: For more on how your computer can help you to be more productive, please refer to the User’s Manual. The User’s Manual can be downloaded from the Acer support website by going to: http://go.acer.com/?id=17883...
-
Page 4: Specifications
Specifications Note Specifications may vary depending on region and configuration. Performance • 1.3 GHz quad-core processor • System memory (8 GB or 16 GB) : • 8 GB 內建主記憶體硬體容量：8 GB，使用者可使用主記憶體容量至少：4.61 GB。 • 16 GB 內建主記憶體硬體容量：16 GB，使用者可使用主記憶體容量至少：11.89 GB。 • Android operating system Display •... - Page 5 Connectivity • Bluetooth 4.0 + EDR • IEEE 802.11b/g/n LTE Band 3 (1710-1770 MHz) LTE Band 8 (885-915 MHz) LTE Band 28 (703-748 MHz) WCDMA 850(B5) / 900(B8) / 1900(B2) / 2100(B1) MHz • GSM 850 / 900 / 1800 / 1900 MHz HSPA / GPRS / EDGE •...
- Page 6 Camera • 8 MP rear camera • Auto-focus • LED flash • 8 MP front camera • Fixed focus Expansion • microSD memory card slot (up to 32 GB) Battery •2500 mAh Li-Polymer battery (replaceable) Note Length of battery operation will depend on power consumption which is based on system resource use.
-
Page 7: Setting Up For The First Time
Setting up for the first time Inserting the SIM cards and microSD card 1. Turn off the phone by pressing and holding the power button. 2. Insert your fingernail into the notch located at the bottom of the phone and remove the cover as illustrated. - Page 8 3. Insert the SIM or microSD card as shown. SIM2 Micro SD SIM1 * Note: Your smartphone may be equipped with one or two SIM slots depending on model. 4. Align the gold-colored connectors on the battery with the connectors at the top of the battery compartment and insert the battery.
- Page 9 5. Replace the cover by aligning the tabs on the cover into the slots on the phone. Gently press the cover until it snaps in place.
-
Page 10: Charging Your Phone
Charging your phone For initial use, you need to charge your smartphone for eight hours. After that you can recharge the battery as needed. Connect the AC adapter cord to the micro USB connector on your smartphone. Plug the AC adapter into any AC outlet and charge the device. -
Page 11: Battery Information
Safety Battery information This product uses a Lithium-polymer battery. Do not use it in a humid, wet and/or corrosive environment. Do not put, store or leave your product in or near a heat source, in a high temperature location, in strong direct sunlight, in a microwave oven or in a pressurized container, and do not expose it to temperatures over 60 °C (140 °F). -
Page 12: Replacing The Battery
Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle. For more information on the Waste from Electrical and Electronics Equipment (WEEE) regulations, visit www.acer- group.com/public/Sustainability/sustainability01.htm... - Page 13 Wireless operation channels for different domains N. America 2.412-2.462 GHz Ch01 through Ch11 Japan 2.412-2.484 GHz Ch01 through Ch14 Europe ETSI 2.412-2.472 GHz Ch01 through Ch13...
-
Page 14: Fcc Regulations
FCC regulations This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 15: Rf Exposure Information (Sar)
RF exposure information (SAR) This device meets the FCC requirements on the limitation of exposure of the general public to electromagnetic fields by way of health protection. The unit of measurement for the FCC limit is the "Specific Absorption Rate" (SAR). The SAR limit set by the FCC is 1.6 W/kg, averaged over 1 g of tissue. - Page 16 安全 電池資訊 請勿在潮濕及 ( 或 ) 具腐蝕性的環境中使用本產品。請 繁 勿將本產品置於或存放於，或接近熱源、高溫、陽光直 體 射、微波爐或加壓容器，以及勿放置在超過 60°C 中 文 (140°F) 之處。若未遵守上述規定，可能會導致電池漏 出酸液、發熱、爆炸或燃燒，而造成受傷及 ( 或 ) 損 壞。請勿穿刺、開啟或拆解電池，若您在電池漏液時接 觸到漏出的液體，請以清水徹底清洗，並立即就醫。為 了安全及延長電池的使用壽命，請勿在低溫 ( 低於 0°C/ 32°F) 或高溫 ( 超過 45°C/113°F) 處進行充電。 新電池要經過兩到三次完整的充放電過程後，才能發揮 完整的效能。電池可充放電數百次，但是電力會逐漸下 降。若發現通話與待機時間顯著低於平常使用的情況 時，請購買新的電池。請僅使用製造商授權的電池，並 使用製造商指定授權的充電器。 不使用充電器時，請從電源插座及裝置上取下。勿將充 滿電的電池連接至充電器上，因為過度充電可能會縮短 使用壽命。而充滿電的電池若未使用，其電力亦會隨時...
- Page 17 溫度保持在 15°C 和 25°C (59°F 和 77°F) 之間。置入高 溫或低溫電池，可能會暫時無法使用，即使在充滿電的 情況下亦同。在低於零度的環境中，電池效能將極為 有限。 勿將電池丟棄到火中，以免引起爆炸。損壞的電池也可 繁 能會爆炸。請根據當地法規棄置電池，若有可能請回收 體 中 電池，勿以家庭廢棄物進行棄置。 文 更換電池 更換與隨附電池相同型號的電池。若使用其他型號的電 池可能會發生火災或爆炸。 警告！未正確處理電池可能會爆炸。請勿拆解電 池或將電池丟棄到火中。請將電池放在孩童拿不 到的地方。請根據當地法規棄置用過的電池。 棄置與回收資訊 丟棄此電子裝置時，請勿丟入垃圾桶中。為 減少汙染及確保能保護全球環境，請回收本 產品。如需更多廢電機電子設備 (WEEE) 規 定的資訊，請至 www.acer-group.com/ public/Sustainability 符合 WEEE 規定。...
- Page 18 NCC 警語 經型式認證合格之低功率射頻電機，非經許可，公司、 商號或使用者均不得擅自變更頻率、加大功率或變更原 繁 設計之特性及功能。低功率射頻電機之使用不得影響飛 體 中 航安全及干擾合法通信；經發現有干擾現象時，應立即 文 停用，並改善至無干擾時方得繼續使用。前項合法通 信，指依電信法規定作業之無線電通信。低功率射頻電 機須忍受合法通信或工業、科學及醫療用電波輻射性電 機設備之干擾。 減少電磁波影響，請妥善使用。 無線電波暴露資訊 (SAR) 此產品符合電磁波暴露的相關規定 SAR 標準值 2.0 W/kg; 送測產品實測值為：x.xxx W/kg。 ．使用過度恐傷害視力。 ．使用30 分鐘請休息10 分鐘。 ．2 歲以下幼兒不看螢幕，2 歲以上每天看螢幕不要超過1小時。...
