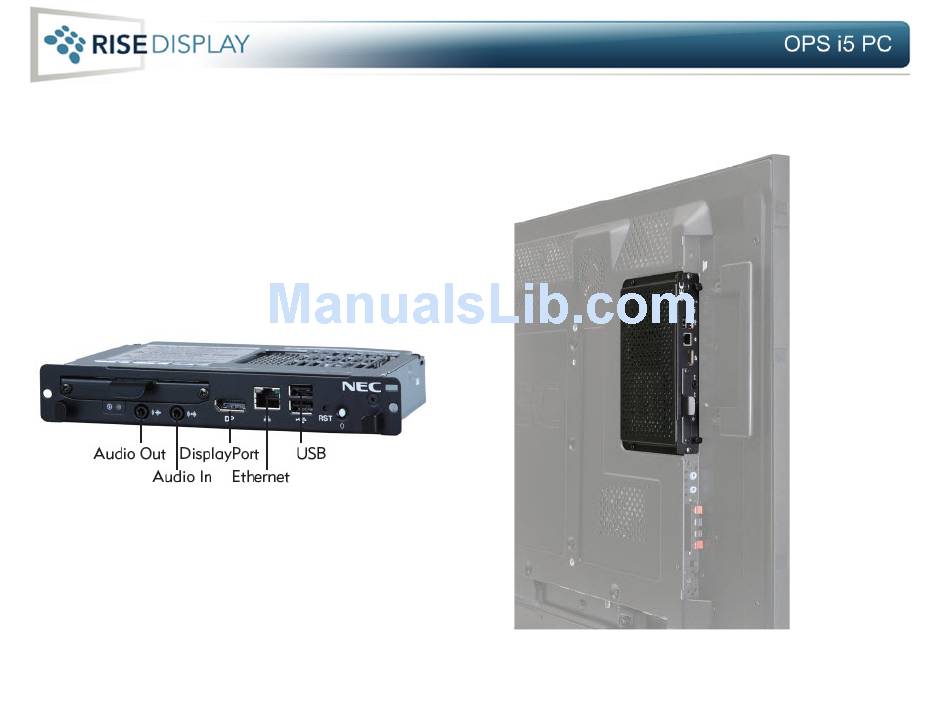

- Page 1 OPS i5 PC - Install Guide for X Series NEC displays Revised 12-30-2011 Page...
- Page 2 OPS i5 PC - Install Guide for X Series NEC displays Required Tools ● Philips Head Screw Driver ● Ethernet Patch Cable Step 1 1. Remove LCD display from box and lay screen face down on the box. 2. Carefully remove protective plastic cover to expose the right side of the back of the LCD display where OPS slot is located.
- Page 3 Step 2 1. Using Phillips head screwdriver, remove the four screws that secure the OPS Slot Cover in place. Be sure to save the 4 screws, you will need them to put the vented cover Step 3 1. Using Phillips head screwdriver, remove the two screws holding the handle in place.
- Page 4 Step 4 1. Open box containing OPS PC and remove contents - there should be the OPS PC, CD and Option board slot cover. Step 5 1. Using Phillips head screwdriver and the 4 screws you saved when removing the factory cover, install the Option board slot cover.
- Page 5 Step 7 1. Using Phillips head screwdriver replace the 2 screws you removed in step 5, #2 to secure OPS PC into place. *Note the NEC logo position in image to the right. Revised 12-30-2011 Page...
- Page 6 Step 8 1. Insert standard straight through Ethernet cable into OPS PC network port and connect to client network. 2. Now that the OPS PC is installed and the network connection is in place, connect the power cord to the display.
