1 Overview

The tape library provides a compact, high-capacity, low-cost solution for simple, unattended data
backup. This unique design houses up to 12 tape cartridges for each U of height, with easy
access to tape cartridges via removable magazines and a mailslot. Each magazine can hold up
to 12 tape cartridges. The library is customer expandable with exchangeable LTO Ultrium
full-height and half height tape drives. To see the tape drives currently available, see the MSL
QuickSpecs at:
http://www.hpe.com/storage/tape
The library is compatible with most operating systems. However, it requires either direct support
from the operating system or a compatible backup application to take advantage of its many
features. To verify compatibility, see the Data Agile BURA Compatibility Matrix at:
http://www.hpe.com/storage/buracompatibility

Front panel

The front panel provides access to the power button, operator control panel, left and right
magazines, LEDs, and the mailslot.

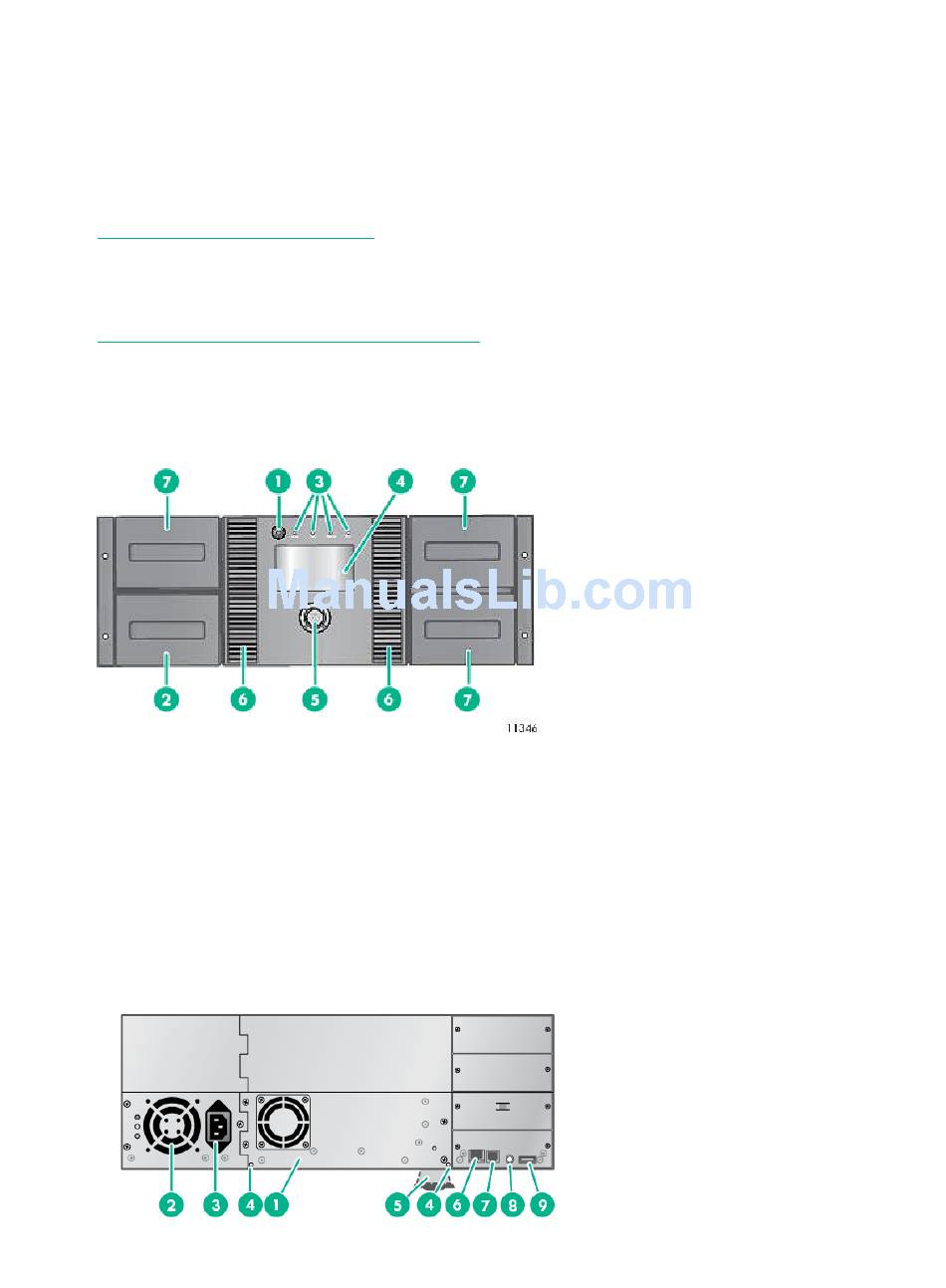

1. Power button
3. Front panel LEDs
5. Control buttons
7. Magazines

Library back panel

The back panel provides access to the drive interface connectors, the tape drives, the power
connector, the Ethernet, serial and USB ports, and the magazine release holes.
4 Overview
2. Magazine, mailslot location
4. Front panel LCD screen
6. Air vents
1. Tape drive assembly location
2. Fan
3. Power connector
4. Magazine release hole
5. Pull-out tab containing product
6. Ethernet port
7. Serial port (Factory use only)
8. Controller health status
9. USB port
information
indicator
