L
Home Theater Package
(Subwoofer Integrated Receiver + Speaker)

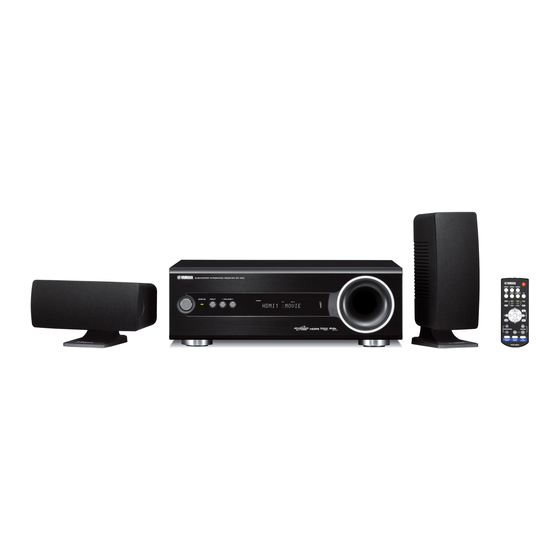

YHT-S300
(SR-300 + NS-B380)
For further information, refer to "Owner's Manual" in the supplied CD-ROM.
To use the CD-ROM, click on "English" in the screen displayed automatically when you insert the CD-ROM into your PC. Then follow the on-screen
instructions. If the screen is not displayed automatically, open the "index.html" in the CD-ROM.
Caution: Do not attempt to play this CD-ROM on an audio CD player.
Quick Reference Guide
Advertisement
Table of Contents
Related Manuals for Yamaha YHT-S300
Summary of Contents for Yamaha YHT-S300
- Page 1 Home Theater Package (Subwoofer Integrated Receiver + Speaker) YHT-S300 (SR-300 + NS-B380) For further information, refer to “Owner’s Manual” in the supplied CD-ROM. To use the CD-ROM, click on “English” in the screen displayed automatically when you insert the CD-ROM into your PC. Then follow the on-screen instructions.
- Page 2 Rear: 5 cm 21 Secure placement or installation is the owner’s responsibility. Sides: 5 cm Yamaha shall not be liable for any accident caused by 3 Locate this unit away from other electrical appliances, motors, improper placement or installation of speakers.
-
Page 3: Table Of Contents
Contents UNPACKING & PLACEMENT Unpacking : Check the supplied units and accessories..............2 Installing the batteries ........................2 Placing ..............................3 Placing the speakers using the stands....................3 CONNECTION Connection ............................4 Overview ............................4 Connecting a TV ...........................5 Connecting Blu-ray disc player or set-top box ................5 PLAYBACK Basic playback operation........................6 Enjoying sound modes ........................7... -
Page 4: Unpacking & Placement
UNPACKING & PLACEMENT Unpacking : Check the supplied units and accessories This product consists of the following items. Before making connections, make sure you have received all of the following items. ■ Units Subwoofer Integrated Receiver (SR-300) Speakers (NS-B380) ■ Accessories Speaker cable (3 m ×... -
Page 5: Placing
Placing To enjoy quality sound thoroughly, place this system in the appropriate positions, and install the components properly. The following illustrations are the setting images of this system. Example 1: Placing the speakers on the rack Example 2: Mounting the speakers on the wall (Refer to Owner’s Manual for details.) 1 Subwoofer integrated receiver (SR-300) 2 Speakers (NS-B380) -
Page 6: Connection
(+), and negative we recommend that you use an outdoor antenna. (-) to negative (-). For details, consult your nearest authorized Yamaha dealer or Service Center. White Gray See “Using optional equipment” (☞ P. 16) in Owner’s Manual. -
Page 7: Connecting A Tv
Connection Connecting a TV If a DVD player, etc., connected to one of the HDMI IN jacks, connect your TV or video monitor (projector, etc.) to the HDMI OUT jack of the subwoofer integrated receiver. To output the sound of a TV from this system, you can select optical digital input and connect to digital output jack. Signal flow For analog connection, you need to connect an audio cable to the analog input terminal. -
Page 8: Playback
PLAYBACK Basic playback operation Once you have finished all cable connections and remote control operation, follow the procedure below to start basic playback operation. Press one of the input buttons to select an input source. Start playback on the selected external component. -
Page 9: Enjoying Sound Modes
UNIVOLUME SURROUND MODE Surround mode Stereo mode You can enjoy a realistic sound effect using Yamaha’s An extended sound is achieved for a 2 channel source exclusive AIR SURROUND XTREME. such as a CD player. Press SURROUND MODE to set surround Press STEREO MODE to enter extended mode. -
Page 10: Listening To Fm Broadcasts
Listening to FM broadcasts Basic tuning operation INFO Sets the input to FM. Selects the information displayed in the front panel display. MEMORY PRESET Stores preset stations manually. Select the preset FM stations. TUNING Press to change the frequency by 1 Cursor in OPTION menu step, or press and hold to search stations automatically. -
Page 11: Additional Information
Manual station preset Clearing the preset station FM tuning ☞ P. 15 Using the monaural reception mode to listen an weak FM broadcast Connecting Yamaha iPod universal dock or Yamaha Bluetooth wireless audio receiver ☞ P. 16 Optional Using iPod™ equipment ☞... - Page 12 Printed in Malaysia WT51110...
