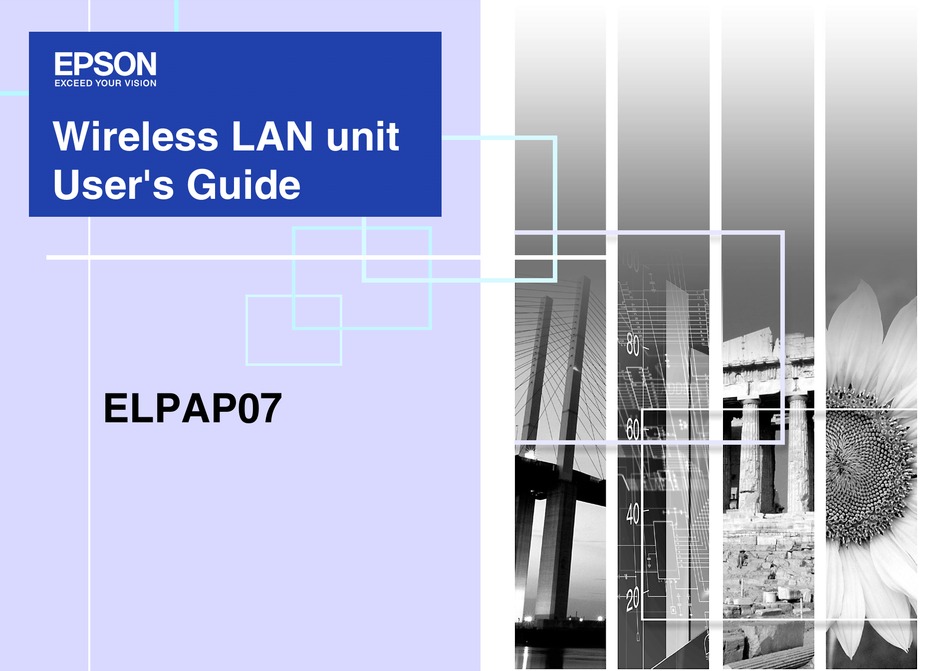

- Page 1 Wireless LAN unit User's Guide WN7512BEP ELPAP07...
- Page 2 Notations Used in This Guide General information indications Attention Indicates procedures which may result in damage or injury if sufficient care is not taken. Indicates additional information and points which may be useful to know regarding a topic. Indicates a page where detailed information regarding a topic can be found. Indicates operating methods and the order of operations.
- Page 3 Supplied Items List See the following check list to make sure that you have all of the supplied items. If anything is missing or damaged, please contact your dealer. Wireless LAN unit Screw (plus head screw M2 ^ 8) Document CD-ROM (This Guide)
-
Page 4: Safety Instructions
Caution unknown points quickly, keep this information close to hand. • This unit should only be used for Epson projectors. If it is installed on So that you can use the product safely and correctly, symbols are another device such as a computer, it may result in computer failure, applied in the documentation and on the product to indicate possible damage, or malfunctions. - Page 5 Precautions Notes on Handling and Storage Wireless Telegraphy Act Regulations • Do not store in locations with high temperatures or high humidity. It The following acts are prohibited by the Wireless Telegraphy Act. may in particular be damaged or deformed if left in a vehicle with the •...
- Page 6 Precautions Notes on Security when Using Wireless LAN (Important information on customer rights (maintaining privacy)) The advantage of using a wireless LAN over a LAN cable is that, because information is exchanged using radio signals, you can easily connect to the network if you are within range of the radio signals.
- Page 7 Installing this Unit Installing To avoid losing this unit and so on, make sure you fix it in place with the screw supplied. Install this unit into the projector. Procedure Remove the cover for the projector's wireless LAN unit installation section. Screw hole for the Screw to fix the wireless LAN unit Reading the Wireless LAN Unit Access Lamp There are two wireless LAN unit access lamps, one on top of the projector...
- Page 8 Installing this Unit : Flashing : Lit : Off The Projector's This Unit's Status Indicator Indicator This unit is not installed in the projector This unit is installed in the projector but not yet connected to the network Green Green This unit is installed in the projector and connected to the network Green...
- Page 9 You can use the following two methods to connect a computer and the "Quick Connection Mode" projector over a network by using EMP NS Connection found on the EPSON Projector Software for Meeting & Presentation CD-ROM "Quick Connection Mode" is a mode for executing wireless LAN only. supplied with the projector.
- Page 10 Steps for Connecting in "Quick Connection Mode" Steps before Connecting in "Quick Connection Mode" In the following illustration, you only need to perform the light blue sections the first time you connect. Install EMP NS Connection on the computer to be connected Put the computer into wireless LAN connection status Start EMP NS Connection on the computer and connect with the projector...
- Page 11 "Apply Now". • Install EMP NS Connection You can find EMP NS Connection on the EPSON Projector Software for Meeting & Presentation CD-ROM supplied with the projector. If it is already installed, you do not need to install it again. See the documentation supplied with the projector for the installation method.
- Page 12 Press the [t] button on the remote control to turn on the projector. Start EMP NS Connection. For Windows Select "Start" - "Programs" (or "All Programs") - "EPSON Press the [EasyMP] button on the remote control. Projector" - "EMP NS Connection". The EasyMP standby screen is displayed.
- Page 13 Connecting in "Quick Connection Mode" and Projecting Select the projector you want to connect to, and When Projector Keyword is set to "On" from the then click "Connect". projector, the keyword entry screen is displayed. Enter the keyword displayed on the EasyMP standby screen, and then click "OK".
- Page 14 The Target Projector is Not Found Action 1. Restart the computer. Please note that the projector cannot be found if the wireless LAN method Action 2. Check if the projector network settings are set to "Quick for the projector and the computer's wireless LAN card do not much, as Connection Mode".
- Page 15 Disconnecting There are two methods of disconnecting the projector and the computer. Disconnecting from the Computer Click the button on the toolbar. Disconnecting from the Projector Procedure Press the [Esc] button on the remote control. Select "Exit", and then press the [Enter] button on the remote control.
- Page 16 This Unit's General Specifications Conditions for Connecting to Compatible Wireless LAN Cards and Access Points This unit can be connected to the following products in accordance with IEEE 802.11g, 802.11b, and 802.11n. • Wireless LAN card • Computers with a built-in wireless LAN function •...
- Page 17 - Consult the dealer or an experienced radio/TV technician for help. This device must not be co-located or operating in conjunction with any other antenna or transmitter. Epson America, Inc. 3840 Kilroy Airport Way MS: 3-13 Long Beach, CA 90806...
