Summary of Contents for Samsung SBH170
-
Page 2: Table Of Contents
Contents Getting started Unpacking ..............4 Your headset overview ..........4 Button functions ............5 Charging the battery ............. 7 Putting on the headset ..........8 Before using your headset Turning the headset on or off ......... 9 Pairing the headset with a compatible phone ....10 Connecting the paired headset to your phone ....11 Using your headset Using call functions ............12... -
Page 3: Thank You

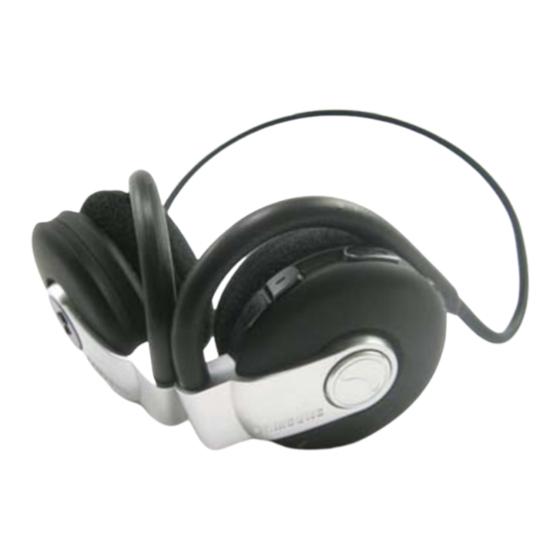

Thank you Thank you for purchasing the SBH170, Samsung Stereo Bluetooth Headset. We hope you will be satisfied with your new headset. Please read the instruction manual to get started and to make the best use of the headset’s features. -
Page 4: Getting Started
Getting started This section explains what to remember for the proper use of your Bluetooth headset. Unpacking Adapter User’s Guide Carrying Case Stereo Headset Your headset overview Talk Button Indicator Light Right Charger speaker Connector Right Ear ON/OFF Hook Switch Volume Up/ REW/FF Down Button... -
Page 5: Button Functions
Button functions Talk button In Standby mode • Press to activate voice dialling. Available only when your headset and phone are connected using the Hands-free Bluetooth profile and your phone supports this function. • Press and hold to redial the last dialled number. For some phones, pressing and holding this button opens the call log list. - Page 6 Play/Pause/Stop button In Standby mode • Press and hold to launch the music player. When the music player is launched • Press to begin playing music. • Press to pause or resume playback. • Press and hold to stop playback. •...
-
Page 7: Charging The Battery
• Disconnect the charger from the power source or the headset after charging is completed. • Use only a Samsung-approved charger. Unauthorised chargers may cause an explosion or damage on the headset. -
Page 8: Putting On The Headset
About the charging Battery charging and standard operation time Charging time Standard operation time Standby Talk time Play time Battery time Approx. operation 2 hr 30 mins Approx. Approx. Approx. time 8 hr 100 hr 7n hr When the battery charge falls low A warning sound beeps and the red indicator light flashes. -
Page 9: Before Using Your Headset
Before using your headset This section explains basic operations and set-ups of your Bluetooth headset. Turning the headset on or off • Push the ON/OFF switch to turn the headset on. When the headset is ready to be paired, the blue indicator light turns on. -
Page 10: Pairing The Headset With A Compatible Phone
2 Search for the headset on your phone according to the phone user’s guide. Your phone will find “Samsung SBH170.” 3 Select Samsung SBH170. 4 When the phone asks if you want to pair with it, confirm by selecting Yes or OK. -
Page 11: Connecting The Paired Headset To Your Phone
Connecting the paired headset to your phone If two Bluetooth devices are disconnected by a power failure, you need to reconnect them. When you reconnect a paired headset, you are not asked for its passkey. 1 Be sure that the headset is turned on. The headset may be connected to your phone automatically when the pairing is completed depending on the types of the phone. -
Page 12: Using Your Headset
Using your headset This section explains how to use various functions, such as making or answering a call, using menus that you can use while a call is in progress, and listening to music. Activated functions may differ depending on the types of the phone. -
Page 13: Rejecting A Call
Ending a call Press when you have finished the conversation. Rejecting a call Press and hold as a call comes in. This is available only when your headset and the phone are connected by the Hands-free Bluetooth profile, and the phone supports the incoming call rejecting function. -
Page 14: Using Music Control Functions
Switching between two calls Press and hold to switch between an active call and one on hold. Switching a call from the phone to the headset Press to switch the call from the phone to the headset. Using music control functions Settings to play music files may differ depending on your Bluetooth phone. -
Page 15: Answering A Call While Listening To Music
Stopping music Press and hold Listening to the previous/next track Press to move to the previous track or press move to the next track. Rewinding/Fast forwarding Press and hold while music is on. Adjusting the volume Press to increase or decrease the volume level. Answering a call while listening to music When a call comes in while music is playing, your headset will alert you so that you can answer the call. -
Page 16: Care And Maintenance
Care and maintenance Storing the headset An image will be inserted • Be careful not to damage the headset, by applying excessive force while placing it in its case. • Always store the headset with the power off. • Avoid storage at high temperatures (above 60× C / 134×... -
Page 17: Frequently Asked Questions
The operating range is typically up to 30 my phone will my feet (10 metres) headset work? Will my headset Samsung SBH170 is not designed for use work with my with cordless phones. cordless phone at home? Will my headset... -
Page 18: Battery Operation
Can other When you pair your headset to your Bluetooth phone Bluetooth phone, you are creating a users hear my private link between only these two conversation? Bluetooth devices. The wireless Bluetooth technology used in your headset is not easily monitored by third parties because Bluetooth wireless signals are significantly lower in radio frequency power than those produced by a typical... -
Page 19: Certification And Safety Approvals
We hereby declare that [all essential radio test suites have been carried out and that] the above named product is in conformity to all the essential requirements of Directive 1999/5/EC. Samsung Electronics Euro QA Lab. Blackbushe Business Park, Saxony Way, Yateley, Hampshire, GU46 6GG, UK 2005. - Page 20 Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by Samsung will void the user’s authority to operate the equipment.
-
Page 21: Warranty And Parts Replacement
Warranty and parts replacement Samsung warrants this product as free of defects in material, design and workmanship for the period of one year from the original date of purchase. If during the period of warranty this product proves defective under normal use and service you should return the product to the retailer from whom it was originally purchased or qualified service center. -
Page 22: Correct Disposal Of This Product
• Samsung will not assume any responsibility for any loss or damage incurred in shipping. All repair work on Samsung products by unauthorised third parties voids any warranty Correct disposal of this product (Waste Electrical & Electronic Equipment) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. - Page 23 Bluetooth profiles are protocols through which Bluetooth devices communicate with other devices. Bluetooth phones support different sets of profiles - most support the headset profile but some support the hands-free profile and others support both profiles. In order to support a certain profile, a phone manufacturer has to implement certain mandatory features within the phone’s software.
-
Page 24: Specifications
Specifications Bluetooth version Version 1.2 Bluetooth profile Advanced audio distribution profile, support A/V Remote control profile, Headset profile, Hands-free profile. Frequency range 2.402 ~ 2.480 GHz Power consumption 0.25 ~ 2.5 mW for transmission Bluetooth-available 10 m distance Dimensions 40 mm (D: diameter) x 24 mm (H) Weight 58 g Operating... - Page 25 Printed in Korea World Wide Web Code No.:GH-xxxxxA http://www.samsungmobile.com English (EU). 04/2006. Rev. 1.0...
