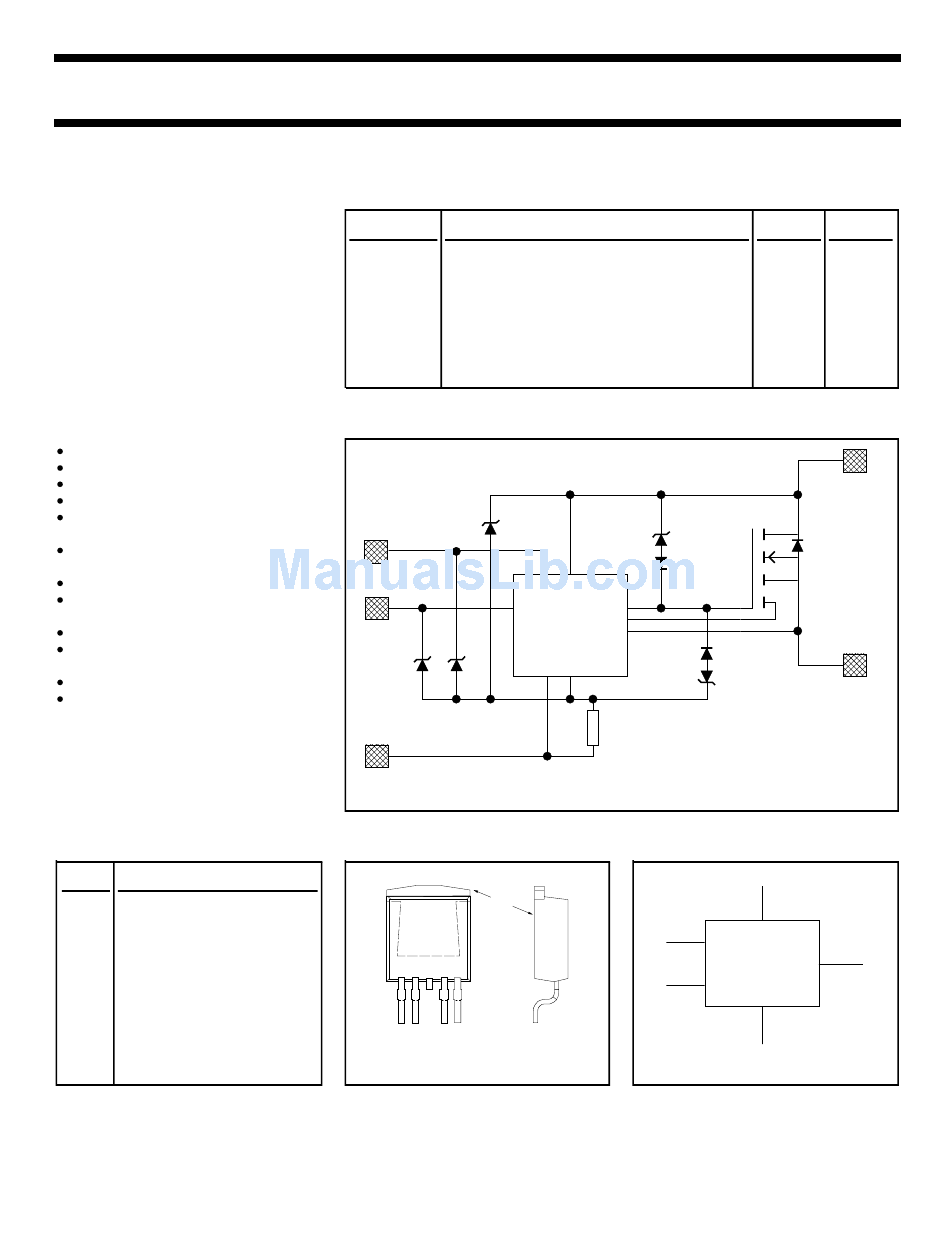

Philips Semiconductors TOPFET high side switch SMD version DESCRIPTION Monolithic single channel high side protected power switch in TOPFET2 technology assembled in a 5 pin plastic surface mount package. APPLICATIONS General controller for driving lamps, motors, solenoids, heaters. FEATURES Vertical power TrenchMOS...
Philips Semiconductors TOPFET high side switch SMD version LIMITING VALUES Limiting values in accordance with the Absolute Maximum System (IEC 134) SYMBOL PARAMETER Continuous off-state supply voltage Continuous load current Total power dissipation Storage temperature Continuous junction temperature Mounting base temperature...
Internal ground resistance 1 For a high side switch, the load pin voltage goes negative with respect to ground during the turn-off of an inductive load. 2 On-state resistance is increased if the supply voltage is less than 9 V. Refer to figure 8.
Philips Semiconductors TOPFET high side switch SMD version INPUT CHARACTERISTICS 9 V ≤ V ≤ 16 V. Limits are at -40˚C ≤ T SYMBOL PARAMETER Input current Input clamping voltage Input turn-on threshold voltage IG(ON) Input turn-off threshold voltage IG(OFF) ∆V...
1 Undervoltage sensor causes the device to switch off and reset. 2 Overvoltage sensor causes the device to switch off to protect its load. March 2002 = 25 ˚C. Refer to TRUTH TABLE...
1 The battery to load threshold voltage for short circuit detection is proportional to the battery supply voltage. 2 Latched protection. After cooling below the threshold temperature the switch will resume normal operation only after the input has been toggled low.
Philips Semiconductors TOPFET high side switch SMD version MECHANICAL DATA Plastic single-ended surface mounted package (Philips version of D (one lead cropped) DIMENSIONS (mm are the original dimensions) UNIT 1.40 4.50 0.85 0.64 4.10 1.27 0.60 0.46 OUTLINE VERSION SOT426 Fig.4.
