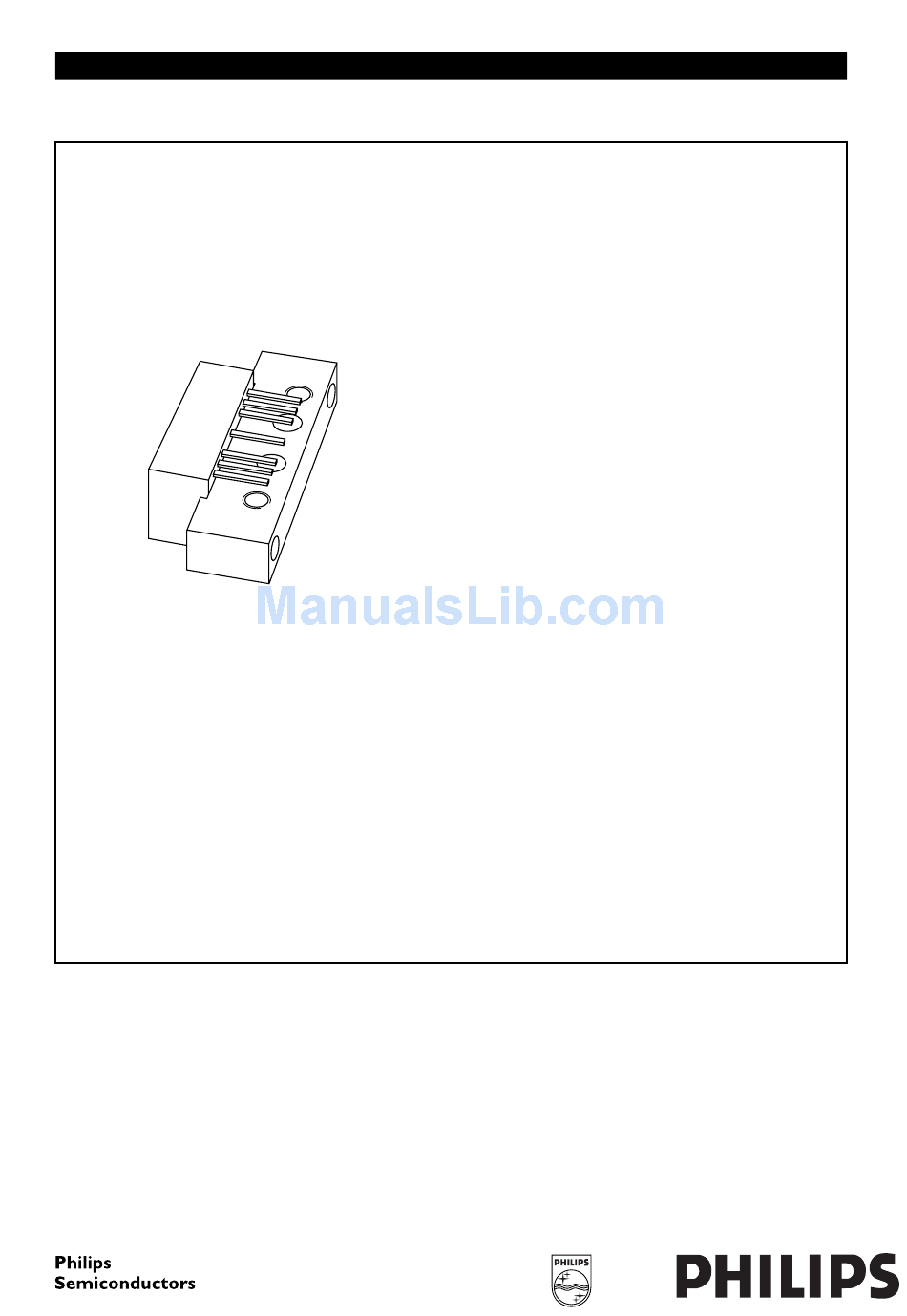

- Page 1 DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage BGY685AD 600 MHz, 18.5 dB gain push-pull amplifier Product specification Supersedes data of 1997 Apr 18 M3D252 2001 Oct 22...
- Page 2 Philips Semiconductors 600 MHz, 18.5 dB gain push-pull amplifier FEATURES Excellent linearity Extremely low noise Silicon nitride passivation Rugged construction Gold metallization ensures excellent reliability. APPLICATIONS CATV systems operating over a 40 to 600 MHz frequency range. DESCRIPTION Hybrid high dynamic range cascode...
- Page 3 Philips Semiconductors 600 MHz, 18.5 dB gain push-pull amplifier CHARACTERISTICS Table 1 Bandwidth 40 to 600 MHz; V SYMBOL PARAMETER power gain slope cable equivalent flatness of frequency response input return losses output return losses phase response composite triple beat...
- Page 4 Philips Semiconductors 600 MHz, 18.5 dB gain push-pull amplifier Table 2 Bandwidth 40 to 550 MHz; V SYMBOL PARAMETER power gain slope cable equivalent flatness of frequency response input return losses output return losses phase response composite triple beat cross modulation...
- Page 5 Philips Semiconductors 600 MHz, 18.5 dB gain push-pull amplifier Table 3 Bandwidth 40 to 450 MHz; V SYMBOL PARAMETER power gain slope cable equivalent flatness of frequency response input return losses output return losses phase response composite triple beat cross modulation...
-
Page 6: Package Outline
Philips Semiconductors 600 MHz, 18.5 dB gain push-pull amplifier PACKAGE OUTLINE Rectangular single-ended package; aluminium flange; 2 vertical mounting holes; 2 x 6-32 UNC and 2 extra horizontal mounting holes; 7 gold-plated in-line leads DIMENSIONS (mm are the original dimensions) UNIT max. - Page 7 1. Please consult the most recently issued data sheet before initiating or completing a design. 2. The product status of the device(s) described in this data sheet may have changed since this data sheet was published. The latest information is available on the Internet at URL http://www.semiconductors.philips.com. DEFINITIONS...
- Page 8 Contact information For additional information please visit http://www.semiconductors.philips.com. For sales offices addresses send e-mail to: sales.addresses@www.semiconductors.philips.com. © Koninklijke Philips Electronics N.V. 2001 All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.
