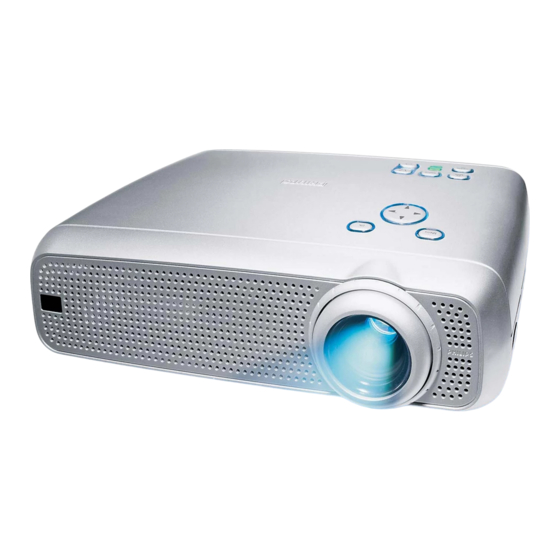

0. Controls and connections Stand by Left Left MOUSE Mouse Volume VOLUME Menu MENU MUTE Mute SOURCE Source D-FREEZE D-Freeze D-ZOOM LC4341/4331 Audio out Audio out Right Right AV MUTE AV Mute D-Zoom AV MUTE LC4345 Available as accessory for LC4341/4331 fig.
‘Important Safeguards’ section before use. Packaging contents Please confirm that the following items are packed in the projector box. They are provided to help you use or set up your projector. – Projector –...
Do not use a chemical duster or polisher-cleaner because it can adversely affect the unit and peel the paint. 3. Do not use attachments not recommended by PHILIPS, as they may cause hazards. 4. Do not use the projector near water- for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, near a swimming pool, etc.
The image projected is simultaneously shown on the monitor. 7. High reliability and excellent brightness The Philips UHP lamp guarantees long life, excellent brightness over the lamp’s lifetime and excellent colour reproduction. Furthermore, the projector has an excellent brightness- and colour uniformity over the entire picture.
4 Standby On To switch the projector in or out of the power standby mode. When the projector is in standby mode, the ring around the button lights up red. When the projector is operating, the ring is white.
Notes: – The Cursor Control can only function as a mouse cursor when the USB socket of the projector is connected to the USB downstream terminal of the computer. – When the Digital Zoom is active, the Cursor Control gives direct access to the Panning function to select the enlarged area.
Mains supply 1. Insert the mains lead into the projectors Power socket and connect it to the wall socket. Note: The standby indicator lights up red, the projector is now in the Power/Standby mode. 2. Remove the lens cap. 3. Press the Stand by On button to switch on the projector.
‘Display and Picture Control’. Moving the projector 1. Press the Stand by On button to put the projector in stand by. The standby indicator lights up red. 2. Wait until the cooling fan has stopped (about 3 minutes after the projector has been switched off) and disconnect the mains lead and all other cables.
The numbers in the left-hand column correspond with the numbers in the connection diagrams on the following pages. When connecting the projector to a Macintosh computer, a programmable VGA/MAC adapter is available as an optional Philips cable accessory.
For this, use the VGA/USB cable (1) supplied. When connecting the projector to a Macintosh computer use the VGA/MAC adaptor (optional). 2. Connect the USB (upstream) socket (b) of the projector to the USB downstream port of the computer. For this, use the VGA/USB cable (1) supplied.
Video 1. Connect the Video out socket of a VCR, Laser Disc player, video camera or TV to the Video socket (d) of the projector. For this, use the video/audio connection cable (2) supplied. 2. Connect the Audio OUT L/R sockets of the VCR, Laser Disc player, video camera or TV to the Audio in L/R sockets (c) of the projector.
L Audio R • Connect the Audio in L/R sockets of an amplifier or stereo system to the Audio out socket (a) of the projector. Insert the white plug into the L socket and the red plug into the R socket.
For this, use the VGA/USB cable (1) supplied. When connecting the projector to a Macintosh computer use the VGA/MAC adaptor (optional). 2. Connect the Data out terminal (f) of the projector to the external monitor and secure the plugs by tightening the thumb screws.
8. Operation Preparation General 1. Press the Stand by On button to switch on the projector. – The lamp indicator flashes green and the start up screen appears for several seconds. – When the average lamplife time has almost expired and less than 100 hours remain, the message ‘Warning:...
Page 16
However, you can adjust the image to suit your own preferences. The projector will store the last used settings for every source. So when you switch from one source to another, the settings of the source switched from will be stored and the settings of the source switched to will be recalled.
8. Operation Note: A(audio)/V(video)-mute can only be selected with the AV mute button on the projector or on the remote control. A/V mute then appears on the screen. For example: The following adjustments procedures follow a slightly different sequence of actions, or may need some further explanation.
8. Operation Mirror The projector can be used in various positions with respect to the viewers and the projection screen. With the Mirror function the picture can be displayed in a way that is suitable for a specific application. Rear screen projection The image can be flipped to a horizontal mirror image of the input signal for rear screen projection.
The projector is equipped with the following functions to optimize its use and handling: Start-up screen This function allows you to display or suppress the default Philips start-up screen upon the projector’s start up. 1. Press Menu. – The menu bar appears on the screen.
Never touch the lens with your fingers. 2. The lens is likely to become mouldy if left dirty. Cleaning the dust filter 1. Press the Stand by On button to switch off the projector. – The standby indicator lights up red.
Lamp Replacement 1. Press the Stand by On button to switch off the projector. – The standby indicator lights up red. 2. Wait 5 minutes for the lamp to cool down and the cooling fan to stop and disconnect the mains lead and all other cables.
10. Tighten the screws. 11. Replace the cover and tighten the screws. 12. Plug the projector back in by inserting the mains lead in the Power socket. 13. Press the Stand by On button to switch on the projector.
10. Troubleshooting If a fault occurs, first check the points listed below before taking the projector for repair. If you are unable to remedy a problem by following these hints, consult your dealer or service organisation. Warning: Under no circumstances should you try to repair the projector yourself as this could invalidate the warranty.
