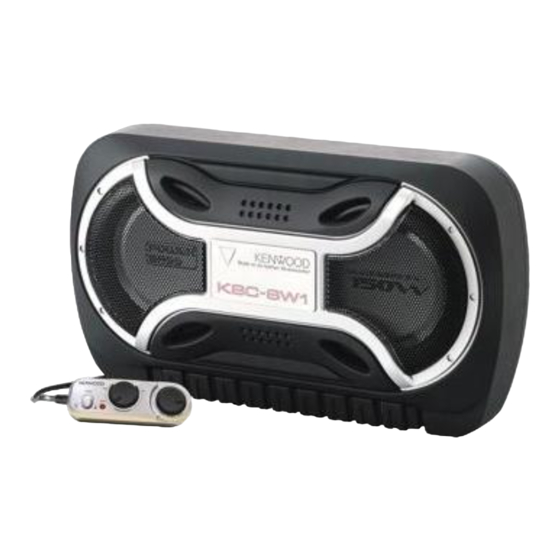

Kenwood KSC-SW1 Service Manual

Tune up sub woofer system
Hide thumbs Also See for KSC-SW1:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual See also: Instruction Manual

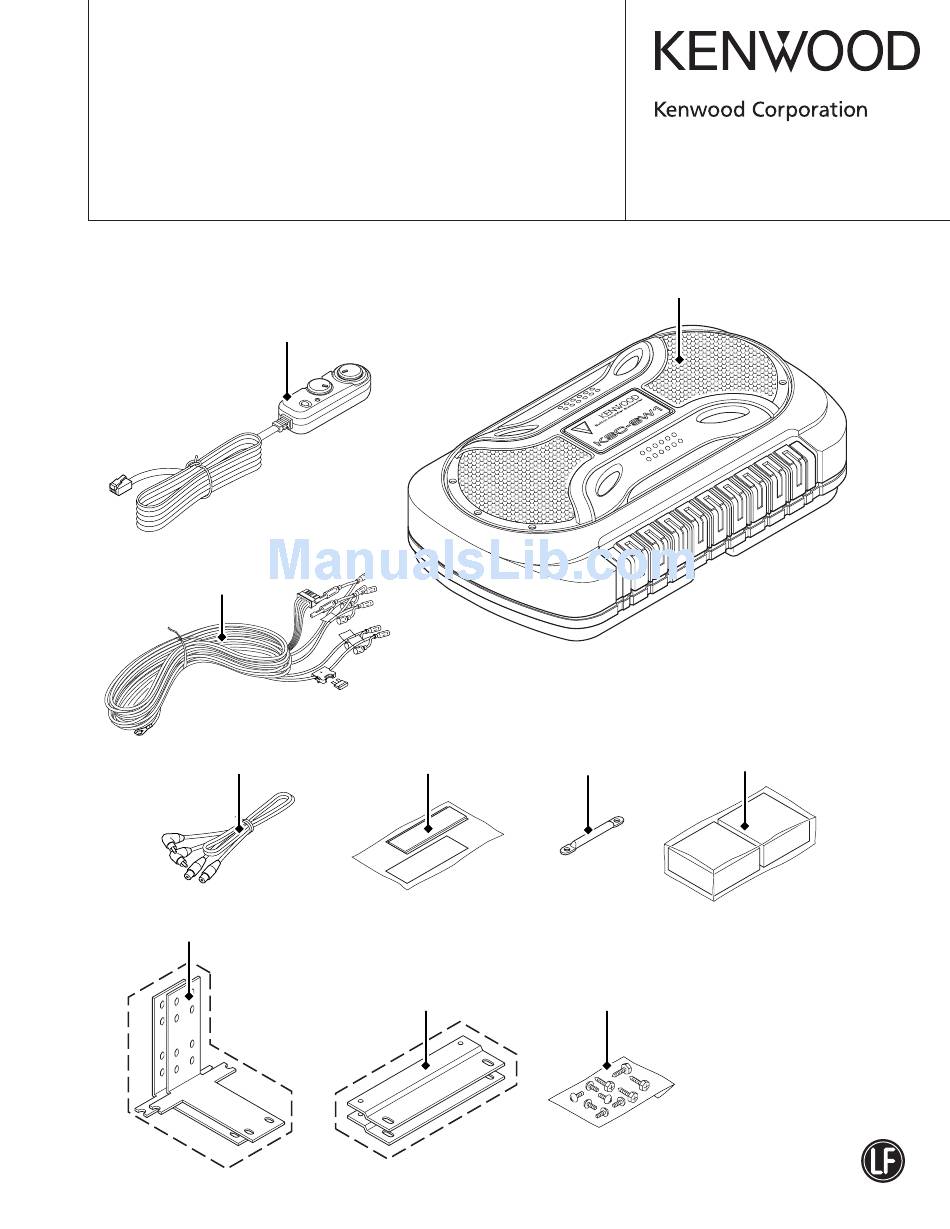

TUNE UP SUB WOOFER SYSTEM
KSC-SW1
SERVICE MANUAL
Remote controller assy
(A70-0417-08)
6m
DC cord
(E30-7094-05)
GND: 1.5m
Other: 6m
Cord with pinjack
(E30-7095-05)
0.5m
Bracket
(J19-4271-08)
Fastener
Clamper
(J69-0168-08)
(J11-0213-04)
Bracket
(J19-4269-08)
© 2005-8 PRINTED IN JAPAN
B53-0323-00 ( N ) 1703
Plastic cabinet assy
(A02-2622-08)
Cushion
(G13-3064-08)
Screw set
(N99-2192-08)
This product uses Lead Free solder.

Advertisement

loading

Related Manuals for Kenwood KSC-SW1

Summary of Contents for Kenwood KSC-SW1

  • Page 1 TUNE UP SUB WOOFER SYSTEM KSC-SW1 SERVICE MANUAL © 2005-8 PRINTED IN JAPAN B53-0323-00 ( N ) 1703 Plastic cabinet assy (A02-2622-08) Remote controller assy (A70-0417-08) DC cord (E30-7094-05) GND: 1.5m Other: 6m Cord with pinjack Fastener Clamper Cushion (E30-7095-05)
  • Page 2 KSC-SW1 PC BOARD (FOIL SIDE VIEW) X09 B/3 X09-5880-00 Ref. No. Address W116 IC100 IC101 IC102 IC103 IC104 IC105 R161 R162 Q100 Q101 Q102 Q103 X09 C/3 Q104 Q105 Q106 Q107 R201 W113 Refer to the schematic diagram for the R202 values of resistors and capacitors.
  • Page 3 KSC-SW1 AUDIO UNIT X09-5880-00 A/3 (J76-0089-21) D107 R136 R135 C142 R138 Q103 R139 W112 R128 C135 D106 Q107 R156 C131 D105 C126 R129 R148 R127 D104 D108 W100 C125 C123 C124 D112 D109 R150 R146 R147 C106 C128 C134 C140...
  • Page 4 KSC-SW1 IC1,2,103,104 BA4560F 2SB1241 D1,3,106 LM1MA142WK-G D12,17 UDZS9.1B (X09- ) (C/3) IC100 BA10358F Q2-4,7,9-12,100,101,103, D2,4 LM1MA142WA-G D13,109 UDZS5.1B IC101,102 NJM2172V-ZBTE2 106,107 2SC4081 RM10ZLFNF UDZS15B SIGNAL LINE IC105 E-TDA7575 2SD1863 D6,21 UDZS6.8B B30-1365-05 GND LINE Q6,104 2SA1576A D7,15,110 UDZS5.6B UDZS4.7B Q102,105...

  • Page 5: Exploded View

    KSC-SW1 EXPLODED VIEW (X09-) (B/3) (X09-) (A/3) : N09-3823-05 φ4x6 (BLK) : N46-4006-43 φ4x10 : N50-4010-44 φ4x16 (BLK) : N50-4016-43 φ3x8 : N89-3008-48 φ3x10 (BLK) : N80-3010-43 φ3x8 (BLK) : N89-3008-43 φ3x14 : N89-3014-48 Parts with the exploded numbers larger than 700 are not supplied.

  • Page 6: Parts List

    KSC-SW1 PARTS LIST New parts Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Teile ohne Parts No. werden nicht geliefert. Desti- Desti- Ref. No. Parts No. Description Ref. No.
  • Page 7 KSC-SW1 PARTS LIST AUDIO UNIT (X09-5880-00) Desti- Desti- Ref. No. Parts No. Description Ref. No. Parts No. Description nation nation E39-0723-05 WIRING HARNESS (4P) R115 RK73GB2A204J CHIP R 200K J 1/10W R116 RK73GB2A104J CHIP R 100K J 1/10W L33-1809-05 CHOKE COIL...

  • Page 8: Specifications

    Installation size (W x H x D) ....400 x 91 x 228 mm Operating voltage (Minus earth) ........14.4V Weight ................3.6kg Maximum current consumption ......... 8A KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice.
