Philips CPWUA054 Instructions For Use Manual

Wireless usb adapter 11g
Hide thumbs Also See for CPWUA054:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

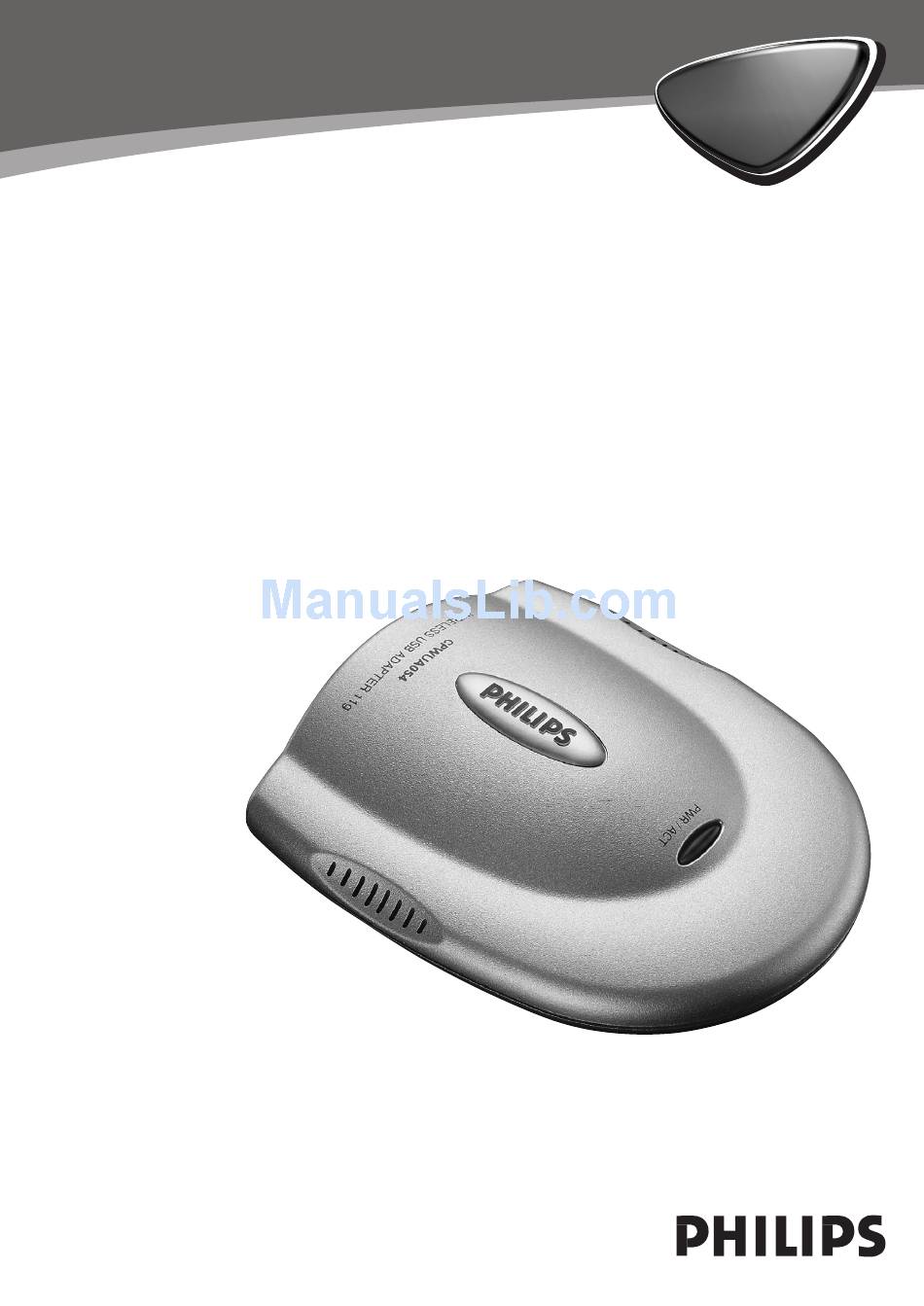

Wireless USB Adapter 11g
CPWUA054
CPWUA054
Instructions for use
Table of Contents
VERSION 1.0

Advertisement

Table of Contents
loading

Related Manuals for Philips CPWUA054

Summary of Contents for Philips CPWUA054

  • Page 1 Wireless USB Adapter 11g CPWUA054 CPWUA054 Instructions for use Table of Contents VERSION 1.0...
  • Page 3 1999/5/CE. Spanish Por medio de la presente, Philips Consumer Electronics, BLC P&A CC, declara que el CPWUA054 cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la...
  • Page 4 Helpline België/Belgique/Belgien/ 02 275 0701 Luxemburg/Luxembourg 26 84 3000 Danmark 35 25 87 61 Deutschland 0696 698 4712 España 09 17 45 62 46 France 03 8717 0033 00800 3122 1223 Ireland 01 601 1161 Italia 02 48 27 11 53 Cyprus 800 92256 European Regulations...

  • Page 5: Table Of Contents

    Table of Contents Introduction of the Wireless USB Adapter 11g ...6 What are wireless network connections?...6 Factors determining your network range and network speed ...6 Securing your wireless network...7 Packaging contents...7 Your Wireless USB Adapter 11g ...8 Important information...9 Safety Precautions ...9 Environmental information...9 Disclaimer...10 FCC compliance...11...

  • Page 6: Introduction Of The Wireless Usb Adapter 11G

    Chapter 1 - Introduction of the Wireless USB Adapter 11g CPWUA054 Thank you for purchasing the Philips Wireless USB Adapter 11g.This Wireless USB Adapter 11g is a WiFi (IEEE 802.11g) compatible USB device. It fully supports high data rates up to 54 Mbps with automatic fallback to lower speeds for secure operation at lower data rates in even the most difficult of wireless environments.

  • Page 7: Securing Your Wireless Network

    Please check whether all of the following items are present in the box of the Wireless USB Adapter 11g.These are provided to help you set up and use your Wireless USB Adapter 11g. Contact your Philips retailer if any items are missing.

  • Page 8: Your Wireless Usb Adapter 11G

    ENGLISH Your Wireless USB Adapter 11g 1 Connector to PC For connecting the Wireless USB Adapter 11g to the USB port of your PC. USB 2.0 port required for 54 Mbps. 2 Integrated antenna Built-in antenna for establishing wireless connections. 3 Indicator LED Displays the network status.

  • Page 9: Important Information

    • Allow a sufficient amount of free space all around the product for adequate ventilation. • Do not open this product. Contact your Philips retailer if you experience technical difficulties. Environmental information All redundant packing material has been omitted. We have done our utmost...

  • Page 10: Disclaimer

    ENGLISH Disclaimer This product is provided by "Philips" "as is'' and without any express or implied warranty of any kind of warranties, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose are disclaimed.

  • Page 11: Fcc Compliance

    FCC compliance This device complies with Part 15 of the FCC Rules (U.S.A.). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 12: Installing The Wireless Usb Adapter 11G

    Wireless Base Station or Wireless Access Point . A Philips Wireless Base Station is used to provide the computers in its wireless network with wireless access to the Internet or to each other.

  • Page 13: Ad Hoc Wireless Network

    Should there appear any error messages or requests for additional information on the screen, then please read the "Troubleshooting" section. Please visit our web site www.philips.com/support if you need further assistance. IMPORTANT: By installing the Wireless USB Adapter 11g and making a...

  • Page 14: Checking And Changing Settings: Cpwua Monitor

    • Profiles (e.g. DEFAULT and others in the top part of this menu) For choosing one of your profiles.The active profile is marked.You need to open (click Show) the Philips Wireless Network Manager if you want to add or delete a profile.
  • Page 15 • Hide Hides the system tray icon from the system tray until you restart your computer, without disabling the wireless network adapter. • Exit Disables the wireless network adapter and removes the system tray icon from the system tray until you restart your computer. ENGLISH...

  • Page 16: 4.2 - What Do The Settings Mean

    ENGLISH 4.2 - What do the settings mean The Wireless Network Manager program (CPWUA Monitor) has five main tabs with information and settings. Note:The Wireless On/Off button appears on the bottom of every tab to give you control over enabling and disabling the wireless link. •...
  • Page 17 Network Name – Input a wireless network name for the wireless network to which you want to connect. Alternatively, use the Site Survey tab to choose from the list of available Network Names. (Default: philips.) Operating Mode – Set the operation mode to Ad Hoc (Peer-to-Peer) for network configurations that do not have a Wireless Base Station , and to Infrastructure for configurations with a wireless base station.
  • Page 18 ENGLISH • Configuration - sub-tab Security First, click the Security ON/OFF button to enable or disable wireless security. Wired Equivalent Privacy (WEP) and WiFi Protected Access (WPA) are implemented in the adapter to prevent unauthorized access to your wireless network. The WPA (WiFi Protected Access) implemented in this Wireless USB Adapter11g uses an alphanumeric password between 8 and 63 characters long.This password may include symbols and spaces.
  • Page 19 Key Type – If the Key Type is set to Hex, the security keys are four 10 digit keys for the 64-bit WEP setting and four 26-digit keys for the 128-bit WEP setting. (The hexadecimal digits can be 0~9 & A~F, e.g. D7 0A 9C 7F E5.) –...
  • Page 20 ENGLISH • Link information The Link information tab displays information on the wireless network name (Network Name) to which there is a wireless connection, the signal strength and link quality, the connection speed, the channel and the number of transmitted/received (Tx/Rx) fragments. •...
  • Page 21 • Site Survey Selecting the Site Survey tab displays a list of available wireless network access points. Next, click Rescan to update the list. It shows you the following information: • The name of the wireless connection (Network Name, or SSID) •...

  • Page 22: General Network And Security Related Information

    ENGLISH Chapter 5 - General network and security related information The DOs and DON'Ts of securing your wireless network Note: For an example of how to encrypt your wireless network, please see the chapter on "An example of how to secure your wireless network." Enable the highest encryption key level that your hardware provides for.

  • Page 23: Securing Your Network From Internet Access

    ENGLISH access your hard drive. If you notice any of these problems on your computer, run your anti-virus program immediately to minimise the chances of losing data. Do not connect your home network to broadband Internet without taking security measures: If you do not have a wireless base station installed on your network and you are sharing Internet access through one of the computers, you may want to consider installing firewall software.

  • Page 24: Example Of How To Secure Your Wireless Network

    ENGLISH Chapter 6 - Example of how to secure your wireless network This is an example of how to secure your wireless network using the Philips Wireless USB Adapter 11g Monitor program. Double-click the CPWUA Monitor icon in the lower right corner of the screen.
  • Page 25 Select ‘ASCII' as your Key Type.This enables you to enter an encryption key in normal text. After ‘Key 1’, enter a code in text and numbers that will be hard to guess. IMPORTANT: – You need to make a difference between upper case and lower case characters.
  • Page 26 ENGLISH Set the Default Key to be used to ‘1’. Click ‘Apply changes’.
  • Page 27 ENGLISH The ‘Link information’ tab appears in which you can check the status of the wireless network connection. Next, click the ‘Configuration’ tab. Click 'Save' to save the changes you made to the wireless network profile. Finally, click ‘Exit’ to close CPWUA Monitor program. Note:The encryption key you entered will be replaced by asterisks for security reasons.

  • Page 28: Example Of Use: How To Set-Up A Computer Network

    ENGLISH Chapter 7 - Example of use: how to set-up a computer network? After installing the Philips Wireless USB Adapter 11g and establishing a wireless network connection with another wireless network device, you are ready to start using the network for the application you want to use the network for.
  • Page 29 ENGLISH Double-click the "Network and Internet connections" icon. Click in the list to the left on "Setting-up a home network or small business network".
  • Page 30 ENGLISH The Wizard Network Setup appears. Click ‘Next’ to continue. Wizard Network Settings 1 Please, carefully read the instructions the Wizard gives you, and adapt your choices to the type of network you want to set-up. Use the Help feature within the Wizard if you need more information while using the Wizard.
  • Page 31 ENGLISH 1 Enter a description that helps you recognize the computer. 2 Enter a name that is different for each computer. 3 Click ‘Next’ to continue. Enter the same workgroup name for all computers in the network, then click ‘Next’ to continue.
  • Page 32 ENGLISH Choose to make a networking setup disk.Then click 'Next'. Click ‘Finish’ to close the Wizard, and then use the disk you made to set-up your other computers.
  • Page 33 ENGLISH To share folders with the network: Start Windows Explorer and right-click the folder you wish to share with the network. Click the ‘Sharing’ tab and adapt the settings. To explore the network: Double-click the Network Environment icon on the desktop. If you need more information, consult Windows Help.

  • Page 34: For Windows 98Se And Windows Me

    ENGLISH For Windows 98SE and Windows Me See earlier on in this chapter for Windows XP and Windows 2000. Click the Windows Start button, click "Settings", and click "Control Panel" from the list. Double-click the "Network" icon.
  • Page 35 ENGLISH Click the ‘Identification’ tab. 1 Enter a name that is different for each computer. 2 Enter the same workgroup name for all computers in the network. 3 Enter a description that helps you recognize the computer. 4 Click on the ‘Configuration’ tab to continue.
  • Page 36 ENGLISH Click the ‘Sharing files and printers’ button. Select the access options you want, and click ‘OK’ to continue. Click ‘OK’ to accept the changes.
  • Page 37 ENGLISH To share folders with the network: Start Windows Explorer and right-click the folder you wish to share with the network. Click the ‘Sharing’ tab and adapt the settings. To explore the network: Double-click the Network Environment icon on the desktop. If you need more information, consult Windows Help.

  • Page 38: Network Terminology

    ENGLISH Chapter 8 - Network terminology Read this chapter if you want to know how to interpret the terminology used in this manual. A network provides a means of communication between two or more computers (and other devices) that are connected to each other through wired or wireless means.
  • Page 39 In a network, the computers need to be able to connect to each other physically.Therefore, another important network property is how the computers connect to each other, either directly or through a central device. ONE-ON-ONE WIRED NETWORK also known as: Direct connection (max.
  • Page 40 ENGLISH Central devices, like a hub, switch, router or wireless access point may be stand-alone devices or built into a computer. • A hub has multiple ports and serves as a central connection point for communication lines from all computers on a wired network. It copies all data arriving at one port to the other ports.

  • Page 41: Technical Specifications

    Chapter 9 - Technical specifications Radio IEEE 802.11g Radio Technology Direct Sequence Spread Spectrum (DSSS) Antenna Type Built-in antenna Data Rate 1 / 2 / 5.5 / 6 / 9 / 11 /12 / 18 / 24 / 36 / 48 / 54 Mbps Host interface USB specification version 2.0 (max.

  • Page 42: Troubleshooting

    ENGLISH Chapter 10 - Troubleshooting Please, check the following troubleshooting items and our web site www.philips.com/support before contacting our technical support. Problem Possible cause ADAPTER INSTALLATION PROBLEMS Your PC cannot find USB Adapter not the Wireless USB connected. Adapter or the net- work driver does not install correctly.
  • Page 43 Problem Possible cause NETWORK CONNECTION PROBLEMS If the Link LED on PC or other network the Wireless USB devices switched off. Adapter 11g does not light, or if you cannot access any network resources from the computer. No access to a Service unavailable.

  • Page 44: Year Warranty

    Naam, adres en handtekening v.d. handelaar Nombre, direccion y firma del distribudor Nome, indirizzo e firma del fornitore www.philips.com/support Go to www.philips.com/support for your guarantee. Data subject to change without notice 9082 100 03013 Certificat de garantie Certificado de garantia...
