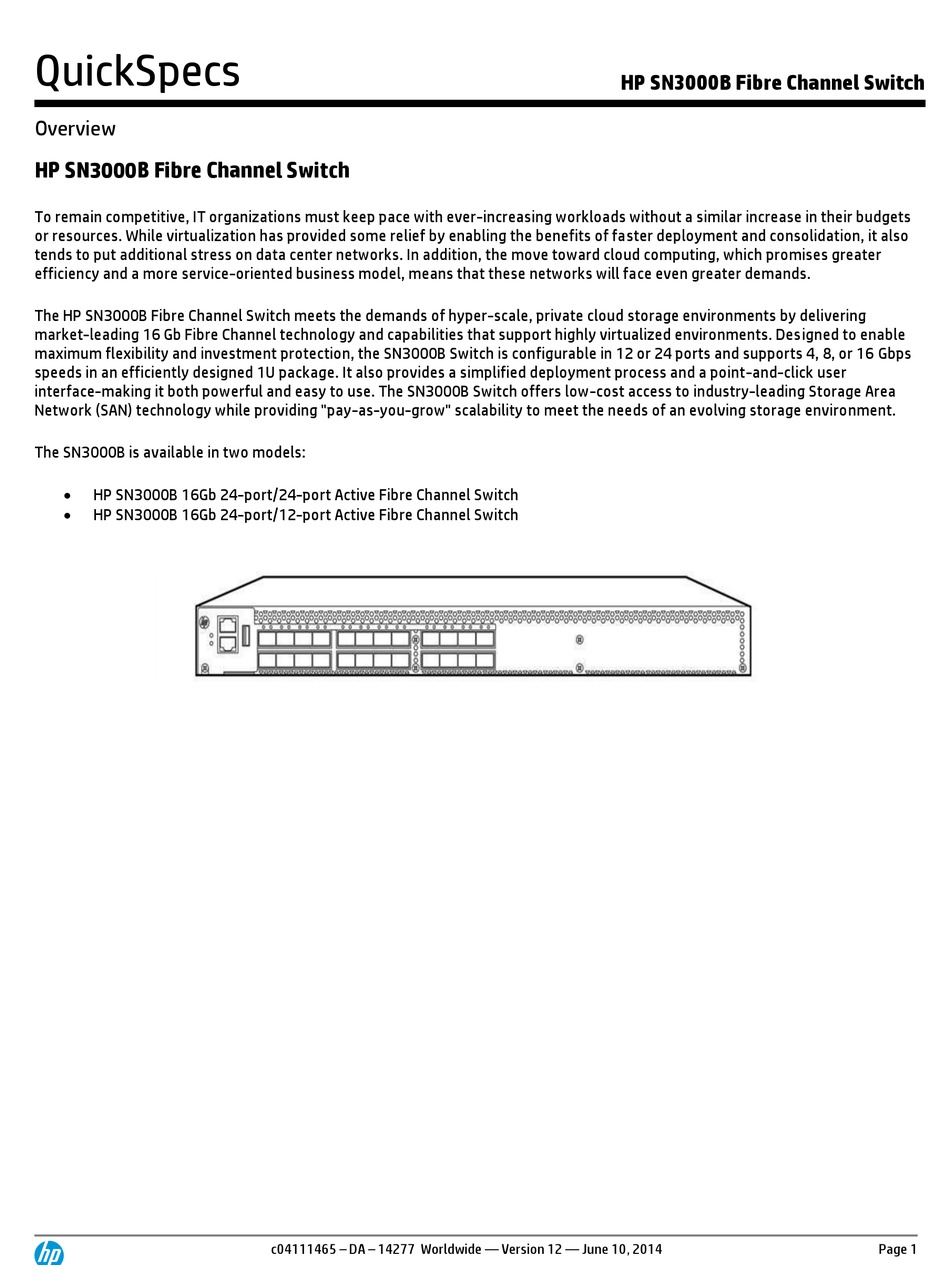

QuickSpecs
Overview

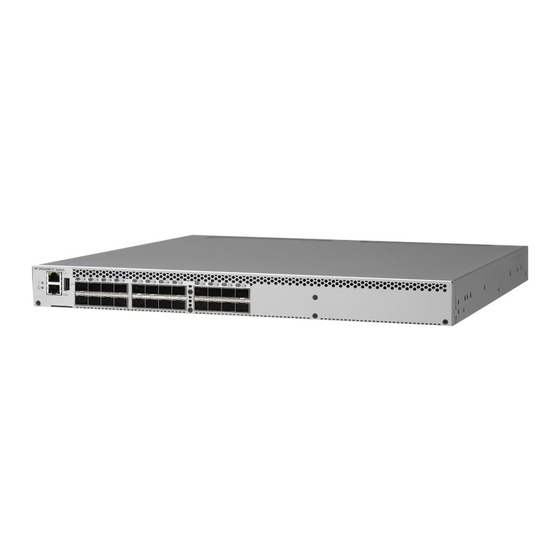

HP SN3000B Fibre Channel Switch
To remain competitive, IT organizations must keep pace with ever-increasing workloads without a similar increase in their budgets
or resources. While virtualization has provided some relief by enabling the benefits of faster deployment and consolidation, it also
tends to put additional stress on data center networks. In addition, the move toward cloud computing, which promises greater
efficiency and a more service-oriented business model, means that these networks will face even greater demands.
The HP SN3000B Fibre Channel Switch meets the demands of hyper-scale, private cloud storage environments by delivering
market-leading 16 Gb Fibre Channel technology and capabilities that support highly virtualized environments. Designed to enable
maximum flexibility and investment protection, the SN3000B Switch is configurable in 12 or 24 ports and supports 4, 8, or 16 Gbps
speeds in an efficiently designed 1U package. It also provides a simplified deployment process and a point-and-click user
interface-making it both powerful and easy to use. The SN3000B Switch offers low-cost access to industry-leading Storage Area
Network (SAN) technology while providing "pay-as-you-grow" scalability to meet the needs of an evolving storage environment.
The SN3000B is available in two models:
HP SN3000B 16Gb 24-port/24-port Active Fibre Channel Switch
HP SN3000B 16Gb 24-port/12-port Active Fibre Channel Switch
c04111465 – DA – 14277 Worldwide — Version 12 — June 10, 2014
HP SN3000B Fibre Channel Switch
Page 1
Advertisement
Table of Contents
Related Manuals for HP SN3000B
Summary of Contents for HP SN3000B
- Page 1 16 Gb Fibre Channel technology and capabilities that support highly virtualized environments. Designed to enable maximum flexibility and investment protection, the SN3000B Switch is configurable in 12 or 24 ports and supports 4, 8, or 16 Gbps speeds in an efficiently designed 1U package. It also provides a simplified deployment process and a point-and-click user interface-making it both powerful and easy to use.
-
Page 2: Key Features And Benefits
QuickSpecs HP SN3000B Fibre Channel Switch Features and Benefits Key Features and Benefits Delivers 16 Gbps performance with up to 24 ports in an energy-efficient, 1U form factor, providing maximum flexibility for diverse deployment and cooling strategies Features Ports on Demand (PoD) capabilities for fast, easy, and cost-effective scaling from 12 to 24 ports in a 12-port increment ... - Page 3 QuickSpecs HP SN3000B Fibre Channel Switch Models HP SN3000B 16Gb HP SN3000B 16Gb 24-port/24-port Active Fibre Channel Switch QW938A FC Switch Models HP SN3000B 16Gb 24-port/12-port Active Fibre Channel Switch QW937A c04111465 – DA – 14277 Worldwide — Version 12 — June 10, 2014...
-
Page 4: Product Highlights
Cabinet Support HP 22U, 36U and 42U 9000 and 10000 G1 Series, HP 25U, 33U and 41U System/e, HP 22U, 36U, and 42U 10000 G2 Series, and Intelligent Series racks. NOTE: To order factory integration, add 0D1 after the part number on your sales order. - Page 5 QuickSpecs HP SN3000B Fibre Channel Switch Product Highlights Adaptive Networking Adaptive Networking (AN) is a family of technologies which allow flexible control of traffic movement within the fabric which deliver application aware management of fabric resources. Applications may be used with multiple protocols and multiple classes of service. It includes the following features:...
- Page 6 Network Advisor that contains all critical SAN information for convenient review and analysis Fabric Vision will be included by default in all HP StoreFabric B-series Fibre Channel switches and Directors bundled with Power Pack+ (with FOS 7.2.x and later*). In all other cases, Fabric Vision can be...
- Page 7 SAN Network Advisor Professional to SAN Network Advisor Enterprise. SAN Network Advisor HP SAN Network Advisor Enterprise and Professional+ are the enterprise-class products that support Enterprise and FOS products. SAN Network Advisor Enterprise provides complete B-series Directors Management...
-
Page 8: Service And Support
Discover, plan, and Choose from a rich portfolio of services to make the most of HP StoreFabric 16Gb, so you can design efficiently and affordably consolidate, manage, and extract value from unstructured data. - Page 9 HP storage quickly and efficiently. http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA3-0774ENW.pdf HP Storage and Data Residency Service - Strategic augmentation of your current environment with HP resources who become your trusted advisor to provide answers that are right for your storage and backup environment. http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA3-9481ENW.pdf...
- Page 10 For more information www.hp.com/services/storage To learn more on HP Storage Services, please contact your HP sales representative or HP Authorized Channel Partner HP Care Pack Services are sold by HP and HP Authorized Service Partners: ...
-
Page 11: Family Information
QuickSpecs HP SN3000B Fibre Channel Switch Family Information Features 8/8 SAN Switch Base 8/24 SAN Switch 8/80 SAN Switch and SN3000B 16Gb FC SN6000B 16Gb FC and 8/8 SAN Switch Base 8/80 SAN Switch Switch Switch and SN6000B Power Pack+... - Page 12 QuickSpecs HP SN3000B Fibre Channel Switch Family Information Advanced Included with Power Pack+ or Optional Upgrade Optional Upgrade Trunking Adaptive Included Included Networking Form factor Zoning Software Yes (Included) Yes (Included) Hot plug, redundant power supplies Hot plug fans Features...
- Page 13 QuickSpecs HP SN3000B Fibre Channel Switch Family Information Ports 12 external /16 internal 4 or 8 external / 8 or 16 18 ports: 16 FC and 2 16 8Gb FC and 10 1GbE or internal Gigabit Ethernet 2 10GbE B-series...
-
Page 14: Configuration Information
HP SN3000B SAN Switch 12-port Upgrade E-LTU TC391AAE port FC Upgrade LTU (Physical Version - TC391A) 12 port upgrade license for SN3000B 16Gb 24/12 FC Switch (QW937A) SN3000B 16Gb FC Switch HP SN3000B Optional Power Supply QW939A Optional Power Supply... -
Page 15: Step 3 - Optional Software
HP StoreFabric SN3000B/SN6000B 16Gb SAN Switch Accessory Kit E7Y00A NOTE: When any of the SN3000B Switch models is ordered, an accessory kit is included in the package by default. E7Y00A is required when the original accessory kit or Rack Mount Kit is unavailable... - Page 16 E-Delivery version (ending with AAE) and the second is the physical version. NOTE: HP SAN Network Advisor software will no longer be shipped as a DVD to customers. Instead, customers will be able to access and download the software from HP's Product Download web site.
-
Page 17: Technical Specifications
SN6500B Fibre channel Switch SN3000B Fibre channel Switch SN6000B 16Gb FC Switch Brocade 4Gb SAN Switch for HP c-Class BladeSystem Brocade 8Gb SAN Switch for HP BladeSystem c-Class HP 400 MP-Router Performance Auto-sensing of 4, 8, and 16 Gbps port speeds. - Page 18 QuickSpecs HP SN3000B Fibre Channel Switch Technical Specifications One USB port for system log file downloads or firmware upgrades Fabric services Simple Name Server (SNS); Registered State Change Notification (RSCN), NTP, RADIUS, RCS (Reliable Commit Service), Dynamic Path Selection (DPS), Brocade Advanced Zoning, WEB TOOLS™.
-
Page 19: Summary Of Changes
Changed Minor edits made throughout 20-Dec-2013 From Version 9 to 10 Added HP B-series 16b Long Wave 25km Fibre Channel SFP+ 1 Pack was added to Fibre Channel Switches. 09-Dec-2013 From Version 8 to 9 Changed Product descriptions were revised throughout... - Page 20 The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
