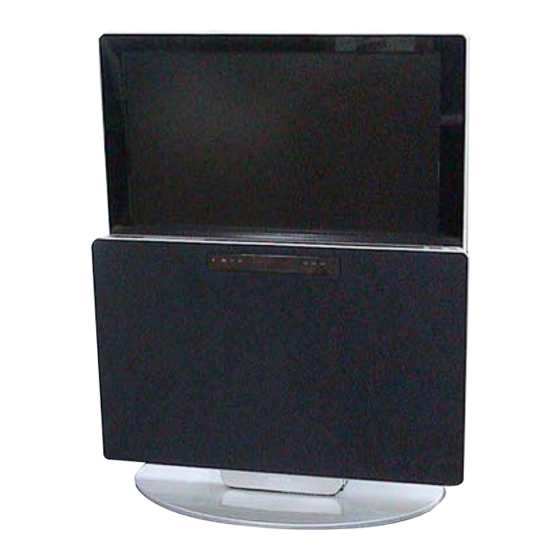

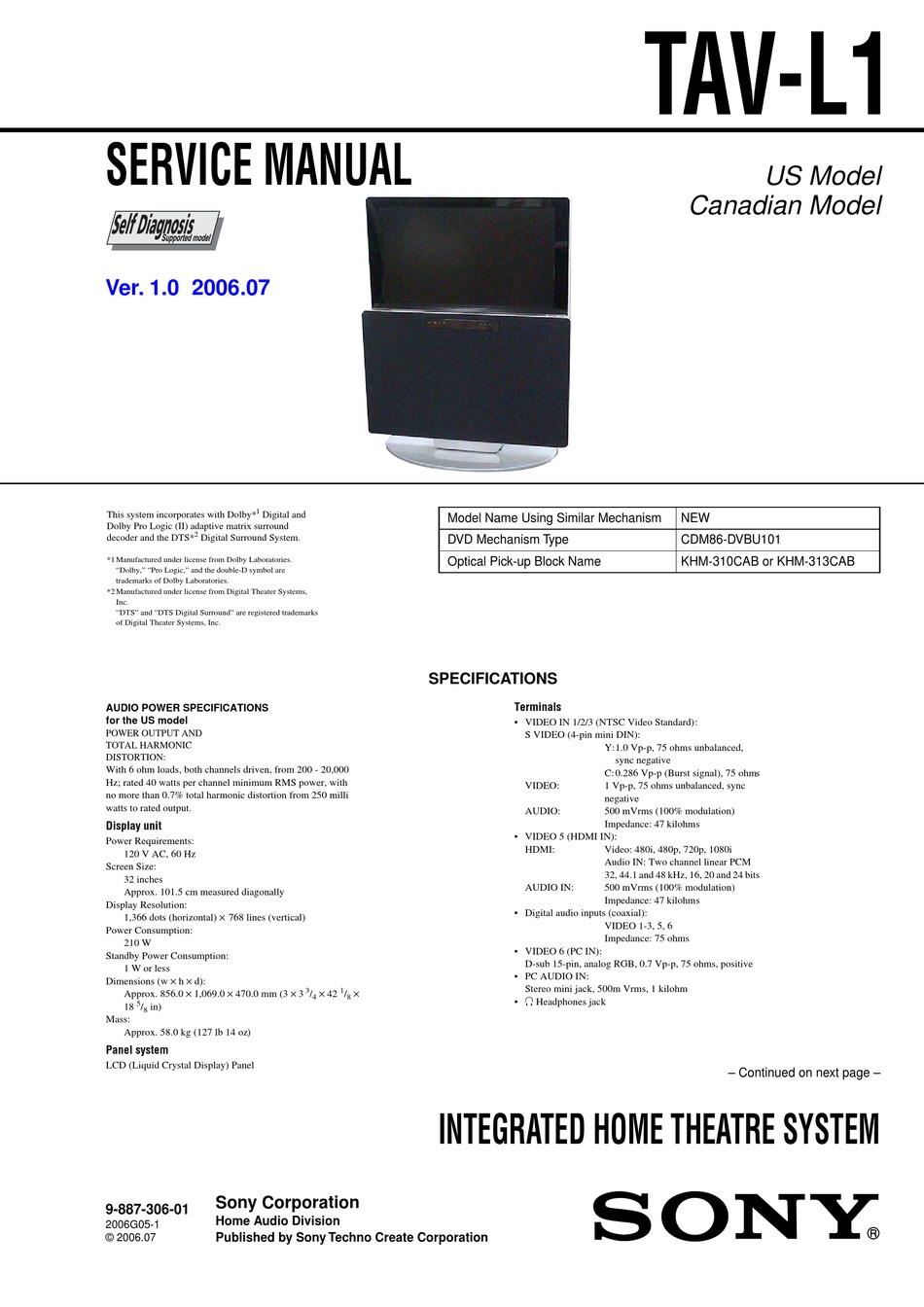

SERVICE MANUAL
Ver. 1.0 2006.07
1
This system incorporates with Dolby*
Digital and
Dolby Pro Logic (II) adaptive matrix surround
2
decoder and the DTS*
Digital Surround System.
*1 Manufactured under license from Dolby Laboratories.
"Dolby," "Pro Logic," and the double-D symbol are
trademarks of Dolby Laboratories.
*2 Manufactured under license from Digital Theater Systems,
Inc.
"DTS" and "DTS Digital Surround" are registered trademarks
of Digital Theater Systems, Inc.
AUDIO POWER SPECIFICATIONS
for the US model
POWER OUTPUT AND
TOTAL HARMONIC
DISTORTION:
With 6 ohm loads, both channels driven, from 200 - 20,000
Hz; rated 40 watts per channel minimum RMS power, with
no more than 0.7% total harmonic distortion from 250 milli
watts to rated output.
Display unit
Power Requirements:
120 V AC, 60 Hz
Screen Size:
32 inches
Approx. 101.5 cm measured diagonally
Display Resolution:
1,366 dots (horizontal) × 768 lines (vertical)
Power Consumption:
210 W
Standby Power Consumption:
1 W or less
Dimensions (w × h × d):
Approx. 856.0 × 1,069.0 × 470.0 mm (3 × 3
5
18
/
in)
8
Mass:
Approx. 58.0 kg (127 lb 14 oz)
Panel system
LCD (Liquid Crystal Display) Panel
Sony Corporation
9-887-306-01
Home Audio Division
2006G05-1
Published by Sony Techno Create Corporation
© 2006.07
Model Name Using Similar Mechanism
DVD Mechanism Type
Optical Pick-up Block Name

SPECIFICATIONS

3
× 42
1
×
/
/
4
8
INTEGRATED HOME THEATRE SYSTEM
TAV-L1
Canadian Model
NEW
CDM86-DVBU101
KHM-310CAB or KHM-313CAB
Terminals
• VIDEO IN 1/2/3 (NTSC Video Standard):
S VIDEO (4-pin mini DIN):
Y:1.0 Vp-p, 75 ohms unbalanced,
sync negative
C: 0.286 Vp-p (Burst signal), 75 ohms
VIDEO:
1 Vp-p, 75 ohms unbalanced, sync
negative
AUDIO:
500 mVrms (100% modulation)
Impedance: 47 kilohms
• VIDEO 5 (HDMI IN):
HDMI:
Video: 480i, 480p, 720p, 1080i
Audio IN: Two channel linear PCM
32, 44.1 and 48 kHz, 16, 20 and 24 bits
AUDIO IN:
500 mVrms (100% modulation)
Impedance: 47 kilohms
• Digital audio inputs (coaxial):
VIDEO 1-3, 5, 6
Impedance: 75 ohms
• VIDEO 6 (PC IN):
D-sub 15-pin, analog RGB, 0.7 Vp-p, 75 ohms, positive
• PC AUDIO IN:
Stereo mini jack, 500m Vrms, 1 kilohm
• i Headphones jack
US Model
– Continued on next page –
