Summary of Contents for Bosch PKE691C02E

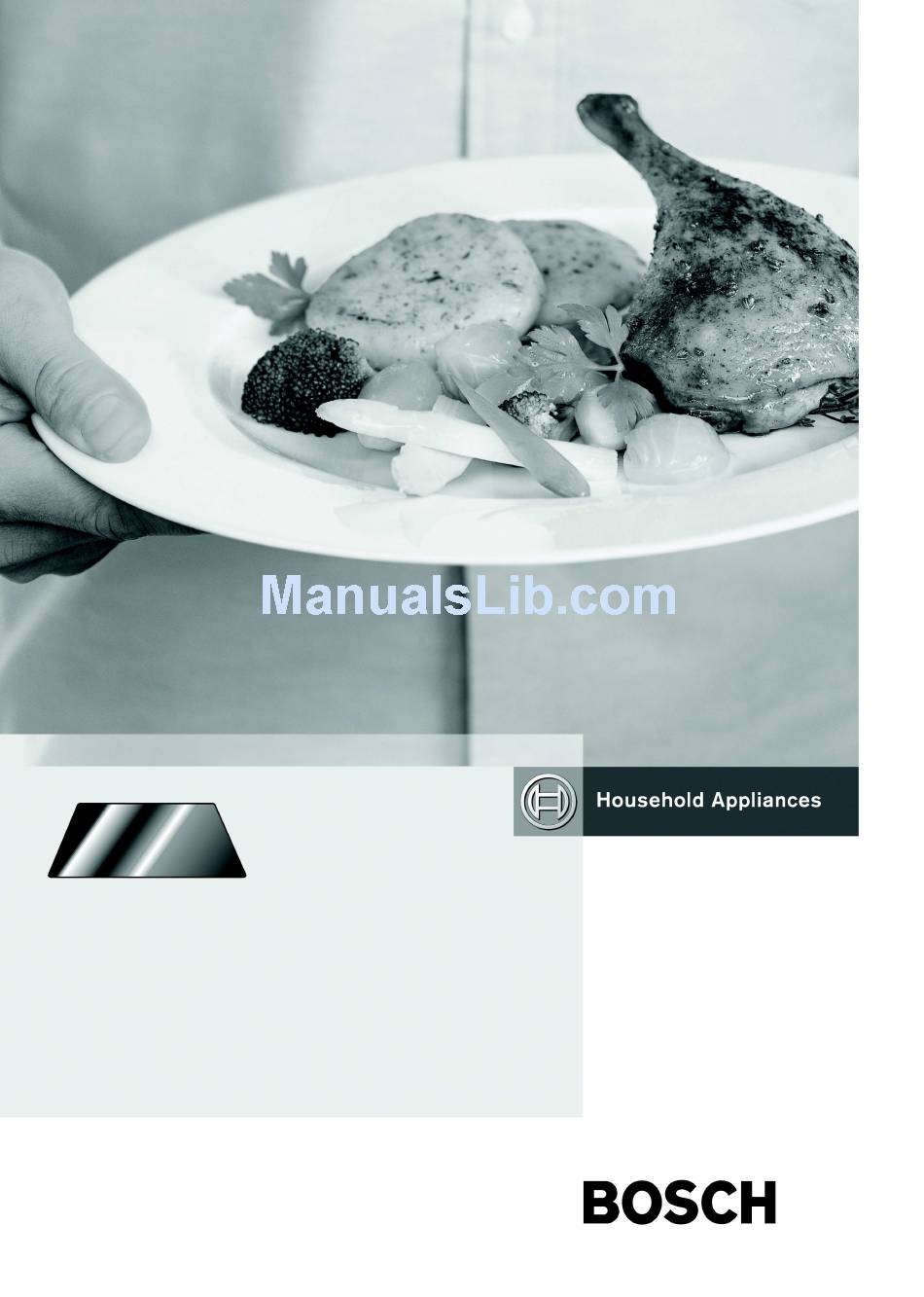

- Page 1 EN Instruction manual...
-
Page 2: Table Of Contents
Table of contents Important information ..... . . Before switching on your appliance ... . . Safety precautions . -
Page 3: Important Information
Important information Read these instructions carefully. Only after read ing these will you be able to operate the appliance correctly. Please keep the use and installation instructions in a safe place. If the appliance is passed to another per son, please enclose the instructions. Before switching on your appliance Transport damage... - Page 4 Cover the pan with a lid or plate immediately. Switch off the hotplate. Leave the ovenware on the hotplate to cool down. Hot hotplates Do not touch hot hotplates. There is a risk of burning. Children must be kept at a safe distance from the appliance.
-
Page 5: Reasons For Damage
Power cable Any work on the appliance, including replacing or fitting the power cable must be done by the Technical Services department. The intermittent working of the cooking zones is not the result of any malfunction. They are working at their full power when switched on or off for longish periods of time according to the level of power selected. - Page 6 Foil and plastic Aluminium foil or plastic containers melt on hot hobs. Oven protective foil is not suitable for your hob. Examples of possible The following damage does not affect the damage performance or strength of your hob. Presence of stains Formed by spilled or melted sugar or food with a high sugar content.
-
Page 7: Familiarising Yourself With The Appliance

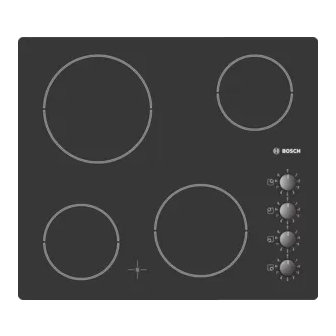

Familiarising yourself with the appliance This section describes the control panels, hotplates and displays. They are shown by appliance model. The control panel Indicators for Control panel heat setting 1 9 for selecting the operational readiness 0 hotplate residual heat H Control panel Control panel for for control... -
Page 8: The Hotplates
The hotplates Single circuit hotplate The cooking surface size of these hotplates cannot be altered. Select the correct hotplate. The saucepan and hotplate sizes should match. Residual heat indicator The hob has a residual heat indicator t for each hotplate. It shows which hotplates are still hot. If an H appears in the display, the hotplate is still hot. -
Page 9: Locking The Hob Once Off
Notes The hob switches off automatically if all the hotplates have been switched off for more than 10 seconds. If there is still residual heat available when the hob is switched back on, H and - flash alternately in the hotplate indicator. -
Page 10: How To Program
How to program Example: Select power level f of the number 3 The hotplate must be connected. cooking zone Touch the symbol a few times until a 0 flickers on the visual indication of the required cooking zone (for example 3). Note: Each cooking zone is accessed sequentially and in clockwise direction. -
Page 11: Table
Table The following table provides a few examples. The cooking time may vary depending on the type of food, its weight, and quality. Deviations are therefore possible. Quantity Heat Ongoing Ongoing cooking setting 9 cooking time Melting chocolate, chocolate coating, butter, honey 100 g gelatine... -
Page 12: Tips On Saving Energy
Quantity Heat Ongoing Ongoing cooking setting 9 cooking time Roasting roulade 4 servings 5 8 mins. 50 60 mins. pot roast 1 kg 5 8 mins. 80 100 mins. goulash 500 g 6 11 mins. 50 60 mins. Roasting pancakes (Fladle, Swabian pancakes) 2 4 mins. -
Page 13: Rapid Pre-Heating
Rapid pre-heating This function can be used when you want to heat something up to the maximum temperature quickly and then switch to a steady lower temperature automatically. How to program Example: you want to use the power level e as the All the hotplates are fitted with this function. -
Page 14: Automatic Time Limiter
Automatic time limiter If a hotplate is in constant use for a long time without the setting being changed, the automatic time limiter will be activated. The hotplate heating is interrupted. An F and an 8 flash alternately in the hotplate indicator. -
Page 15: Cleaning The Hob Surround
Unsuitable cleaning agents Do not use: Abrasive sponges, scouring pads or aggressive cleaning agents, such as oven spray or stain remover. Glass scraper You can remove thick dirt best with a glass scraper. Remove the protective cover from the glass scraper. Only use the blade to clean the glass ceramic surface. -
Page 16: Procedure In The Event Of A Malfunction
Procedure in the event of a malfunction Malfunctions often have simple explanations and may be easily rectified. Please read the following instructions before calling the after sales service. Check whether there is a power supply to the The hob does not work appliance. - Page 17 F display and numbers If F and a number flash alternately in the display, your appliance is indicating a fault. The following table contains measures for rectifying faults. Visual Fault Measure indication An internal error was Disconnect the cooking hob from the mains. Wait a few produced while the hob seconds before connecting it again.
-
Page 18: Packaging And Old Appliances
Packaging and old appliances Disposing in an Unpack the appliance and dispose of the packaging environmentally in an environmentally responsible manner. responsible manner This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). This guideline is the frame of a European wide validity of return and recycling on Waste Electrical and Electronic Equipment. - Page 19 9000147322 (1W03UA) 00 86 01...
