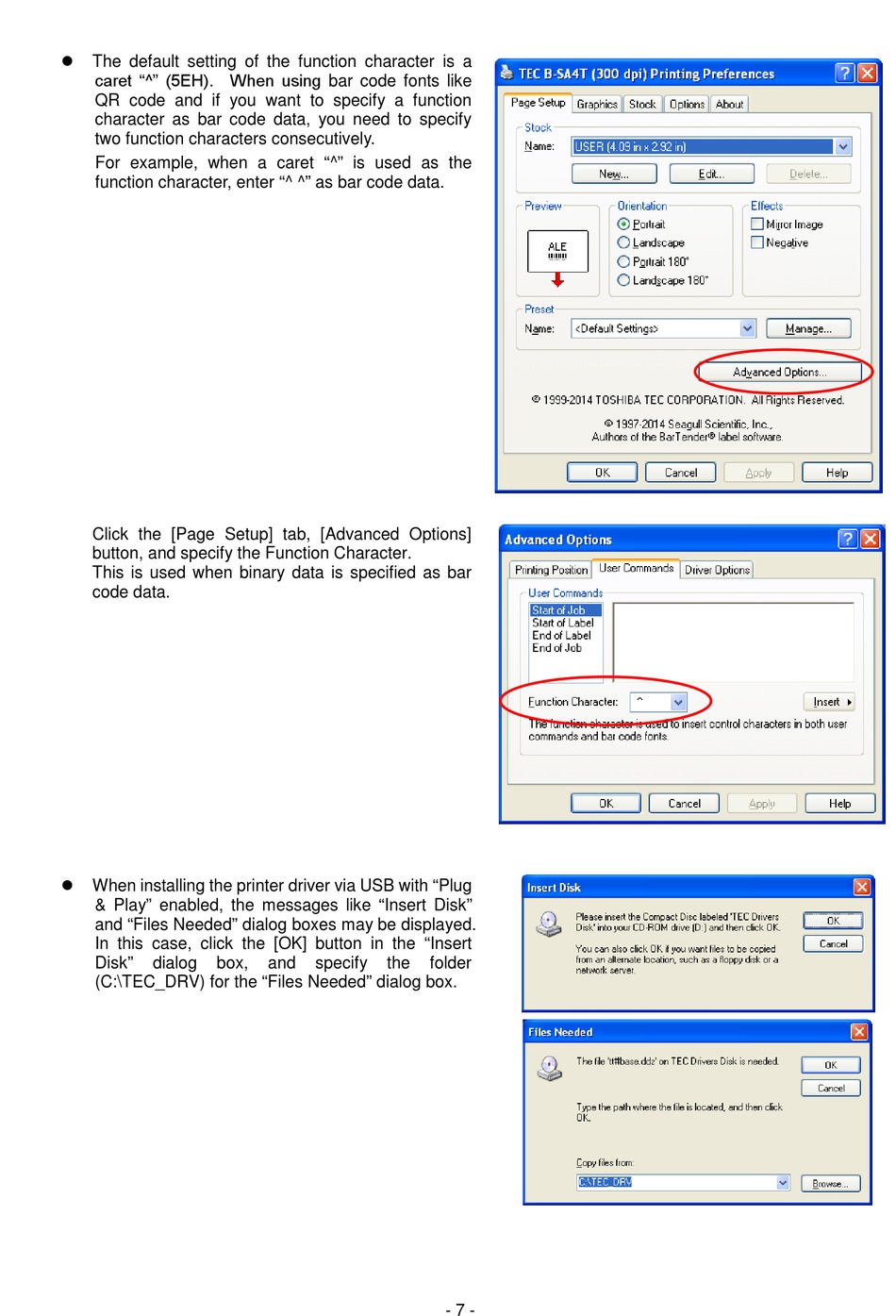

Toshiba B-452-R Printer Driver Operating Manual page 9


The default setting of the function character is a
caret "^" (5EH). When using bar code fonts like
QR code and if you want to specify a function
character as bar code data, you need to specify
two function characters consecutively.
For example, when a caret "^" is used as the
function character, enter "^ ^" as bar code data.
Click the [Page Setup] tab, [Advanced Options]
button, and specify the Function Character.
This is used when binary data is specified as bar
code data.
 When installing the printer driver via USB with "Plug
& Play" enabled, the messages like "Insert Disk"
and "Files Needed" dialog boxes may be displayed.
In this case, click the [OK] button in the "Insert
Disk" dialog box,
(C:\TEC_DRV) for the "Files Needed" dialog box.
and specify the folder
- 7 -
