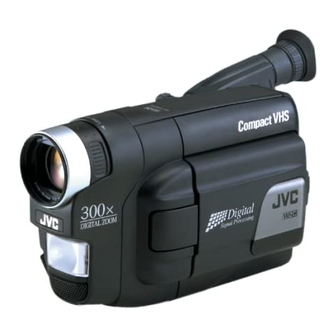

COMPACT VHS CAMCORDER
Regarding service information other than these sections, refer to the GR-AXM220U service manual (No. 86526).
Also, be sure to note important safety precautions provided in the service manual.
SPECIFICATIONS
General
Format
Power source
Power consumption
LCD monitor off, viewfinder on
LCD monitor on, viewfinder off
LCD monitor on, viewfinder on
Video light
Signal system
Video recording system
Luminance
Color
Cassette
Tape speed
SP
EP
Recording time (max.)
SP
EP
Operating
temperature
Operating humidity
Storage temperature
Weight
Dimensions (W x H x D)
Pickup
Lens
Viewfinder
White balance
adjustment
LCD monitor
Speaker
Connectors
JLIP
GR-AXM225U
Camcorder
: VHS NTSC standard
: DC 6.0 V
: 4.2 W
: 4.6 W
: 5.2 W
: 3.0 W
: NTSC-type
: FM recording
: Converted sub-carrier direct recording
Conforms to VHS standard
:
cassette
: 33.35 mm/sec. (1-5/16 ips)
: 11.12 mm/sec. (7/16 ips)
: 40 minutes
: 120 minutes (with TC-40)
: 0°C to 40°C (32°F to 104°F)
: 35% to 80%
: –20°C to 50°C (–4°F to 122°F)
: Approx. 880 g (2.0 lbs)
: 198 mm x 119 mm x 99 mm (7-13/16" x 4-11/16" x 3-15/16")
(with the LCD monitor closed and with the viewfinder fully
tilted downward)
: 1/4" format CCD
: F1.6, f = 3.9 to 62.4 mm, 16:1 power zoom lens with auto
iris and macro control, filter diameter 40.5 mm
: Electronic viewfinder with 0.5" black/white CRT
: Auto/Manual adjustment
: 2.5" diagonally measured, LCD panel/TFT active matrix
system
: Monaural
: ø3.5 mm, 4-pole, mini-head jack
(compatible with RC-5325 plug)
This service manual is made from all recycled paper.
©
COPYRIGHT
2000 VICTOR COMPANY OF JAPAN, LTD.
, 75 Ω unbalanced, analog output
Video
: 1 V
p-p
(
)
(via Video output connector)
Audio
: 300 mV (rms), 1 kΩ analog output
(via Audio output connector)
AC Power Adapter/Charger AA-V16U
Power requirement
U.S.A. and Canada
: AC 120 V`, 60 Hz
Other countries
: AC 110 V to 240 V`,
50 Hz/60 Hz
Power consumption
: 23 W
Output
Charge
: DC 8.5 V
VTR
: DC 6.3 V
Charging system
: Constant current, peak detection, timer controlled
Dimensions (W x H x D)
: 125 mm x 42 mm x 68 mm (4-15/16" x 1-11/16" x 2-11/16")
Weight
: Approx. 270 g (0.6 lbs)
Cassette Adapter C-P7U
Dimensions (W x H x D)
: 188 mm x 25 mm x 104 mm (7-7/16" x 1" x 4-1/8")
Weight
: Approx. 240 g (0.53 lbs)
Accessory
: "AA (R6)"-size battery x 1
Optional Accessories
• Battery Packs BN-V12U, BN-V20U, BN-V856U
• Car Battery Charger BH-V3U
• Battery Charger BH-VC10U
• Audio/Video Cable
• Car Battery Cord AP-V7U
• Compact VHS (
) Cassettes TC-40/30/20
• Active Carrying Bag CB-V7U
Some accessories are not available in some areas. Please consult your nearest JVC dealer for details on
accessories and their availability.
Specifications shown are for SP mode unless otherwise indicated. E & O.E. Design and specifications subject to change
without notice.
, 1.3 A
, 1.8 A
No. 86545
January 2000
