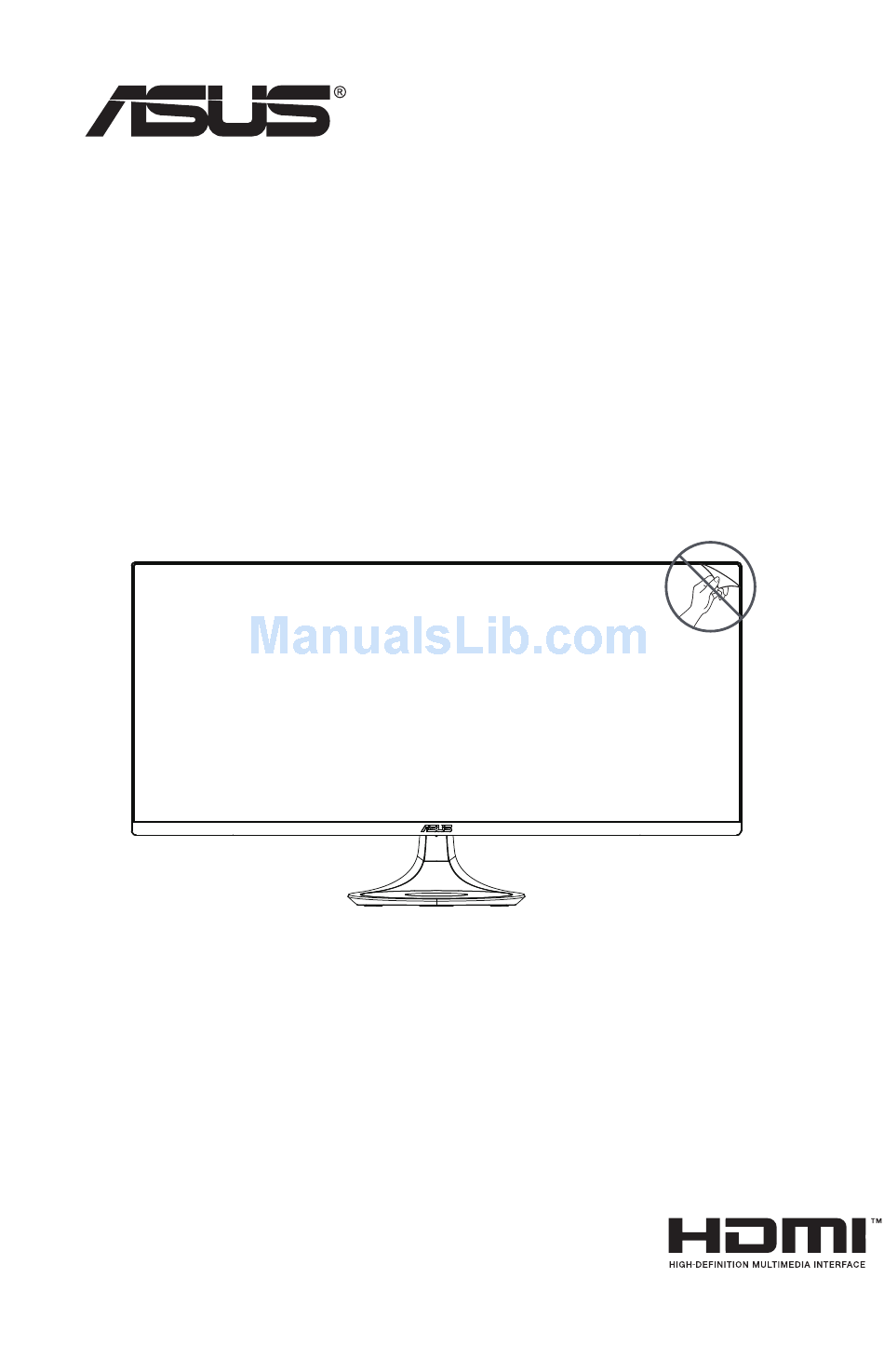

Page 1: User Guide
MX34VQ Series LCD Monitor User Guide... -
Page 2: Table Of Contents
Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. -
Page 3: Notices
Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation. -
Page 4: Safety Information
Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury. - Page 5 WARNING Usage of other than specified head- or earphones can result in hearing loss due to excessive sound pressures.
-
Page 6: Care & Cleaning
Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. • Cleaning. - Page 7 Refer to the following sources for additional information and for product and software updates. ASUS websites The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com Optional documentation Your product package may include optional documentation that may have been added by your dealer.
-
Page 8: Welcome
® Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual... -
Page 9: Disassembling The Io Cover
Disassembling the IO cover -5°~15° Chapter 1: Product Introduction... -
Page 10: Connect Cables
Connect cables 1.4.1 Rear of the LCD monitor HDMI-3 HDMI-2 HDMI-1 DC-IN Port HDMI-3(V2.0) Port HDMI-2(V2.0) Port HDMI-1(V2.0) Port DisplayPort Earphone - out Port Kensington Lock ASUS LCD Monitor MX34VQ Series... -
Page 11: Monitor Introduction
Monitor introduction 1.5.1 Using the Controls button Use the control button on the bottle of the monitor to adjust the image settings. Input Select Close Menu Power Power Button/Power Indicator: • Press this button to turn the monitor on/off. • The color definition of the power indicator is as the below table. Status Description White... -
Page 12: Wireless Charging
• Don’t remove the devices during the charging process. • Don’t place the devices with metal back cover on the base for charging. • Don’t place any metal products on the base. • Don’t place any magnetic cards on the base. ASUS LCD Monitor MX34VQ Series... -
Page 13: Osd (On-Screen Display) Menu
Press the Center key to enter the slide bar and then use the or buttons, according to the indicators on the menu, to make your changes. Press the ◄/► to move left / right menu. ASUS LCD Monitor MX34VQ Series... -
Page 14: Osd Function Introduction
Splendid This function contains eight sub-functions that you can select for your preference. Each mode has the Reset selection, allowing you to maintain your setting or return to the preset mode. ASUS MX34V Splendid Standard Mode HDMI-1 3440x1440@60Hz Standard Mode... - Page 15 Frequent blinking and eye exercise helps keep your eye moist to prevent them from drying out. In addition, your computer screen should be placed 20 to 28 inches (50-70cm) away from you ASUS LCD Monitor MX34VQ Series...
- Page 16 Color Select the image color you like from this function. ASUS MX34V Color Standard Mode HDMI-1 3440x1440@60Hz Brightness Contrast Saturation Color Temp. Skin Tone • Brightness: The adjusting range is from 0 to 100. • Contrast: The adjusting range is from 0 to 100.
- Page 17 0 to faster 100. • Aspect Control: Adjusts the aspect ratio to “Full”, “4:3”. • VividPixel: ASUS Exclusive Technology that brings lifelike visuals for crystal-clear and detail-oriented enjoyment. The adjusting range is from 0 to 100.
- Page 18 Sound Adjust the sound settings to your preference. ASUS MX34V Sound Standard Mode HDMI-1 3440x1440@60Hz Volume Mute AudioWizard • Volume: Adjusts the output volume level. • Mute: Adjust audio mute ON, OFF or Auto. Select “Auto” to turn on/off audio by source data automatically.
-
Page 19: Input Select
FreeSync. Change those sources to non-FreeSync to enable PIP/PBP function。 Input Select Select the input source from HDMI-1(V2.0), HDMI-2(V2.0), HDMI- 3(V2.0) or DisplayPort input signal. ASUS MX34V Input Select Standard Mode HDMI-1 3440x1440@60Hz HDMI-1(V 2.0) HDMI-2(V 2.0) HDMI-3(V 2.0) DisplayPort ASUS LCD Monitor MX34VQ Series... -
Page 20: System Setup
System Setup Adjusts the system configuration. ASUS MX34V System Setup Standard Mode HDMI-1 3440x1440@60Hz Splendid Demo Mode Charging Mode On During Standby GamePlus Charging Indicator Off During Standby DisplayPort Stream ECO Mode Wireless Charging Shortcut OSD Setup More ASUS MX34V System Setup Standard Mode HDMI-1 3440x1440@60Hz... - Page 21 • Information: Displays the monitor information. • Power Indicator: Turn the power LED indicator on/off. • Power Key Lock: To disable / enable power key. • All Reset: Selects “Yes” to revert all settings to the factory default mode. ASUS LCD Monitor MX34VQ Series...
-
Page 22: Specifications
3.2 Specifications Model MX34VQ Panel Size 34.0”W (86.43 cm) Max. Resolution 3440x1440@100Hz Brightness (Typ.) 300cd/m Intrinsic Contrast Ratio (Typ.) 3000:1 Viewing Angle (CR=10) 178°(V) /178°(H) Display Colors 16.7 M(True 8bit) Response Time 4ms (Gray to Gray) Satellite Speaker 8W x 2 stereo Wireless Charging Earphone Output Sound from HDMI... -
Page 23: Troubleshooting (Faq)
• Adjust the volume settings of both your monitor and computer. • Make sure the computer sound card driver is properly installed and activated. • Adjust Mute to OFF for non-standard audio signal or better compatibility. ASUS LCD Monitor MX34VQ Series 3-11... -
Page 24: Supported Timing List
Supported Timing List PC Timings List of HDMI2.0 / DP1.2 input Resolution Refresh Rate Horizontal Frequency 640x480 60Hz 31.469kHz 640x480 72Hz 35.748kHz 640x480 75Hz 37.5kHz 800x600 56Hz 35.156kHz 800x600 60Hz 37.879kHz 800x600 72Hz 48.077kHz 800x600 75Hz 46.875kHz 1024x768 60Hz 48.363kHz 1024x768 70Hz 56.476kHz... - Page 25 59.94 / 60Hz 67.433 / 67.5kHz * The modes not listed in the above tables may not be supported. For optimal resolution, we recommend that you choose a mode listed in the above tables. ASUS LCD Monitor MX34VQ Series 3-13...
-
Page 26: Declaration Of Conformity
DECLARATION OF CONFORMITY Per FCC Part 2 Section 2. 1077(a) Asus Computer International Responsible Party Name: , CA 94539. Address: 800 Corporate Way, Fremont Phone/Fax No: (510)739-3777/(510)608-4555 hereby declares that the product Product Name : LCD Monitor Model Number : MX34V****...
