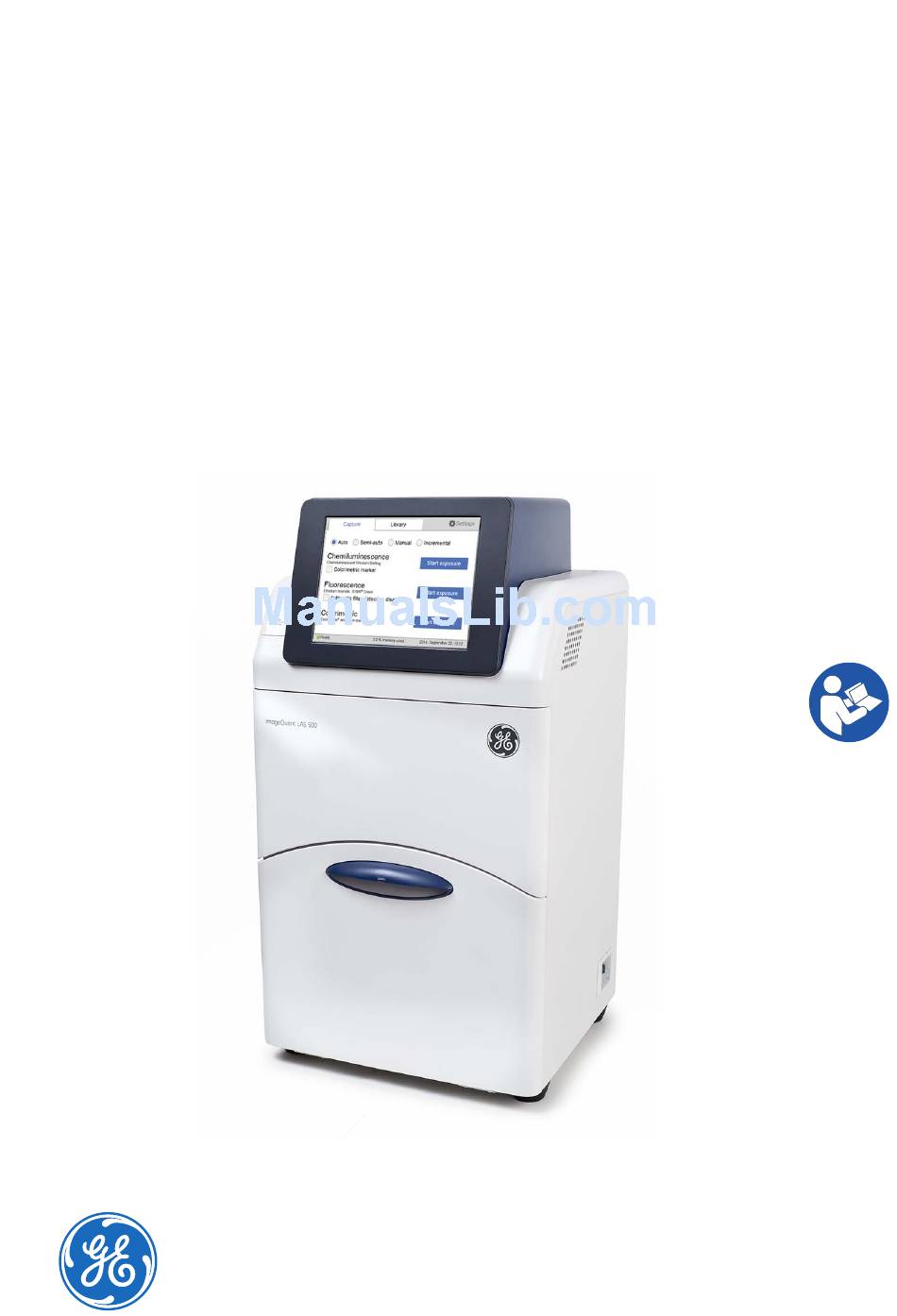

- Page 1 ImageQuant ™ LAS 500 Site Preparation Guide...
- Page 2 Table of Contents Table of Contents Introduction ......................Site preparation overview .................. Site preparation checklist .................. ImageQuant LAS 500 Site Preparation Guide 29-1358-76 AA...
- Page 3 If GE support is needed, return the completed Site preparation checklist to the GE service office in your region. You will find E-mail address and fax number to the GE service office in your region under www.gelifesciences.com/contact. If your region is not listed, select the nearest region.
- Page 4 Facilities personnel Make sure that the installation requirements are met for: • Space at the installation site Environmental conditions Biosafety Ventilation and waste collection Electrical supply Safety and installation materials ImageQuant LAS 500 Site Preparation Guide 29-1358-76 AA...
- Page 5 The imager must not be installed in a dusty environment • The imager must not be installed in a place which is constantly or exessively exposed to vibration or impacts. • The imager must not be exposed to direct sunlight ImageQuant LAS 500 Site Preparation Guide 29-1358-76 AA...
- Page 6 Access to power cord. Do not block access to the power cord. The power cord must always be easy to disconnect. Note: There must be additional space on the bench to place samples on the tray. ImageQuant LAS 500 Site Preparation Guide 29-1358-76 AA...
- Page 7 2 Site preparation overview Dimensions and weight The following illustration shows the dimensions of the ImageQuant LAS 500 imager. 570 mm 280 mm 300 mm The ImageQuant LAS 500 imager weighs 15 kg. Environmental requirements ImageQuant LAS 500 is intended for indoor use only.
- Page 8 100 to 240 V AC ±10% Frequency 50/60 Hz Max power 200 W Transient overvoltages Overvoltage category II WARNING Protective ground. The product must always be connected to a grounded power outlet. ImageQuant LAS 500 Site Preparation Guide 29-1358-76 AA...
- Page 9 Personal Protective Equipment (PPE) as required (gloves, lab coats, etc.). Other product specifications Parameter Specification Noise 70 dB(A) or lower Fast Lmax ≤60dB(A), and average Leq ≤ 54dB(A) (1 m from the instrument) Protection provided by the enclo- IP21 sure ImageQuant LAS 500 Site Preparation Guide 29-1358-76 AA...
- Page 10 Introduction Read the previous chapters in this Site Preparation Guide before completing the checklist. Complete the checklist in this chapter to make sure that all necessary preparations have been made for the installation of ImageQuant LAS 500. Checklist Requirement Comment/specify...
- Page 11 Will the ImageQuant LAS 500 imager be connected to a network? Is there on-site IT support available if needed? User supplied equipment Personal Protective Equipment (PPE) as required, (e.g., gloves, lab coats, etc.) ImageQuant LAS 500 Site Preparation Guide 29-1358-76 AA...
