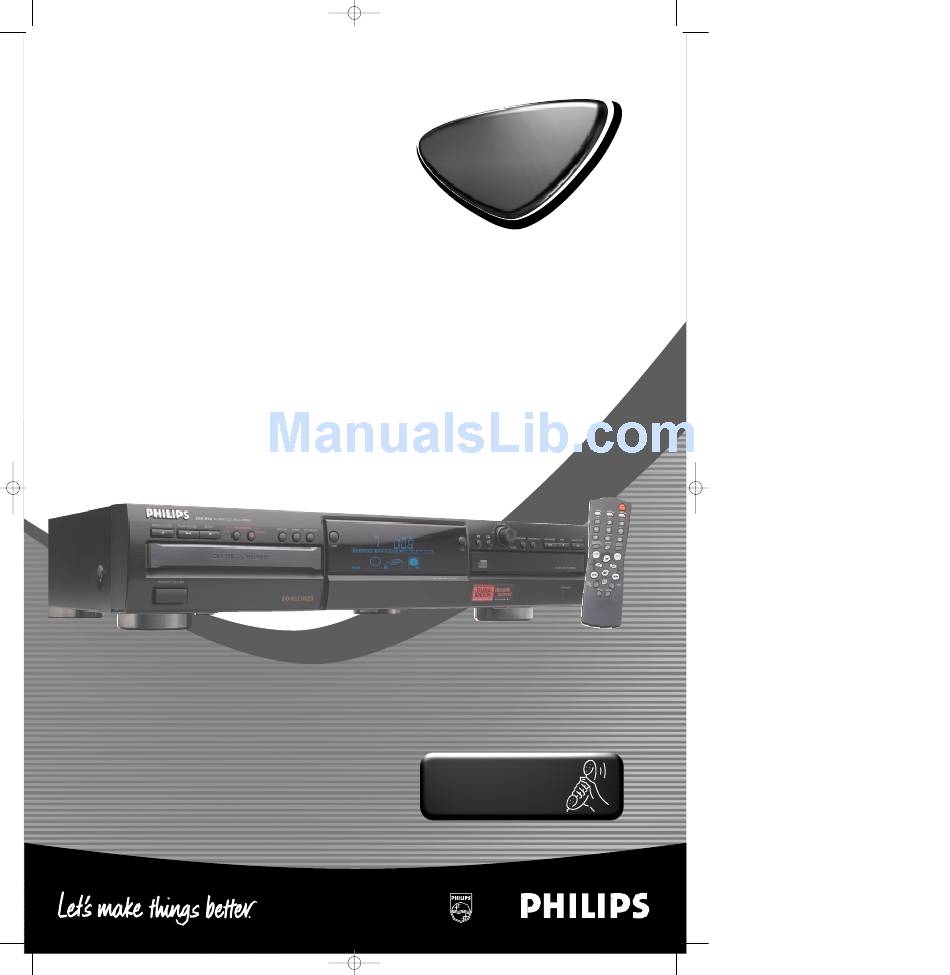

CDR 600/17 English 20-03-2001 13:27 Pagina 1 Audio CD Recorder Hookup Pages CDR- Toll Free Help Line Ligne d’assistance en service libre Linea de ayuda telefónica sin cargo 800-531-0039...
Note: Unless stated otherwise, all controls are on the front of the CD recorder. When provided on the remote control, you can also use the corresponding buttons, after selecting the CD recorder deck or CD player deck by pressing CDR or CD. ) ¡...
Page 3
2 ANALOG OUT ...connects CD player deck to the line input of an amplifier (left and right) 3 DIGITAL OUT CD ...connects CD player deck to the digital coaxial input of e.g. amplifier or recording device 4 ANALOG IN ...connects to the line output of an amplifier (left and right) 5 ANALOG OUT CDR &...
We have described the most common ways of connecting the CD recorder. If you still have difficulties with the connections you can always contact the Philips Consumer Service desk in your country. INSTALLATION...
(Connect the red plugs to the R sockets, and the white plugs to the L socket.) Note: - Never use the PHONO input. - Your CD recorder/player is equipped with a digital coaxial output for the CD player deck. This output can be used for digital playback.
Digital coaxial connections CD recorder This connection is only required if you want to make recordings from an external CD player with a digital coaxial output. Use the digital coaxial cable supplied. 1 For external recording, connect the cable 4 between the DIGITAL IN-socket on the CD recorder and the DIGITAL OUT- socket of an external CD player.
INSTALLATION Power supply 1 Plug the power cord supplied into the MAINS connector on the CD recorder, then into a mains socket. 2 Press POWER ON/OFF. ➜The recorder is now in Standby mode (Red led on). It takes approximately 2 seconds for the led to light up after pressing POWER ON/OFF.
