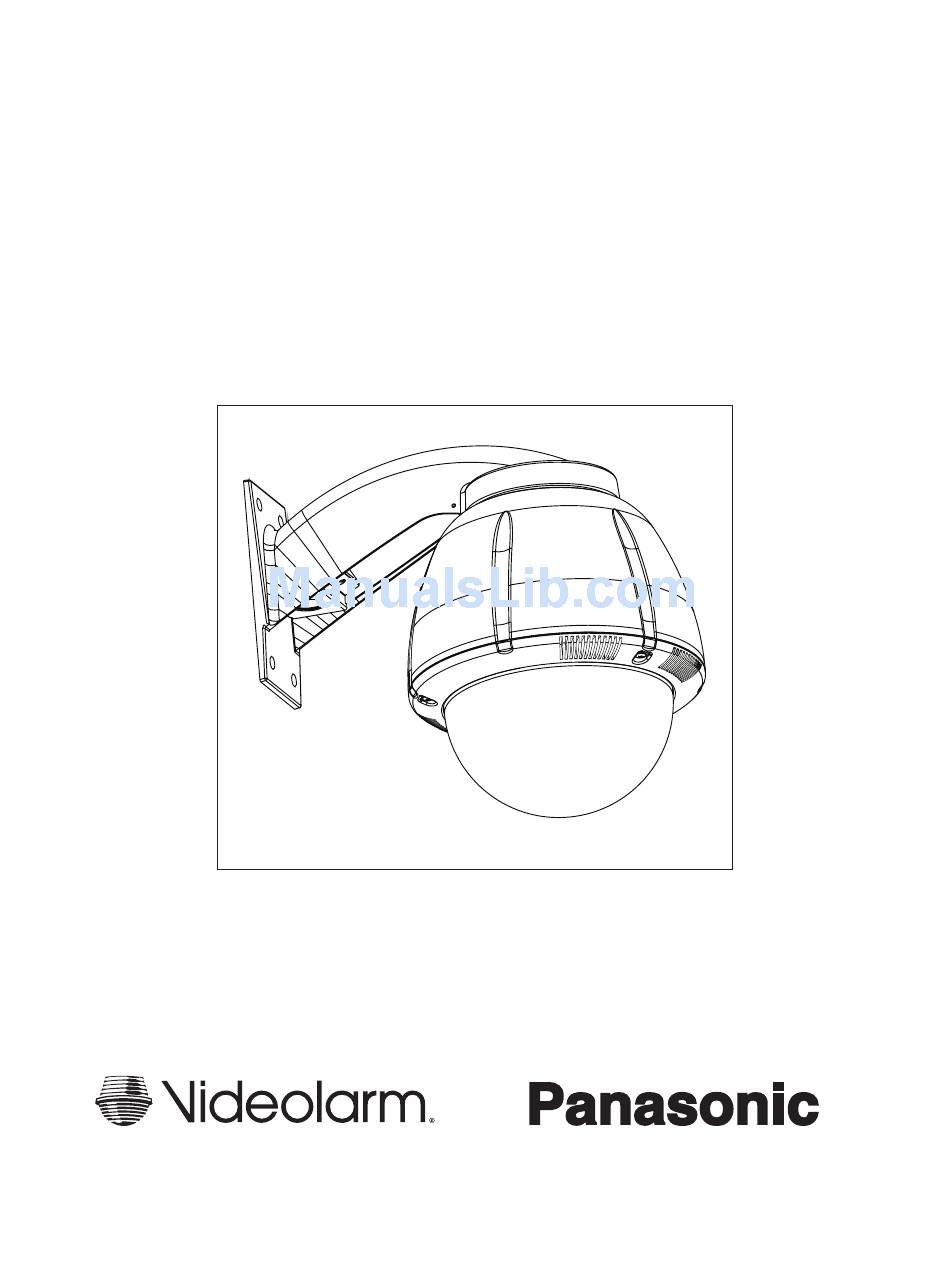

- Page 1 Installation Instructions Outdoor Dome Housings PODV7CWNS/PODV7CPNS Manufactured By: ® Before attempting to connect or operate this product, please read these instructions completely. 81-IN3090 01/18/07...
- Page 2 1. The shipping carton and packaging material. They are the safest material in which to make future shipments of the equipment. 2. These Installation and Operating Instructions. SERVICE For service on Panasonic/Videolarm equipment contact: Panasonic Technical Center 54 West Gude Dr. Rockville MD 20850-1150 Phone: 301-762-5125...
-
Page 3: Assembling The Unit
IP Ready Network Housing IP Ready Network Housing with 24Vac input, wall mount or pendant mounting, heater & blowers, WV-NS202 and camera. ELECTRICAL SPECIFICATIONS (OUTDOOR ONLY): Power 24Vac, Class 2 Only Total Power: 52 watts (camera not included) Accessories (Heater/Blower): 52 watts Heater: 50 watts Blower: 2 watt Camera Power: 26 watts... - Page 4 INSTALLATION of the WV-NV0 Camera in the PODV7 Housing Install the quick release plate on top of the spacers already installed in the housing. Note the orientation of the bracket. The securing tab must be facing the front of the housing. Secure the quick release plate into the housing using the (4) #8 bolts and star washers provided in the packet assembly.
- Page 5 WIRING INSTRUCTIONS (OUTSIDE OF HOUSING) Wiring Color Code Power and Control Inputs POWER Camera Power (24 VAC) Camera Power (24 VAC) Heater and Blower Power (24 VAC) Heater and Blower Power (24 VAC) CONTROL Alarm 1 Alarm 2 Alarm 3 Common (2) 40Va power transformers are provided with all outdoor units.
-
Page 6: Installing The Housing Assembly
INSTALLING THE HOUSING ASSEMBLY: Be sure the bracket is properly and securely mounted to a supporting structure capable of rigidly holding the weight of the entire unit. NOTE: This unit is designed for operation in an upright position. Installing the housing upside down may cause damage to the internal equipment, and will void the warranty. -
Page 7: Installing Wall Mount
A wall mount bracket comes standard with this unit, and a template is included to use as a guide for mounting the bracKet to a wall. 1. Choose the desired location for installation and mark the drill holes using the template. Screw (2) bolts (not provided) about ¾... - Page 8 Exploded View for Replacement Parts - 8 -...
- Page 9 Part Number RPRH702 RC7C RC7T RPRH726 RPRH703 RPFD072 RPRH707 RPFD060 RPFD040 RPRH709 RPFD2612 WM10 RPFD080 RPNET02 RP-FDJV-2000 RPPKPODV SD0160 SD0170 RPPKE1125 RPPKH2100 Description Lower Trim Ring (White) Clear Replacement Capsule Tinted Replacement Capsule Spacing Ring Clamping Ring 24VAC Heater Connection PCB Camera Bracket Upper Bracket Assembly Housing Top...
- Page 10 Mounting Template R .733 2.132 5.500 1.537 2.981 2.000 3.250 - 10 -...
