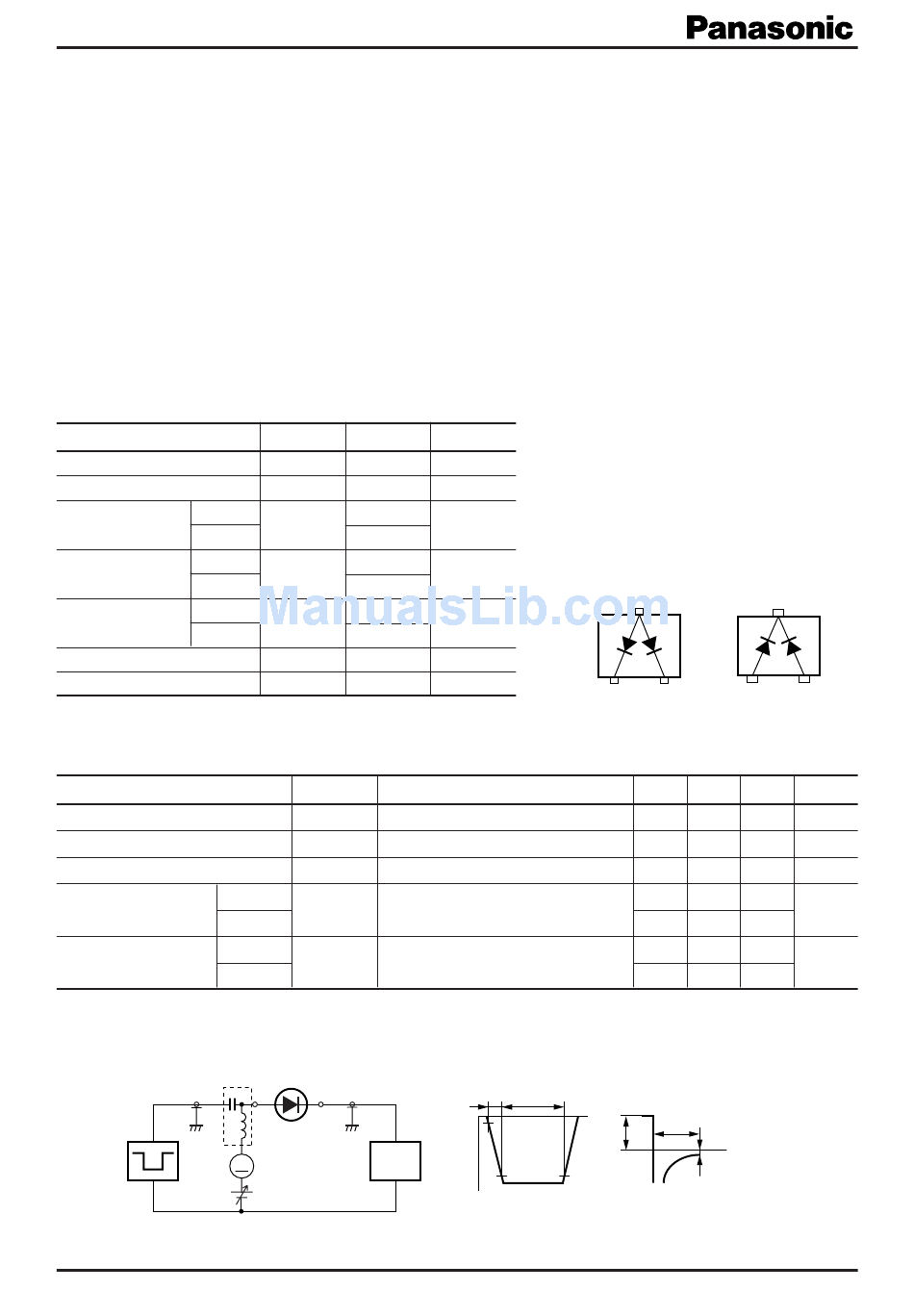

This product complies with the RoHS Directive (EU 2002/95/EC). Switching Diodes MA3S132DG, MA3S132EG Silicon epitaxial planar type For switching circuits ■ Features • Short reverse recovery time t • Small terminal capacitance C • Two isolated elements contained in one package, allowing high- density mounting ■...
Page 2
This product complies with the RoHS Directive (EU 2002/95/EC). MA3S132DG, MA3S132EG Characteristics charts of MA3S132DG V = 150°C 100°C 25°C −20°C −1 −2 ( V ) Forward voltage V T = 75 V 35 V −1 −40 ( °C ) Ambient temperature T ...
Page 3
( V ) Forward voltage V T = 75 V 35 V −40 ( °C ) Ambient temperature T MA3S132DG, MA3S132EG V = 150°C 100°C 25°C ( V ) Reverse voltage V V f = 1 MHz = 25°C...
Page 4
This product complies with the RoHS Directive (EU 2002/95/EC). MA3S132DG, MA3S132EG SSMini3-F3 +0.05 1.60 − 0.03 +0.05 0.26 − 0.02 (0.50) (0.50) 1.00 ±0.05 (5°) SKF00083AED Unit: mm +0.05 0.13 − 0.02...
