Page 1

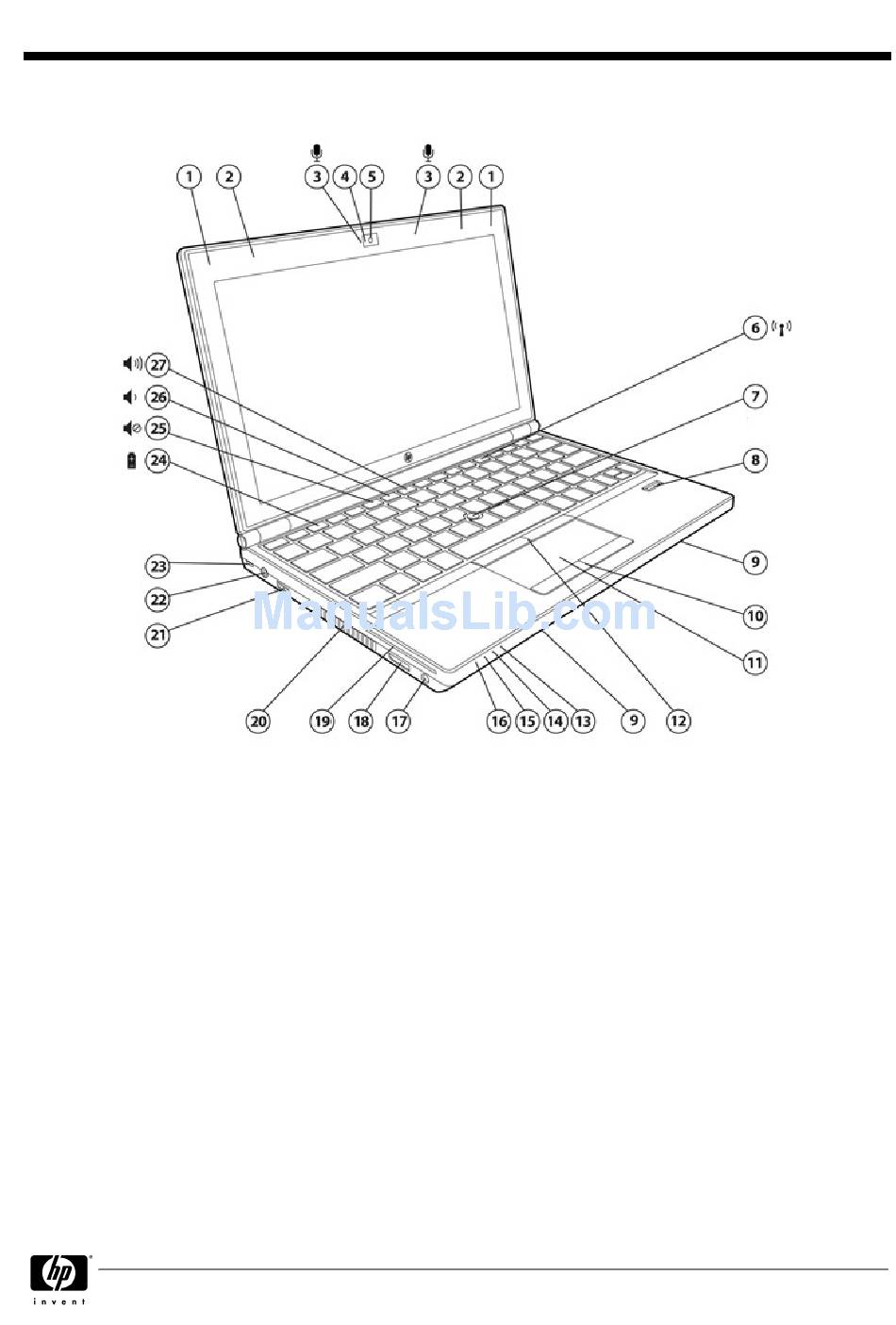

25. Volume mute function key Pointstick buttons (2) 26. Volume down function key Drive activity / HP 3D DriveGuard LED indicator 27. Volume up function key Battery charging LED indicator DA - 14303 Worldwide QuickSpecs — Version 3 — 6.22.2012...
Page 2
QuickSpecs HP EliteBook 2170p Notebook PC Overview Media Card Reader RJ-45 (network) jack Power on External monitor port USB 3.0 charging port 1. Service cover release Battery release latch 2. SIM card slot (in battery bay) 6. Hard drive bay and memory module compartments 3.
Page 3
® Bluetooth Choice of 7200 rpm user-removable hard drive up to 750 GB with HP 3D DriveGuard protection, or 128/180 GB Solid State Drive or 256 GB SED Solid State Drive Standard commercial 1 year warranty DA - 14303 Worldwide QuickSpecs — Version 3 — 6.22.2012...
QuickSpecs HP EliteBook 2170p Notebook PC Features OPERATING SYSTEM Preinstalled Genuine Windows® 7 Professional 32* Genuine Windows 7 Professional 64* Genuine Windows 7 Home Premium 32* Genuine Windows 7 Home Premium 64* Genuine Windows 7 Home Basic 32* FreeDOS Supported...
Page 5
QuickSpecs HP EliteBook 2170p Notebook PC Features ® INTEL CORE I5 WITH VPRO/CORE I7 WITH VPRO TECHNOLOGY CAPABLE Intel® Core i5 with vPro and Core i7 with vPro technology is a selectable feature that is available on units configured with select processors, an Intel Centrino® Advanced-N or Ultimate-N WLAN module and a preinstalled Windows operating system.
Page 6
* Maximum memory speed supported by the system may be 1333 MHz or 1066 MHz. NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
Page 7
Keyboard The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard and a drain system that funnels fluid through a hole in the bottom of the notebook. This minimizes the risk of damage to sensitive components underneath.
Page 8
**** Intel® AT security requires a separately purchased Absolute Computrace service subscription and must be activated and configured. Check with Absolute for availability in your country. Intel® and HP assume no liability for lost or stolen data and/or systems or any other damages resulting therefrom. See http://www.intel.com/technology/anti-theft/...
HP Services offers limited 3 year and 1 year warranty options depending on country; 1 year limited warranty on primary battery; 3 year limited warranty on HP Long Life Battery (only available with 3 year platform warranty). On-site service and warranty upgrades are also available. HP Care Pack Services extend service contracts beyond the standard warranties.
SABS UKRSERTCOMPUTER * Configurations of the HP EliteBook 2170p that are ENERGY STAR qualified are identified as HP EliteBook 2170p ENERGY STAR on HP websites and on www.energystar.gov. ** EPEAT registration varies by country. See www.epeat.net for registration status by country.
Page 11
QuickSpecs HP EliteBook 2170p Notebook PC Technical Specifications DISPLAY 11.6-inch LED HD (1366 Active Area 9.88 x 5.67 in (25.61 x 14.40 cm) x 768) Anti-glare Dimensions (W x H) 11.53 x 6.49 in (29.3 x 16.5 cm) Diagonal Size 11.6 in (29.46 cm)
Page 12
QuickSpecs HP EliteBook 2170p Notebook PC Technical Specifications 500 GB 7200 rpm SATA Drive Weight 0.25 lbs (115g) Hard Drive Capacity 500 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
Page 13
QuickSpecs HP EliteBook 2170p Notebook PC Technical Specifications SATA 6 Gb/s 256 GB, Drive Weight 73 Grams 2.5-inch SATA SED Capacity 256 GB Solid State Drive Height 0.276 in (7 mm) Width 2.76 in (70 mm) Interface SATA 3 (6 Gb/s)
Page 15
QuickSpecs HP EliteBook 2170p Notebook PC Technical Specifications V.92 56K Data/Fax Form Factor MDC 1.5 Daughtercard Modem Power Management APM Revision 1.2, ACPI Support Approvals/ UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC Certifications Part 15 Class B, Canadian ICES-003 Class B, C.I.S.P.R.22, Australian ACA, CE Mark, Other Countries Data Mode Capabilities V.92 data...
Page 16
QuickSpecs HP EliteBook 2170p Notebook PC Technical Specifications HP un2430 Technology/Operating GSM/GPRS/EDGE: 850MHz(Cell), 900MHz(EGSM), 1800MHz(DCS), EV-DO/HSPA Mobile Bands 1900MHz (PCS) Broadband Module UMTS/WCDMA with receive diversity: 2100MHz (UTRA FDD Band I), 1900MHz (UTRA FDD Band II), AWS (UTRA FDD Band IV),...
Page 17
QuickSpecs HP EliteBook 2170p Notebook PC Technical Specifications Interoperability Wi-Fi certified Cisco Compatible Extensions Program compliant with Microsoft Windows 7, Windows Vista and XP (details at: http://www.hp.com/go/notebooks/WLAN) Frequency Band 2.4 GHz and 5GHz Antenna Structure 2 transmit; 2 receive (2x2) Data Rates 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps...
Page 18
QuickSpecs HP EliteBook 2170p Notebook PC Technical Specifications Altitude Operating 0 to 10,000 ft (3,048 m) Non-operating 0 to 50,000 ft (15,240 m) LED Activity LED Off - Radio OFF; Solid LED On - Radio ON 1. Check latest software/driver release for updates on supported security features.
Page 19
QuickSpecs HP EliteBook 2170p Notebook PC Technical Specifications Dimensions 1.06 x 1.18 x 0.19 in (26.80 x 30.00 x 4.75 mm) Operating Voltage 3.3v +/- 10% Temperature Operating 14° to 158° F (-10° to 70° C) Non-operating -40° to 176° F (-40° to 80° C)
Page 20
QuickSpecs HP EliteBook 2170p Notebook PC Technical Specifications Bluetooth Profiles Serial Port Profile (SPP) Supported Service Discovery Applicaton Profile (SDAP) Dial-Up Networking (DUN) Generic Object Exchange Profile (GOEP) Object Push Profile (OPP) File Transfer Profile (FTP) Synchronization Profile (SYNC) Hard Copy Cable Replacement (HCRP)
Page 21
QuickSpecs HP EliteBook 2170p Notebook PC Technical Specifications Humidity Operating 0% to 90% Non-operating 0% to 95% Altitude Operating 15,000 ft (4,572 m) Non-operating 40,000 ft (12,192 m) Bluetooth Profiles Serial Port Profile (SPP) Supported Service Discovery Application Profile (SDAP)
Page 22
QuickSpecs HP EliteBook 2170p Notebook PC Technical Specifications Internal Stereo Speaker Power Rating 2 Watts Impedance 4 ohms POWER HP 65W Smart AC Dimensions 4.17 x 1.85 x 1.1 in (10.6 x 4.7 x 2.8 cm) Adapter Weight 0.62 lb (280 g)
Page 23
END-OF-LIFE MANAGEMENT AND RECYCLING Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic areas. To recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.
Page 24
The warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
