- Page 1 HW-K650 HW-K651 User Manual For further information, refer to the Web Manual. Web manual : www.Samsung.com Owners & Support Manuals & Downloads → → → Product name search → HW-K650 or HW-K651 * Design, specifications, and App screen are subject to change without prior notice.
-
Page 2: Safety Information
SAFETY INFORMATION c The following also applies to the Wireless Subwoofer (PS-WK650/PS-WK651). SAFETY WARNINGS TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lighting flash and arrowhead within the triangle indicates that there is dangerous CAUTION voltage Inside the product. - Page 3 FCC NOTE (for U.S.A): Important Safety Instructions Read these operating instructions carefully before Class B FCC Statement using the unit. Follow all the safety instructions listed The included module(s) has been tested and found to below. Keep these operating instructions handy for comply with the limits for a Class B digital device, future reference.
- Page 4 PRECAUTIONS 1. Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the back of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4 inches). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot.
-
Page 5: Checking The Components

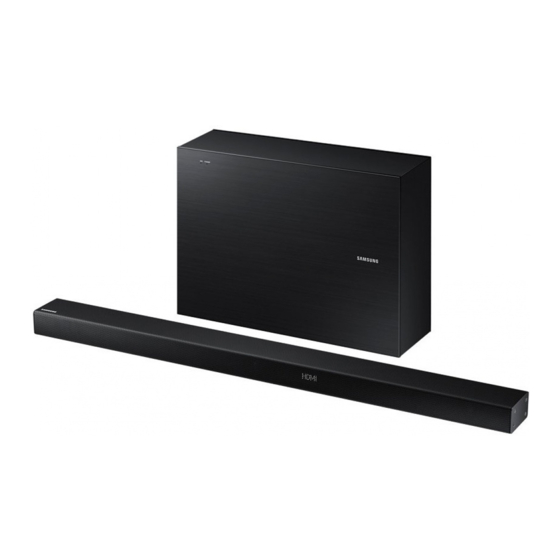

Subwoofer Optical Cable 1 Power Cord c Micro USB to USB adapter and HDMI cables are sold separately. To purchase, contact a Samsung Service Center or Samsung Customer Care. CONNECTING ELECTRICAL POWER Use the power components (1, 2, 3) to connect the power supplies in the following order: Subwoofer ... - Page 6 CONNECTING THE SUBWOOFER TO THE SOUNDBAR MAIN UNIT You can enjoy rich bass tones and better sound quality by linking the subwoofer to the Soundbar main unit. Soundbar Main Unit Subwoofer The Soundbar main unit and subwoofer should link (connect wirelessly) automatically when the Soundbar main unit and subwoofer are turned on.
-
Page 7: Connecting To Your Tv
CONNECTING TO YOUR TV You can enjoy TV sound after connecting the Soundbar to your TV with or without a cable. c Important: Before you begin, put the battery into the remote. See page 17 for instructions. Method 1. Connecting with a Cable Check the DIGITAL AUDIO IN (OPTICAL) port of the Soundbar main unit. - Page 8 TV on or off by setting the Bluetooth POWER On function to On. See page 18. c The TV SoundConnect (Soundshare) function is only available in some Samsung TV products released since 2012. c If you want to disconnect the existing connection to your TV and establish a new connection to another TV, press the &...
- Page 9 2. Connect your smart device (smart phone, tablet, etc.) to your wireless router. Samsung Multiroom Internet Wireless Router Smart Device 3. Install the Samsung Multiroom app on your smart device (smart phone, tablet, etc.). 4. Launch the Samsung Multiroom app. Samsung Multiroom Android Samsung Multiroom app 5.
- Page 10 Adding the Soundbar to an Existing Multiroom Audio System If the Samsung Multiroom app is already installed for use with Wi-Fi SETUP SPK ADD another multiroom audio device, follow these steps to add the Soundbar. 1. Press and hold the SPK ADD button on the bottom of the...
- Page 11 You can connect your TV to the Soundbar through a wireless network and enjoy the TV sound. c Important: Make sure that the TV and Soundbar are connected to the same network. (How to check your Samsung TV network : Home menu Network Network Status) Configuring Settings from your Samsung Smart TV c To play sound via the Soundbar, make sure that your TV model supports the Multiroom feature (Samsung Smart TVs released after 2014).
- Page 12 Connecting Samsung Multiroom Audio System to the Surround You can enjoy three-dimensional sound in surround mode after connecting two Multiroom Audios and a Soundbar. c Surround connection between a Multiroom Audio and a Soundbar is unavailable. 1. Touch to go to the list of all speakers.
-
Page 13: Connection Via Bluetooth
4. Play music on the connected device. [If failed to connect to the Bluetooth device / If device searching is needed again] • Delete the previous "[AV] Samsung Soundbar Kxxx" found by the Bluetooth device and have it search for the Soundbar again. -
Page 14: Connecting To An External Device
USB port on your Soundbar. For more information about how to download update files, go to the Samsung Electronics website at (samsung.com/sec) search for the model name download the firmware from the customer support menu option. -
Page 15: Installing The Wall Mount
Wallmount Components INSTALLING THE WALL MOUNT You can use the wall mount bracket to mount this unit on a wall. (Wall Mount L) (Wall Mount R) Bracket-Wall Mount (2 EA) I nstallation Precautions • Install on a vertical wall only. •... - Page 16 2. Align the Paper Template's Center Line with the 5. Push a screw (not supplied) through each center of your TV (if you are mounting the Holder-Screw, and then screw each screw Soundbar below your TV), and then fix the Wall firmly into a support screw hole.
-
Page 17: D Etaching The Soundbar From The Wall
7. Install the Soundbar with the attached Bracket- D ETACHING THE SOUNDBAR Wall Mounts by hanging the Bracket-Wall Mounts on the Holder-Screws on the wall. FROM THE WALL 1. To separate the Soundbar from the wall, push it in the direction of the arrow, lift up the left side slightly, and then pull it away from the wall as shown. - Page 18 REMOTE CONTROL BUTTONS & FEATURES Inserting Battery before using the Remote Control 1. Use a suitable coin to turn the remote control's battery cover counterclockwise to remove it as shown in the figure below. 2. Insert a 3V lithium battery. Keep the positive (+) pole facing up when inserting the battery.
- Page 19 Selects the previous file. Skip Back The Repeat function is available only when your are playing back music using Songs on Phone or DMS of the Samsung Multiroom app. Repeat • OFF-REPEAT : Cancels Repeat Playback. • TRACK-REPEAT : Plays a track repeatedly.
-
Page 20: Troubleshooting
The terms HDMI and HDMI High-Definition È TV SoundConnect is supported by some Multimedia Interface, and the HDMI Logo are Samsung TVs released from 2012 on. Check trademarks or registered trademarks of HDMI your TV to see if it supports TV SoundConnect. -
Page 21: Open Source License Notice
• If you have a problem with this product, we strongly recommend you read the appropriate section of this manual, visit the Support page for your product at www.samsung.com, or call Samsung Product Support (1-800-726-7864) to find an answer before you contact a service center for a repair. - Page 22 Transportation of the product to and from the service center is the responsibility of the purchaser. SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG.
- Page 23 Pine Brook, New Jersey 07058 Questions or Comments? COUNTRY CALL OR VISIT US ONLINE AT WRITE Samsung Electronics America, Inc. 1-800-SAMSUNG IN THE US www.samsung.com/us/support 85 Challenger Road (726-7864) Ridgefield Park, NJ 07660 © 2016 Samsung Electronics Co., Ltd. All rights reserved. AH68-02917A-06 AH68-02917A-06...
