QuickSpecs
Overview

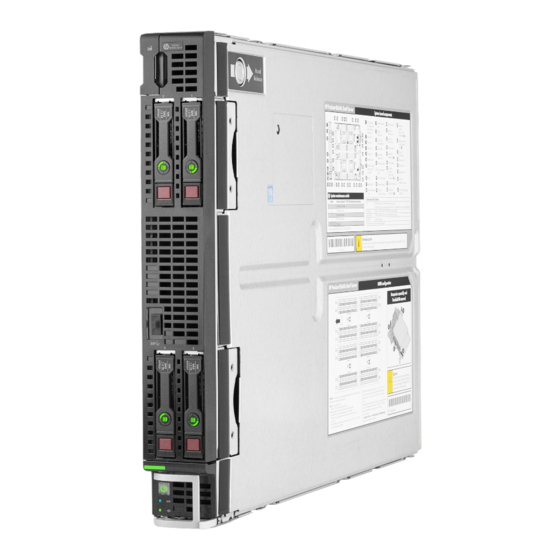

HP ProLiant BL660c Gen9 Server Blade

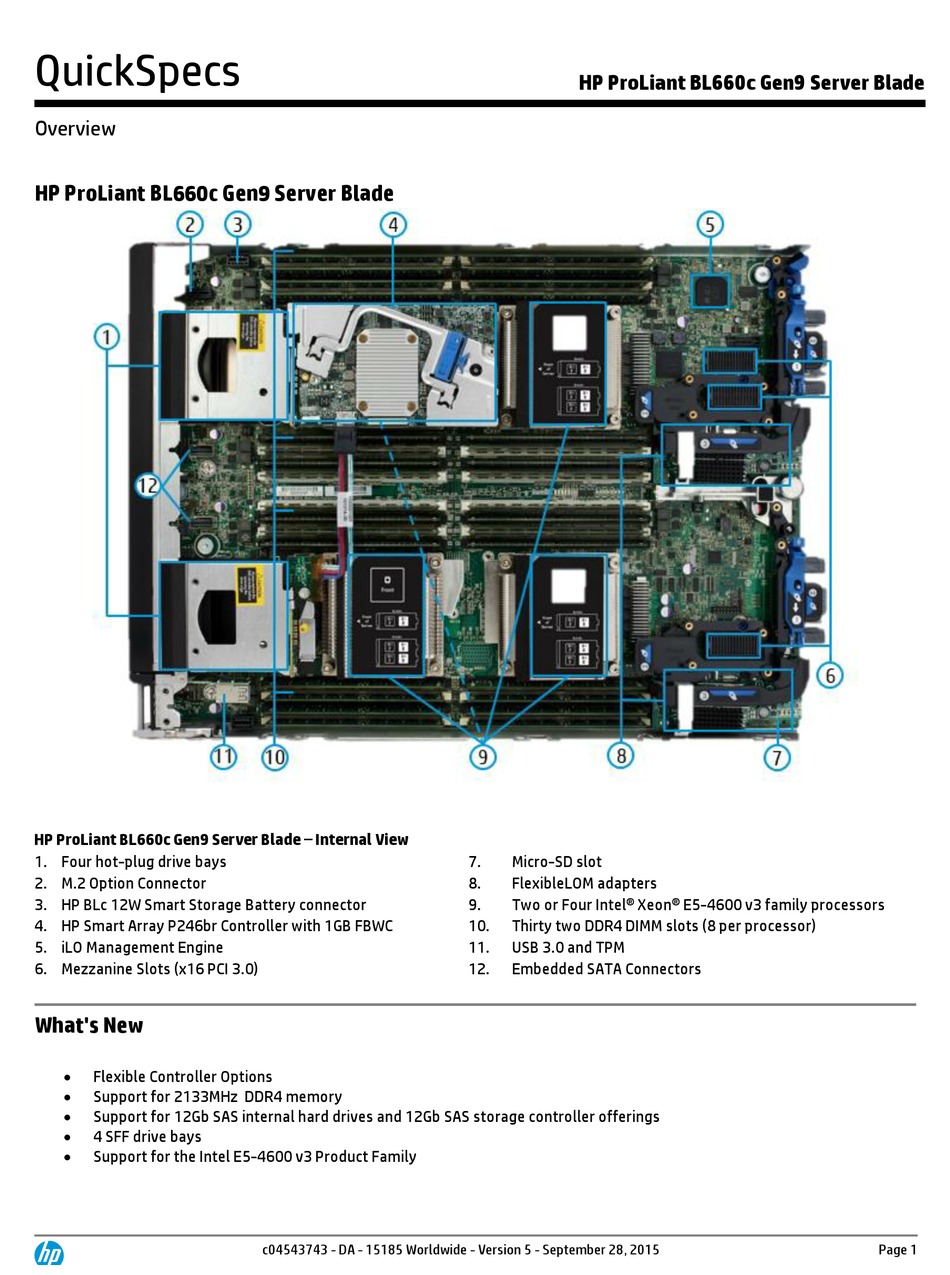

HP ProLiant BL660c Gen9 Server Blade – Internal View
1. Four hot-plug drive bays
2. M.2 Option Connector
3. HP BLc 12W Smart Storage Battery connector
4. HP Smart Array P246br Controller with 1GB FBWC
5. iLO Management Engine
6. Mezzanine Slots (x16 PCI 3.0)
What's New
Flexible Controller Options
Support for 2133MHz DDR4 memory
Support for 12Gb SAS internal hard drives and 12Gb SAS storage controller offerings
4 SFF drive bays
Support for the Intel E5-4600 v3 Product Family
c04543743 - DA - 15185 Worldwide - Version 5 - September 28, 2015
HP ProLiant BL660c Gen9 Server Blade
7.
Micro-SD slot
8.
FlexibleLOM adapters
9.
Two or Four Intel® Xeon® E5-4600 v3 family processors
10.
Thirty two DDR4 DIMM slots (8 per processor)
11.
USB 3.0 and TPM
12.
Embedded SATA Connectors
Page 1

Advertisement

Table of Contents
loading

Related Manuals for HP ProLiant BL660c Gen9

Summary of Contents for HP ProLiant BL660c Gen9

  • Page 1 QuickSpecs HP ProLiant BL660c Gen9 Server Blade Overview HP ProLiant BL660c Gen9 Server Blade HP ProLiant BL660c Gen9 Server Blade – Internal View 1. Four hot-plug drive bays Micro-SD slot 2. M.2 Option Connector FlexibleLOM adapters 3. HP BLc 12W Smart Storage Battery connector Two or Four Intel®...

  • Page 2: Standard Features

    HP ProLiant BL660c Gen9 Server Blade Standard Features NOTE: This document covers the HP ProLiant BL660c Gen9 server blade only. For information on HP BladeSystems c-Class Enclosures and HP BladeSystem c-Class Interconnect and Mezzanine Components, please see the following: HP BladeSystem c-Class Enclosures QuickSpecs: ...
  • Page 3 Upgradeability Upgradeable to four (4) processors On System HP iLO (Firmware HP iLO4 2.0), 4GB NAND with 1GB USB user space configurable via UEFI and accessible via Management Chipset iLO. Read and learn more in the iLO QuickSpecs. NOTE: For more information, visit: http://www.hp.com/go/ilo...
  • Page 4 NOTE: FlexibleLOMs are not compatible with prior generation c-Class server blades Standard iLO Network Controller: One (1) 10/100 Mbps port for the HP iLO 4 to Onboard Administrator link. The Onboard Administrator (with 10/100/1000 Mbps) to BladeSystem link is 1Gbps...
  • Page 5 NOTE: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI. NOTE: HP UEFI FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory. Storage Controller...

  • Page 6: Hp Restful Api

    The HP BladeSystem c7000 rack enclosure is 10U high and holds up to eight (8) ProLiant BL660c Gen9 servers plugged vertically.  The HP BladeSystem c3000 rack enclosure is 6U high and holds up to eight (4) HP ProLiant BL660c Gen9 servers plugged horizontally. Server blades, interconnect modules, power supplies, fans, and redundant Onboard Administrator modules are all designed to fit into the c3000 and c7000 enclosures.

  • Page 7: Intelligent Provisioning

    Learn more at http://www.hp.com/go/smartupdate. HP OneView Standard HP OneView Standard can inventory, monitor, alert, and report on your G6 thru Gen9 servers, with use of the REST API and HP OneView user interface. Annual support is optionally available. Learn more at http://www.hp.com/go/oneview.

  • Page 8: Warranty

    Optional enclosure redundant Onboard Administrator system management module. Warranty This product is covered by a global limited warranty and supported by HP Services and a worldwide c04543743 - DA - 15185 Worldwide - Version 5 - September 28, 2015 Page 8...
  • Page 9 HP ProLiant BL660c Gen9 Server Blade Standard Features network of HP Authorized Channel Partners. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase.

  • Page 10: Optional Features

    HP ProLiant BL660c Gen9 Server Blade Optional Features Fibre Channel Support Up to three (3) optional Fibre Channel mezzanine HBAs are supported on the HP ProLiant BL660c Gen9. Compatible SAN HP ProLiant BL660c Gen9 server blades are optimized for HP MSA, EVA, 3PAR and XP.
  • Page 11  HP StoreVirtual VSA HP StoreVirtual VSA allows you to create fully featured shared storage on a VMware vSphere or Microsoft Hyper-V virtualized server. This server model starting November 2013, includes a limited license for HP StoreVirtual VSA software with 1TB of capacity. To download the license key and StoreVirtual VSA software, visit: http://www.hp.com/go/unlockVSA.
  • Page 12 NOTE: Expansion blade support requires server firmware versions from SPP 2015.04 or later HP Insight Online HP Insight Online is part of the HP Support Center for one stop, secure access to product and HP support information personalized to your IT environment. Insight Online can automatically display devices remotely monitored by HP Remote Support tools.

  • Page 13: Configuration Information - Factory Integrated Models

    Collaborative call management comes with Proactive Care Advanced or you may choose full support from HP where we own all cases through to resolution. HP is a leading provider of support services for most operating systems used on HP BladeSystem with long, successful partnerships with vendors such as Microsoft, Red Hat, VMware, SUSE and others.
  • Page 14 Connect your devices Unlock all of the benefits of your technology investment by connecting your products to HP. Achieve up to 77% reduction in down time, near 100% diagnostic accuracy and a single consolidated view of your to HP environment.
  • Page 15 NOTE: Total of 32 DIMM slots. Network Controller (2) HP FlexFabric 20Gb 2-port 630FLB FlexibleLOM Storage Controller HP Smart Array P246br Controller with 1GB FBWC RAID 0,1,5 Hard Drive None ship standard Supports up to four (4) HP hot-plug SFF SAS/SATA/SDD drives Internal Storage SAS: 8TB;...
  • Page 16 NOTE: This section lists some of the steps required to configure a Factory Integrated Model (configure-to-order or CTO server). To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO product offerings and requirements.
  • Page 17 NOTE: All processors within the server must be identical. HP Memory NOTE: HP memory from previous generation servers (DDR3) is not compatible with this server. HP SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen9. For additional information, please see the HP SmartMemory QuickSpecs at: http://www8.hp.com/h20195/v2/GetHTML.aspx?docname=c04111535...
  • Page 18 HP BladeSystem c3000 Enclosure QuickSpecs: http://www8.hp.com/h20195/v2/GetDocument.aspx?docname=c04123379 NOTE: The c3000 HP c-Class enclosures have full backwards and forwards compatibility, existing server blades are supported in the new enclosures and any future server blades will be supported in the existing enclosures. ...
  • Page 19 QuickSpecs HP ProLiant BL660c Gen9 Server Blade Configuration Information - Factory Integrated Models NOTE: For optimal cooling and system performance the BL660c Gen9 Server Blade requires the c7000 enclosure to be configured with 10 fans and the c3000 enclosure to be configured with 6 fans.

  • Page 20: Core Options

    NOTE: For a two FlexibleLOM Factory Integrated Model configuration, the second FlexibleLOM is a different part number. When two FlexibleLOMs are needed you must select the first FlexibleLOM in the "Step 2" HP Networking section and the second FlexibleLOM from here in "Step 4" HP Networking section.
  • Page 21 (regardless of operating mode). When installed in mezzanine slot 2, both ports are active. NOTE: InfiniBand QDR and FDR speeds are only supported on the HP BladeSystem c7000 Enclosure. For additional information, please see the HP BladeSystem c7000 Enclosure and InfiniBand QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/12586_div/12586_div.html...
  • Page 22 RAID configuration to two separate RAID 0 volumes. Mixing of other drives types is not supported. NOTE: HP hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
  • Page 23 HP 64GB Value Endurance Solid State M.2 Enablement Kit for ProLiant Blades 785233-B21 6G SATA LE Hot Plug SFF (2.5-inch) SC EL G1 Solid State Drives HP 960GB 6G SATA Light Endurance SFF 2.5-in SC Enterprise Light 3yr Wty G1 Solid State 756601-B21 Drive SATA Hot Plug with SmartDrive SFF (2.5-inch) Midline (MDL) Drives...
  • Page 24 HP 480GB 6G SATA MU-3 SFF SC SSD 816985-B21 HP 240GB 6G SATA MU-3 SFF SC SSD 816975-B21 HP 120GB 6Gb SATA 2.5 MU-PLP SC S2 SSD 816965-B21 6G SATA Hot Plug RI-3 SFF (2.5-inch) SC Solid State Drives HP 3.84TB 6G SATA RI-3 SFF SC SSD 816929-B21 HP 1.92TB 6G SATA RI-3 SFF SC SSD...
  • Page 25 779176-B21 Solid State Drive 12G SAS VE SFF (2.5-inch) SC EV Solid State Drives HP 1.6TB 12G SAS Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State 762263-B21 Drive HP 800GB 12G SAS Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State...

  • Page 26: Additional Options

    Includes one year of 24 x 7 HP Software Technical Support Service. NOTE: Licenses ship without media. The HP Insight Management Media Kit can be ordered separately, or can be downloaded at http://www.hp.com/go/insightupdates...
  • Page 27 HP OneView Advanced and provides multi-server OS and driver provisioning. Media kit #BD883A can be ordered for a physical copy of this software (USB flash drive). NOTE: Licenses ship without media. The HP OneView Media Kit can be ordered separately, or can be downloaded at: http://www.hp.com/go/oneview...
  • Page 28 QuickSpecs HP ProLiant BL660c Gen9 Server Blade Additional Options NOTE: HP Secure Encryption is supported on the HP Smart Array P246br as an option. HP Secure Encryption licensing is based on the number of physical drives requiring encryption. NOTE: For more information about HP Secure Encryption, go to http://www.hp.com/go/hpsecureencryption.
  • Page 29 HP memory from previous generation servers is not compatible with the BL660c Gen9 Server Blade.  To realize the performance memory capabilities listed in this document, HP SmartMemory is required. For additional information, please see the HP SmartMemory QuickSpecs at: http://www8.hp.com/h20195/v2/GetHTML.aspx?docname=c04111535...
  • Page 30 QuickSpecs HP ProLiant BL660c Gen9 Server Blade Memory Optional Memory with Optional Memory Intel Xeon E5-4650 v3 128GB (4x 32GB) (4x 32GB + 12x 64GB) (16x 64GB) Intel Xeon E5-2660 v3 64GB 256GB (4x 16GB) (4x 16GB + 12x 16GB)

  • Page 31: Item Description

    Following are memory options available from HP: HP Memory NOTE: HP memory from previous generation servers (DDR3) is not compatible with this server. HP SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen9. For additional information, please see the HP SmartMemory QuickSpecs at: http://www8.hp.com/h20195/v2/GetHTML.aspx?docname=c04111535...
  • Page 32 QuickSpecs HP ProLiant BL660c Gen9 Server Blade Storage c04543743 - DA - 15185 Worldwide - Version 5 - September 28, 2015 Page 32...

  • Page 33: Technical Specifications

     HP BladeSystem c7000 Enclosure QuickSpecs at http://www8.hp.com/h20195/v2/GetHTML.aspx?docname=c0422958 To review typical system power ratings use the HP Power Advisor which is available via the online tool located at http://www.hp.com/go/hppoweradvisor. NOTE: For optimal cooling and system performance the BL660c Gen9 Server Blade requires the c7000 enclosure to be configured with 10 fans and the c3000 enclosure to be configured with 6 fans.
  • Page 34 (1,500 ft/min). Non-operating 9,144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1,500 ft/min). Acoustic Noise For acoustic noise specifications, please see the HP BladeSystem c-Class Enclosures QuickSpecs located at: HP BladeSystem c3000 Enclosure QuickSpecs: http://h18000.www1.hp.com/products/quickspecs/12790_div/ 12790_div.html HP BladeSystem c7000 Enclosure QuickSpecs: http://h18000.www1.hp.com/products/quickspecs/12810_div/...
  • Page 35 Technical Specifications NOTE: Each port is autosensing 1Gb/10Gb, and can interoperate with 1Gb or 10Gb HP BladeSystem c-Class interconnect components. Both ports will operate at the same speed. NOTE: Each port on the 554FLB adapter transmits from the server at 20Gbps (theoretical) full duplex.
  • Page 36 To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner. The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities.

  • Page 37: Summary Of Changes

    The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
