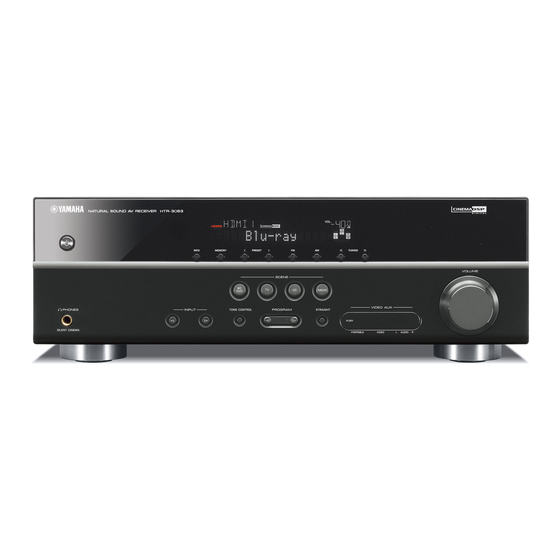

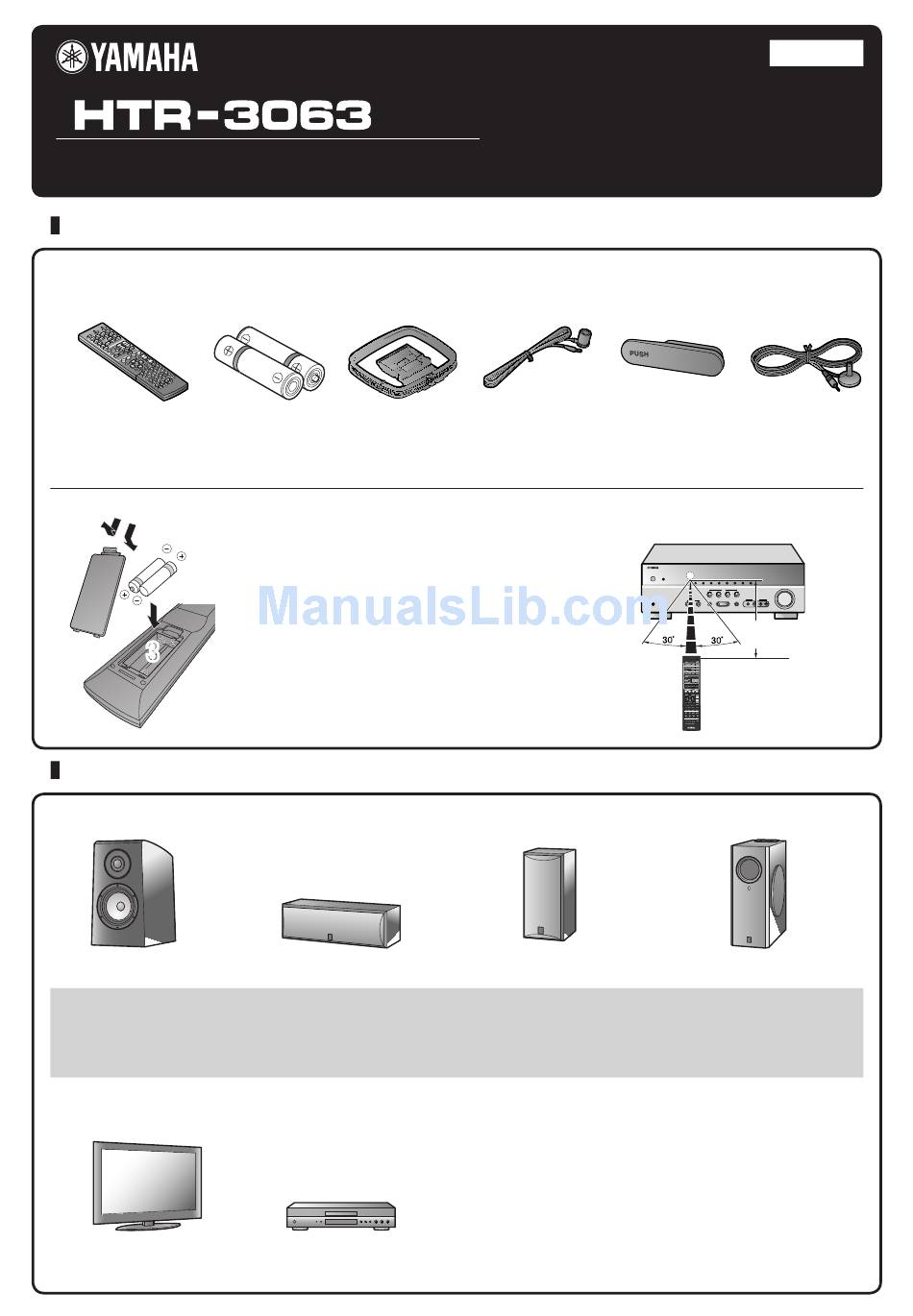

English for Asia , Africa, Oceania, and Latin America Quick Reference Guide *Except for China Accessories The following accessories are supplied with this product. Remote control Batteries (2) (AAA, R03, UM-4) AM loop antenna Indoor FM antenna VIDEO AUX input cover YPAO microphone Preparing the remote control Be sure to aim the remote control directly at the...
Connect and install as follows the fi rst time you use this unit. See the following explanations for the connections for each number. BD/DVD player (recorder) This unit Front speaker R Front Subwoofer speaker L Surround speaker R Center speaker Surround speaker L Connect the speakers...
Connect the speakers Surround speaker Front speaker Caution: • Remove the AC power cord of this unit from the power outlet before connecting the speakers. • Generally speaker cables consist of two parallel insulated cables. One of these cables is a different color, or has a line running along it, to indicate different polarity.
Connect a TV Video input to this unit is output to a TV using output jacks of the same kind. Input Output HDMI HDMI When you have made connections using different types of video HDMI input such as HDMI and component video, make the same connection COMPONENT COMPONENT VIDEO...
Connect playback device such as BD/DVD players and recorders If your playback device has multiple audio/video outputs, connect with the following priority (A to D) to enjoy a higher quality sounds and images. When playback device is HDMI HDMI capable of HDMI output COMPONENT VIDEO When playback device is...
When connection is fi nished, adjust the status, sizes, and volume balance of the speakers to provide an optimal sound fi eld. This unit is equipped with a YPAO (Yamaha Parametric Room Acoustic Optimizer) function that adjusts the speaker balance automatically with a simple procedure.
Page 7
Connect the YPAO microphone to the YPAO MIC jack on the front panel. CODE SET CODE SET TRANSMIT TRANSMIT SOURCE SOURCE RECEIVER RECEIVER A SLEEP SLEEP HDMI HDMI AUDIO AUDIO YPAO microphone V-AUX V- V V AUX [ A ] [ A ] [ B ] [ B ]...
