SERVICE MANUAL

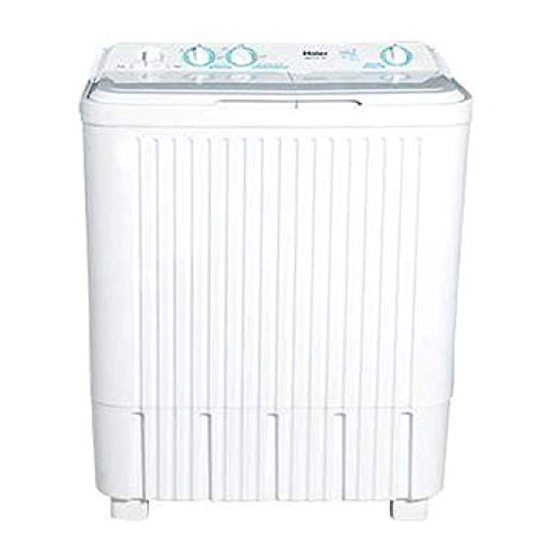

Twin-tub washing machine
Model:HWM80-187S
WARNING
Order Number: TL1506S001V1.1
Advertisement
Table of Contents
Related Manuals for Haier HWM80-187S
Summary of Contents for Haier HWM80-187S
- Page 1 Products powered by electricity should be serviced or repaired only by experienced professional technicians.Any attempt to service or repair the product or products dealt with in this service information by anyone else could result in serious injury or death` 2015 Haier washing Machine All rights reserved. Unauthorized copying and distribution is a violation of law.
-
Page 2: Table Of Contents
Issue Service Manual Rev. Model NO:HWM80-187S Chapter 1: CONTENTS 1.Contents Features 3. Specifications 4. Safety precondition Warning and cautions Installation and accessory parts e l t l l a i t a e t t i t n e t f... -
Page 3: Features
Issue Service Manual Rev. Model NO:HWM80-187S Chapter 2: FEATURES Features Full plastic cabinet Full plastic twin-tub integrated with cabinet, no rustiness for be affected with damp. Choose water current and washing time Choose spinning time Separate washing and spinning Full plastic washing tub and spinning tub... -
Page 4: Specifications
Service Manual Issue Rev. Model NO:HWM80-187S Chapter 3: SPECIFICA TIONS Model HWM80-187S Free standing Built under 6901570080918 EAN code Energy efficiency class Features for use Wash capacity Spin capacity Level/Volume Maximum /58 Medium /49 Minim um/43 Preset <115 Residual da mpness... -
Page 5: Safety Precondition
Issue Service Manual Rev. Model NO:HWM80-187S Chapter 4: safety precondition Contents marked with that symbol are related to the safety of the Warning sign product and the users.Please operate in strict conformity to the contents. Contents marked with that symbol are actions forbidden to perform. -
Page 6: Warning And Cautions
Issue Service Manual Rev. Model NO:HWM80-187S Chapter 5: WARNING AND CAUTIONS Do not stretch hands into the working Do not decompose, repair or alter the machine. It is dangerous even if the machine by yourself. rotation is slow. Take special care of the children. -
Page 7: Installation And Accessory Parts
Issue Service Manual Rev. Model NO:HWM80-187S Chapter 6: INSTALLATION AND ACCESSORY PARTS 6.1 Dismantle and installation Please install and adjust the machine according to the requirement of the manual. It is very important to your security and correct operating the machine. - Page 8 Issue Service Manual Rev. Model NO:HWM80-187S Figure 2 indicates the ex factory installation position of the drain hose. Soft item Figure 2 Extend the drain hose from the side of spin tub. Put soft items on the ground. Lean the machine down gently with the front surface facing the ground.
- Page 9 Issue Service Manual Rev. Model NO:HWM80-187S Dismantling and installation of the base frame Dismantle the back cover. Loosen the wires. Loosen the fastening screw of the spin tub shaft. Separate the shaft from the brake wheel. Loosen the brake hook. Take off the brake cable frame from the installation groove of the twin-tub.
- Page 10 Issue Service Manual Rev. Model NO:HWM80-187S Dismantling and installation of the bearing seat Once the bearing seat is taken off, it can not be utilized again. Therefore do not dismantle it as far as possible. In case that it has to be replaced, please dismantle it as per following sequence, then install a new bearing seat.
-
Page 11: Appearance Brief Introduction
Service Manual Issue Rev. Model NO:HWM80-187S Chapter 7: APPEARANCE BRIEF INTRODUCTION 7.1 Net dimension Unit mm Figure 8 height:945mm / width:786mm / depth:455mm... -
Page 12: Name Of Parts
Service Manual Issue Model NO:HWM80-187S Rev. 7.2 Name of parts Wash selector Wash timer Water-filling entrance Control panel Overflow filter Drain hose hook Water level adjusting lever Lint filter(Installed by user) Pulsator Wash tub Drain hose Wash tub cover Base frame... -
Page 13: Wash Parts
Service Manual Issue Rev. Model NO:HWM80-187S Chapter 8: MAINTENANCE SERVICE AND CHECK METHOD 8.1 Wash part Insert the power plug , but the machine does not work Check if the wash timer is opened ? Open the wash timer. Switch on the power. -
Page 14: Spin Parts
Issue Service Manual Rev. Model NO:HWM80-187S 8.2 Spin part Check if the spin timer Open the spin timer. is opened ? Check if the power source Switch on the power. is available? Check if the contact between Replace the plug the plug and receptacle is good? or receptacle. - Page 15 Issue Service Manual Rev. Model NO:HWM80-187S 8.3 check noise and others There is metal rubbing noise in braking Add the brake or replace If the brake arm the brake arm. has brake block ? The washing noise is too large Is the motor noise large? Replace the motor.
- Page 16 Issue Service Manual Rev. Model NO:HWM80-187S The spinning noise is too large If the washing machine Set the machine horizontally. is set horizontally? If the sundries fall off between the Clean the sundries spin tub and twin-tub Add the oil between the bearing and the If there is different noise spin-tub.
- Page 17 Service Manual Issue Rev. Model NO:HWM80-187S Not draining Set the switch to drain, the machine does not work. Install the knob again. Check if the select knob install? Replace the knob . Check if the select knob shatter? Check if the Drain pullback...
-
Page 18: Trouble-Shooting Answer To Question
Service Manual Issue Rev. Model NO:HWM80-187S Chapter 9: Trouble-shooting answer to question (If there's breakdown, please pull off the power plug before checking) The following phenomena are not breakdowns sometimes. Please confirm again before sending it to repair. If there are real breakdowns, please come to the special maintenance department or after-sale service department of our company. -
Page 19: Wiring Diagram
Issue Service Manual Rev. Model NO:HWM80-187S Chapter 10: WIRING DIAGRAM Purple Spin timer Orange Purple Spin Grey Micro Switch Motor Brown Brown Blue Wash Fuse Motor Yellow Brown Wash Timer Blue Yellow/green Figure 11 There is overload protector installed in the motor. In case that the motor is overload or meets breakdown in working, the protector will act and stop the motor. - Page 20 Sincere Forever Group Haier Industrial Park, No.1, Haier Road 266101, Qingdao, China http://www.haier.com...
