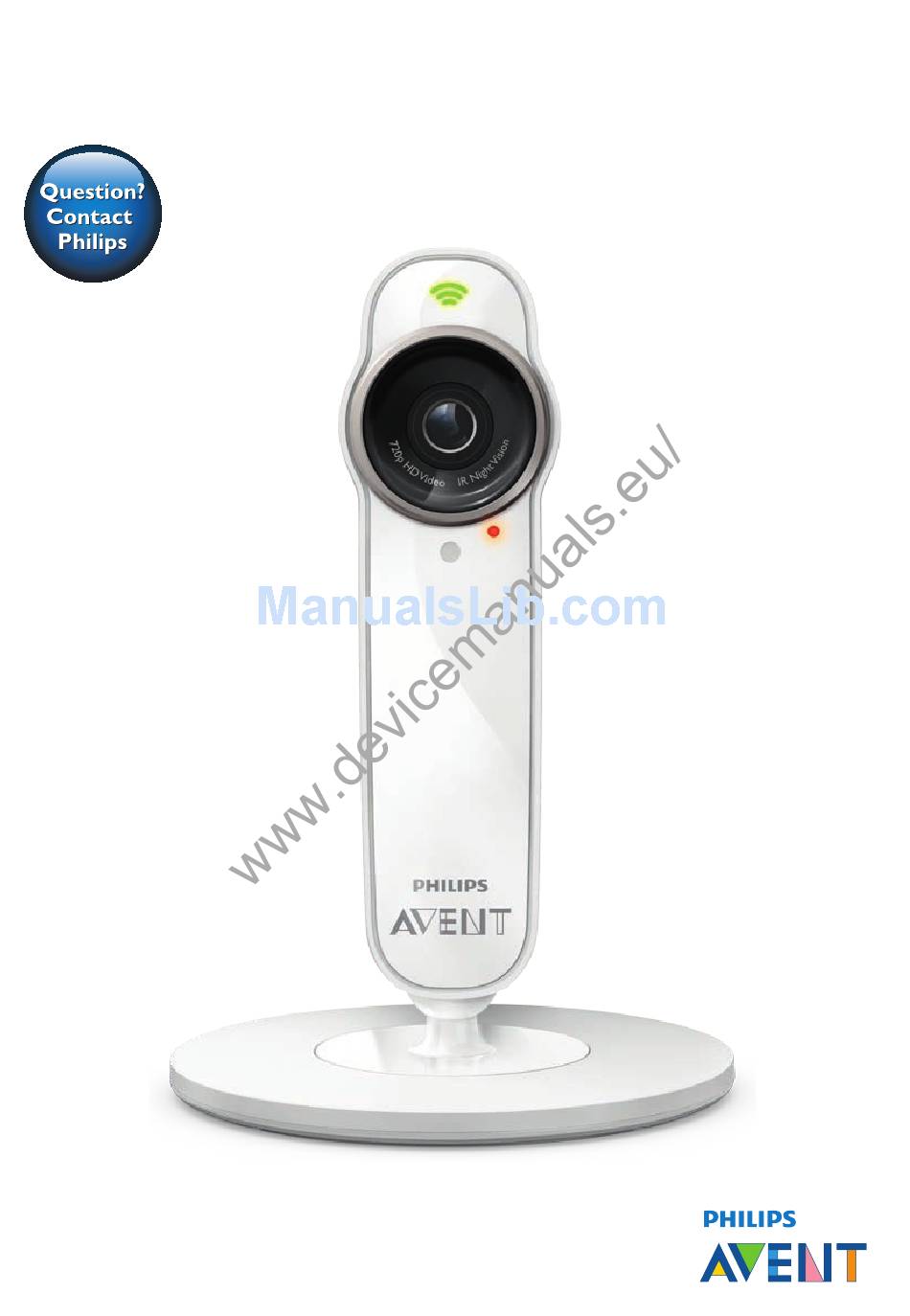

Page 1 Always here to help you Register your product and get support at www.philips.com/welcome SCD860...
Page 3 ENGLISH 4 DEUTSCH 30 ESPAÑOL 57 FRANÇAIS 84 ITALIANO 112 NEDERLANDS 139 PORTUGUÊS 166...
Page 4: Table Of Contents
Frequently asked questions Introduction Congratulations on your purchase and welcome to Philips Avent! To benefit fully from the support that Philips Avent offers, register your product at www.philips.com/welcome. The uGrow Smart Baby Monitor uses new SafeConnect Technology to work across networks. It automatically adjusts to the network conditions to maintain a high-quality constant connection to your baby.
Page 5: Product Overview
Android 4.1 or higher (for device compatibility, see chapter ‘Device compatibility’). Download the Philips Avent uGrow Smart Baby Monitor app from the App Store or Google Play. Use keywords ‘uGrow smart monitor’ or ‘Philips smart monitor’ to find the app.
Page 6 ENGLISH Follow the on-screen instructions to create a uGrow account. Make sure that you use a working email address on which you can always be reached. Use a strong password (see ‘Security and privacy’). When you receive the verification email, follow the instructions in this email to continue setting up your uGrow Smart Baby Monitor.
Page 7: Mounting The Baby Monitor On The Wall
ENGLISH As instructed by the app, hold the WiFi QR code on the screen of your smartphone or tablet at a distance of around 20 cm in front of the baby monitor lens. Slowly move the smartphone or tablet closer or further away from the lens to ensure the WiFi QR is read properly.
Page 8 ENGLISH Use a pencil to mark the other screw hole on the wall. Drill 2 holes in the wall at the marks. Use 2 screws to fasten the wall mounting bracket to the wall. Tighten the screws with a screwdriver. Pass the humidity and temperature sensor unit through the hole in the wall mounting bracket.
Page 9: Quick Start Guide
ENGLISH Insert the appliance plug into the appliance plug socket in the temperature and humidity sensor unit and insert the adapter into a wall socket. Now your baby monitor is ready for use. Quick start guide Main screen features Top of screen: All notifications on/off Sound level indication bar Switch audio on/off...
Page 10 ENGLISH Set the colour of the nightlight Lullabies: tap this button to switch lullaby playing on or off. Tap the settings icon in the bottom right-hand corner to select the lullabies, to set a timer and to adjust the volume. Options available: Select a lullaby from a list of lullabies Program a play list from the lullabies available Set the lullaby timer or choose play continuously...
Page 11 ENGLISH Mobile phone icon: tap to switch audio on or off. Note: For more information about background monitoring, see chapter ‘Viewing, hearing and monitoring your baby’. Sound level indication bar The lights indicate the sound level in your baby’s room. Note: For more information, see chapter ‘Viewing, hearing and monitoring your baby’.
Page 12: Viewing, Hearing And Monitoring Your Baby
ENGLISH When you have pulled the line up, the dashboard in the bottom tray is fully visible. On the dashboard you have a number of notification options: Sound Temperature Humidity Note: For more information about the notification options on the dashboard, see section ‘Notification options’...
Page 13: Hearing Your Baby
ENGLISH Portrait or landscape viewing Rotate your smartphone or tablet to view your baby in landscape mode. Night vision mode When the light level in the room is low, the baby monitor switches to night vision mode. In this mode, you see black and white images of your baby on your smart device.
Page 14: How To Get Notified That Your Baby Cries
ENGLISH How to get notified that your baby cries Push notification: you receive a push notification when your baby starts to cry. Note: If you want to receive a notification while you are performing other activities on your smart device (e.g. texting, phoning, browsing the Internet), make sure that you set the all notifications toggle switch to ‘on ‘.
Page 15: Notification Options
ENGLISH Tap the mobile phone icon to switch audio on or off. Note: If you mute the sound, you will not be able to hear your baby when you switch to another function on your smart device (phoning, texting, etc.). Note: When you make a mobile call or use a VoIP app (e.g.
Page 16: Guest Viewers And Accounts
ENGLISH Guest viewers and accounts Inviting guests and a second admin You can invite up to nine relatives or friends as guests and allow them to watch your baby on their smartphone or tablet. You can invite one of these guests to act as second admin.
Page 17: Giving And Removing Access
ENGLISH The guest selects the ‘Connect to a shared baby monitor’ option during the setup process. This opens the page on which the invitation is validated. The guest enters the invitation code, his email address and confirms. The code and the email address are checked. The admin receives an email that confirms that the guest has been connected to the baby monitor and that the admin can now grant the guest access.
Page 18: Account Management
ENGLISH Account management Disconnecting a guest To disconnect guest users from the app permanently, you have to remove them from the list of guests. A guest may also disconnect himself permanently from the app. Deactivating your user account If there is only one admin and this admin deactivates his or her account, all the accounts of guest users are disassociated from the baby monitor, although the accounts continue to exist.
Page 19: General App Use
ENGLISH Go to ‘My account’ in the left tray. You will see the list of baby monitors connected. Tap on ‘Add baby monitor’. Follow the instructions in chapter ‘First-time setup’ in this user manual to connect the baby monitor to the app. General app use Video and audio quality optimisation The quality of the video and audio on your smart device may change...
Page 20: Wifi Connection To The Internet
ENGLISH WiFi connection to the Internet You get the best results if you connect your smart device to the Internet via WiFi. It will then automatically use the WiFi network to link to your baby monitor. When there is no WiFi connection to the Internet, your smart device switches to its 3G or 4G mobile data connection.
Page 21: Using The App On Several Devices
ENGLISH Follow the rest of the on-screen instructions to complete setup. The setup procedure is completed and the baby monitor is connected to the WiFi network and ready for use, when the WiFi status light on the front of the baby monitor turns solid green. Note: When you return home, you have to follow the procedure above to reconnect the baby monitor to your home WiFi network.
Page 22: Firmware Upgrades
ENGLISH Firmware upgrades Upgrading is essential to safeguard your privacy and the proper functioning of the baby monitor and the app. Essential upgrades are mandatory. Mandatory app upgrades are installed on your smart device automatically and do not require confirmation.You will only receive a notification that a forced mandatory upgrade is taking place.
Page 23 ENGLISH Solid orange: the camera of the baby monitor is ready to read the WiFi QR code generated by your smartphone or tablet. Green Flashes green: the WiFI QR code has been read successfully. Solid green: the baby monitor is connected to the WiFi network. Flashes red slowly: you entered the wrong WiFi password.
Page 24: Security And Privacy
Device compatibility iPhone compatibility iPhone 4S and newer iPad compatibility iPad 2 and newer iPod Touch compatibility iPod Touch 5th gen and newer Android compatibility Android 4.1 or higher Note: For the latest information on device compatibility, please visit www.philips.com/ugrow.
Page 25: Ordering Accessories
ENGLISH Ordering accessories To buy accessories or spare parts, visit www.shop.philips.com/service or go to your Philips dealer. You can also contact the Philips Consumer Care Centre in your country (see the worldwide guarantee leaflet for contact details). Guarantee and support If you need information or support, please visit the Philips website at www.philips.com/support or read the separate worldwide guarantee...
Page 26 ENGLISH Question Answer Perhaps you did not remove the protective foil from the baby monitor lens. Remove the foil. Perhaps part of your hand covers the WiFi QR code. Hold your device in such a way that your hand does not cover the WiFi QR code. If the WiFi status light is solid orange, the baby monitor did not read the QR code successfully.
Page 27 ENGLISH Question Answer I lose connection Check if the WiFi signal in the room where the baby monitor is placed is frequently. What is the strong enough and stable. If this is not the case, you need a WiFi repeater to matter? get a strong and stable signal.
Page 28 ENGLISH Question Answer Tips and tricks Do I have to keep No, the app can monitor in the background while you do other things on the app on screen to your smartphone or tablet. Tap the mobile phone icon. Now you hear your monitor my baby? baby and also hear when it starts to cry.
Page 29 ENGLISH Question Answer I have lost my Log in on the app from another smart device and delete your account. If smartphone. How can I you are the only administrator, this will disconnect all guest users of the app prevent strangers from from the baby monitor tool.
