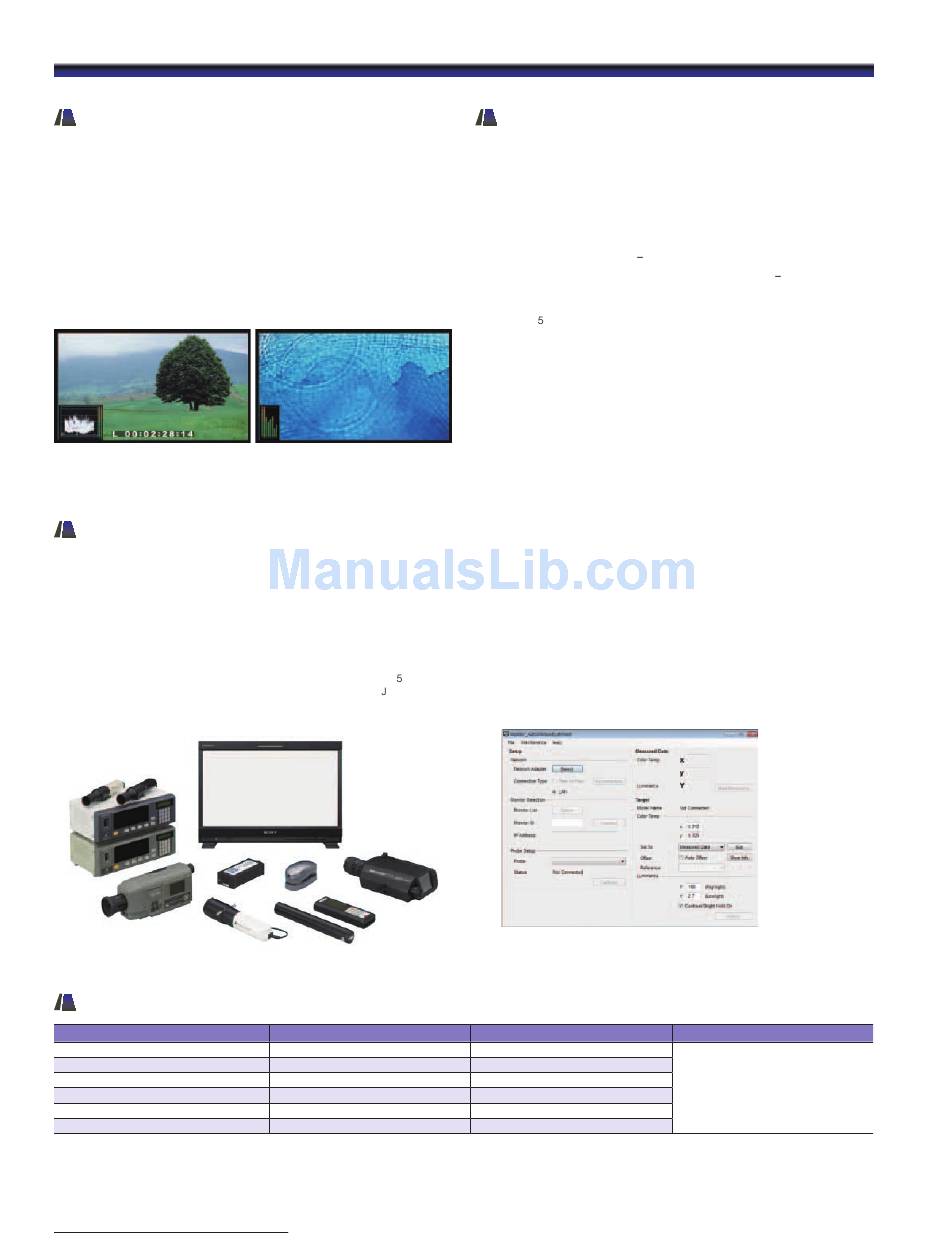

Sony BVM-E250 Manual page 24

PVM Series
Waveform Monitor, Audio Level
Meter, and Time Code Display
Input signal waveform with a 2-channel audio level meter
can be displayed on screen. When a HDSDI or SDI interface
is connected, the embedded audio level can be displayed
on screen with an 8-channel audio level meter. Time code
embedded on SDI signals can be displayed on screen. Users
can select either LTC or VITC.
* The Audio Level Meter function works only when receiving SDI-embedded
audio signals.
The waveform monitor,
2-channel audio level meter,
and time code display
Auto White Adjustment
The PVM-2541 and PVM-1741 as well as PVM-740
monitors employ a software-based color temperature
(white balance) calibration function, which is called
"Monitor_AutoWhiteAdjustment". Combined with a Windows
PC and commercially available calibration tools*, this function
enables simple adjustment of the monitor's white balance.
* The Konica Minolta CA-210/CA-310/CS-200, DK-Technologies PM 639/06,
X-Rite i1 (Eye-one) Pro, Photo Research PR-670, Klein K-10, and ETI specbos 1211.
PVM-2541 / PVM-1741 DVI Input Signals
Resolution
640 x 480
1280 x 768
1280 x 1024
1360 x 768
1440 x 900
1680 x 1050
• When a DVI signal is input to the HDMI IN connector using a DVI conversion cable.
• Sides of the displayed picture may be hidden depending on the input signal.
24 24
The 8-channel audio level
meter
Simulated images
Dot clock (MHz)
25.175
68.250
108.000
85.500
88.750
119.000
External Remote Control Function
The PVM-2541 and PVM-1741 have an external remote control
capability for input/output signal selection and adjustment
of various items via an Ethernet (10BASE-T/100BASE-TX)
connection. Up to 32 monitors and up to four control units
can be connected via Ethernet connection and controlled
remotely on the network. Also these monitors support some
functions of the BKM-16R
for BVM-E/BVM-F/BVM-L/PVM-L Series monitors
power on/off switch and the Input Select function.*
* The PVM-2 41 and PVM-1741 do not support all BKM-16R functions.
®
"Monitor_AutoWhiteAdjuestment" GUI image
fH (kHz)
31.5
47.4
64.0
47.7
55.5
64.7
an optional remote control unit
such as the
fV (Hz)
60
