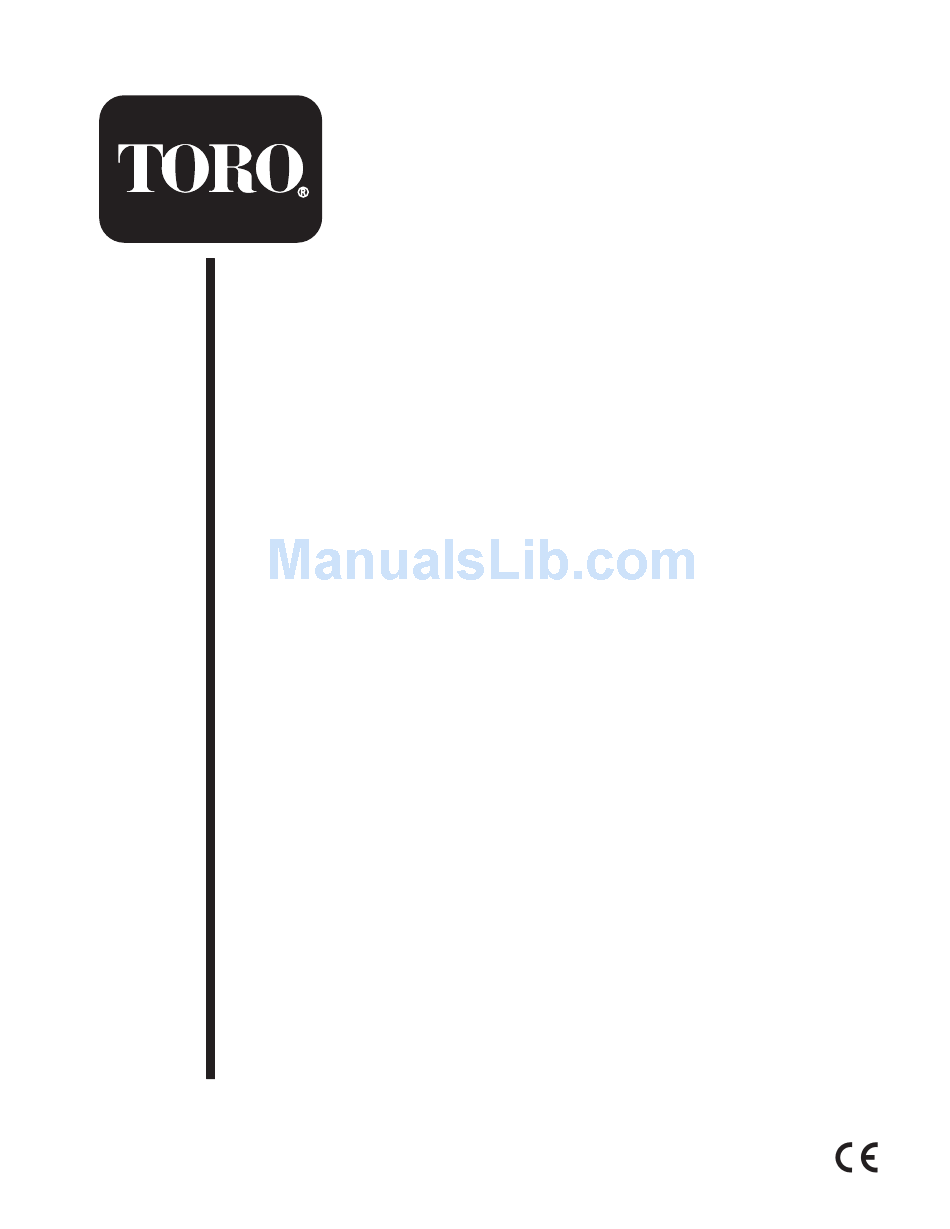

- Page 1 Form No. 3356–632 Rev B 72 in Side Discharge Mower 60 in Side Discharge Mower Groundsmaster 3320 and 3280–D Model No. 30368—Serial No. 270000001 and Up Model No. 30366—Serial No. 270000001 and Up Operator’s Manual English (EN, GB)
-
Page 2: Table Of Contents
........Dealer or Toro Customer Service and have the model and Safe Operating Practices . -
Page 3: Safety
Safety • incorrect hitching and load distribution. Preparation This machine meets or exceeds CEN standard EN 836:1997 , ISO standard 5395:1990 and ANSI • While mowing, always wear substantial footwear, long B71.4-2004 specifications in effect at the time of trousers, hard hat, safety glasses, and ear protection. production when equipped with rear weight as listed in Long hair, loose clothing or jewelry may get tangled in the traction unit Operator’s Manual. - Page 4 • Always use seat belts with ROPS. – if the machine starts to vibrate abnormally (check immediately). • Remember there is no such thing as a safe slope. Travel on grass slopes requires particular care. To guard • Disengage drive to attachments when transporting or against overturning: not is use.
-
Page 5: Toro Mower Safety
The following list contains safety information specific to units on a slope. Toro products or other safety information that you must know that is not included in the CEN, ISO, or ANSI • Avoid turning on slopes. If you must turn, turn slowly standards. - Page 6 • The engine must be shut off before checking the oil or adding oil to the crankcase. • If major repairs are ever needed or if assistance is desired, contact an Authorized Toro Distributor. • To make sure of optimum performance and continued safety certification of the machine, use only genuine Toro replacement parts and accessories.
-
Page 7: Safety And Instruction Decals
Safety and Instruction Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or lost. 93-6697 1. Read the Operator’s 2. Add SAE 80w–90 (API Manual. - Page 8 107-2908 1. Thrown object 3. Cutting/dismemberment hazard—keep bystanders hazard of hand or foot, a safe distance from the mower blade—stay away machine. from moving parts. 2. Thrown object hazard, mower—keep the deflector in place. 108-1986 1. Height of cut 115-4505 1.
-
Page 9: Specifications
Specifications Specifications Width of cut 60 in. or 72 in. width of cut, 3 blades. 1–5 in. (25–127 mm) adjustable in 1/2 in. (13 mm) increments. Height of cut adjust- Height of cut ment is achieved by changing spacers on castor wheels and length of height of cut rod. Construction Housing is made of 7 gauge steel and reinforced with channels and plates. -
Page 10: Setup
Setup Note: Determine the left and right sides of the machine from the normal operating position. Loose Parts Note: Use this chart as a checklist to ensure that all parts necessary for assembly have been received. Without these parts, total setup cannot be completed. Some parts may have already been assembled at the factory. Description Qty. -
Page 11: Mount The Grass Deflector (Model 30368 Only)
2. Install the bolt and nut. Place the right hand J hook end Danger of the spring around the grass deflector (Fig. 1). Important The grass deflector must be able to lower If the engine is started and the PTO shaft is down into position. -
Page 12: Connecting The Lift Arms To The Cutting Unit
Connecting the Lift Arms to the 6. Push down on the rear of the cutting unit and insert the height of cut rods through the lift arm pads. Cutting Unit 7. Install the height of cut collars onto the height of cut 1. -
Page 13: Before Operating
Before Operating 1. Start the engine and raise the cutting unit off the floor so that the height-of-cut can be changed. Stop the engine and remove the key after the cutting unit is raised. Caution 2. Position the castor wheel axles in the same holes in both castor forks. -
Page 14: Adjust The Cutting Unit Pitch
Cutting unit pitch is the difference in height-of-cut from the 4. Push the castor spindle through the castor arm. Install front of the blade plane to the back of the blade plane. Toro the shims (as they were originally installed) and the recommends a blade pitch of 1/4 in. -
Page 15: Adjusting The Skids
Adjusting the Skids 2. Select a hole so the anti–scalp roller is positioned to the nearest corresponding height-of-cut desired (Fig. 13). The skids should be mounted in the lower position when operating in height of cuts greater than 2-1/2 inches (64 mm) and in the higher position when operating in height of cuts lower than 2-1/2 inches (64 mm). -
Page 16: Adjusting The Flow Baffle
To adjust the rear (internal) rollers 2. Adjust the baffle and cam locks in the slots to the (Fig. 15) desired discharge flow. 1. Remove the lock nuts securing the roller shafts to the 3. Swing the lever back over to tighten the baffle and cam underside of the deck. -
Page 17: Correcting Cutting Unit Mismatch
Position B 3. Check and adjust all castor tire pressures to 50 psi (345 kPa). Use this position when bagging. 4. Check for bent blades; refer to Checking for a Bent Blade, page 23. Middle Position 5. Cut grass in a test area to determine if all cutting units are cutting at the same height. -
Page 18: Operation
Operation to maintain the same height-of-cut, which is a good practice, you will need to cut more frequently in early spring; as the grass growth rate slows in mid summer, cut Note: Determine the left and right sides of the machine only every 8–10 days. -
Page 19: Maintenance
Maintenance Recommended Maintenance Schedule Maintenance Service Maintenance Procedure Interval After first 2 hours • Tighten the castor wheel nuts. • Tighten the castor wheel nuts. After first 10 hours • Torque the blade bolts. • Check the blades. Daily • Lubricate the castor arm bushings. •... - Page 20 2. Position the machine and cutting unit on a level surface and lower the cutting unit. Remove the dipstick/fill plug from the top of the gear box (Fig. 25) and make sure that the lubricant is between the marks on the dipstick. If the lubricant level is low, add SAE 80–90 wt.
-
Page 21: Separating Cutting Unit From Traction Unit
Separating the Cutting Unit 5. Roll the cutting unit away from the traction unit, separating the male and female sections of the PTO from the Traction Unit shaft (Fig. 28). 1. Position the machine on level surface, lower the cutting unit to the floor, move the lift lever to the Float position, shut the engine off, and engage the parking brake. -
Page 22: Servicing The Castor Arm Bushings
Servicing the Castor Arm Bushings The castor arms have bushings pressed into the top and bottom of the tube and after many hours of operation, the bushings will wear. To check the bushings, move the castor fork back and forth and from side to side. If the castor spindle is loose inside the bushings, the bushings are worn and must be replaced. -
Page 23: Checking For A Bent Blade
Always use 6. Install the castor wheel assembly between the castor genuine Toro replacement blades to be sure of safety and fork and secure it in place with the capscrew and optimum performance. -
Page 24: Inspecting And Sharpening The Cutter Blade(S)
FLAT PART Important The curved part of the blade must be OF BLADE pointing toward the inside of the cutting unit to ensure proper cutting. SAIL Inspecting and Sharpening the Cutter Blade(s) SAIL Danger WEAR A worn or damaged blade can break, and a piece SAIL of the blade could be thrown into the operator’s or bystander’s area, resulting in serious personal... -
Page 25: Replacing The Drive Belt
2. Raise the height-of-cut to the highest position; refer to Adjusting the Height-Of-Cut, page 13. 3. Lower the cutting unit onto the flat surface. Remove the covers from the top of the cutting unit. 4. Rotate the blades until the ends face forward and backward. -
Page 26: Replacing The Grass Deflector
Replacing the Grass Deflector 4. Install the bolt and nut. Place the right hand J hook end of the spring around the grass deflector (Fig. 39). Important The grass deflector must be able to lower Warning down into position. Lift the deflector up to test that it lowers into the full down position. -
Page 28: 8111 Lyndale Avenue South
If for any reason you are dissatisfied with your Distributor’s service or have difficulty obtaining guarantee information, contact the Toro importer. If all other remedies fail, you may contact us at Toro Warranty Company.
