Thank you for purchasing a Panasonic product.
This document explains how to install the outdoor camera properly.
For details about how to use the system, refer to the User's Guide (page 26).
Please read this document before using the unit and save it for future reference.

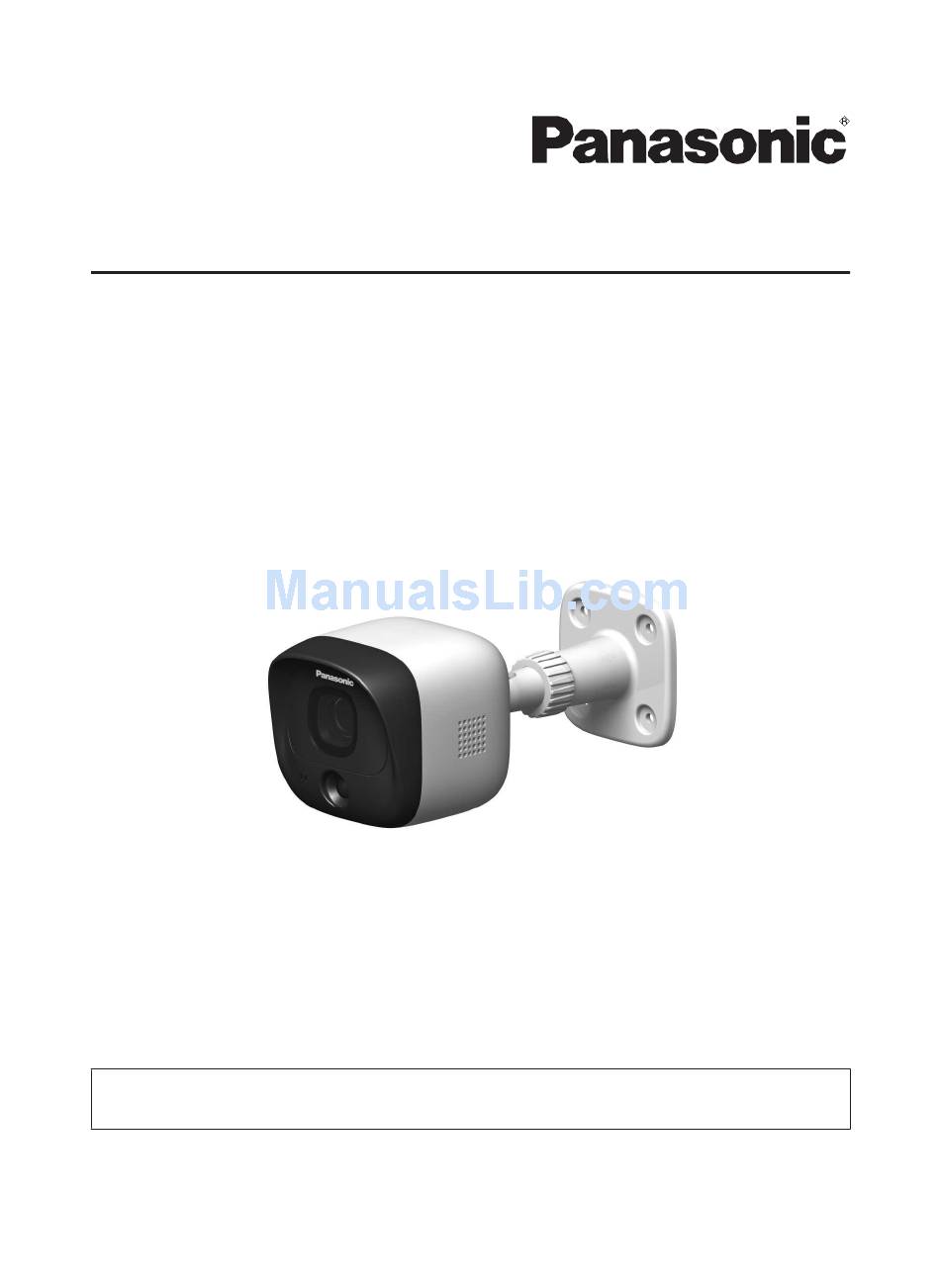

Installation Guide
Home Network System
KX-HNC600AZ
Model No.
Outdoor Camera
Advertisement
Table of Contents
Related Manuals for Panasonic KX-HNC600AZ
Summary of Contents for Panasonic KX-HNC600AZ
-
Page 1: Installation Guide
Outdoor Camera KX-HNC600AZ Model No. Thank you for purchasing a Panasonic product. This document explains how to install the outdoor camera properly. For details about how to use the system, refer to the User’s Guide (page 26). Please read this document before using the unit and save it for future reference. -
Page 2: Table Of Contents
Table of Contents Introduction Accessory information ........3 Important Information About this system .........4 For your safety ..........4 Important safety instructions ......5 For best performance ........5 Privacy and rights of portrait ......6 Other information .........6 Installation Location Wireless communication range ....8 Information about sensor features ....8 Installation location examples ....11 Do not install in these locations ....13... -
Page 3: Accessory Information
Introduction Accessory information Supplied accessories Accessory item/Part number Quantity AC adaptor/PNLV236AL Camera mounting stand Wall mounting screws (25 mm) Suspension wire tool – Safety wire: 1 – Washers: 2 Small washer for attaching safety wire to camera ø12 mm Large washer for attaching safety wire to wall ø16 mm –... -
Page 4: Important Information
R Do not connect non-specified devices. designed to provide complete protection R When opening holes in walls for installation from property loss. Panasonic will not be or wiring, or when securing the power cord, held responsible in the event that property make sure you do not damage existing loss occurs while this system is in operation. -
Page 5: Important Safety Instructions
Hub location/avoiding noise easily accessible. R If the wiring is underground, do not make The hub and other compatible Panasonic any connections underground. devices use radio waves to communicate with R If the wiring is underground, make sure the each other. -
Page 6: Privacy And Rights Of Portrait
Important Information the product and hub in an indoor environment. Privacy and rights of – away from electronic appliances such as portrait TVs, radios, personal computers, wireless devices, or other phones. When installing or using the camera, please – facing away from radio frequency take into consideration the rights of others with transmitters, such as external antennas regard to privacy. - Page 7 Important Information corrupted or erased. Therefore we recommend backing up important data to a computer or other device. Information on Disposal in other Countries outside the European Union These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.
-
Page 8: Installation Location
R The camera’s sensor features are not designed to be used in situations that require high reliability. We do not recommend use of the sensor features in these situations. R Panasonic takes no responsibility for any injury or damage caused by the use of the camera’s sensor features. -
Page 9: Detection Range
Installation Location Detection range Visual sensor Infrared sensor Can detect motion anywhere in the visible Can detect motion only in part of the visible image. image (shown here in grey) R You can adjust the area detectable by the R You can adjust the area detectable by the visual sensor. - Page 10 Installation Location Direction of motion It is easier to detect objects that move sideways in front of the camera, and more difficult to detect objects that move directly toward the front of the camera. A It is difficult to detect movement directly towards the front of the camera. B It is easy to detect movement sideways in front of the camera.
-
Page 11: Installation Location Examples
Installation Location Installation location examples I want to detect visitors approaching the house Refer to the table below for detecting visitors at an entrance or gate without detecting cars in the street. Ideal example Poor example Cars in the street are more likely to cause Approx. - Page 12 Installation Location I want to detect people entering the garage Refer to the table below for detecting people entering a garage without detecting cars in the street. Ideal example Poor example Visitors pass in front of the camera from side Cars in the street are more likely to cause to side, cars in the street are less likely to false detections.
-
Page 13: Do Not Install In These Locations
Installation Location Installing in the following areas may Do not install in these cause false detections locations R Areas where people approach directly from the front of the camera, such as narrow Installing in the following areas may walkways cause deformation, discolouration, Camera Difficult to detect malfunction, or operational failure... - Page 14 Installation Location R Areas affected by breezes from fans, air conditioning unit compressors, water heaters, or car exhaust (severe temperature variations may cause false detections) R Areas subject to severe weather, such as strong wind (camera shake can cause false detections) or rain (strong rain may be detected as an object moving in front of the camera).
-
Page 15: Setup
Setup Indicator Status Part names and functions Red, blinking Live images are being viewed or recorded Red, blinking quickly Camera is out of range of the hub, or device malfunction Amber, blinking Camera is not registered to a hub You can configure the camera so that its LED indicator does not light during normal operation. -
Page 16: Registration Button
Setup Using the app Registration button When you register the camera by using the [Home Network] app, you can assign a name This procedure is not required for devices to your devices and group them by location. that were included as part of a bundle. For more information, refer to the User’s Guide (page 26). -
Page 17: Installation
R Holes must be made in the wall for cables R If the weight of the camera is supported by and wires to pass through. Panasonic takes the siding only, the siding could become no responsibility for issues related to damaged. - Page 18 Setup Ideal example Insert the screw and tighten it. Structure supports exterior surface Camera mounting stand ALC (autoclaved lightweight cellular concrete) R Depending on the type of ALC panel, you may not be able to attach the camera. Siding Consult the ALC panel manufacturer. Structure behind siding R Do not use the included screws.
-
Page 19: Installing The Camera
Setup Note: Installing the camera R Use the following template below when Attach the safety wire to the camera. determining the location of the screw R Place the ring of the safety wire (A) holes. over the screw hole. R Place a washer (B) on top of the ring 37 mm of the safety wire. - Page 20 Setup Attach the camera to the stand using the Adjust the camera angle. stand attachment hole on the rear or R Loosen the screw ( ) and then adjust bottom of the camera, depending on the the camera to the desired angle. direction you want to aim the camera.
-
Page 21: Power Failure
Indoors Note: Note: R Attach the safety wire while it is bent. R Use only the supplied Panasonic AC R Attach the safety wire high on the wall adaptor PNLV236AL. so that the camera does not strike R Be sure to connect the DC cable plug anyone in the event the camera and AC adaptor plug indoors. -
Page 22: Appendix
Appendix Testing the motion Adjusting the infrared detection range sensor range After you have installed the [Home Network] If there are objects that you do not want the app on your mobile device, you can use your infrared sensor to detect, you can adjust the mobile device to test the performance of the detectable area by attaching sensor range camera’s motion detection features. - Page 23 Appendix Approximate detection range (view when looking from above) Situation and cap types 20 °C 0 °C 30 °C When you want both sides of the camera to be detectable Standard cap (attached to the camera) When you want one (Example) Cap 1 (Example) Cap 1 (Example) Cap 1...
- Page 24 Appendix About the attachment angle of the sensor range cap Example 1 When there is an object on the right side of the viewable area that you do not want to be detected (such as trees): Attach one of caps 1-3 as shown in the example ( ) according to the area you do not want to be detected.
- Page 25 Appendix Replacing sensor range caps Remove the attached standard cap. Remove the desired sensor range cap from one of the 4 types (A) and attach it to the sensor (B). R When attaching, rotate the tab ( ) on the cap toward the top or at a 45-degree angle according to the type of cap or direction, and attach the cap on the camera, shown in the following illustration.
-
Page 26: Features Available When Using The [Home Network] App
– Sensor adjustment You can adjust the camera’s motion detection features, such as detection sensitivity and detection area. – Sensor integration www.panasonic.net/pcc/support/tel/ You can configure the camera’s sensor homenetwork/manual/ features to trigger other system events, such as camera recording , turning on an electric device (such as a lamp), etc. -
Page 27: Specifications
Appendix (adjustable when mounting) R Dimensions (height ´ width ´ depth) Specifications Approx. 75 mm ´ 75 mm ´ 173 mm R Mass (weight) R Standards Approx. 305 g DECT (Digital Enhanced Cordless Telecommunications) The IR-LED will be lighted at the low R Frequency range illuminance conditions. -
Page 28: Warranty (For New Zealand)
6) Damage to the product caused by accident, misuse or Act of God. 7) Repairs when the product has been dismantled, repaired, modified or serviced by other than a Panasonic Authorised Dealer authorised to service that type of product. IF YOUR PANASONIC PRODUCT FAILS WITHIN THE... - Page 29 Notes...
- Page 30 Notes...
- Page 31 Notes...
- Page 32 Attach your purchase receipt here. For Australia Customer Care Centre Tel. No.: 132600 or website www.panasonic.com/au For New Zealand Customer Care Centre Tel. No.: (09) 272 0178 or website www.panasonic.com/nz Sales Department: 1 Innovation Road, Macquarie Park NSW 2113, Australia Sales Department:...
