Samsung DVD-SH873 User Manual

Hide thumbs Also See for DVD-SH873:
Table of Contents

Advertisement

Quick Links

Download this manual

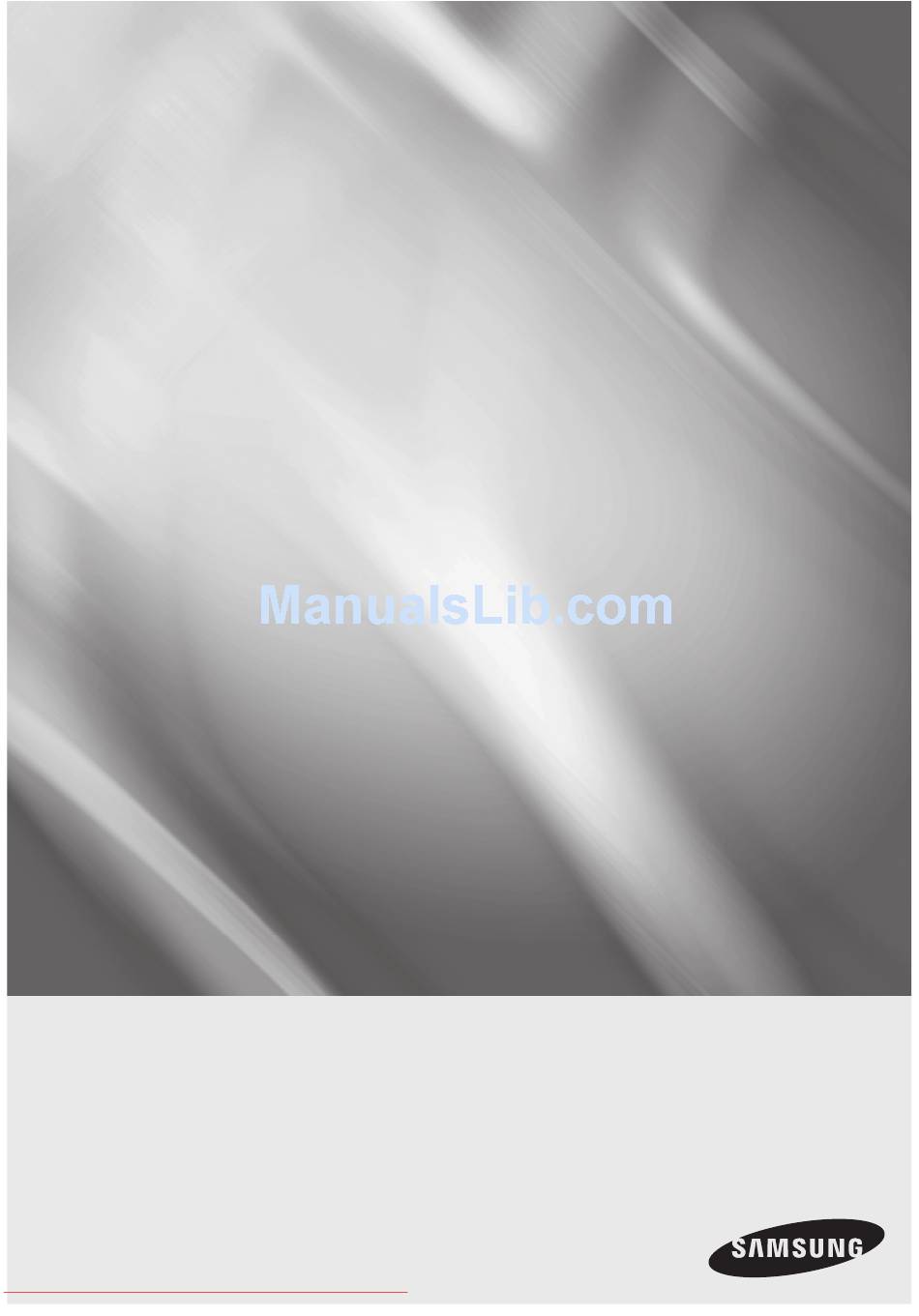

Downloaded From Disc-Player.com Samsung Manuals
DVD

user manual

imagine
the possibilities
Thanks you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/global/register
DVD-SH873
DVD-SH875
DVD-SH877

Advertisement

Table of Contents
loading

Related Manuals for Samsung DVD-SH873

Summary of Contents for Samsung DVD-SH873

  • Page 1: User Manual

    DVD-SH873 DVD-SH875 DVD-SH877 user manual imagine the possibilities Thanks you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/global/register Downloaded From Disc-Player.com Samsung Manuals...
  • Page 2 fi les conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this licence for product features or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3. Downloaded From Disc-Player.com Samsung Manuals 2_ getting started...

  • Page 3: Important Safety Instructions

    Apparatus shall not be exposed to dripping or splashing and no objects fi lled with liquids, such as vases, shall be placed on the apparatus. • The Mains plug is used as a disconnect device and shall stay readily operable at any time. Downloaded From Disc-Player.com Samsung Manuals English _3...

  • Page 4: Maintenance Of Cabinet

    Be careful not to harm the disc because the data on these discs is highly vulnerable to the environment. • Do not keep under direct sunlight. • Keep in a cool ventilated area. • Store vertically. Downloaded From Disc-Player.com Samsung Manuals 4_ getting started...

  • Page 5: Disc Type

    Playback may be impossible in some cases due to the condition of recording. • This unit can play back DVD±R discs recorded and fi nalised with a Samsung DVD video recorder. It may not be able to play some DVD±R discs depending on the disc and the condition of the recording.

  • Page 6: Disc Copy

    PTP USB is not available when you copy to USB. • If the disc is fi nalised through Disc Manager, it can be compatible with PC as a disc with a UDF fi le system. Downloaded From Disc-Player.com Samsung Manuals 6_ getting started...

  • Page 7: Disc Format

    Supported subtitle fi le formats: .smi, .srt, .sub, .psb, .txt, .ass • Each folder can have up to 500 items including fi les and sub folders. • You cannot play back the disc that is larger than a 720 x 576 pixel resolution. Downloaded From Disc-Player.com Samsung Manuals English _7...
  • Page 8 Some of the USB devices mentioned above might not be compatible with this product. In other words, the USB host function of this product does not guarantee the compatibility with all of USB devices. Downloaded From Disc-Player.com Samsung Manuals 8_ getting started...
  • Page 9 ❋ Others Product Vendor Brand Card Reader Unicon UC-601R Cowon Extermal HDD DATAgram DHC-350  Among MP3 players in the list above, those that do not use Mass Storage Class are not supported. Downloaded From Disc-Player.com Samsung Manuals English _9...
  • Page 10 Setting up the System Options Setting up the Language Options Setting up the Audio Options Setting up the Video Options Setting up the Parental Lock setting up the recording options DTV FUNCTIONS Basic Functions Guide Downloaded From Disc-Player.com Samsung Manuals 10_ getting started...
  • Page 11 Select Contents Advanced Editing (Playlist) Copying from HDD to DVD or Vice-versa Copying MP3, JPEG or DivX Changing the name of Music/Photo/DivX fi le Disc Manager REFERENCE 104 Troubleshooting 106 Specifi cations APPENDIX Downloaded From Disc-Player.com Samsung Manuals English _11...

  • Page 12: General Features

    HDMI reduces picture noise by allowing a pure digital video/audio signal path from the HDD & DVD Recorder to your TV. This HDD & DVD Recorder supports 576p, 720p, 1080i and 1080p. Downloaded From Disc-Player.com Samsung Manuals 12_ getting started...
  • Page 13 Anynet+(HDMI CEC) Anynet+ is a function that can be used to operate the recorder using a Samsung TV remote control, by connecting the HDD & DVD Recorder to a SAMSUNG TV using an HDMI Cable. (This is only available with SAMSUNG TVs that support Anynet+.) EZ Record Mode This function allows you initialise and Finalise a disc automatically.

  • Page 14: Icons That Will Be Used In Manual

    If a problem occurs, check the Troubleshooting. (See pages 104~105) Copyright ©2008 Samsung Electronics Co. All rights reserved; No part or whole of this user’s manual may be reproduced or copied without the prior written permission of Samsung Electronics Co. Downloaded From Disc-Player.com Samsung Manuals 14_ getting started...
  • Page 15 Step 4 : Playing You can select the title you want to play in a displayed menu and then immediately start playback. A DVD consists of sections, called titles, and sub- sections, called chapters. Downloaded From Disc-Player.com Samsung Manuals English _15...
  • Page 16 You should fi nalise the disc to play it on a component other than this HDD & DVD Recorder. You cannot edit or record on the disc once it has been fi nalised.  You can fi nalise the disc automatically using EZ Record function. (See page 47) Downloaded From Disc-Player.com Samsung Manuals 16_ getting started...

  • Page 17: Preparing The Remote Control

    Point the remote control towards the television. Press and hold the TV STANDBY/ON button and enter the two-fi gure code corresponding to the brand of your television, by pressing the appropriate number buttons. Downloaded From Disc-Player.com Samsung Manuals English _17...

  • Page 18: Controllable Tv Codes

    Used to toggle the sound on and off. Number Used to input number directly.  The functions listed above does not necessarily work on all televisions. If you encounter problems, operate the television directly. Downloaded From Disc-Player.com Samsung Manuals 18_ getting started...

  • Page 19: Front Panel

    DV-INPUT Connects to external digital equipment with a DV jack. (such as a camcorder) AV 2 INPUT Connects to external equipment. STANDBY/ON button Turns the HDD & DVD Recorder on and off . Downloaded From Disc-Player.com Samsung Manuals English _19...

  • Page 20: Rear Panel

    Connects the video output of external equipment using an video cables. AV 1 AUDIO IN Connects the audio output of external equipment using an audio cables. Out to TV connector Connects RF cable to TV antenna input. Downloaded From Disc-Player.com Samsung Manuals 20_ getting started...

  • Page 21: Front Panel Display

    Lights when a DVD±RW/±R disc is loaded. TIMER Indicator Lights to indicate the timer record mode. HDMI Indicator Lights to indicate when HDMI is connected. REC Indicator Lights in the record mode. STATUS Indicator Playing time/clock/current status indicator. Downloaded From Disc-Player.com Samsung Manuals English _21...

  • Page 22: Tour Of The Remote Control

    TOUR OF THE REMOTE CONTROL Your HDD & DVD Recorder remote control will work with Samsung televisions and compatible brands. Installing batteries in the Remote Control 1. Lift the cover at the back of the 2. Install two AAA size batteries.
  • Page 23 The RF cable connection of this product sends only signals of TV. You must connect Audio/Video cables to watch a DVD from your HDD & DVD Recorder.  Power off HDD & DVD Recorder, then you can watch programmes received through 2 RF cable. Downloaded From Disc-Player.com Samsung Manuals English _23...

  • Page 24: Other Type Of Connecting The Video Output Cable

    Connect audio cables (white and red) between the AUDIO OUT jacks on the HDD & DVD Recorder and AUDIO IN jacks on TV (or AV amplifi er). (See pages 26~31) Video/Audio Cable Yellow White Downloaded From Disc-Player.com Samsung Manuals 24_ connecting & setting up...
  • Page 25 Make sure that the colour coded connections match. The Y, P component output jacks of your HDD & DVD Recorder must be connected to the exact corresponding component input jacks on your TV. Downloaded From Disc-Player.com Samsung Manuals English _25...

  • Page 26: Other Type Of Connecting The Audio Output Cable

    Manufactured under licence from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. Case 1 : Connecting to your TV If your TV has audio input jacks, use this connection. Yellow White Downloaded From Disc-Player.com Samsung Manuals 26_ connecting & setting up...
  • Page 27 Case 2 : Connecting to a stereo amplifi er with AV output jacks If your stereo amplifi er only has AUDIO INPUT jacks (L and R), use the AUDIO OUT jacks White Front(L) Front(R) speaker speaker Downloaded From Disc-Player.com Samsung Manuals English _27...
  • Page 28 To enjoy Dolby Digital, MPEG2 or DTS sound, you will need to set up the audio settings. According to your amplifi er, connect to an optical cable or a coaxial cable. (See pages 41~42) Rear(L) Rear(R) Front(L) Front(R) Subwoofer Centre Downloaded From Disc-Player.com Samsung Manuals 28_ connecting & setting up...
  • Page 29 Press the input selector on your TV remote control until the HDMI signal from the HDD & DVD Recorder appears on your TV screen.  If the HDD & DVD Recorder is connected to your TV in HDMI 1080p output mode, you must use High speed(category2) HDMI cable. Downloaded From Disc-Player.com Samsung Manuals English _29...
  • Page 30 You can switch from the HDMI output to other output only in stop mode.  If you use an HDMI cable to connect a Samsung TV to the HDD & DVD Recorder, you can operate the recorder using the TV remote control.
  • Page 31 - If TV does not support HDCP (High -bandwidth Digital Content Protection), snow noise appears on the screen.  Why does Samsung use HDMI? Analogue TVs require an analogue video/audio signal. However, when playing a DVD, the data transmitted to a TV is digital.

  • Page 32: Connecting To Usb Devices

     When data communication is disrupted due to static electricity, magnetic fi eld or other reason, restart the programme or try to disconnect / connect the USB Cable again. Downloaded From Disc-Player.com Samsung Manuals 32_ connecting & setting up...
  • Page 33 Time Zone : GMT - 12:00 Español Italiano Nederlands Svenska Dansk Initial Installation Country Time Zone : United Kingdom ► Language : United Kingdom ► NSW/ACT Time Zone : GMT - 12:00 ► Downloaded From Disc-Player.com Samsung Manuals English _33...
  • Page 34 5 seconds or more during power off with no ---- ---- ---- disc inserted. Progress eEXIT Auto Scanning Name System ---- Auto channel scan completed successfully. ---- ---- Progress eEXIT Downloaded From Disc-Player.com Samsung Manuals 34_ system setup...

  • Page 35: Clock Set

    You must have the RF cable connected to set the Auto Clock. (See page 23)  The clock will be searched automatically in the DVB-T. If you do not need the Auto clock set function, select Off. Downloaded From Disc-Player.com Samsung Manuals English _35...

  • Page 36: Channel Set

    Name System ---- ---- ---- Progress eEXIT  You can select RADIO mode by pressing the TV/RADIO button on the remote control. This button used to toggle the TV and RADIO mode. Downloaded From Disc-Player.com Samsung Manuals 36_ system setup...
  • Page 37 PR(programme). For example, if you ◄ ► Name wish to swap PR2 and PR5, select swap at PR2, then press the OK button at PR5. System Save MOVE sSELECT Downloaded From Disc-Player.com Samsung Manuals English _37...
  • Page 38 You can also operate this function by pressing the FAV LIST button on the remote control.  You can make Digital favorite channel up to 8. (TV favorite list: 4, Radio favorite list:4) Downloaded From Disc-Player.com Samsung Manuals 38_ system setup...

  • Page 39: Setting Up The System Options

    Anynet+ (HDMI CEC) Anynet+ is a function that can be used to operate the recorder using a Samsung TV remote control, by connecting the HDD & DVD Recorder to a SAMSUNG TV using an HDMI Cable. (See pages 29~30) (This is only available with SAMSUNG TVs that support Anynet+.)

  • Page 40: Divx Registration

    Anynet+ (HDMI CEC) : On Guide ► DVB-T Auto Subtitle : On ► Channel Your registration code is XXXXXXXX DivX(R) Registration ► To learn more visit www.divx.com/vod Timer Record Disc Manager Setup sSELECT rRETURN eEXIT Downloaded From Disc-Player.com Samsung Manuals 40_ system setup...

  • Page 41: Setting Up The Language Options

    Digital output setting is equally applied to both Dolby Digital and MPEG-2 audio. LPCM sound track is always outputted as PCM. It has no relation with Digital Output setting.  Be sure to select the correct Digital Output or you will hear no sound or a loud noise. Downloaded From Disc-Player.com Samsung Manuals English _41...

  • Page 42: Setting Up The Video Options

    Press the ▲▼ buttons to select the desired video option, then m MOVE sSELECT rRETURN eEXIT press the OK or ► button. Press the ▲▼ buttons to select the desired item, then press the OK or ► button. Downloaded From Disc-Player.com Samsung Manuals 42_ system setup...
  • Page 43 The resolutions available for HDMI output depend on the connected TV or projector. For details, see the user’s manual of your TV or projector.  When the resolution is changed it may take a few seconds for a normal image to appear. Downloaded From Disc-Player.com Samsung Manuals English _43...

  • Page 44: Setting Up The Parental Lock

    OK or ► button. Change Password ► Channel For example, if you select up to MA, DVB-T that contain AV will Timer Record not display. Disc Manager Setup m MOVE sSELECT rRETURN eEXIT Downloaded From Disc-Player.com Samsung Manuals 44_ system setup...

  • Page 45: Changing The Password

    The “Confi rm the password” message will be Change Password ► Channel displayed. Timer Record Enter your password again using the number buttons on the Disc Manager remote control. Setup m MOVE sSELECT rRETURN eEXIT Downloaded From Disc-Player.com Samsung Manuals English _45...

  • Page 46: Setting Up The Recording Options

    EZ Record 8 Hours : Off ► Channel • 6 Hours V-Mode Compatibility : Off ► Timer Record • 8 Hours Disc Manager Setup m MOVE sSELECT rRETURN eEXIT Downloaded From Disc-Player.com Samsung Manuals 46_ system setup...
  • Page 47 Guide ► EZ Record : Off ► Channel V-Mode Compatibility : On ► Timer Record Audio Selection Dual L : Off ✔ ► Dual R Disc Manager Setup m MOVE sSELECT rRETURN eEXIT Downloaded From Disc-Player.com Samsung Manuals English _47...
  • Page 48 Press the FAV LIST button and then select the channel. Press the OK button to watch that channel.  You can make up to 8 Digital favorite channel. (TV favorite list: 4, Radio favorite list:4) Downloaded From Disc-Player.com Samsung Manuals 48_ DTV functions...

  • Page 49: Changing The Subtitle Language

    The contents of cell could be displayed with a delay according to the broadcasting.  The following icon is displayed if EPG data includes general information: Movie News Entertainment Sport Children's Music Arts/Culture Education/ Current Affairs Infotainment Special Comedy Drama Documentary Information Downloaded From Disc-Player.com Samsung Manuals English _49...
  • Page 50 Up to 12 recording are possible including guide recording and general M-BLOODHOUNDS BLUE HEELERS 7 Digital 2 M-BLOODHOUNDS BLUE HEELERS 7 Digital 3 recording. M-BLOODHOUNDS BLUE HEELERS 7 HD Digital M-BLOODHOUNDS BLUE HEELERS 7 Gudie Timer Rec #/$ PREVIOUS/NEXT DAY INFORMATION INFO Downloaded From Disc-Player.com Samsung Manuals 50_ DTV functions...

  • Page 51: Logos Of Discs That Can Be Played

    4 hrs. (LP: Long Playback) (4.7GB) AUDIO 6 or 8 hrs. (EP:Extended) DVD-RAM 2 hr. (XP: Excellent Quality) VIDEO Double sided(12cm) 4 hrs. (SP: Standard Quality) 8 hrs. (LP: Long Playback) (9.4GB) 12 or 16 hrs. (EP:Extended) Downloaded From Disc-Player.com Samsung Manuals English _51...

  • Page 52: Discs That Cannot Be Played

    DVD-RAM/±RW/±R discs may not be able to play on some DVD players, depending on the player, disc and the condition of the recording.  Discs with NTSC programmes recorded on them can be played but cannot be recorded using this product. Downloaded From Disc-Player.com Samsung Manuals 52_ playback...

  • Page 53: Playing A Disc

    Since only the information necessary for playing a desired scene is included in a playlist, even if that playlist is deleted, the original recording will not be deleted. (only VR mode) Downloaded From Disc-Player.com Samsung Manuals English _53...

  • Page 54: Using The Playback Related Buttons

     The speed marked in this function may be different from the actual playback speed.  Slow motion operates only in the forward direction on DivX discs. Downloaded From Disc-Player.com Samsung Manuals 54_ playback...

  • Page 55: Step Motion Play

    Press the ◄ ► buttons to select the desired subtitle language.  The subtitle display may be different depending on the disc type.  Some discs allow you to select the language for the disc menu only. Downloaded From Disc-Player.com Samsung Manuals English _55...

  • Page 56: Changing The Camera Angle

    OK button.  HDD/DVD-RAM/-RW(VR mode), unfi nalised DVD±R and unfi nalised DVD-RW (V mode) discs will do not repeat a chapter.  You can also activate Normal Playback by pressing the EXIT( ) button. Downloaded From Disc-Player.com Samsung Manuals 56_ playback...
  • Page 57 → X2 → X4 → X2 → normal size HDD/DVD-VIDEO/DVD-RAM/±RW/±R  When the recording is done in EP mode, the zoom function is not supported except when the recording has been in DVD-VIDEO and fi nalised DVD-R/-RW(V). Downloaded From Disc-Player.com Samsung Manuals English _57...

  • Page 58: Using Markers

    • Repeat above to bookmark other positions. • You can bookmark up to 10 scenes. < MOVE sPLAY Cancel rRETURN  When the disc tray is opened and then closed, bookmarks will disappear. Downloaded From Disc-Player.com Samsung Manuals 58_ playback...

  • Page 59: Clearing A Bookmark

    Insert an audio CD (CD-DA) into the disc tray. • The audio CD menu appears and the tracks (songs) are played automatically. Press the ▲▼ buttons to select the track (song) you want to hear, and then press the OK button. Downloaded From Disc-Player.com Samsung Manuals English _59...

  • Page 60: Playing An Mp3 Disc

    • Repeat Folder (MP3) Edit Play Mode • #/$ PREVIOUS/NEXT PAGE a CHECK eEXIT Repeat All (CD (CD-DA)/MP3) • Random (CD (CD-DA)/MP3) : The random option plays a disc’s tracks in random order. Downloaded From Disc-Player.com Samsung Manuals 60_ playback...
  • Page 61 RETURN EXIT To store the Playlist, press the RED(A) button. A new Playlist will be created. Playlist Title Length PLAYLIST PLAYLIST01   ►   00:00:00 Y PLAYLIST MOVE SELECT CHECK EXIT Downloaded From Disc-Player.com Samsung Manuals English _61...
  • Page 62 • If you playlisted a wrong track, press the ►▲▼ buttons to select the wrong track, then press the OK button. To store the Playlist, press the RED(A) button. Playlist will be edited. Downloaded From Disc-Player.com Samsung Manuals 62_ playback...
  • Page 63 E ROOT 005 SONG 5.MP3 5.2 MB Music 006 SONG 6.MP3 10.3 MB Photo (with Music) contents. Edit Sort Play Mode Contents  #/$ PREVIOUS/NEXT PAGE a CHECK eEXIT Audio CD(CD-DA) is not available. Downloaded From Disc-Player.com Samsung Manuals English _63...

  • Page 64: Viewing A Picture

    You can go to Photo List by pressing YELLOW(C) button. ❖ To stop the Slide Show Image 1.jpg 1/17 Press the GREEN(B), STOP( ) or RETURN button. Fast Normal Slow Speed Slide Show Off Photo List mPHOTO ► SLIDESHOW rRETURN eEXIT Downloaded From Disc-Player.com Samsung Manuals 64_ playback...

  • Page 65: Go To Photo List

    Image 15.jpg Image 16.jpg Edit Sort Slideshow Contents #/$ PREVIOUS/NEXT PAGE a CHECK eEXIT  You can sort by Name, Size. Sorted list will be resorted in copied order upon reentering Photo List. Downloaded From Disc-Player.com Samsung Manuals English _65...

  • Page 66: Playing A Divx

    Reverse Step Motion Play is not available.  Some DivX fi les created on a personal computer may not be play back. That is why Codec Type, Version and Higher resolution over specifi cation are not supported. Downloaded From Disc-Player.com Samsung Manuals 66_ playback...
  • Page 67 001 Movie_01.avi 162.8 MB Title 3 DivX DivX E ROOT Music Photo Edit Sort Subtitle Enc. Contents a CHECK eEXIT  This function is possible only when the disc contains the selected contents. Downloaded From Disc-Player.com Samsung Manuals English _67...

  • Page 68: Recordable Discs

    This HDD & DVD Recorder can record on the following discs. DVD-RAM DVD-RW DVD-R DVD+RW DVD+R • DVD-RAMs and DVD±RWs are rewritable. • DVD±Rs are non-rewritable. Compatibility between Samsung and Other Company’s Recorder Recording Additional Recording Disc Types Recording Device Finalising format in Samsung Recorder Samsung Recordable...

  • Page 69: Recording Formats

    - A DVD±R disc cannot be unfi nalised.  An additional recording could be failed in the same recorder of SAMSUNG. RECORDING FORMATS When you insert an unused disc, the following message appears. Since available functions differ depending on the disc type, select a disc that best fi...

  • Page 70: Recording Mode

    2 Mbps Approx. 6 hours/ Approx. 316 hours about 1.6 Mbps (extended mode) Approx. 8 hours/ Approx. 421 hours about 1.2 Mbps Approx. 53 hours ~ 421 hours Approx. 1~8 hours (Flexible Recording) Downloaded From Disc-Player.com Samsung Manuals 70_ recording...
  • Page 71 The dual layer DVD±Rs have approximately double the capacity of single layer DVD±Rs. (See pages 51~52)  DVB-T recording is possible only on FR mode.  On DVB-T recording, recording mode will be automatically determined depending on the quality of the video (or audio). Downloaded From Disc-Player.com Samsung Manuals English _71...

  • Page 72: Unrecordable Pictures

    If you select DVD, Press the OPEN/CLOSE button and place a recordable disc on the disc tray. Press the OPEN/CLOSE button to close the disc tray. Wait until LOAD disappears from the front panel display. Downloaded From Disc-Player.com Samsung Manuals 72_ recording...

  • Page 73: Recording The Current Tv Programme You Are Watching

    Press the STOP ( ) button to stop or fi nish a recording in progress. • When using DVD-RAM/±RW/±R discs, the message “Updating the information of disc. Please wait for a moment” is displayed. Downloaded From Disc-Player.com Samsung Manuals English _73...

  • Page 74: Copying From A Camcorder

    When using DVD-RAM/±RW/±R discs, the message “Updating the information of disc. Please wait for a moment” is displayed.  To display playback related icons on the screen, press any direction button on the remote control. Downloaded From Disc-Player.com Samsung Manuals 74_ recording...

  • Page 75: Simultaneous Recording And Playback

    It plays back the title that you are currently recording from the Play ► beginning. Playback is not available for 10 seconds from the start of recording. You can use the SKIP ( ) and other playback-related buttons to view the previous recorded list. Downloaded From Disc-Player.com Samsung Manuals English _75...

  • Page 76: Time Shift Function As A Live Signal

    This function replays recordings as a live signal. Time Shift If you are interrupted while watching a TV programme, simply press the TIME SHIFT button, and the HDD & DVD Recorder immediately starts recording the programme. > CHANGE SELECT Downloaded From Disc-Player.com Samsung Manuals 76_ recording...
  • Page 77 You can only play the contents by using the menu when the Time Shift is set to On.  Press TIME SHIFT button to cancel the Time shift function.  To display playback related banner on the screen, press ◄ ► button on the remote control. Downloaded From Disc-Player.com Samsung Manuals English _77...

  • Page 78: Making A Timer Recording

    - SP (standard quality) : Select to record in standard quality. - LP (low quality) : Select when a long recording time is required. - EP (extended) : Select when a longer recording time is required. Downloaded From Disc-Player.com Samsung Manuals 78_ recording...

  • Page 79: Editing The Scheduled List

    - -:- - PR 01 JAN 01 17:30 18:30 PR 01 JAN 01 21:00 22:00 PR 01 JAN 01 23:15 23:45 Recordable Time HDD 65:19 XP Delete Recorded List m MOVE sSELECT rRETURN eEXIT Downloaded From Disc-Player.com Samsung Manuals English _79...

  • Page 80: Deleting A Scheduled List

    Press the ◄ ► buttons to select Yes, then press the OK button. • The selected entry will be deleted from the list. Press the EXIT ( ) button after fi nishing the operation. The Scheduled List screen will disappear. Downloaded From Disc-Player.com Samsung Manuals 80_ recording...
  • Page 81 HDD & DVD Recorder. instantly with the remote control. Enter the G-Code code for the programme you wish to record.  G-Code is a trademark of Gemstar Development Corporation. The G-Code system is manufactured under licence from Gemstar Development Corporation. Downloaded From Disc-Player.com Samsung Manuals English _81...

  • Page 82: Go To Recorded List

    Recorded List, then press the OK button. PR 01 JAN 01 21:00 22:00 PR 01 JAN 01 23:15 23:45 Timer rec was finished successfully Delete Delete All Scheduled List > MOVE sSELECT rRETURN eEXIT Downloaded From Disc-Player.com Samsung Manuals 82_ recording...
  • Page 83 Switches directly from the Recorded List to the Scheduled List. Scheduled List Current Time 10:54 . Press the YELLOW(C) button. Source Date Start Mode Status Add a list Recordable Time HDD 105:44 SP Recorded List < MOVE sSELECT rRETURN eEXIT Downloaded From Disc-Player.com Samsung Manuals English _83...
  • Page 84 Clear (YELLOW(C) button) : Deletes all the character inputs. JAN/01/2008 17:30 New Playlist • Select All Save (BLUE(D) button) : Registers the character inputs. V-Mode Compatibility Edit Sort Go to Contents a CHECK eEXIT Downloaded From Disc-Player.com Samsung Manuals 84_ editing...
  • Page 85 < MOVE sSELECT rRETURN eEXIT the OK button. The key icon changes to the unlocked status. (0 1)  If you select “Select All” in the Edit menu, all title will be checked. Downloaded From Disc-Player.com Samsung Manuals English _85...

  • Page 86: Deleting A Title

    Title List, then press the RED(A) button. 003 JAN/03/2008 23:15 PR 00:30:00 Protection Partial Delete The Edit menu is displayed. MPEG2 Split JAN/01/2008 17:30 New Playlist Select All V-Mode Compatibility Edit Sort Go to Contents a CHECK eEXIT Downloaded From Disc-Player.com Samsung Manuals 86_ editing...
  • Page 87 Press the OK button at the end point. Start Delete Return ► Play  Pause   SCAN The image and end point time is displayed in the Section deletion < MOVE sSELECT rRETURN eEXIT ending point window. Downloaded From Disc-Player.com Samsung Manuals English _87...

  • Page 88: Navigation Menu

    Press the ▲▼ buttons to select Time Navigation, then press the MPEG2 Playlist OK or ► button. JAN/01/2008 17:30 Time Navigation Scene Navigation V-Mode Compatibility Edit Sort Go to Contents a CHECK eEXIT Downloaded From Disc-Player.com Samsung Manuals 88_ editing...
  • Page 89 003 JAN/03/2008 23:15 PR 00:30:00 Title  MPEG2 DivX This function is possible only when the disc contains the selected JAN/01/2008 17:30 Music contents. Photo V-Mode Compatibility Edit Sort Go to Contents a CHECK eEXIT Downloaded From Disc-Player.com Samsung Manuals English _89...

  • Page 90: Creating A Playlist

    You can create up to 999 playlist entries onto HDD, and create up to 99 playlist entries onto DVD-RAM/-RW(VR) disc.  Depending on the kind of disc, the displayed screen may have a slight difference.  If the related title is erased, the playlist is also erased. Downloaded From Disc-Player.com Samsung Manuals 90_ editing...

  • Page 91: Playing Entries In The Playlist

    Press the BLUE(D) button to select Save. The changed title is displayed in the title fi eld of the selected Rename playlist entry. Dolphin Back Space Space Clear Save m MOVE sSELECT rRETURN eEXIT Downloaded From Disc-Player.com Samsung Manuals English _91...

  • Page 92: Editing A Scene For The Playlist

     00:05:27 • Start Change Return The scene you want to modify is changed with the selected ► Play  Pause   SCAN # $ SKIP section. < MOVE sSELECT rRETURN eEXIT Downloaded From Disc-Player.com Samsung Manuals 92_ editing...
  • Page 93 5. Press the ◄ ► buttons to select Yes, then press the OK to 01 00:02:24 04 00:01:22 Do you want to delete the scene? delete the selected scene. 05 00:00:09 06 00:01:06 07 00:00:00 Modify Move Delete < MOVE sSELECT rRETURN eEXIT Downloaded From Disc-Player.com Samsung Manuals English _93...

  • Page 94: Deleting A Playlist Entry From The Playlist

    Date : In order of when the playlists were created Edit Sort Title List a CHECK eEXIT • Name : In alphabetical order  You can sort by Date, Name. Sorted list will be resorted in copied order upon reentering Playlist. Downloaded From Disc-Player.com Samsung Manuals 94_ editing...

  • Page 95: About The Copy Screen

    CHECK eEXIT You can also select a desired mode by pressing the HDD/DVD button on the front panel. With the unit in Stop mode/Playback mode, press the TITLE LIST button. Downloaded From Disc-Player.com Samsung Manuals English _95...
  • Page 96 COPYING MP3, JPEG OR DIVX Contents Copy Specifi cations Contents DVD or USB HDD or USB HDD or DVD Supported Supported Supported JPEG(photo) Supported Supported Supported DivX Supported Supported Supported CD-DA Not supported Supported Not supported Downloaded From Disc-Player.com Samsung Manuals 96_ editing...

  • Page 97: File Copy

    E MP3 (2) press the OK or ► button. E MP3 (3) 9 MP3 8 40.2MB MP3, JPEG or DivX folder is displayed. Start Copy Sort Selection All Unselect All a CHECK eEXIT Downloaded From Disc-Player.com Samsung Manuals English _97...
  • Page 98 9 SONG 10.mp3 004 SONG 4.MP3 9.2 MB Select All E ROOT 005 SONG 5.MP3 5.2 MB Delete 006 SONG 6.MP3 10.3 MB Rename Edit Sort Play Mode Contents #/$ PREVIOUS/NEXT PAGE a CHECK eEXIT Downloaded From Disc-Player.com Samsung Manuals 98_ editing...

  • Page 99: Disc Manager

    If you have recorded a DVB-T radio channel program, the time information displayed for each of free and used space may be incorrect. Back Space Space Clear Save m MOVE sSELECT rRETURN eEXIT Downloaded From Disc-Player.com Samsung Manuals English _99...

  • Page 100: Disc Protection

    “All playlists will also be deleted. Do you want to < MOVE sSELECT rRETURN eEXIT continue?”. Press the ◄ ► buttons to select Yes, then press the OK button. All title lists are deleted. Downloaded From Disc-Player.com Samsung Manuals 100_ editing...

  • Page 101: Formatting A Disc

    “All data will be deleted. Do you want to continue?”. Available Space 065:19 XP ( 231.01 GB) Current media: HDD Do you want to format? Delete Format < MOVE sSELECT rRETURN eEXIT Downloaded From Disc-Player.com Samsung Manuals English _101...

  • Page 102: Finalising A Disc

    Disc Protection Info Not Protected Current Rec. Mode VR-Mode  You can fi nalise the disc automatically using EZ Record. Rename Protection Delete All Finalise Format (See page 47) < MOVE sSELECT rRETURN eEXIT Downloaded From Disc-Player.com Samsung Manuals 102_ editing...
  • Page 103 A DVD-RW can be fi nalised or unfi nalised in VR mode. Finalise Unfi nalise Mark DVD-RW(VR:F) DVD-RW(VR) Additional recording, deletion, editing, and Additional recording, deletion, editing, and Operation protection are impossible. protection are possible. Downloaded From Disc-Player.com Samsung Manuals English _103...

  • Page 104: Troubleshooting

    TROUBLESHOOTING If your product malfunctions, go through the checkpoints below before contacting a Samsung authorised service centre. PROBLEM EXPLANATION/SOLUTION The input is displayed for a while when the The HDD & DVD Recorder requires some time to initialise and the input will be power is turned on.
  • Page 105 • Read the table of contents and then fi nd and read the section describing your problem, follow the instructions given. • Plug your HDD & DVD Recorder off and on. • If the problem still persists, contact a nearby Samsung service centre. Downloaded From Disc-Player.com Samsung Manuals English _105...

  • Page 106: Specifications

    For DVD discs, audio signals recorded at 96 kHz sampling frequency are converted into and output at 48 kHz. Disc Type AUDIO CD (CD-DA) Analogue Audio Output 48 / 96 kHz 44,1 kHz Digital Audio Output 48 kHz 44,1 kHz Downloaded From Disc-Player.com Samsung Manuals 106_ appendix...
  • Page 107 Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Region Country Customer Care Center Web Site CANADA 1-800-SAMSUNG(726-7864) www.samsung.com/ca North America MEXICO 01-800-SAMSUNG(726-7864) www.samsung.com U.S.A 1-800-SAMSUNG(726-7864) www.samsung.com...
  • Page 108 Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. Code No. AK68-01721A Downloaded From Disc-Player.com Samsung Manuals...

This manual is also suitable for:

Dvd-sh875Dvd-sh877
