Nokia MOBILE TERMINAL Service Manual page 178

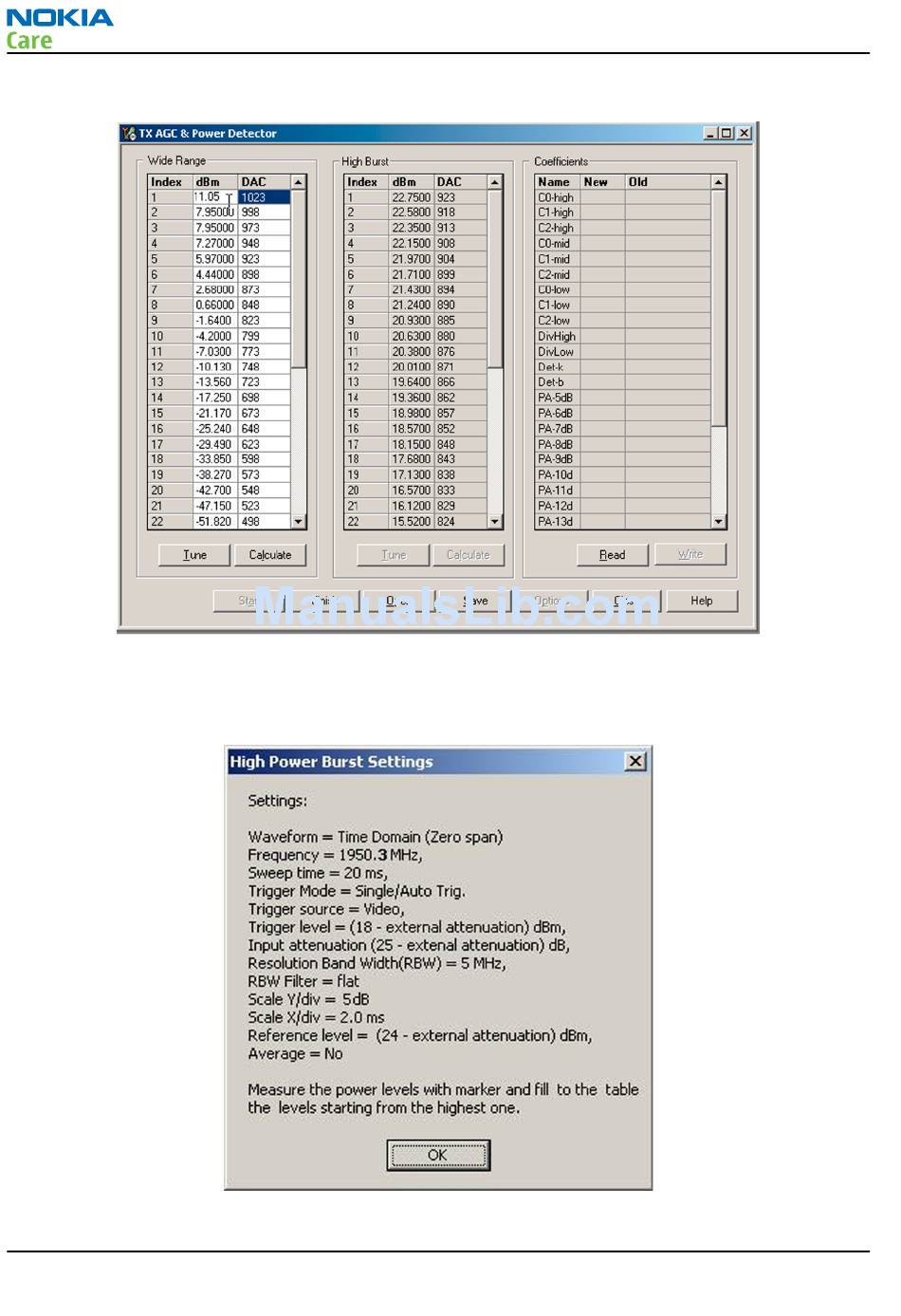

8. Fill in the power level values (in dBm) to the
Wide Range pane, click Calculate.
9. In the
High Burst pane, click Tune.
10. In the
11. Adjust the spectrum analyzer according to the following settings:
Page 4 –48
Wide Range table.
COMPANY CONFIDENTIAL
Copyright © 2008 Nokia. All rights reserved.
RM-356
RF troubleshooting
Issue 1
