Philips Semiconductors

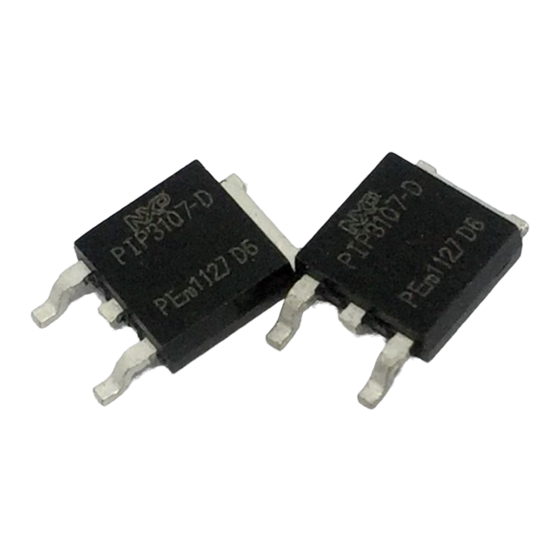

Logic level TOPFET
DESCRIPTION
Monolithic temperature and
overload protected logic level power
MOSFET in TOPFET2 technology
assembled in a 3 pin surface mount
plastic package.
APPLICATIONS
General purpose switch for driving
lamps
motors
solenoids
heaters
FEATURES
TrenchMOS output stage
Current limiting
Overload protection
Overtemperature protection
Protection latched reset by input
5 V logic compatible input level
Control of output stage and
supply of overload protection
circuits derived from input
Low operating input current
permits direct drive by
micro-controller
ESD protection on all pins
Overvoltage clamping for turn
off of inductive loads
PINNING - SOT428
PIN
DESCRIPTION
1
input
2
drain
3
source
tab
drain
October 2001
QUICK REFERENCE DATA
SYMBOL
PARAMETER
V
Continuous drain source voltage
DS
I
Continuous drain current
D
P
Total power dissipation
D
T
Continuous junction temperature
j
R
Drain-source on-state resistance
DS(ON)
I
Input supply current
ISL
FUNCTIONAL BLOCK DIAGRAM
INPUT
PROTECTION
Fig.1. Elements of the TOPFET.
PIN CONFIGURATION
tab
2
1
3
1
V
IS
O / V
CLAMP
RIG
LOGIC AND
SYMBOL
Product specification
PIP3107-D
MAX.
UNIT
50
V
16
A
65
W
150
˚C
50
m
= 5 V
650
A
DRAIN
POWER
MOSFET
SOURCE
D
TOPFET
I
P
S
Rev 1.000
Advertisement
Related Manuals for Philips Logic Level TOPFET PIP3107-D
Summary of Contents for Philips Logic Level TOPFET PIP3107-D
- Page 1 Logic level TOPFET DESCRIPTION Monolithic temperature and overload protected logic level power MOSFET in TOPFET2 technology assembled in a 3 pin surface mount plastic package. APPLICATIONS General purpose switch for driving lamps motors solenoids heaters FEATURES TrenchMOS output stage Current limiting...
-
Page 2: Limiting Values
= 16 A; V 25 ˚C 95 ˚C; f = 250 Hz REQUIRED CONDITION 5.5 V CONDITIONS minimum footprint FR4 PCB the over temperature trip operates to protect the switch. j(TO) Product specification MIN. MAX. = 25 ˚C self - limited 125 ˚C... -
Page 3: Output Characteristics
Philips Semiconductors Logic level TOPFET OUTPUT CHARACTERISTICS Limits are for -40˚C 150˚C; typicals are for T SYMBOL PARAMETER Off-state Drain-source clamping voltage (CL)DSS Drain source leakage current On-state Drain-source resistance DS(ON) OVERLOAD CHARACTERISTICS -40˚C 150˚C unless otherwise specified. SYMBOL PARAMETER Short circuit load Drain current limiting Overload protection... -
Page 4: Input Characteristics
Philips Semiconductors Logic level TOPFET INPUT CHARACTERISTICS The supply for the logic and overload protection is taken from the input. Limits are for -40˚C 150˚C; typicals are for T SYMBOL PARAMETER Input threshold voltage IS(TO) Input supply current Input supply current Protection reset voltage Latch reset time Input clamping voltage... -
Page 5: Mechanical Data
Philips Semiconductors Logic level TOPFET MECHANICAL DATA Plastic single-ended surface mounted package (Philips version of D-PAK); 3 leads (one lead cropped) DIMENSIONS (mm are the original dimensions) UNIT max. 0.65 0.89 2.38 0.89 0.45 0.71 2.22 0.71 Note 1. Measured from heatsink back to lead. OUTLINE VERSION SOT428... -
Page 6: Life Support Applications
Philips Semiconductors Logic level TOPFET DEFINITIONS DATA SHEET STATUS DATA SHEET PRODUCT STATUS STATUS Objective data Development Preliminary data Qualification Product data Production Limiting values Limiting values are given in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or more of the limiting values may cause permanent damage to the device.
