Summary of Contents for Asus VA321H
-

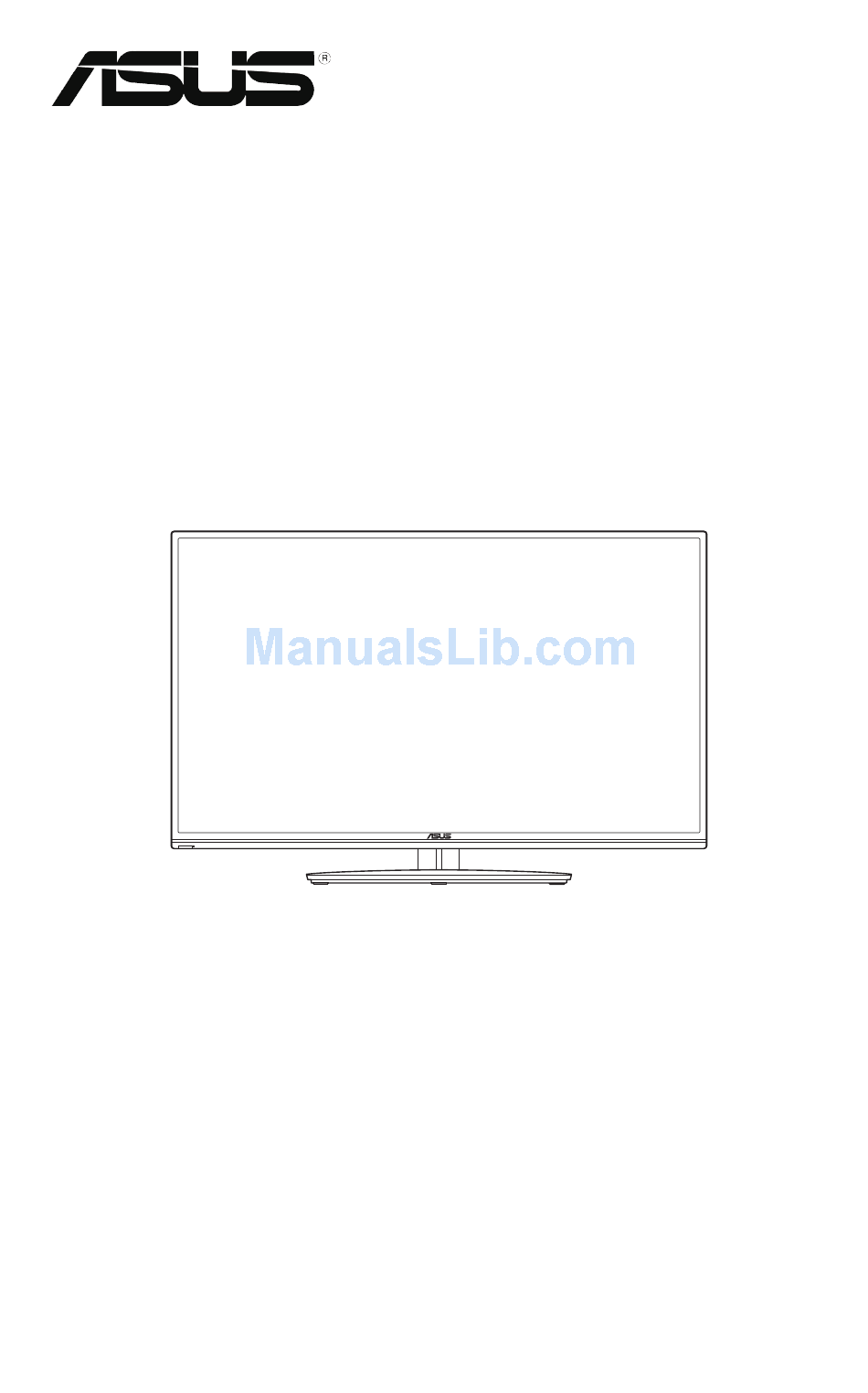

Page 1: User Guide
VA321 series LCD Monitor User Guide... -
Page 2: Table Of Contents
Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. -
Page 3: Notices
Notices This product implements power management functionality. In case of no signal input after 10 seconds, the product automatically goes to sleep/ standby mode. ® As an Energy Star Partner, our company has determined ® that this product meets the Energy Star guidelines for energy efficiency. -
Page 4: Safety Information
Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury. -
Page 5: Care & Cleaning
Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. • Cleaning. - Page 6 Refer to the following sources for additional information and for product and software updates. ASUS websites The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com Optional documentation Your product package may include optional documentation that may have been added by your dealer.
-
Page 7: Welcome
® Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual... -
Page 8: Assembling The Monitor Base
Assembling the monitor base Carefully put the front of the monitor face down on a clean table. Attach the base to the arm. Beware to align the latch to the notch on the base. (1) The end of the arm will slightly protrude from the base. No need to push it in. -
Page 9: Connect Cables
RISQUE D ÉLECTROCUTION DO NOT OPEN NE PAS OUVRIR HDMI DC-IN port HDMI port DVI port VGA port Audio in Earphone jack Control button Screw holes for VESA wall mount Kensington Lock 10. Power button ASUS LCD Monitor VA321 series... -
Page 10: Monitor Introduction
Monitor introduction 1.5.1 Using the Controls button Use the controls button on the back of the monitor to adjust the image settings. Standard Mode VGA 1920x1080@60Hz Menu QuickFit Input Select Close Brightness Blue Light Filter Power Button/Power Indicator: • Press this button to turn the monitor on/off. •... - Page 11 Close Button: • Exit the OSD menu. Shortcut Key1: • This is a Shortcut key. The default setting is Brightness. Shortcut Key2: • This is a Shortcut key. The default setting is Blue Light Filter. ASUS LCD Monitor VA321 series...
-
Page 12: Quickfit Function
1.5.2 QuickFit Function The QuickFit function contains three patterns: (1) Grid (2) Paper size (3)Photo size. QuickFit has three patterns: Grid pattern: Facilitates designers and users to organize content and layout on one page and achieve a consistent look and feel. Alignment Grid Paper size: Provides users to view their documents in real size on the screen. -
Page 13: Detaching The Arm/Stand (For Vesa Wall Mount)
2.1 Detaching the arm/stand (for VESA wall mount) The detachable stand of this monitor is specially designed for VESA wall mount. Disconnect power and signal cables. Carefully put the front of the monitor face down on a clean table. Loosen the screw located at the bottom of the base. Then remove the base from the stand. -
Page 14: Osd (On-Screen Display) Menu
OSD (On-Screen Display) menu 3.1.1 How to reconfigure VA321 Standard Mode VGA 1920x1080 @ 60Hz Splendid Scenery mode Blue Light Filter Standard Mode Color Theater Mode Image Game Mode Input Select Night View Mode System Setup sRGB Mode Shortcut Reading Mode Darkroom Mode Press the MENU button to activate the OSD menu. -
Page 15: Osd Function Introduction
In the Standard Mode, the Saturation, Skin Tone, Sharpness, and ASCR functions are not user-configurable. • In the sRGB, the Saturation, Color Temp., Skin Tone, Sharpness, Brightness, Contrast, and ASCR functions are not user-configurable. • In the Reading Mode, the Saturation, Skin Tone, ASCR, Contrast, and Color Temp. functions are not user-configurable. ASUS LCD Monitor VA321 series... - Page 16 Blue Light Filter Reduce the energy level of blue light emitted from LED backlight. VA321 Standard Mode VGA 1920x1080 @ 60Hz Splendid Level 0 Blue Light Filter Level 1 Color Level 2 Image Level 3 Input Select Level 4 System Setup Shortcut •...
- Page 17 4:3 is only available when input source is in 4:3 format. • OverScan is only available when input source is HDMI. • VividPixel: ASUS Exclusive Technology that brings lifelike visuals for crystal-clear and detail-oriented enjoyment. The adjusting range is from 0~100. • ASCR: Select ON or OFF to enable or disable dynamic contrast ratio function.
-
Page 18: Input Select
• Focus: Reduces Horizontal-line noise and Vertical-line noise of the image by adjusting (Phase) and (Clock) separately. The adjusting range is from 0 to 100 (Only available for VGA input). • Auto Adjust: Automatically adjust the image to its optimized position, clock, and phase. -
Page 19: System Setup
GamePlus: The GamePlus Function provides a toolkit and creates a better gaming environment for users when playing different types of games. Particularly, Crosshair function is specially designed for new gamers or beginners interested in First Person Shooter (FPS) games. ASUS LCD Monitor VA321 series... - Page 20 To active GamePlus: • Select ON to enter the GamePlus main menu. • Press to select between Crosshair and Timer function. • Press to confirm the function you choose. Press to go back. Press to go off, and exit. GamePlus main menu GamePlus-Crosshair GamePlus Crosshair Timer (Practice Mode) GamePlus main-Timer GamePlus main-Timer-Position...
- Page 21 Filter. The default setting is Brightness. • Shortcut 2: Assign a function to the Shortcut Key2. Available options: Splendid, Brightness, Auto Adjust, Contrast, Color Temp., Volume, GamePlus, and Blue Light Filter. The default setting is Blue Light Filter. ASUS LCD Monitor VA321 series...
-
Page 22: Specifications
3.2 Specifications Model VA321H Panel Size/Type 31.5”W In-Plane-Switching Technology (WLED) Max. Resolution 1920 x 1080 Brightness (Typ.) 250 cd/m Contrast Ratio (Typ.) 1000:1 Viewing Angle (CR≤10) 178°(V); 178°(H) Display Colors 16.7M(Real 8 bits) 5 ms (Gray to Gray) Response Time (Typ.) -
Page 23: Troubleshooting (Faq)
• Make sure the audio cable is properly connected to the monitor. • Adjust the volume settings of both your monitor and computer. • Make sure the computer sound card driver is properly installed and activated. 3-10 ASUS LCD Monitor VA321 series... -
Page 24: Supported Timing List
Supported Timing List VESA / IBM Modes Support Timing Horizontal Vertical Resolution Resolution Nominal Pixel Mode Frequency Frequency (active dot) (total dot) Color (MHz) (KHz) (Hz) 640x480@60Hz 800 x 525 31.469 59.940 25.175 800x600@60Hz 1056 x 628 37.879 60.317 40.000 1024x768@60Hz 1344x806 48.363...
