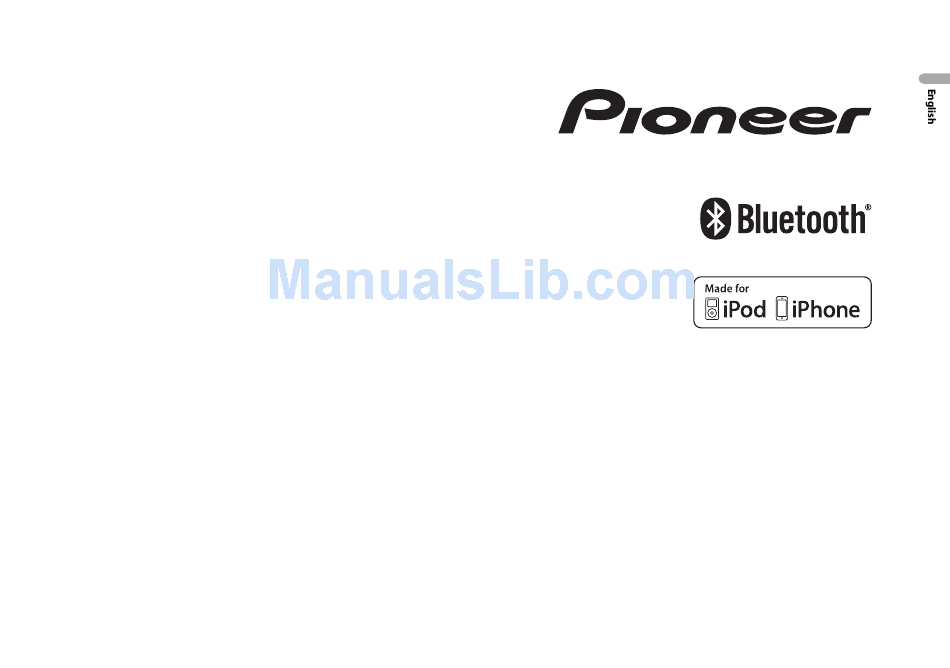

- Page 1 DIGITAL MEDIA RECEIVER MVH-X189UI Owner’s Manual MVH-289BT...
-
Page 2: Table Of Contents
Table of Contents Before You Start Before You Start ................. 2 Thank you for purchasing this PIONEER product To ensure proper use, please read through this manual before using this product. It is Getting Started ................3 especially important that you read and observe WARNINGs and CAUTIONs in this manual. -
Page 3: Getting Started
* This button is referred to as DISP in the manual. Getting Started Remote Control Basic operation NOTE Remote control is not supplied for MVH-289BT. MVH-X189UI VOLUME +/– M.C. (multi-control) dial MUTE SRC (source)/OFF Display window FUNCTION AUDIO SRC (source) -
Page 4: Detaching The Front Panel
Operation Detaching the front panel Purpose Head Unit Remote Control Detach the front panel to prevent theft. Remove any cables and devices Return to the previous Press /DIMMER or Press to select the attached to the front panel and turn off the unit before detaching it. display/list BAND/ next/previous folder. -
Page 5: Setup Menu
Menu Item Description WARNING AM STEP Select the AM tuning step from 10 kHz or 9 kHz. • Keep the battery out of the reach of children. Should the battery be swallowed, consult a doctor immediately. [10], [9] • Do not expose the battery or remote control to excessive heat such as direct sunlight or fire. -
Page 6: Radio
NOTE Press BAND/ or BAND/ to select the band from [FM1], [FM2], The options vary depending on the unit. [FM3], [AM], [SW1] or [SW2]. Menu Item Description Press a number button (1/ to 6/ FM STEP Select the FM tuning step from 100 kHz or 50 kHz. [100], [50] buttons can be also used to select a preset station when [SEEK] is set to AM STEP... -
Page 7: Usb/Ipod/Aux
Playing back CAUTION Use an optional Pioneer USB cable (CD-U50E) to connect the USB device as any device Disconnect headphones from the device before connecting it to the unit. connected directly to the unit will protrude out from the unit, which could be dangerous. - Page 8 MTP. Note that MTP connection is not compatible with WAV file formats, and cannot be Purpose Operation used with the MIXTRAX function. 1 Press Alphabetical search (iPod only) to display the list. NOTE 2 Turn the M.C. dial to select the If you use an MTP connection, [ANDROID WIRED] needs to be set to [MEMORY] in the desired category list, then press SYSTEM settings (page 17).
-
Page 9: Ipod Control
NOTES • Pressing iPod can also switch the control mode (only for MVH-X189UI). Turn the M.C. dial to select [BT SETTING], then press to confirm. • Switching the control mode to [CTRL iPod] pauses song playback. Use the connected iPod to resume playback. -
Page 10: Bluetooth Settings
Bluetooth device address and device name. PIN CODE Change the PIN code. Select [Pioneer BT Unit] shown in the device display. 1 Press the M.C. dial to display the setting mode. 2 Turn the M.C. dial to select a number. -
Page 11: Basic Operations
Turn the M.C. dial to select [RECENTS] or [PHONE BOOK], then press to To preset phone numbers confirm. Select a phone number from a phone book or call history. If you select [PHONE BOOK], proceed to step 4. Press and hold one of the number buttons (1/ to 6/ Turn the M.C. -
Page 12: App Mode
(APP mode for iPhone is not available for MVH-289BT.) – AVRCP (Audio/Video Remote Control Profile) can perform functions such as playback, (APP mode for Android device is not available for MVH-X189UI.) pause, select song, etc. You can enjoy listening to an application on an iPhone/Android device via the •... -
Page 13: Car Remote Mode
NOTE park your vehicle in a safe location before attempting to use the controls on the application. PIONEER IS NOT LIABLE FOR ANY THIRD PARTY APPS OR CONTENT, INCLUDING WITHOUT LIMITATION THEIR ACCURACY OR COMPLETENESS. THE CONTENT AND FUNCTIONALITY OF For iPhone users SUCH APPS ARE THE SOLE RESPONSIBILITY OF THE APP PROVIDER. -
Page 14: Settings
NOTE Turn the M.C. dial to select the options, then press to confirm. If the car remote application has not been installed on your Android device yet, a message that prompts you to install the application will appear on your Android NOTES device. -
Page 15: Audio Settings
Menu Item Description Menu Item Description NEWS STOP [ON], [OFF] Interrupt the currently selected source with Stop playback. news programs. (Available only when FM band is selected.) AUDIO settings ALARM [ON], [OFF] Interrupt the currently selected source with Menu Item Description emergency announcements. -
Page 16: System Settings
Menu Item Description Menu Item Description SUB.W CTRL*2*3 CLOCK SET Cut-off frequency: [50HZ], Only frequencies lower than those in the Set the clock (page 5). [63HZ], [80HZ], [100HZ], selected range are output from the 12H/24H [125HZ], [160HZ], [200HZ] subwoofer. [12H], [24H] Select the time notation. -
Page 17: Illumination Settings
*2 Please use a commercially available wiring harness for each car model when [PRESET] [ON], [OFF] Set the MIXTRAX special effects on/off. mode is engaged, and use a commercially available adapter when in [PIONEER]. CUT IN FX [ON], [OFF] Turn the MIXTRAX sound effects on/off ILLUMINATION settings while manually changing the tracks. -
Page 18: Connections/Installation
the hole to the engine This unit Connections/Installation compartment. – Cover any disconnected cable connectors with insulating tape. Important Connections – Do not shorten any cables. • When installing this unit in a vehicle – Never cut the insulation of the without an ACC (accessory) position WARNING power cable of this unit in order to... - Page 19 Perform these connections when Connect to the constant 12 V To rear output or subwoofer output using a subwoofer without the supply terminal. Rear speaker or subwoofer optional amplifier. Leave ample 5 cm Connect to terminal controlled by Installation space the ignition switch (12 V DC).
- Page 20 Install the microphone clip on the sun visor. Lowering the sun visor reduces the voice recognition rate. Screw in one screw on each side to hold the unit in place. Installing the microphone (Only for MVH-289BT) The microphone should be placed Screw Truss screw (5 mm ×...
-
Page 21: Additional Information
ON again. If the message cellular phone, that may cause remains, contact your dealer or an audible interference. authorized Pioneer Service – Move electrical devices that may Station for assistance. be causing the interference away NO XXXX (NO TITLE, for example) from the unit. -
Page 22: Bluetooth Device
USB device/iPod – Connect the USB device directly is displayed, reconnect the iPod – Connect the unit and the device to this unit using a USB cable. and reset it. via Bluetooth (page 9). FORMAT READ → Sometimes there is a delay CHECK USB ERROR-23 CONN. -
Page 23: Compressed Audio Compatibility
Version 1.x.) CAUTION interference when you are listening M3u playlist Not compatible This unit supports only the following iPod • Pioneer cannot guarantee to the radio. MP3i (MP3 Not compatible models. Supported iPod software versions compatibility with all USB mass interactive), mp3 are shown below. -
Page 24: Specifications
Bluetooth PIONEER CORPORATION. 2.5 kHz/8 kHz SIG, Inc. and any use of such marks by CAUTION PIONEER CORPORATION is under license. Equalization range: ±12 dB (2 dB Specifications Pioneer accepts no responsibility for Other trademarks and trade names are step) those of their respective owners. - Page 25 Usable sensitivity: 11 dBf (1.0 μV/75 Ω, Bluetooth profiles: mono, S/N: 30 dB) GAP (Generic Access Profile) Signal-to-noise ratio: 72 dB (IEC-A SDAP (Service Discovery network) Application Profile) OPP (Object Push Profile) AM tuner HFP (Hands Free Profile) 1.6 Frequency range: 531 kHz to 1 602 kHz PBAP (Phone Book Access Profile) (9 kHz) A2DP (Advanced Audio...
- Page 28 © 2015 PIONEER CORPORATION. All rights reserved. <QRB3532-A> ID...
