Sony HCD-H33D Service Manual

QQ
3 7 63 1515 0
SERVICE MANUAL
HCD-H33D is the tuner, deck, CD
and amplifier section in CHC-P33D.
Dolby noise reduction manufactured under license
from Dolby Laboratories Licensing Corporation.
"DOLBY" and the double-D symbol a are trade-
marks of Dolby Laboratories Licensing Corporation.
TE
L 13942296513
CD player section
System Compact disc digital audio
system
Laser Semiconductor laser
(λ=780 nm)
Emission duration: continuous
Laser output Max 44.6 µW*
* This output is the value measured
at a distance of 200 mm from the
objective lens surface on the Op-
tical Pick-up Block with 7 mm
aperture.
Wavelength 780-790 nm
Frequency response 2 Hz-20 kHz
Signal-to-noise ratio More than 65 dB
Dynamic range More than 97 dB
Tuner section
FM stereo, FM/AM superheterodyne tuner
FM tuner section
Tuning range 87.5-108.0 MHz (50 kHz step)
Aerial FM lead aerial
Aerial terminals 75 ohm unbalanced
www
.
MICROFILM
http://www.xiaoyu163.com
Intermediate frequency 10.7 MHz
AM tuner section
Tuning range
x ao u163
y
i
http://www.xiaoyu163.com
2 9
8
HCD-H33D

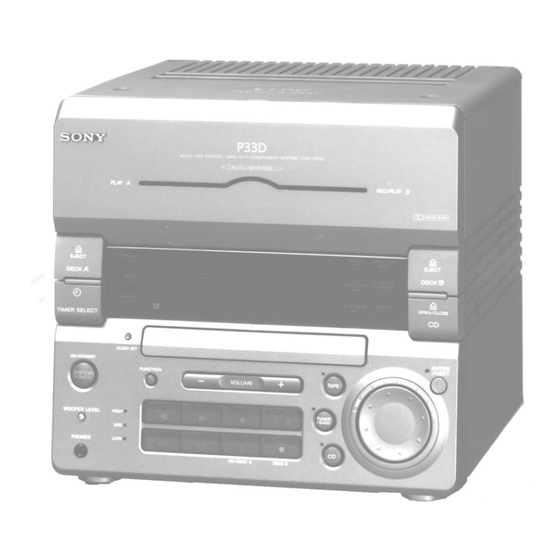

Photo: AEP Model
Model Name Using Similar Mechanism
CD
CD Mechanism Type
Section
Base Unit Name
Model Name Using Similar Mechanism
Q Q
Tape deck
3 6 7 1 3 1 5
Section
Tape Transport Mechanism Type
SPECIFICATIONS
AEP, UK, German model:
MW: 531-1,602 kHz
LW: 153-279 kHz
Italian model:
MW: 522-1,611 kHz
(9 kHz step)
LW:153-279 kHz
E3 (Tuner Sections
SW BAND exist),
Saudi Arabia, Hong kong,
Malaysia, Singapore model:
MW: 531-1,602 kHz
(9 kHz step)
530-1,710 kHz
(10 kHz step)
SW: 5.95-17.90 MHz
E2 (Tuner Sections SW
BAND do not exist),
Mexican, Argentine
model:
AM: 531-1,710 kHz
(9 kHz step)
AM: 530-1,710 kHz
(10 kHz step)
MINI Hi-Fi COMPONENT SYSTEM
co
.
9 4 2 8
AEP Model
UK Model
E Model
Australian Model
HCD-H801
CDM28-5BD19
BU-5BD19
HCD-H881
0 5 8 2 9 9 4 2 8
TCM-220WR2
Australian model:
AM: 531-1,602 kHz
(9 kHz step)
AM: 530-1,710 kHz
(10 kHz step)
Aerial AM loop aerial
External aerial terminals
Intermediate frequency 450 kHz
Tape player section
Recording system 4-track 2-channel stereo
Frequency response (DOLBY NR OFF)
40-13,000 Hz (±3 dB),
using Sony TYPEI cassette
40-14,000 Hz (±3 dB),
using Sony TYPEII cassette
Wow and flutter 0.1% WRMS ±0.3% (DIN)
Amplifier section
Peak music power output
600 W
– Continued on next page –
