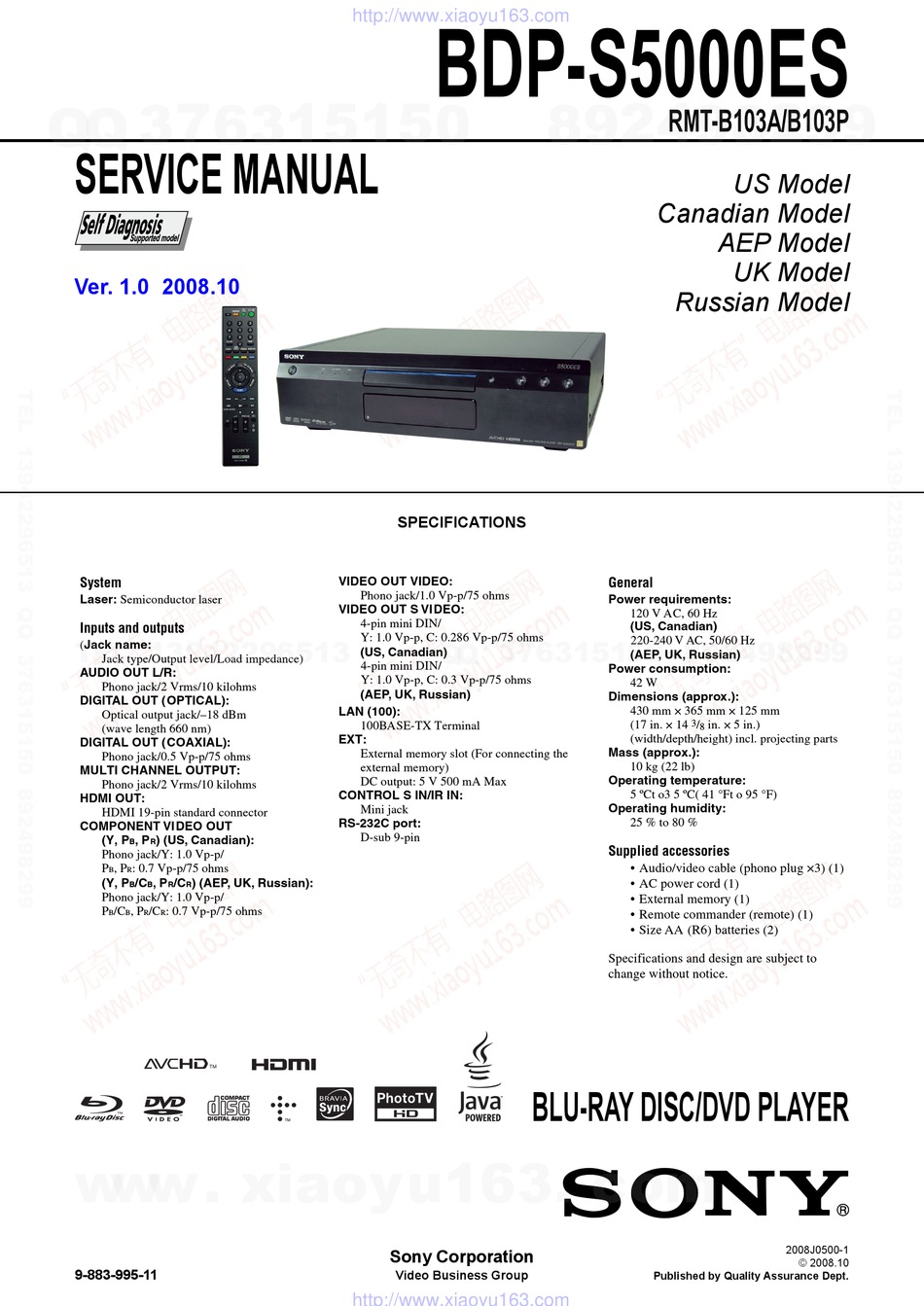

BDP-S5000ES http://www.xiaoyu163.com 3 7 63 1515 0 RMT-B103A/B103P SERVICE MANUAL US Model Canadian Model AEP Model UK Model Ver. 1.0 2008.10 Russian Model SPECIFICATIONS System VIDEO OUT VIDEO: General Phono jack/1.0 Vp-p/75 ohms Laser: Semiconductor laser Power requirements: VIDEO OUT S VIDEO:...
Page 2
It is best to use only unleaded solder but unleaded solder may FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS also be added to ordinary solder. QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉ- MENTS PUBLIÉS PAR SONY.
BDP-S5000ES SECTION 1 SERVICE NOTE 3 7 63 1515 0 1-1. DISC REMOVAL PROCEDURE IF THE TRAY CANNOT BE EJECTED (FORCED EJECTION) 1. Remove the top case. (Refer to page 2-1) 2. Insert a clip in the hole of a drive and open a tray.
Page 5
BDP-S5000ES 3 7 63 1515 0 1-2-1-1. BLX-104 Menu Function (1) Main Menu 1) When the disc is inserted, 1. Video Signal of 59.94Hz/1080i of the Main Menu is selectively displayed. 1-2-1-2. BLX-104 Menu Function (2) Main Menu L 13942296513...
Page 6
BDP-S5000ES 3 7 63 1515 0 1-2-1-3. BLX-104 Menu Function (3) Main Menu To Main Menu after playback of T52_C1 To Main Menu after playback of T51_C1 To Main Menu after playback from T44_C1 to T50_C1 Sub_menu2 is displayed...
Page 7
BDP-S5000ES 3 7 63 1515 0 1-2-1-4. BLX-104 Menu Function (4) Sub menu1 1) At the display of Sub menu1, 1. Color Bar 100% is selectively displayed. 2) Selection of 1. Color Bar 100% t Return to Sub menu1 after seamless playback from T1_C1 to T1_C13. 1. Color Bar 100% is selec- tively displayed on Sub menu1 screen.
Page 8
BDP-S5000ES 3 7 63 1515 0 1-2-1-5. BLX-104 Menu Function (5) Sub menu2 1) At the display of Sub menu2, 1. Color Bar 100% is selectively displayed. 2) Selection of 1. Color Bar 100% t Return to Sub menu2 after seamless playback from T43_C1 to T43_C13. 1. Color Bar 100% is selectively displayed on Sub menu2 screen.
Page 9
BDP-S5000ES 3 7 63 1515 0 1-2-1-6. BLX-104 Menu Function (6) Sub menu3 1) At the display of Sub menu3, 1. Color Bar 100% is selectively displayed. 2) Selection of 1. Color Bar 100% t Return to Sub menu3 after seamless playback from T53_C1 to T53_C13. 1. Color Bar 100% is selectively displayed on Sub menu3 screen.
Page 10
BDP-S5000ES 3 7 63 1515 0 1-2-1-7. BLX-104 Menu Function (7) Sub menu4 1) At the display of Sub menu4, 1. Color Bar 100% is selectively displayed. 2) Selection of 1. Color Bar 100% t Return to Sub menu4 after seamless playback from T22_C1 to T22_C13. 1. Color Bar 100% is selectively displayed on Sub menu4 screen.
Page 11
BDP-S5000ES 3 7 63 1515 0 1-2-2-1. BLX-204 Menu Function (1) Main Menu 1) When the disc is inserted, 1. Video Signal of 59.94Hz/1080i of the Main Menu is selectively displayed. 1-2-2-2. BLX-204 Menu Function (2) Main Menu L 13942296513...
Page 12
BDP-S5000ES 3 7 63 1515 0 1-2-2-3. BLX-204 Menu Function (3) Main Menu To Main Menu after playback of T70_C1 To Main Menu after playback of T52_C1tT69 To Main Menu after playback of T51_C1 To Main Menu after playback of T44_C1-T50_C1tT71_C1-T81_C1...
Page 13
BDP-S5000ES 3 7 63 1515 0 1-2-2-4. BLX-204 Menu Function (4) Sub menu 1 1) At the display of Sub menu1, 1. Color Bar 100% is selectively displayed. 2) Selection of 1. Color Bar 100% t Return to Sub menu1 after seamless playback from T1_C1 to T1_C13. 1. Color Bar 100% is selec- tively displayed on Sub menu1 screen.
Page 14
BDP-S5000ES 3 7 63 1515 0 1-2-2-5. BLX-204 Menu Function (5) Sub menu 2 1) At the display of Sub menu2, 1. Color Bar 100% is selectively displayed. 2) Selection of 1. Color Bar 100% t Return to Sub menu2 after seamless playback from T43_C1 to T43_C13. 1. Color Bar 100% is selectively displayed on Sub menu2 screen.
Page 15
BDP-S5000ES 3 7 63 1515 0 1-2-2-6. BLX-204 Menu Function (6) Sub menu 3 1) At the display of Sub menu3, 1. Color Bar 100% is selectively displayed. 2) Selection of 1. Color Bar 100% t Return to Sub menu3 after seamless playback from T53_C1 to T53_C13. 1. Color Bar 100% is selectively displayed on Sub menu3 screen.
Page 16
BDP-S5000ES 3 7 63 1515 0 1-2-2-7. BLX-204 Menu Function (7) Sub menu 4 1) At the display of Sub menu4, 1. Color Bar 100% is selectively displayed. 2) Selection of 1. Color Bar 100% t Return to Sub menu4 after seamless playback from T22_C1 to T22_C13. 1. Color Bar 100% is selectively displayed on Sub menu4 screen.
BDP-S5000ES SECTION 2 DISASSEMBLY 3 7 63 1515 0 • This set can be disassembled in the order shown below. 2-1. DISASSEMBLY FLOW 2-2. TOP CASE (Page 2-1) 2-3. TRAY PANEL 2-4. USB-007 BOARD 2-5. AU-260 BOARD 2-6. POWER TRANSFORMER...
BDP-S5000ES 3 7 63 1515 0 2-3. TRAY PANEL 3 tray panel 1 Insert a clip in the hole of a drive and open a tray. L 13942296513 2-4. USB-007 BOARD 1 screw (BV3) 2 harness (UV-004) (CN302) 3 USB-007 board...
BDP-S5000ES SECTION 4 SCHEMATIC DIAGRAMS 3 7 63 1515 0 4-1. THIS NOTE IS COMMON FOR SCHEMATIC DIAGRAMS • All capacitors are in µF unless otherwise noted. pF : µµF. 50V or less are not indicated except for electrolytics and tantal- ums.
BDP-S5000ES 3 7 63 1515 0 4-5. ET-001 BOARD (ETHER, CONTROL S IN) • See page 5-4 for printed wiring board. - Ref. No.: ET-001 board; 30,000 series - ET-001 BOARD ETHER, CONTROL S IN XX MARK:NO MOUNT CN1603...
BDP-S5000ES 3 7 63 1515 0 4-7. FL-186 BOARD (POWER SWITCH, LED) • See page 5-6 for printed wiring board. - Ref. No.: FL-186 board; 20,000 series - FL-186 BOARD POWER SWITCH, LED XX MARK:NO MOUNT S331 NO MARK:PB MODE...
BDP-S5000ES SECTION 5 PRINTED WIRING BOARDS 3 7 63 1515 0 5-1. THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS • : Uses unleaded solders. • : Pattern from the side which enables seeing. (The other layers’ patterns are not indicated)
BDP-S5000ES 3 7 6 3 1 5 1 5 0 5-2. AU-260 BOARD (SIDE A) • See page 2-7 for circuit boards location. There are a few cases that the part isn’t mounted in this model is printed on this diagram.
Page 78
BDP-S5000ES 3 7 6 3 1 5 1 5 0 5-3. AU-260 BOARD (SIDE B) • See page 2-7 for circuit boards location. There are a few cases that the part isn’t mounted in this model is printed on this diagram.
BDP-S5000ES 3 7 63 1515 0 5-4. ET-001 BOARD • See page 2-7 for circuit boards location. - Ref. No.: ET-001 board; 30,000 series - : Uses unleaded solder. There are a few cases that the part isn’t mounted in this model is printed on this diagram.
BDP-S5000ES 3 7 63 1515 0 5-5. FC-095 BOARD • See page 2-7 for circuit boards location. - Ref. No.: FC-095 board; 20,000 series - : Uses unleaded solder. There are a few cases that the part isn’t mounted in this model is printed on this diagram.
Page 81
BDP-S5000ES 3 7 63 1515 0 5-6. FL-186 BOARD • See page 2-7 for circuit boards location. - Ref. No.: FL-186 board; 20,000 series - : Uses unleaded solder. There are a few cases that the part isn’t mounted in this model is printed on this diagram.
Page 82
BDP-S5000ES 3 7 63 1515 0 5-7. FR-292 BOARD • See page 2-7 for circuit boards location. - Ref. No.: FR-292 board; 30,000 series - : Uses unleaded solder. There are a few cases that the part isn’t mounted in this model is printed on this diagram.
Page 83
BDP-S5000ES 3 7 63 1515 0 5-8. FS-089 BOARD • See page 2-7 for circuit boards location. - Ref. No.: FS-089 board; 40,000 series - : Uses unleaded solder. There are a few cases that the part isn’t mounted in this model is printed on this diagram.
BDP-S5000ES 3 7 63 1515 0 5-9. FT-094 BOARD • See page 2-7 for circuit boards location. - Ref. No.: FT-094 board; 50,000 series - : Uses unleaded solder. There are a few cases that the part isn’t mounted in this model is printed on this diagram.
BDP-S5000ES 3 7 63 1515 0 5-10. IFD-002 BOARD (SIDE A) • See page 2-7 for circuit boards location. - Ref. No.: IFD-002 board; 30,000 series - : Uses unleaded solder. There are a few cases that the part isn’t mounted in this model is printed on this diagram.
Page 86
BDP-S5000ES 3 7 63 1515 0 5-11. IFD-002 BOARD (SIDE B) • See page 2-7 for circuit boards location. - Ref. No.: IFD-002 board; 30,000 series - : Uses unleaded solder. There are a few cases that the part isn’t mounted in this model is printed on this diagram.
Page 87
BDP-S5000ES 3 7 6 3 1 5 1 5 0 5-12. MB-124 BOARD (SIDE A) • See page 2-7 for circuit boards location. There are a few cases that the part isn’t mounted in this model is printed on this diagram.
Page 88
BDP-S5000ES 3 7 6 3 1 5 1 5 0 5-13. MB-124 BOARD (SIDE B) • See page 2-7 for circuit boards location. There are a few cases that the part isn’t mounted in this model is printed on this diagram.
BDP-S5000ES 3 7 63 1515 0 5-14. RS-088 BOARD • See page 2-7 for circuit boards location. - Ref. No.: RS-088 board; 40,000 series - : Uses unleaded solder. There are a few cases that the part isn’t mounted in this model is printed on this diagram.
BDP-S5000ES 3 7 63 1515 0 5-15. USB-007 BOARD • See page 2-7 for circuit boards location. - Ref. No.: USB-007 board; 60,000 series - : Uses unleaded solder. There are a few cases that the part isn’t mounted in this model is printed on this diagram.
BDP-S5000ES 3 7 6 3 1 5 1 5 0 5-16. VP-062 BOARD (SIDE A) • See page 2-7 for circuit boards location. There are a few cases that the part isn’t mounted in this model is printed on this diagram.
BDP-S5000ES 3 7 6 3 1 5 1 5 0 5-17. VP-062 BOARD (SIDE B) • See page 2-7 for circuit boards location. There are a few cases that the part isn’t mounted in this model is printed on this diagram.
BDP-S5000ES SECTION 6 IC PIN FUNCTION DESCRIPTION 3 7 63 1515 0 6-1. MAIN SYSTEM CONTROL PIN FUNCTION (MB-124 BOARD IC101: MC-10092F1-207-RNA-A) Pin No. Name Description VOID This pin is not ball. VOID This pin is not ball. VDD3 3.3V supply (I/O buffers)
Page 94
BDP-S5000ES 3 7 63 1515 0 Pin No. Name Description GPIO10 EMMA_DIPSW0 (Fixed at "H") EJTMS JTAG I/F_0 Mode Set EJTDO JTAG I/F_0 Data Output EJTDI JTAG I/F_0 Data Input SPDIF output (Optical and coaxial terminal output signal) VOID This pin is not ball.
Page 95
BDP-S5000ES 3 7 63 1515 0 Pin No. Name Description GPIO29 Not used (Fixed at "H") GPIO22 EJ2TDI (JTAG I/F_1 Data Input) Ground for digital and DDR2 SDRAM GPIO8 Not used (Fixed at "L") GPIO6 PCI REQ1 (Not used) GPIO3 Not used (Fixed at "L")
Page 96
BDP-S5000ES 3 7 63 1515 0 Pin No. Name Description SAVDDTIO 1.8V supply (Serial ATA Tx I/O) SAVDDDIG 1.05V supply (Serial ATA digital VDD) GPIO27 EJ2DINT (JTAG I/F_1 debug interrupt) GPIO30 PCI INT A (PCI Interrupt: USB) GPIO25 EJ2TMS (JTAG I/F_1 Mode Set)
Page 97
BDP-S5000ES 3 7 63 1515 0 Pin No. Name Description VOID This pin is not ball. VOID This pin is not ball. VOID This pin is not ball. VOID This pin is not ball. VOID This pin is not ball.
Page 98
BDP-S5000ES 3 7 63 1515 0 Pin No. Name Description VOID This pin is not ball. VOID This pin is not ball. VOID This pin is not ball. VOID This pin is not ball. VOID This pin is not ball.
Page 99
BDP-S5000ES 3 7 63 1515 0 Pin No. Name Description D0Q13 DDR2 Data Input/Output D0Q14 DDR2 Data Input/Output Ground for digital and DDR2 SDRAM D0VDD18 1.8V supply (DDR2 SDRAM) Ground for digital and DDR2 SDRAM VOID This pin is not ball.
Page 100
BDP-S5000ES 3 7 63 1515 0 Pin No. Name Description Ground for digital and DDR2 SDRAM Ground for digital and DDR2 SDRAM Ground for digital and DDR2 SDRAM Ground for digital and DDR2 SDRAM D0Q2 DDR2 Data Input/Output D0Q15...
Page 101
BDP-S5000ES 3 7 63 1515 0 Pin No. Name Description VOID This pin is not ball. AVDDRGB Analog 3.3v supply for main Video DACs AGNDRGB Analog Ground for main Video DACs VARSETYC 680-ohm Resister VAREFRGB Voltage Reference Input for DAC (1.32V)
Page 102
BDP-S5000ES 3 7 63 1515 0 Pin No. Name Description Ground for digital and DDR2 SDRAM VOID This pin is not ball. VOID This pin is not ball. VOID This pin is not ball. VOID This pin is not ball.
Page 103
BDP-S5000ES 3 7 63 1515 0 Pin No. Name Description VDD10 1.05V supply (core) Ground for digital and DDR2 SDRAM VDD10 1.05V supply (core) Ground for digital and DDR2 SDRAM PGND Ground for PLL PVDD 1.05V supply for PLL VOID This pin is not ball.
Page 104
BDP-S5000ES 3 7 63 1515 0 Pin No. Name Description AA11 VOID This pin is not ball. AA12 VOID This pin is not ball. AA13 PVDD 1.05V supply for PLL AA14 PVDD 1.05V supply for PLL AA15 Ground for digital and DDR2 SDRAM...
Page 105
BDP-S5000ES 3 7 63 1515 0 Pin No. Name Description D0VDD18 1.8V supply (DDR2 SDRAM) Ground for digital and DDR2 SDRAM VOID This pin is not ball. VOID This pin is not ball. AC10 VOID This pin is not ball.
Page 106
BDP-S5000ES 3 7 63 1515 0 Pin No. Name Description D0DQS2B DDR2 Negative Data Strobe Ground for digital and DDR2 SDRAM D0VDD18 1.8V supply (DDR2 SDRAM) D0Q16 DDR2 Data Input/Output D0VDD18 1.8V supply (DDR2 SDRAM) Ground for digital and DDR2 SDRAM D0VDD10 1.05V supply (DDR2 SDRAM DLL)
Page 107
BDP-S5000ES 3 7 63 1515 0 Pin No. Name Description AF29 RDATA1/GDATA1 Data bus for external memory and peripheral AF30 RDATA2/GDATA2 Data bus for external memory and peripheral AF31 RDATA3/GDATA3 Data bus for external memory and peripheral AF32 RDATA4/GDATA4...
Page 108
BDP-S5000ES 3 7 63 1515 0 Pin No. Name Description AH24 D1VDD18 1.8V supply (DDR2 SDRAM) AH25 Ground for digital and DDR2 SDRAM AH26 Ground for digital and DDR2 SDRAM AH27 Ground for digital and DDR2 SDRAM AH28 Ground for digital and DDR2 SDRAM...
Page 109
BDP-S5000ES 3 7 63 1515 0 Pin No. Name Description AK19 D1Q0 DDR2 Data Input/Output AK20 Ground for digital and DDR2 SDRAM AK21 D1Q11 DDR2 Data Input/Output AK22 D1Q14 DDR2 Data Input/Output AK23 Ground for digital and DDR2 SDRAM...
Page 110
BDP-S5000ES 3 7 63 1515 0 Pin No. Name Description AM14 D1ADD5 DDR2 Address Output AM15 D1VDD18 1.8V supply (DDR2 SDRAM) AM16 D1BA1 DDR2 Bank Address AM17 D1DM0 DDR2 Data Mask AM18 Ground for digital and DDR2 SDRAM AM19...
BDP-S5000ES SECTION 10 ELECTRICAL ADJUSTMENT 3 7 63 1515 0 2. Component Video Output Y Adjustment (VP-062 BOARD) In making adjustment, adjustment related parts arrangement. Mode Video output test in service mode Signal Color bars This section describes procedures and instructions necessary for VIDEO OUT connector adjusting electrical circuits in this set.
BDP-S5000ES 3 7 63 1515 0 11-1-2. FRONT PANEL SECTION not supplied not supplied L 13942296513 not supplied not supplied not supplied Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark A-1567-806-A FC-095 BOARD, COMPLETE A-1567-814-A...
BDP-S5000ES 3 7 63 1515 0 11-1-3. DRIVE SECTION not supplied T101 not supplied not supplied not supplied not supplied L 13942296513 The components identified by mark Les composants identifiés par une or dotted line with mark marque sont critiquens pour la critical for safety.
BDP-S5000ES 3 7 63 1515 0 11-1-4. AU SHIELD PLATE SECTION not supplied not supplied (fan holder) not supplied M2001 (US) supplied not supplied (USB-007 board) not supplied not supplied L 13942296513 not supplied not supplied not supplied not supplied...
BDP-S5000ES 3 7 63 1515 0 11-1-5. REAR PANEL SECTION not supplied not supplied (ET-001 board) not supplied not supplied 203 203 not supplied not supplied L 13942296513 not supplied u163 Ref. No. Part No. Description Remark Ref. No.
BDP-S5000ES 3 7 63 1515 0 11-1-6. CHASSIS SECTION not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied (US, CND) not supplied not supplied not supplied not supplied not supplied L 13942296513...
BDP-S5000ES 3 7 63 1515 0 11-1-7. ACCESSORIES 901. Remote Commander (RMT-B103A/B103P) 903. Audio/Video Cable (Phone Plug x 3) 902. AC Power Cord 904. External Memory L 13942296513 The components identified by mark Les composants identifiés par une or dotted line with mark...
BDP-S5000ES AU-260 3 7 63 1515 0 11-2. ELECTRICAL PARTS LIST • SEMICONDUCTORS NOTE: The components identified by mark 0 or dotted • Due to standardization, replacements in the parts In each case, u: µ, for example: line with mark 0 are critical for safety.
Page 153
BDP-S5000ES AU-260 3 7 63 1515 0 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C2007 1-127-956-21 FILM CHIP 0.1uF C2071 1-163-235-11 CERAMIC CHIP 22PF C2008 1-127-956-21 FILM CHIP 0.1uF C2072 1-127-956-21 FILM CHIP 0.1uF...
Page 154
BDP-S5000ES AU-260 3 7 63 1515 0 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C2145 1-127-956-21 FILM CHIP 0.1uF < TRANSISTOR > C2146 1-127-956-21 FILM CHIP 0.1uF C2148 1-136-165-00 FILM 0.1uF Q1001 8-729-421-19 TRANSISTOR...
Page 155
BDP-S5000ES AU-260 3 7 63 1515 0 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R1021 1-216-809-11 METAL CHIP 1/10W R1090 1-216-805-11 METAL CHIP 1/10W R1022 1-216-864-11 SHORT CHIP R1092 1-218-835-11 METAL CHIP 0.5% 1/10W...
Page 156
BDP-S5000ES AU-260 3 7 63 1515 0 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R2041 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W R2104 1-218-692-11 METAL CHIP 0.5% 1/10W R2042 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W...
Page 157
BDP-S5000ES AU-260 ET-001 FC-095 FL-186 3 7 63 1515 0 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R2170 1-216-841-11 METAL CHIP 1/10W < COIL > R2171 1-216-864-11 SHORT CHIP R2173 1-216-841-11 METAL CHIP 1/10W...
