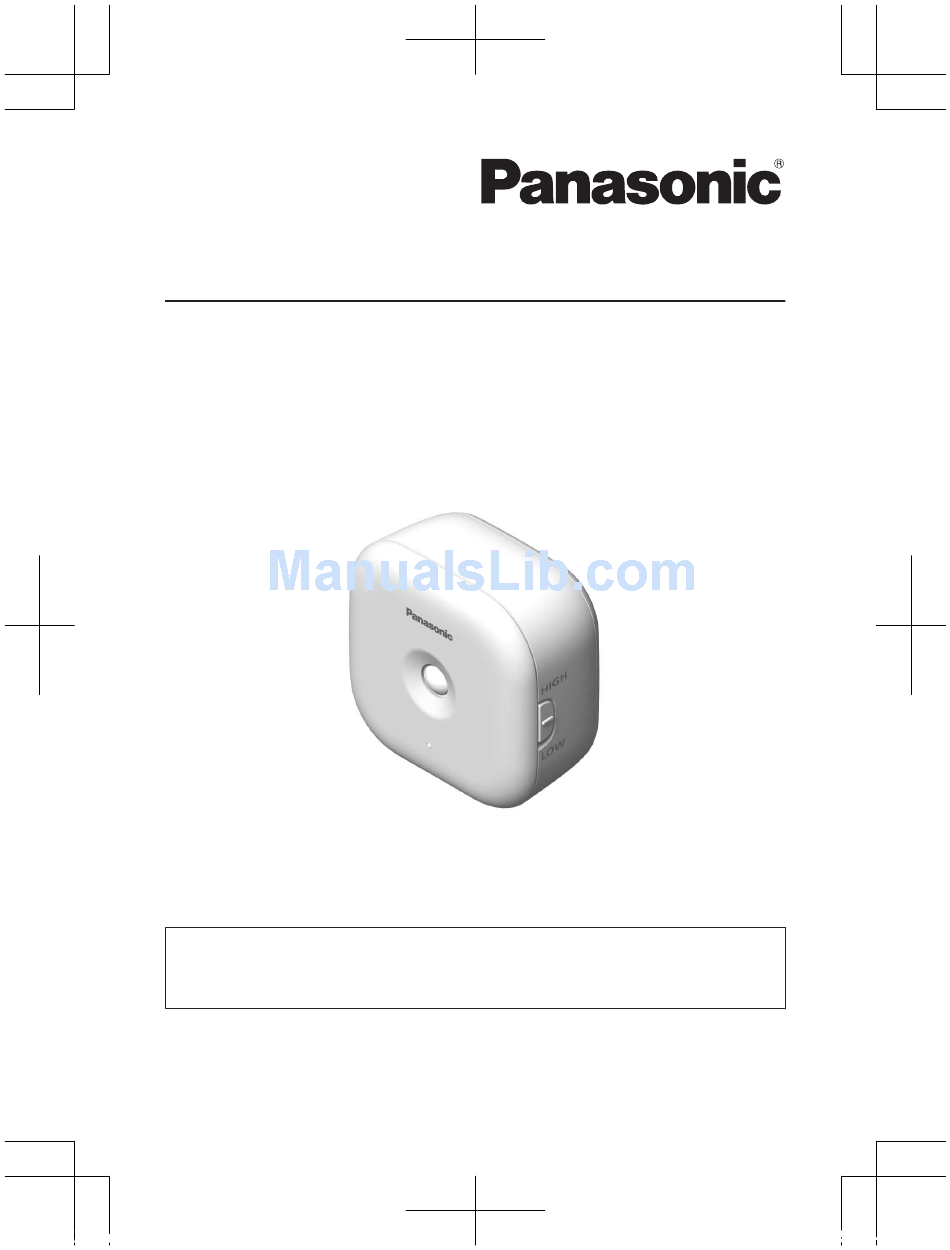

Thank you for purchasing a Panasonic product.
This document explains how to install the motion sensor properly.
For details about how to use the system, refer to the User's Guide
(page 15).
Please read this document before using the unit and save it for future
reference.
HNS102AZ_(en_en)_0325_ver.031.pdf
Model No.
1
Installation Guide
Home Network System
Motion Sensor
KX-HNS102AZ
2015/03/25
14:24:03
Advertisement
Table of Contents
Related Manuals for Panasonic KX-PRX120AZ
Summary of Contents for Panasonic KX-PRX120AZ
- Page 1 Home Network System Motion Sensor KX-HNS102AZ Model No. Thank you for purchasing a Panasonic product. This document explains how to install the motion sensor properly. For details about how to use the system, refer to the User’s Guide (page 15).
-
Page 2: Table Of Contents
Table of Contents Introduction Accessory information ....3 Important Information About this system ......4 For your safety ......4 Important safety instructions ..5 For best performance ....5 Other information .......6 Setup Part names and functions ..7 LED indicator ......7 Setup overview ......7 Inserting the batteries ....8 Registering the motion sensor ........8... -
Page 3: Introduction
Introduction Accessory information Supplied accessories Accessory item/Part number Quantity Batteries Wall mounting adaptor Wall mounting screws (25 mm) When replacing batteries, see “Power source” of “Specifications”, page 16 for battery information. The motion sensor can be wall mounted with or without the wall mounting adaptor (page 12). -
Page 4: Important Information
R Keep small parts (screws, etc.) out protection from property loss. of the reach of children. There is a Panasonic will not be held risk of swallowing. In the event they responsible in the event that are swallowed, seek medical advice property loss occurs while this immediately. -
Page 5: Important Safety Instructions
Hub location/avoiding noise R Keep out of the reach of small The hub and other compatible children. There is a risk of Panasonic devices use radio waves to swallowing. If the battery is communicate with each other. swallowed, seek medical attention R For maximum coverage and immediately. -
Page 6: Other Information
Important Information such as fluorescent lamps and Information on Disposal in other motors. Countries outside the European R The product should be kept free Union from excessive smoke, dust, high temperature, and vibration. R The product should not be exposed to direct sunlight. -
Page 7: Setup
Setup Indicator Status Part names and Red, Sensor is out of range blinking of the hub functions Green, Registration mode blinking (You pressed and held No battery power Note: R The LED indicator does not indicate sensor status if the sensor has not been registered (page 8). -
Page 8: Inserting The Batteries
Setup Install the rear cover. Inserting the R Place it with the “ ” mark facing upwards and slide it. batteries R USE ONLY Alkaline batteries AA (LR6) size. R Do NOT use Manganese/Ni-Cd/ Ni-MH batteries. R Confirm the polarities ( Remove the rear cover by pressing the upper sides of the cover (A) and sliding it down (B). -
Page 9: Information About Sensor Features
Setup motion sensor’s sensor features in Using registration buttons these situations. R Panasonic takes no responsibility for Hub: any injury or damage caused by the Press and hold M OTHER use of the motion sensor. DEVICEN until the LED indicator blinks in green. - Page 10 Setup move directly toward the front of the Detection range when looking from motion sensor. the side Vertical detection range: approx. 20° It is difficult to detect movement Distance of detectable motion: directly towards the front of the approx. 5 m motion sensor.
-
Page 11: Confirming The Usage Area
Setup R Near fire or heating devices R Near magnetic fields (such as near Confirming the microwaves and magnets) usage area R Areas subject to extreme temperature changes, such as next to air conditioners Wireless communication R Areas with reflective objects, such range as glass, that can interfere with detection of temperature variation... -
Page 12: Wall Mounting
Setup Using the rear cover Wall mounting Remove the rear cover by pressing the upper sides of the There are two methods for wall cover (A) and sliding it down (B). mounting the motion sensor. To mount the sensor flat against the wall, use the rear cover. - Page 13 Setup Note: Attach the motion sensor to the rear cover. R Use the following template R Insert the grooves on the below when determining the location of the screw holes. motion sensor to the 4 tabs on the rear cover, and then push down the motion sensor.
- Page 14 Setup Attach the wall mounting adaptor to the wall by using screws ( R Place the wall mounting adaptor with “UP” mark facing upwards. 21 mm Attach the motion sensor to the wall mounting adaptor. R Insert the grooves on the motion sensor to the 4 tabs on the wall mounting adaptor, and then push down the motion...
-
Page 15: Appendix
Appendix Testing the motion Features available sensor when using the [Home Network] app You can observe the motion sensor’s LED indicator and test the performance Some of the motion sensor’s features of the motion sensor. that are available when using the Press M [Home Network] app are listed below. -
Page 16: Specifications
Approx. 72 mm ´ 73 mm ´ 61 mm R Mass (weight) – With the rear cover attached: Approx. 70 g, excluding the batteries www.panasonic.net/pcc/support/tel/ – With the wall mounting adaptor homenetwork/manual/ attached: Approx. 77 g, excluding the batteries Specifications... -
Page 17: Warranty (For New Zealand)
6) Damage to the product caused by accident, misuse or Act of God. 7) Repairs when the product has been dismantled, repaired, modified or serviced by other than a Panasonic Authorised Dealer authorised to service that type of product. IF YOUR PANASONIC PRODUCT FAILS WITHIN THE... - Page 18 Notes HNS102AZ_(en_en)_0325_ver.031.pdf 2015/03/25 14:24:04...
