- Page 1 EX500/EX600•XLS Professional Series Two-Way Radios and Accessories HT750 Low Band HT1250 Low Band HT1250 • 200 MHz 700 MHz HT1550 •...
- Page 2 By simply pressing a button, you can connect with one, ten, or more people instantly. And when you choose a Motorola radio, you know you’re getting a tool designed and built to meet your needs as a professional.

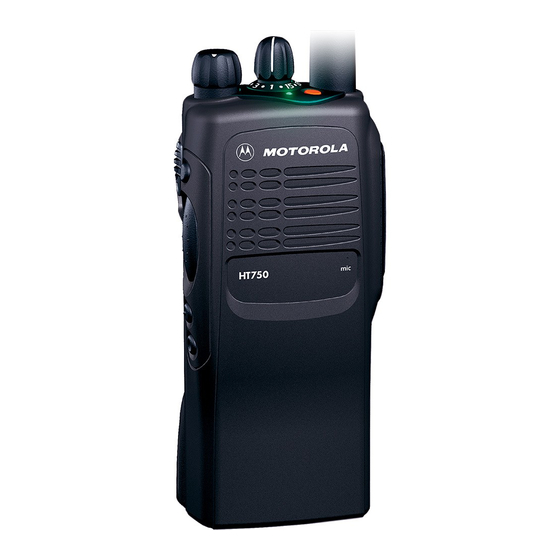

- Page 3 This practical radio can easily help increase productivity by keeping users communicating, while allowing them to concentrate on the job at hand. And with Motorola’s unique X-pand ™ technology, audio quality is clean and crisp even in noisy environments.
- Page 4 Users can store information such as phone numbers, call lists and radio IDs for easy access. And with Motorola's unique X-Pand ™ clarity is superb–even in noisy surroundings. The large LCD display is extremely helpful in large communication networks and critical situations.
-
Page 5: Specifications
HT750 and HT1250 General Specifications Low Band HT750 Channel Capacity HT1250 Channel Capacity Power Supply Rechargeable battery 7.5V Dimensions: H x W x D With NiMH High Capacity Battery 5.40 in x 2.26 in x 1.50 in (137mm x 57.5mm x 37.5 mm) With impres NiMH Battery 5.40 in x 2.26 in x 1.60 in (137mm x 57.5mm x 40 mm) With impres NiMH FM Battery... - Page 6 • Message – Allows you to send and receive pre-programmed messages Quik Call II ™ on Conventional Zones* Send and receive information via tone or digital signals *Only available on certain models. Check with your Motorola Authorized Dealer for availability.
- Page 7 Class I, Division 2, Groups A, B, C and D on models ordered with the Factory IEC 801-2 KV Mutual option, and battery. IPX4 * Only available on certain models. Check with your Motorola Authorized Dealer for availability. Receiver 200 MHz 700 MHz...
- Page 8 HT1550 • PORTABLE RADIO Available in VHF and UHF Operates on Conventional and LTR HT1550 • XLS: The Proficient Radio Users who require the highest levels of functionality will find this exceptional, Professional Series radio to be an invaluable tool. The HT1550 ™...
- Page 9 HT1550 • General Specifications Channel Capacity Trunking zone capacity: 15 Trunking talkgroup capacity: 16 Conventional channel capacity: 160 Power Supply Rechargeable battery 7.5V Dimensions: H x W x D With NiMH High Capacity Battery 5.98 in x 2.26 in x 1.50 in (152mm x 57.5mm x 37.5mm) With impres NiMH Battery 5.98 in x 2.26 in x 1.60 in (152mm x 57.5 x 40mm) With impres NiMH FM Battery...
- Page 10 HT750, HT1250, HT1250 HT1250 , HT1550 • Remote Speaker Microphones (RSM) RMN5055A* Heavy Duty Remote Speaker Microphone with 3.5mm Audio Jack AAHMN9052E* Remote Speaker Microphone AAHMN9053E* Noise-canceling Remote Speaker Microphone with 3.5mm Audio Jack HKN9055A Replacement Cable for Remote Speaker Microphone The Remote Speaker Microphone is a water-resistant compact unit that allows the user to talk and listen without removing the radio from the belt, case or charger.
- Page 11 Carry Case for Remote Speaker Microphone with Bluetooth Wireless Technology Work and communicate in a cord-free environment. Motorola is on the front line of Bluetooth Wireless Technology by providing users of two-way radios the first Wireless Remote Speaker Microphone. This device communicates to a two-way radio through an adapter equipped with Bluetooth Wireless Technology and an Adapter-Capable Battery that is attached to a Motorola two-way radio.
- Page 12 HT750, HT1250, HT1250 HT1250 , HT1550 • AARMN4028A ENMN4017A SURVEILLANCE KITS WITH EXTENDED-WEAR COMFORT EARPIECE COMFORT EARPIECE WITH MICROPHONE AND PUSH-TO-TALK COMBINED (2-WIRE) RLN5315A Black RLN5316A Beige These kits include a comfort earpiece with a rubber eartip and clear comfortable acoustic tube.
- Page 13 Replacement Standard Clear Rubber Eartips; for use with NTN8371A (pack of 25) This lightweight translucent tube attaches to Motorola Surveillance Kits to provide additional flexibility and comfort. Clothing clip prevents the accessory from being pulled from the ear due to body movement or head rotation.
- Page 14 As small as it is, this earpiece offers a full range of audio functions, including automatic squelch, automatic gain control and noise filtering. Must be used in conjunction with a Motorola Surveillance Kit. Just remove the earpiece on any standard 2 or 3-wire Surveillance Kit and plug in the Neckloop for completely discreet communication.
- Page 15 It allows the user to receive audio without covering the ear. The receiver portion of this accessory rests on the temples and is capable of converting the received audio from a two-way radio into sound vibration. The sound vibration is transmitted through the surrounding human tissue and bone directly into the inner ear, where it is received by the user.
- Page 16 With the CommPort Integrated/Microphone System, users can speak in a whisper and hear in a crowd. CommPort contains a miniature microphone and receiver that connects to a Motorola two-way radio and fastens securely to the ear. Using the latest in voice processing technology, the CommPort system makes it possible to hear and speak under the most adverse conditions by picking up sound waves as they cross the face, enhancing voice clarity under high noise conditions.
- Page 17 HT750, HT1250, HT1250 HT1250 , HT1550 • RECEIVE-ONLY HEADSETS RMN4054B Receive-Only Hardhat Mount Headset mounts easily to hardhats with slots and provides 22dB of noise reduction; for use with AAHMN9053E, AAHMN9057C and AAHMN9054C (hardhat not included) RMN4055B Receive-Only Headband Style Headset provides 24dB of noise reduction;...
- Page 18 5080548E02 Replacement Windscreen for Boom Microphone 7580376E34 Replacement Foam Ear Seals (1 pair) Medium-weight dual-muff headsets offer high-clarity sound with the additional hearing protection necessary for providing consistent, clear, two-way radio communications in harsh, noisy situations. *Intrinsically safe • Audio •...
- Page 19 Racing Headset (Requires adapter cable RKN4091A) RKN4091A Adapter Cable Motorola is the official wireless equipment supplier of the CART Auto Racing Teams), so whether your playing field is a racetrack, construction site or other challenging environment you can depend on the comfort and dependability of the Racing Headset.
-
Page 20: Carrying Cases
HT750, HT1250, HT1250 HT1250 , HT1550 • CARRYING CASES HT750 STANDARD MODEL HLN9665A Standard Leather Case with Belt Loop for use with NiCd and NiMH batteries HLN9652A Standard Leather Case with Belt Loop, for use with Li-ion batteries HLN9676A Standard Leather Case with Swivel for use with NiCd and NiMH batteries HLN9670A Standard Leather Case with Swivel for use with Li-ion batteries... -
Page 21: Belt Clips
HT750, HT1250, HT1250 HT1250 , HT1550 • HT1550•XLS STANDARD MODELS HLN9698A Leather DTMF Case with Belt Loop, for use with NiMH and NiCd batteries HLN9695A Leather DTMF Case with Belt Loop, for use with Li-ion batteries HLN9700A Leather DTMF Case with Swivel, for use with NiMH and NiCd batteries HLN9699A Leather DTMF Case with Swivel, for use with Li-ion batteries... -
Page 22: Miscellaneous Accessories
HT750, HT1250, HT1250 HT1250 , HT1550 • MISCELLANEOUS ACCESSORIES ASSISTIVE TURNING KNOBS RLN4890A Assistive Turning Knobs If your job requires you to wear large gloves, or if you have mobility or dexterity limita- tions, you will appreciate this added feature; set of two specially designed knobs for volume control and channel changing. - Page 23 POWER NICKEL METAL HYDRIDE (NiMH) WPNN4045AR 1200 mAh, 7.5V Motorola Original Batteries are ruggedly designed for lasting durability and are system tested with Motorola two-way radios to ensure optimum performance. We offer various chemistry and capacity alternatives, allowing the user to select the ideal battery for his or her needs.
- Page 24 HT750, HT1250, HT1250 HT1250 , HT1550 • impres ™ SMART ENERGY SYSTEM WPLN4182A impres ™ Single Unit Charger, 110V impres MULTI-UNIT CHARGER ™ WPLN4187A impres Multi-Unit Charger, 110V ™ NLN7967A Wall Mount for Multi-Unit Charger The impres ™ smart energy system ensures maximum talk-time and optimized battery cycle life through the use of its advanced charging algorithm and automatic recondi- tioning features.
- Page 25 3080384G15 RLN4814A 3080384M21 The Motorola Conditioning Charger utilizes negative pulse charging technology that will help extend battery life and enhance battery operation. It will safely condition and charge your specified NiCd and NiMH batteries in approximately one to two hours.
- Page 26 HT750, HT1250, HT1250 HT1250 , HT1550 • BATTERY MAINTENANCE SYSTEM INCREASE THE USEFUL LIFE OF YOUR BATTERIES WPLN4079BR Six-Station, 110V AC, 50/60 Hz WPLN4080BR Six-Station, 230V AC, 50/60 Hz WPPN4085AR field Upgrade Kit for WPLN4079AR, WPLN4080AR and plus WPLN4081AR; allows these units to support Li-ion battery chemistries.
-
Page 27: Travel Charger
HT750, HT1250, HT1250 HT1250 , HT1550 • TRAVEL CHARGER RLN4883A Travel Charger A great traveling companion that ensures constant communication while on the road. Allows the battery to rapid charge while using the radio. Users can receive communication immediately once the charger is connected, and transmit from a previously “dead”... - Page 28 HT750, HT1250, HT1250 HT1250 , HT1550 • AAEN1006B REPLACEMENT ITEMS ENLN4103A Replacement VHF Antenna Adapter, 136-174 MHz ENLN4104A Replacement UHF Antenna Adapter, 403-470 MHz GMN6146C Hand-held Mobile Microphone ENLN4117A Vehicle Connector Kit WALN4078A Battery Spacer Kit 8264934B01 Programming Software 6881093C78 User Manual 6881093C79 Technical Manual...
- Page 29 HT750, HT1250, HT1250 HT1250 , HT1550 • ANTENNAS FLEXIBLE WHIP ANTENNAS 8504762J01 PMAD4023A 8504762J02 NAE6483AR NAD6502AR NAB6064A NAD6579A Flexible Whip Antennas have a one-piece finish, steel core, and spiral wound conduc- tor for optimal radiation characteristics. NAE6483AR STUBBY ANTENNAS PMAD4012A PMAD4025A PMAD4013A PMAE4002A...
- Page 30 For more information, please contact: MOTOROLA and the Stylized M Logo are registered in the US Patent and Trademark Office. All other product or service names are the property of their respective owners. © Motorola, Inc. 2005. All specifications are subject to change without notice.
