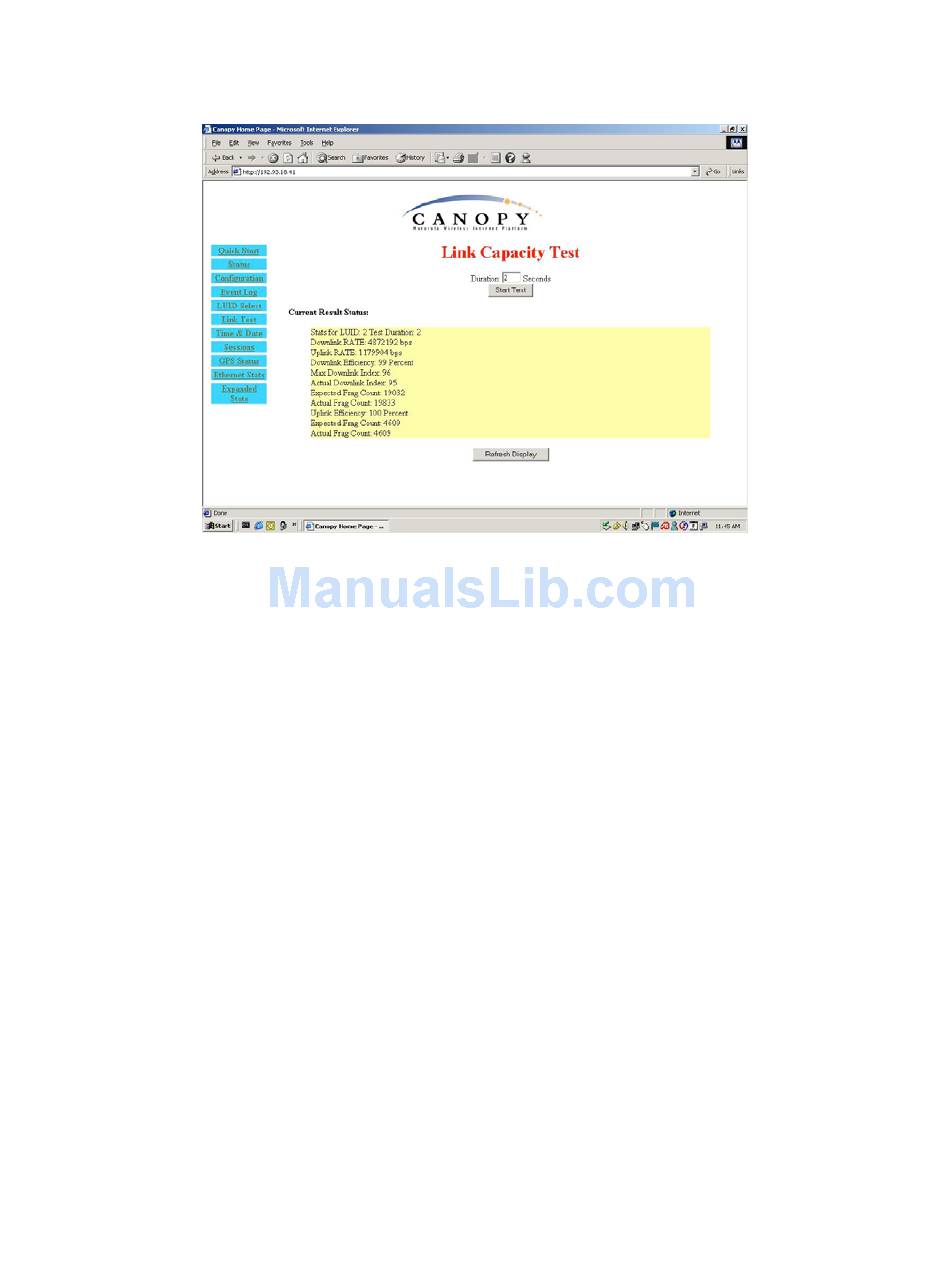

Link Test
The Link Test is a test for measuring the throughput and efficiency of the RF link between two
Canopy modules.
To perform a link test enter a number into the field labeled " Duration ". The duration is the number
of seconds the RF link will be tested. Start the link test by clicking the " Start Test " button. The test
will now run for the set duration. If the web page is not set to automatically refresh, click the
" Refresh Display " button to see the results. For a Canopy System link to be considered acceptable
it is necessary for the efficiencies of the link test to be greater than 90% in both the uplink and
downlink direction. It is recommended that when a new link is installed that a link test be executed
to ensure that the efficiencies are within recommended guidelines.
The key fields are:
•
Downlink RATE, bits per second
•
Uplink RATE, bits per second
Time & Date
This web page is utilized to set the time and date of the access point module when it is not
connected to a Cluster Management Module (CMM). The time and date would need to be set
every time there is a power cycle. The format for the entry is:
•
hh:
two digit hour in military time
•
mm: two digit minute
•
ss:
two digit second
•
mm: two digit month
•
dd:
two digit day
•
yyyy: four digit year
Enter in the appropriate information and click the Set Time and Date button.
Time: hh:mm:ss Date: mm/dd/yyyy
•
Downlink Efficiency, percent
•
Uplink Efficiency, percent
