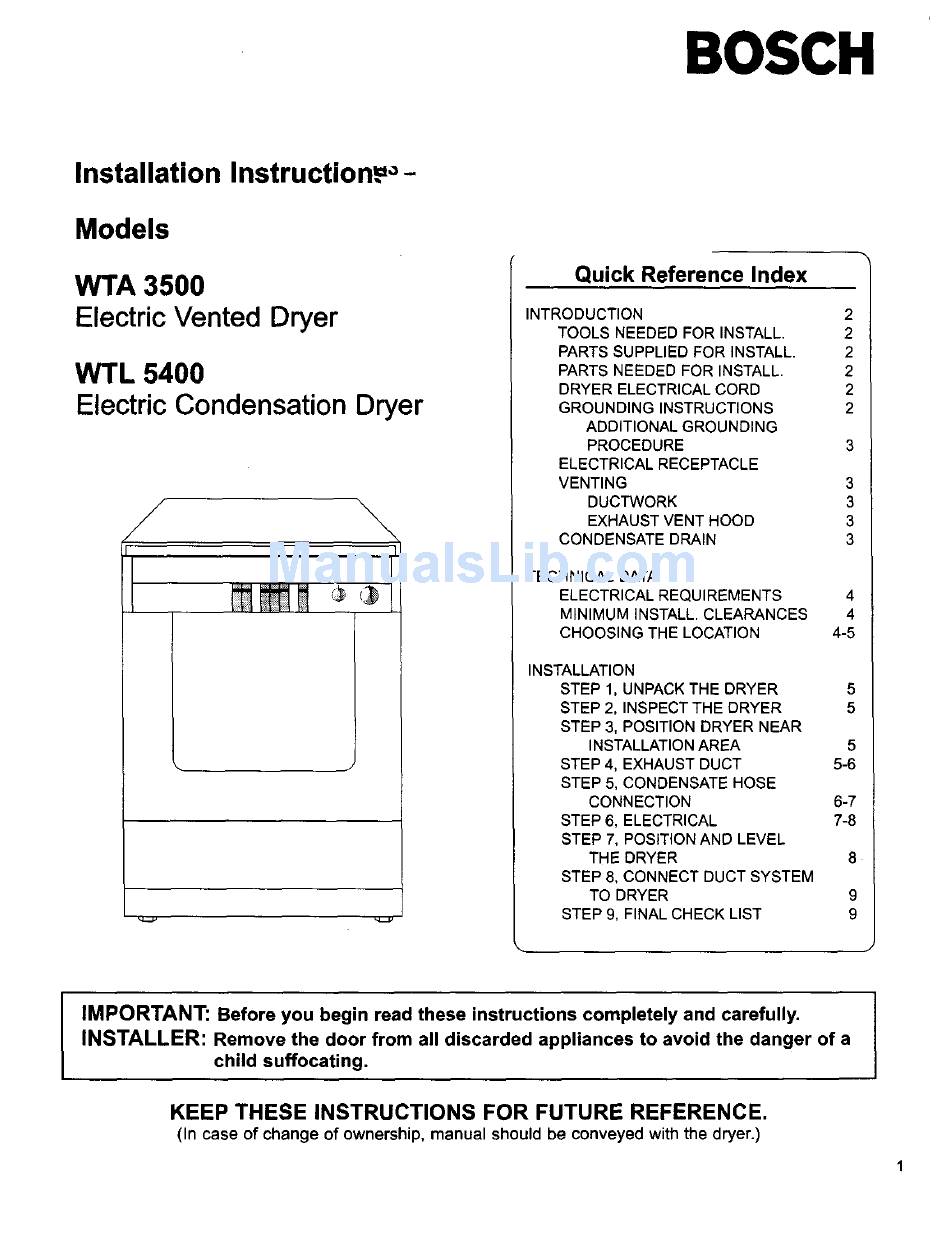

Bosch WTA 3500 Installation Instructions Manual

BOSCH
Installation Instruction.=°-
Models
WTA 3500
Electric Vented Dryer
WTL 5400
Electric Condensation Dryer
J \
Quick Reference Index
INTRODUCTION 2
TOOLS NEEDED FOR INSTALL. 2
PARTS SUPPLIED FOR INSTALL. 2
PARTS NEEDED FOR INSTALL. 2
DRYER ELECTRICAL CORD 2
GROUNDING INSTRUCTIONS 2
ADDITIONAL GROUNDING
PROCEDURE 3
ELECTRICAL RECEPTACLE
VENTING 3
DUCTWORK 3
EXHAUST VENT HOOD 3
CONDENSATE DRAIN 3
TECHNICAL DATA
ELECTRICAL REQUIREMENTS 4
MINIMUM INSTALL. CLEARANCES 4
CHOOSING THE LOCATION 4-5
INSTALLATION
STEP 1, UNPACK THE DRYER 5
STEP 2, INSPECT THE DRYER 5
STEP 3, POSITION DRYER NEAR
INSTALLATION AREA 5
STEP 4, EXHAUST DUCT 5-6
STEP 5, CONDENSATE HOSE
CONNECTION 6-7
STEP 6, ELECTRICAL 7-8
STEP 7, POSITION AND LEVEL
THE DRYER 8
STEP 8, CONNECT DUCT SYSTEM
TO DRYER 9
STEP 9, FINAL CHECK LIST 9
I IMPORTANT:
Before you begin read these instructions completely and carefully. ]
I
INSTALLER:
Remove the door from all discarded appliances to avoid the danger of a
child suffocating.
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
(In case of change of ownership, manual should be conveyed with the dryer.)
