Samsung SCC-B539X User Manual

Samsung SCC-B539X User Manual

Vari-focal anti-vandal dome camera
Hide thumbs Also See for SCC-B539X:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

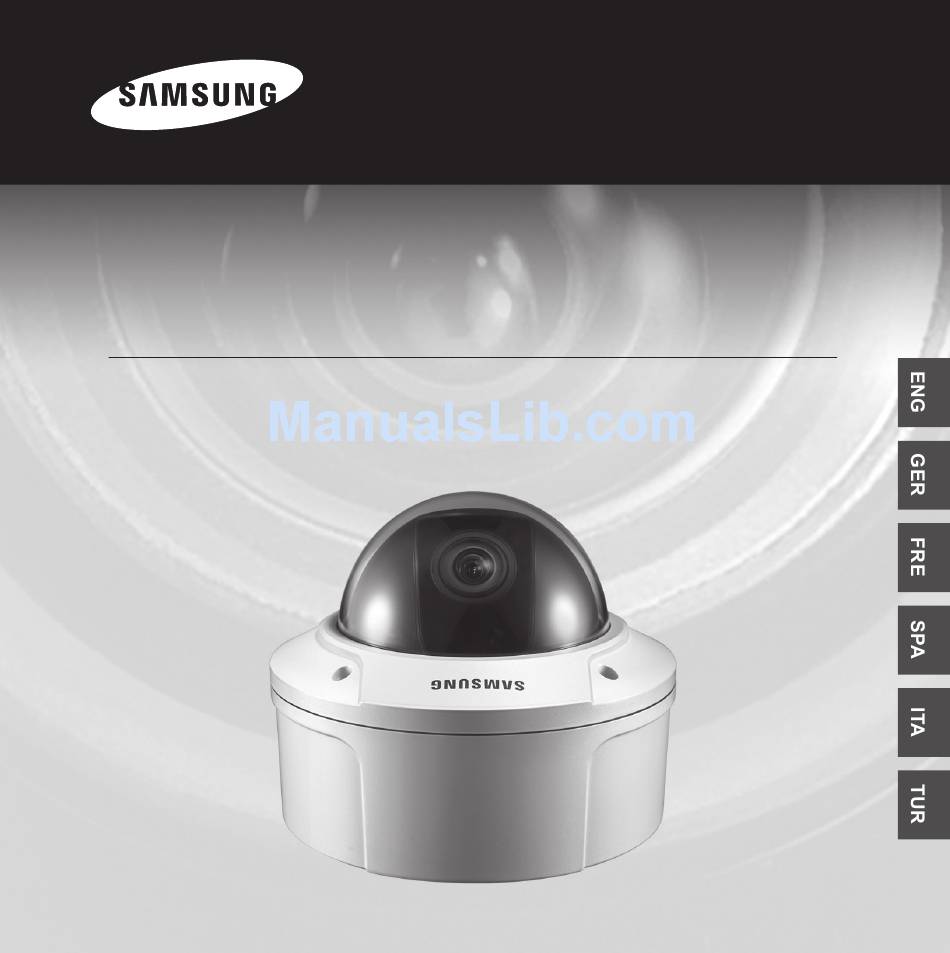

User's Guide
Vari-focal Anti-Vandal Dome Camera
SCC-B539X

Advertisement

Table of Contents
loading

Related Manuals for Samsung SCC-B539X

Summary of Contents for Samsung SCC-B539X

  • Page 1 User’s Guide Vari-focal Anti-Vandal Dome Camera SCC-B539X...

  • Page 2: Safety Precautions

    Safety Precautions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE REAR COVER. NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL. This symbol indicates high voltage Do not connect multiple cameras to a is present inside.

  • Page 3: Fcc Statement

    filled with liquids, such as vases, shall be in any way. (SAMSUNG is not liable placed on the apparatus. for problems caused by unauthorized The Mains plug is used as a disconnect modifications or attempted repair.)

  • Page 4: Important Safety Instructions

    Important Safety Instructions Read these instructions. 13. Unplug this apparatus. When a cart is used, use caution when moving the Keep these instructions. cart/apparatus combination to avoid Heed all warnings. injury from tip-over. Follow all instructions. 14. Refer all servicing to qualified service Do not use this apparatus near water.

  • Page 5: Table Of Contents

    Contents Overview ....................About this guide ................6 Product overview ................6 Main features .................6 Components ...................7 Checking components in the package ........7 Components of your camera ............8 Installation ..................Setting switches ................9 Setting function switches ............9 Connecting cables and changing the settings ......11 Installing camera .................12 Before installation ..............12 About the installation holes ............12...

  • Page 6: Overview

    Overview About this guide Main features ❚ ❚ This user guide includes basic instructions for  Power: DC 12V/AC 24V  Special functions the product. It is recommended that all users  Line lock (LL) control read this guide before use. ...

  • Page 7: Components

    Components ❚ Checking components in the package Please check your camera and accessories are included in the package. Those components are as shown below: Camera Test Monitor Cable User’s Guide Image Part name Standard Quantity Usage Attach each piece to screw connection Plastic anchor HUD 5 4 (EA)

  • Page 8: Components Of Your Camera

    Components of your camera Your camera has the following components: 1. Dome cover: Covers the inner cover, lens, and main body to protect them. 2. Cover screw: Use it to assemble or disassemble both dome cover and case. 3. Inner cover: Covers the main body to protect it. 4.

  • Page 9: Installation

    Installation Setting switches ❚ Setting function switches To set the available functions on your camera, adjust eight switches as shown below: 1. Switch 1 (LL): When this switch is set to OFF, the camera operates in the internal synchronization mode, while when it is set to ON, the camera operates in the line lock mode.
  • Page 10 Set the LL switch to ON while the AC power 6. Switch 6 (FL): When this switch is set to is connected. If any picture roll happens, ON, the shutter speed is fixed to 1/100 sec you have to adjust the phase using the (for NTSC) or 1/120 sec (for PAL) to prevent phase-control buttons.

  • Page 11: Connecting Cables And Changing The Settings

    Connecting cables and changing the settings ❚ Before installing your camera, you have to adjust the lens focus, zoom, and switch settings. To connect cables 1. Connect the BNC cable to the Video connector attached on your camera. 2. Connect the BNC cable to the Video Input on a monitor.

  • Page 12: Installing Camera

    Installing camera ❚ Before installation Before installing your camera, you have to read the following cautions:  You have to check whether the location (ceiling or wall) can bear five times the weight of your camera.  Don’t let the cable to be caught in improper place or the electric line cover to be damaged. Otherwise it may cause a breakdown or fire.

  • Page 13: Installing On A Pipe

    1. After connecting the power and video L-Wrench for waterproofing.) cables, throw them inside the pipeline To change the SAMSUNG logo position,  and screw the male thread pipe into move the location of the connection...
  • Page 14 To install the camera side on a pipe 3. After pulling the power and video cables 1. Pull the power and video cables through through the connection pipe, screw the the pipe connection hole on the camera male thread pipe into the female pipe side thread in your camera tightly to fix the 1) Remove the side cover from the Case...

  • Page 15: Installing The Camera On The Ceiling

    Installing the camera on the ceiling Before installation, you have to be familiar with the above cautions and fill in the holes that are not used for installation. To install your camera bottom on a pipe In case of wiring after penetrating 1.

  • Page 16: Disassembling/Assembling The Main Body From The Case

    Disassembling/assembling the Main body from the Case The holes that are not used should be tightly sealed up using the screws provided for waterproofing. To detach the Main body from the Case, follow the instructions below: 1. 1. Remove the Dome cover first. 3.

  • Page 17: Adjusting The Camera Direction

    Adjusting the camera direction ❚ Panning When the camera is fixed on the ceiling, you can adjust the camera viewing angle. You can rotate your camera leftward or rightward (Panning), and can change the slope of your camera upward or downward (Tilting).
  • Page 18 SCC-B539X...

  • Page 19: Appendix A: Specifications For Ntsc Standard

    Backlight compensation (BLC) Controls Flickerless (FL) Switching between color and B&W modes (D/N) Auto white balancing (AWB) Digital noise reduction (DNR) Dynamic CCD defect compensation Operation temperature -10°C to +50°C Operation humidity Up to 90% Size 150(Ø) x 121(H)mm Weight SCC-B539X: 1.1kg...
  • Page 20 Backlight compensation (BLC) Controls Flickerless (FL) Switching between color and B&W modes (D/N) Auto white balancing (AWB) Digital noise reduction (DNR) Dynamic CCD defect compensation Operation temperature -10°C to +50°C Operation humidity Up to 90% Size 150(Ø) x 121(H)mm Weight SCC-B539X: 1.1kg...
  • Page 21 Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
