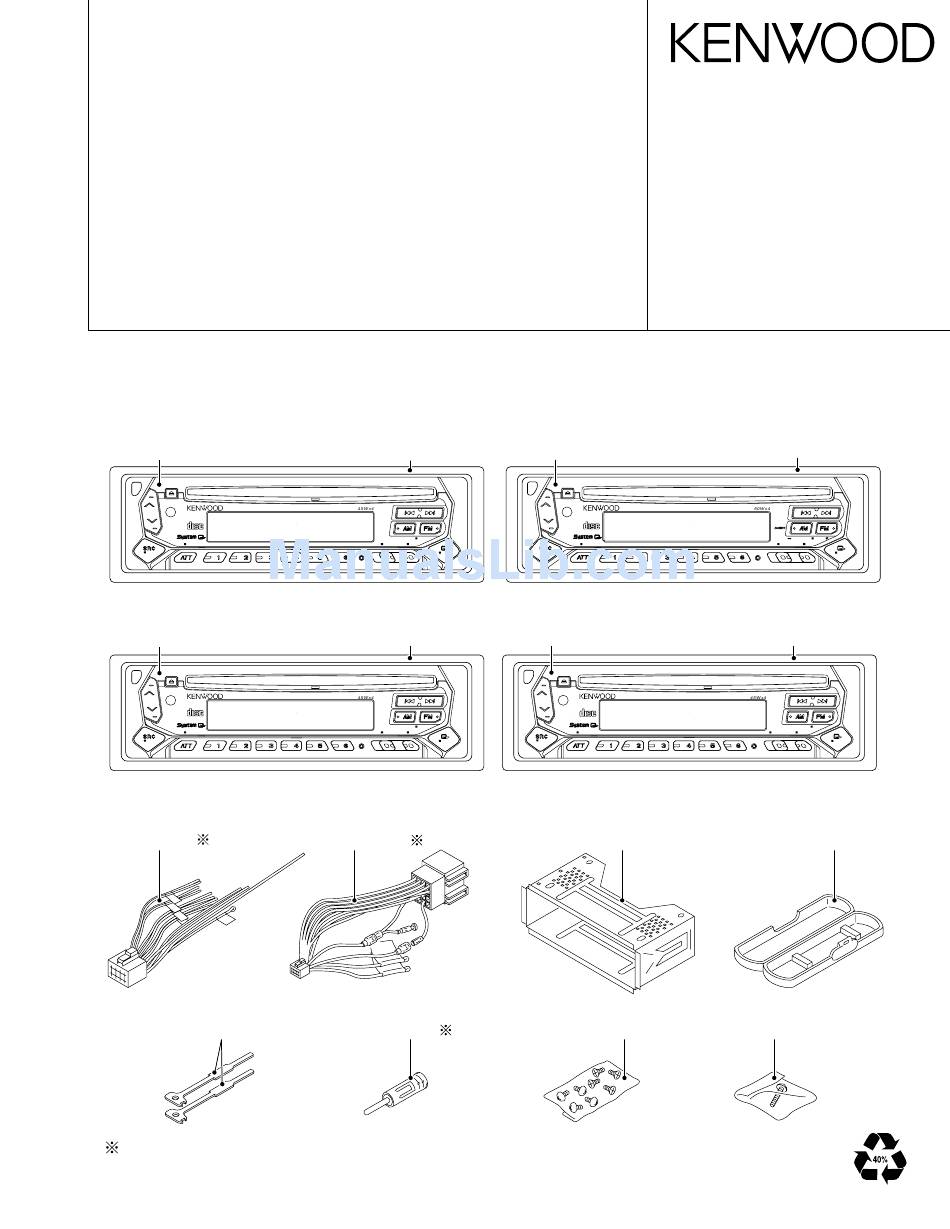

Instruction Manual
CD RECEIVER
KDC-2023
KDC-2024SA/SG/SYA/SYG
KDC-2094YA/YG
KDC-222/S
KDC-3023
SERVICE MANUAL
CD mechanism operation description is not in this sarvice manual.
Please, refer to sarvice manual X92-4030-0x (B51-7867-00).
Panel assy
(A64-2867-02): KDC-222
(A64-2868-02): KDC-222S
KDC-222
COMPACT
DIGITAL AUDIO
LOUD
SCAN
RDM
OFF
Panel assy
(A64-2878-02): KDC-2024SA/SG/SYA/SYG
KDC-2024S
COMPACT
DIGITAL AUDIO
LOUD
SCAN
RDM
OFF
DC cord
(E30-4784-05)
Lever
(D10-4589-04)x2
Depends on model. Refer to the parts list
Escutcheon
(B07-3060-02): KDC-222
(B07-3022-02): KDC-222S
CRSC
REP
CLK
ADJ
AUTO
AME
AUD
Escutcheon
(B07-3001-02): KDC-2024SA/SG/SYA/SYG
MONO
REP
CLK
ADJ
AUTO
AME
AUD
DC cord(ISO)
(E30-4790-05)
Antenna adaptor
(T90-0523-05)
© 2002-11 PRINTED IN JAPAN
B53-0004-00 ( N ) 3379
CD mechanism extension cord : WO5-0618-00
Panel assy
(A64-2870-02): KDC-2023
(A64-2873-02): KDC-3023
KDC-XXXX
COMPACT
DIGITAL AUDIO
LOUD
SCAN
RDM
OFF
Panel assy
(A64-2884-02): KDC-2094YA/YG
KDC-2094
COMPACT
DIGITAL AUDIO
LOUD
SCAN
RDM
REP
OFF
Mounting hardware assy
(J21-9716-03)
Screw set
(N99-1719-05)
Escutcheon
(B07-3001-02): KDC-2023
(B07-3022-02): KDC-3023
CD MD-Changer Control
CRSC
REP
CLK
ADJ
AUTO
AME
M. RDM
AUD
Escutcheon
(B07-3001-02): KDC-2094YA/YG
WIDE BAND
MONO
CLK
ADJ
AUTO
AME
AUD
Plastic cabinet assy
(A02-1486-13)
Screw set
(N99-1610-15)
