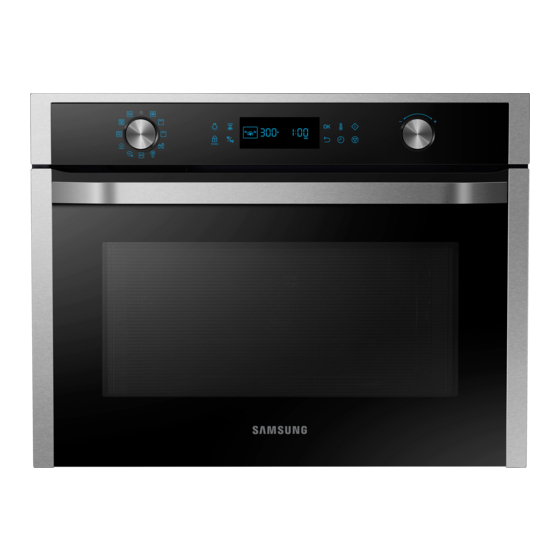

Microwave oven
User manual
NQ50J5530**
Please be advised that the Samsung warranty does NOT cover service calls to explain product
operation, correct improper installation, or perform normal cleaning or maintenance.
NQ50J5530BS_EU_DE68-04355C-00_EN.indd 1
3/10/2015 4:44:27 PM

Advertisement

Table of Contents
loading

Related Manuals for Samsung NQ50J5530 Series

Summary of Contents for Samsung NQ50J5530 Series

  • Page 1 Microwave oven User manual NQ50J5530** Please be advised that the Samsung warranty does NOT cover service calls to explain product operation, correct improper installation, or perform normal cleaning or maintenance. NQ50J5530BS_EU_DE68-04355C-00_EN.indd 1 3/10/2015 4:44:27 PM...
  • Page 1 Compact Oven with MWO function User manual NQ50J5530** NQ50J5530BS_WT_DE68-04355G-00_EN.indd 1 4/9/2015 4:34:15 PM...

  • Page 2: Table Of Contents

    Contents Using this user manual The following symbols are used in this User Manual: Safety instructions Important safety instructions Correct Disposal of This Product (Waste Electrical & Electronic Equipment) Installation & wiring instructions Wiring instructions Installation What’s included Installation instructions Maintenance Cleaning Replacement (repair)

  • Page 2: Table Of Contents

    Contents Using this user manual The following symbols are used in this User Manual: Safety instructions Important safety instructions Correct Disposal of This Product (Waste Electrical & Electronic Equipment) Installation What’s included Installation instructions Maintenance Cleaning Replacement (repair) Care against an extended period of disuse Before you start Clock Timer...

  • Page 3: Using This User Manual

    Using this user manual You have just purchased a SAMSUNG microwave oven. Your Owner’s Instructions contains valuable information on cooking with your microwave oven: • Safety precautions • Suitable accessories and cookware • Useful cooking tips • Cooking tips The following symbols are used in this User Manual: WARNING Hazards or unsafe practices that may result in severe personal injury or death.

  • Page 3: Using This User Manual

    Using this user manual You have just purchased a SAMSUNG microwave oven. Your Owner’s Instructions contains valuable information on cooking with your microwave oven: Safety precautions • • Suitable accessories and cookware • Useful cooking tips • Cooking tips The following symbols are used in this User Manual: WARNING Hazards or unsafe practices that may result in severe personal injury or death.

  • Page 4: Safety Instructions

    Safety instructions IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE. MAKE SURE THAT THESE SAFETY PRECAUTIONS ARE OBEYED AT ALL TIMES. BEFORE USING THE OVEN, CONFIRM THAT THE FOLLOWING INSTRUCTIONS ARE FOLLOWED. Microwave function only WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

  • Page 4: Safety Instructions

    Safety instructions IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE. MAKE SURE THAT THESE SAFETY PRECAUTIONS ARE OBEYED AT ALL TIMES. BEFORE USING THE OVEN, CONFIRM THAT THE FOLLOWING INSTRUCTIONS ARE FOLLOWED. Microwave function only WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
  • Page 5 WARNING: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 5 WARNING: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 6 Safety instructions Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. The appliance is not intended for installing in road vehicles, caravans and similar vehicles etc.
  • Page 6 Safety instructions Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. The appliance is not intended for installing in road vehicles, caravans and similar vehicles etc.
  • Page 7 Oven function only - Optional WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
  • Page 7 Oven function only - Optional WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

  • Page 8: General Safety

    Safety instructions The temperature of accessible surfaces may be high when the appliance is operating. The door or the outer surface may get hot when the appliance is operating. Keep the appliance and its cord out of reach of children less than 8 years.

  • Page 8: General Safety

    Safety instructions The temperature of accessible surfaces may be high when the appliance is operating. The door or the outer surface may get hot when the appliance is operating. Keep the appliance and its cord out of reach of children less than 8 years.
  • Page 9 In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without touching the power plug. Do not touch the power plug with wet hands. Do not turn the appliance off by unplugging the power plug while an operation is in progress. Do not insert fingers or foreign substances, If any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest service centre.
  • Page 9 In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without touching the power plug. Do not touch the power plug with wet hands. Do not turn the appliance off by unplugging the power plug while an operation is in progress. Do not insert fingers or foreign substances, If any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest service centre.
  • Page 10 Safety instructions Do not put the tray or rack in water shortly after cooking because it may cause breakage or damage of the tray or rack. Do not operate the microwave oven for deep fat frying because the oil temperature cannot be controlled.
  • Page 10 Safety instructions Do not put the tray or rack in water shortly after cooking because it may cause breakage or damage of the tray or rack. Do not operate the microwave oven for deep fat frying because the oil temperature cannot be controlled.

  • Page 11: Precautions To Avoid Possible Exposure To Excessive Microwave

    Samsung will charge a repair fee for replacing an accessory or repairing a cosmetic defect if the damage to the unit and/or damage to or loss of the accessory was caused by the customer.

  • Page 11: Precautions To Avoid Possible Exposure To Excessive Microwave

    Samsung will charge a repair fee for replacing an accessory or repairing a cosmetic defect if the damage to the unit and/or damage to or loss of the accessory was caused by the customer.

  • Page 12: Correct Disposal Of This Product (Waste Electrical & Electronic Equipment)

    Safety instructions Product group definition This product is a Group 2 Class B ISM equipment. The definition of group 2 which contains all ISM equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and EDM and arc welding equipment.

  • Page 12: Correct Disposal Of This Product (Waste Electrical & Electronic Equipment)

    Safety instructions • Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possible result in a hazardous situation. Product group definition This product is a Group 2 Class B ISM equipment. The definition of group 2 which contains all ISM equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and EDM and arc welding equipment.

  • Page 13: Installation

    INSTALLATION & WIRING INSTRUCTIONS IMPORTANT NOTE: The mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug and, if it requires replacing, a fuse approved to BS1363 of the same rating must be used.

  • Page 13: Installation

    What’s included Make sure all parts and accessories are included in the product package. If you have a problem with the oven or accessories, contact a local Samsung customer centre or the retailer. Oven at a glance 01 Control panel...
  • Page 14 Safety instructions IMPORTANT: Consult a qualified electrician or service technician if in doubt about any of these instructions. The manufacturer of this oven will not accept any liability for damage to persons or material for non observance of these requirements. There are no user-serviceable parts inside the oven and if the mains lead of this appliance is damaged, it must only be replaced by qualified service personnel approved by the manufacturer because special tools are required.
  • Page 14 Installation Accessories The oven comes with different accessories that help you prepare different types of food. Ceramic tray Baking trays (Useful for microwave mode.) (Do not use for microwave mode.) Grill insert Pure steam cooker (Useful for speed menu and grill (The plastic steam cooker for mode.) steam cooking.)
  • Page 15 What’s included Make sure all parts and accessories are included in the product package. If you have a problem with the oven or accessories, contact a local Samsung customer centre or the retailer. Oven at a glance 05 Control panel...
  • Page 15 Pure steam cooker The Pure steam cooker is a set CAUTION of the Bowl, Insert tray, and Lid, • The Pure steam cooker is which is designed for steam dedicated to this model. cooking. Use the Pure steam Do not use the Pure steam cooker for foods such as rice, cooker with other models or pasta, and vegetables to preserve...

  • Page 16: Installation Instructions

    Installation Accessories The oven comes with different accessories that help you prepare different types of food. Ceramic tray Baking trays (Useful for microwave mode.) (Do not use for microwave mode.) Grill insert Pure steam cooker (Useful for speed menu and grill (The plastic steam cooker for mode.) steam cooking.)

  • Page 16: Installation Instructions

    Installation Installation instructions General Technical Information Electrical Supply 230 V ~ 50 Hz Set size 595 x 454.2 x 570 mm Dimensions (W × H × D) Built in size 555 x 445 x 548.8 mm Disposal of Packaging and Appliance Packaging is recyclable.
  • Page 17 Pure steam cooker The Pure steam cooker is a set CAUTION of the Bowl, Insert tray, and Lid, • The Pure steam cooker is which is designed for steam dedicated to this model. Do not cooking. Use the Pure steam use the Pure steam cooker with cooker for foods such as rice, other models or products.
  • Page 17 Safety Electrical Connection • This appliance should only The house mains to which the be connected by a qualified appliance is connected should technician. comply with national and local • The Oven is NOT designed for regulations. use in a commercial cooking Appliance should allow to setting.
  • Page 18 Installation Installation instructions General Technical Information Electrical Supply 230 V ~ 50 Hz Set size 595 x 454.2 x 570 mm Dimensions (W × H × D) Built in size 555 x 445 x 548.8 mm This appliance complies with EU regulations. Disposal of Packaging and Appliance Packaging is recyclable.
  • Page 18 Installation Install in the built-in cabinet Kitchen built-in cabinet in contact with the oven must be heatresistant up to 100 °C. Samsung will take no responsibility for damage of built-in cabinet from the heat. Required Dimensions for Installation Oven (mm) 454.2...
  • Page 19 Safety Electrical Connection • This appliance should only The house mains to which the be connected by a qualified appliance is connected should technician. comply with national and local • The Oven is NOT designed for regulations. use in a commercial cooking Appliance should allow to setting.
  • Page 19 Under-sink built-in cabinet (mm) Min. 550 Min 564 / Max. 568 Min. 446 / Max 450 200 cm Mounting the oven 1. Slide the oven partly into the recess. Lead the connection cable to the power source. 2. Slide the oven completely into the recess.
  • Page 20 Installation Install in the Cabinet Kitchen Cabinets in contact with the oven must be heatresistant up to 100 °C. Samsung will take no responsibility for damage of cabinets from the heat. Required Dimensions for Installation Oven (mm) 454.2 Built-in cabinet (mm) Min.
  • Page 20 Installation 3. Fasten the oven using the two screws (4 x 25 mm) provoded. 4. Make the electrical connection. Check that the appliance works. Be sure to hold the appliance with 2 side handles and door handle when unpacking the product. 01 Door handle 02 Side handle 20 English...

  • Page 21: Maintenance

    Under-sink cabinet (mm) Min. 550 Min 564 / Max. 568 Min. 446 / Max 450 200 cm Mounting the oven 1. Slide the oven partly into the recess. Lead the connection cable to the power source. 2. Slide the oven completely into the recess.

  • Page 21: Maintenance

    Maintenance Cleaning Clean the oven regularly to prevent impurities from building up on or inside the oven. Also pay special attention to the door, door sealing, and turntable and roller ring (applicable models only). If the door won’t open or close smoothly, first check if the door seals have built up impurities.

  • Page 22: Replacement (Repair)

    Installation 3. Fasten the oven using the two screws (4 x 25 mm) provoded. 4. Make the electrical connection. Check that the appliance works. Be sure to hold the appliance with 2 side handles and door handle when unpacking the product. 01 Door handle 02 Side handle 22 English...

  • Page 22: Replacement (Repair)

    Samsung cord from the power source, service centre for technical and then contact a local assistance.

  • Page 23: Before You Start

    Maintenance Cleaning Clean the oven regularly to prevent impurities from building up on or inside the oven. Also pay special attention to the door, door sealing, and turntable and roller ring (applicable models only). If the door won’t open or close smoothly, first check if the door seals have built up impurities.

  • Page 23: Before You Start

    Before you start There are a couple of components that you should know before going directly to a recipe. Before or during any cooking mode, you can set/change the clock or the kitchen timer to your needs. Clock It is important to set the correct clock time to ensure correct automatic operations. 1.

  • Page 24: Timer

    Samsung service centre from the power source, and then for technical assistance. contact a local Samsung service • If you want to replace the light...

  • Page 24: Timer

    Before you start Timer Timer helps you check the time or operating duration while cooking. 1. Press 2. Turn the value dial to set the time, and then press OK. NOTE • When the time has elapsed, the oven beeps with a blinking message of “00:00”...

  • Page 25: Sound On/Off

    Before you start There are a couple of components that you should know before going directly to a recipe. Before or during any cooking mode, you can set/change the clock or the kitchen timer to your needs. Clock It is important to set the correct clock time to ensure correct automatic operations. 1.

  • Page 25: Sound On/Off

    Sound On/Off You can turn on or off the key tone, beep, or alarm. This setting is available only in Standby state (when the current time is displayed). To mute the sound, hold down for 3 seconds. “OFF” appears on the display. To unmute the sound, hold down again for 3 seconds.

  • Page 26: Side Runners

    Before you start Timer Timer helps you check the time or operating duration while cooking. 1. Press 2. Turn the value dial to set the time, and then press OK. NOTE • When the time has elapsed, the oven beeps with a blinking message of “00:00” on the display.

  • Page 26: Side Runners

    Before you start Side runners • Insert the accessory to the correct position inside of the oven. • Take caution in removing cookware and/ or accessories out of the oven. Hot meals or accessories can cause burns. 01 Level 1 Microwave function 02 Level 2 03 Level 3...

  • Page 27: Cookware For Microwave

    Sound On/Off You can turn on or off the key tone, beep, or alarm. This setting is available only in Standby state (when the current time is displayed). To mute the sound, hold down for 3 seconds. “OFF” appears on the display. To unmute the sound, hold down again for 3 seconds.

  • Page 27: Cookware For Microwave

    Cookware for microwave Cookware used for Microwave Mode must allow microwaves to pass through and penetrate food. Metals such as stainless steel, aluminum and copper reflect microwaves. Therefore, do not use cookware made of metallic materials. Cookware marked microwave - safe is always safe for use.
  • Page 28 Before you start Side runners • Insert the accessory to the correct position inside of the oven. • Take caution in removing cookware and/or accessories out of the oven. Hot meals or accessories can cause burns. 01 Level 1 Microwave function 02 Level 2 03 Level 3 Oven function...
  • Page 28 Before you start Microwave- Material Description safe Oven-to-table Microwave-safe unless decorated with ware metal trims. Delicate glassware may break or crack Glassware Fine glassware by rapid heating. Appropriate for warming only. Remove Glass jars the lid before cooking. Dishes Metal These may cause arcing or fire.

  • Page 29: Operations

    Cookware for microwave Cookware used for Microwave Mode must allow microwaves to pass through and penetrate food. Metals such as stainless steel, aluminum and copper reflect microwaves. Therefore, do not use cookware made of metallic materials. Cookware marked microwave - safe is always safe for use.

  • Page 29: Operations

    Operations Control panel The front panel comes in a wide range of materials and colours. For improved quality, the actual appearance of the oven is subject to change without notice. 03 05 10 12 01 Mode dial Turn the mode dial to select a desired cooking mode or function. 02 Oven light Press to turn the internal light on or off.
  • Page 30 Before you start Microwave- Material Description safe Oven-to-table Microwave-safe unless decorated with ware metal trims. Delicate glassware may break or crack Glassware Fine glassware by rapid heating. Appropriate for warming only. Remove Glass jars the lid before cooking. Dishes Metal These may cause arcing or fire.
  • Page 30 Operations Feature overview Feature Temperature range Default temperature 40-230 °C 180 °C The heating elements generate heat, which Convection is evenly distributed inside the oven by the convection fan. Use this mode for frozen food or baking. 150-230 °C 220 °C Large grill Use this for grilling food such as meat.

  • Page 31: Manual Mode

    Operations Control panel The front panel comes in a wide range of materials and colours. For improved quality, the actual appearance of the oven is subject to change without notice. 03 05 10 12 01 Mode dial Turn the mode dial to select a desired cooking mode or function. 02 Oven light Press to turn the internal light on or off.

  • Page 31: Manual Mode

    Feature Temperature range Default temperature For cooking beginners, the oven offers a total Vegetable of 10 auto cooking programmes. For cooking beginners, the oven offers a total Auto mode Auto of 10 auto cooking programmes. The oven offers 5 defrosting programmes for Defrost your convenience.
  • Page 32 Operations Feature overview Feature Temperature range Default temperature 40-230 °C 180 °C The heating elements generate heat, which Convection is evenly distributed inside the oven by the convection fan. Use this mode for frozen food or baking. 150-230 °C 220 °C Large grill Use this for grilling food such as meat.
  • Page 32 Operations Step 3. Set cooking time Press Cooking time to move to the time setting. (convection, Grill mode only) Use the value dial to set the cooking time. Optionally, you can delay the end time of your cooking to a desired point. After set the cooking time, press And then use value dial to set an end point.
  • Page 33 Feature Temperature range Default temperature For cooking beginners, the oven offers a total Vegetable of 10 auto cooking programmes. For cooking beginners, the oven offers a total Auto mode Auto of 10 auto cooking programmes. The oven offers 5 defrosting programmes for Defrost your convenience.
  • Page 33 Delay End Delay End is designed to make cooking more convenient. Real-life case: Suppose you select a one-hour recipe at 14:00 and you want the oven to finish cooking at 17:00. To set the end time, change the Delay End time to 17:00. The oven will start cooking at 16:00 and end at 17:00 as you set.
  • Page 34 Operations Step 3. Set cooking time Press Cooking time to move to the time setting. (convection, Grill mode only) Use the value dial to set the cooking time. Optionally, you can delay the end time of your cooking to a desired point. After set the cooking time, press And then use value dial to set an end point.
  • Page 34 Operations To change the temperature or power level during cooking 1. Press ). The temperature (or power level) element blinks. 2. Use the value dial to adjust the temperature (or power level). 3. Press OK to confirm the changes. To stop operation Press once to stop operation, twice to cancel the current mode.
  • Page 35 Delay End Delay End is designed to make cooking more convenient. Real-life case: Suppose you select a one-hour recipe at 14:00 and you want the oven to finish cooking at 17:00. To set the end time, change the Delay End time to 17:00. The oven will start cooking at 16:00 and end at 17:00 as you set.
  • Page 35 Convection The heating elements generate heat, which is evenly distributed inside the oven by the convection fan. Use this mode for biscuits, individual scones, rolls, and cakes as well as fruit cakes, choux, and soufflés. Step 1 Step 2 Step 3 Step 4 >...
  • Page 36 Operations To change the temperature or power level during cooking 1. Press ). The temperature (or power level) element blinks. 2. Use the value dial to adjust the temperature (or power level). 3. Press OK to confirm the changes. To stop operation Press once to stop operation, twice to cancel the current mode.
  • Page 36 Operations Microwave Microwaves are high-frequency electromagnetic waves. The microwave energy enables food to be cooked or reheated without changing either the form or the colour. Use only microwave-safe cookware. • Step 1 Step 2 Step 3 Step 4 > > >...
  • Page 37 Convection The heating elements generate heat, which is evenly distributed inside the oven by the convection fan. Use this mode for biscuits, individual scones, rolls, and cakes as well as fruit cakes, choux, and soufflés. Step 1 Step 2 Step 3 Step 4 >...
  • Page 37 Large grill The heating elements generate heat. Make sure they are in the horizontal position. Step 1 Step 2 Step 3 Step 4 > > > Grill Temperature Cooking time Preheating 1. Put food in suitable cookware, then on the recommended accessory, and then close the door.
  • Page 38 Operations Microwave Microwaves are high-frequency electromagnetic waves. The microwave energy enables food to be cooked or reheated without changing either the form or the colour. • Use only microwave-safe cookware. Step 1 Step 2 Step 3 Step 4 > > >...
  • Page 38 Operations Grill Combo The heating elements generate heat, which is reinforced by the microwave energy. Use only microwave-safe cookware, such as glass or ceramic cookware. Step 1 Step 2 Step 3 Step 4 > > > Grill Combo Power level Cooking time Preheating 1.

  • Page 39: Auto Mode

    Large grill The heating elements generate heat. Make sure they are in the horizontal position. Step 1 Step 2 Step 3 Step 4 > > > Grill Temperature Cooking time 1. Put food in suitable cookware, then on the recommended accessory, and then close the door.

  • Page 39: Auto Mode

    Auto mode The oven offers 3 different auto modes for your convenience: Vegetable, Auto Cook, and Defrost. Select one that best fits your needs. Step 1. Select mode Turn the mode dial to select an auto mode. (Vegetable, Auto Cook and Defrost) The default programme number blinks.
  • Page 40 Operations Grill Combo The heating elements generate heat, which is reinforced by the microwave energy. Use only microwave-safe cookware, such as glass or ceramic cookware. Step 1 Step 2 Step 3 Step 4 > > > Grill Combo Power level Cooking time 1.
  • Page 40 Operations Vegetable For cooking beginners, the oven offers a total of 10 auto cooking programmes. Add 30-45 ml of cold water for every 250 g unless another water quantity is recommended. Cook covered for the minimum time. Continue cooking to get the result you prefer. Stir once during and once after cooking.

  • Page 41: Special Functions

    Auto mode The oven offers 3 different auto modes for your convenience: Vegetable, Auto Cook, and Defrost. Select one that best fits your needs. Step 1. Select mode Turn the mode dial to select an auto mode. (Vegetable, Auto Cook and Defrost) The default programme number blinks.

  • Page 41: Special Functions

    Defrost The oven offers 5 defrosting programmes for your convenience. The time and power level are automatically adjusted according to the selected programme. Step 1 Step 2 Step 3 > > Defrost 1 to 5 weight 1. Put food in suitable cookware, then on the recommended accessory, and then close the door.
  • Page 42 Operations Vegetable For cooking beginners, the oven offers a total of 10 auto cooking programmes. Add 30-45 ml of cold water for every 250 g unless another water quantity is recommended. Cook covered for the minimum time. Continue cooking to get the result you prefer. Stir once during and once after cooking.
  • Page 42 Operations 4. Press . The oven starts warming. CAUTION • Always use oven gloves while taking out • Do not run this function for more than 1 food. hour. Otherwise, this may affect the food • Do not use this function to reheat cold quality.
  • Page 43 Defrost The oven offers 5 defrosting programmes for your convenience. The time and power level are automatically adjusted according to the selected programme. Step 1 Step 2 Step 3 > > Defrost 1 to 5 weight 1. Put food in suitable cookware, then on the recommended accessory, and then close the door.
  • Page 43 Steam cleaning This is useful for cleaning light soiling with steaming. 1. Pour 100 ml of water onto the bottom of the oven and close the oven door. 2. Turn the mode dial to select Steam cleaning. 3. Press . The oven starts cleaning. 4.

  • Page 44: Cooking Smart

    Operations 4. Press . The oven starts warming. CAUTION • Always use oven gloves while taking out • Do not run this function for more than 1 food. hour. Otherwise, this may affect the food • Do not use this function to reheat cold quality.

  • Page 44: Cooking Smart

    Cooking Smart Auto cooking Vegetable guide Food Serving size (kg) Accessory Level Broccoli Florets 0.2-0.3 Ceramic tray 0.3-0.4 Cut broccoli into slices or halves. Add only 15 ml (1 tablespoon) water. Put them evenly into a glass bowl with lid. Cook covered. Stir after cooking.
  • Page 45 Steam cleaning This is useful for cleaning light soiling with steaming. 1. Pour 100 ml of water onto the bottom of the oven and close the oven door. 2. Turn the mode dial to select Steam cleaning. 3. Press . The oven starts cleaning. 4.
  • Page 45 Food Serving size (kg) Accessory Level Courgettes 0.2-0.3 Ceramic tray 0.3-0.4 Cut courgettes into slices. Add 30 ml (2 tablespoons) water or a knob of butter. Put them evenly into a glass bowl with lid. Cook covered. Cook until just tender. Sliced Egg 0.1-0.2 Ceramic tray...
  • Page 46 Cooking Smart Auto cooking Vegetable guide Food Serving size (kg) Accessory Level Broccoli Florets 0.2-0.3 Ceramic tray 0.3-0.4 Cut broccoli into slices or halves. Add only 15 ml (1 tablespoon) water. Put them evenly into a glass bowl with lid. Cook covered. Stir after cooking.
  • Page 46 Cooking Smart Auto cook guide Food Serving size (kg) Accessory Level Plated Meal 0.3-0.35 Ceramic tray 0.4-0.45 Put on a ceramic plate and cover with microwave cling film. This programme is suitable for meals consisting of 3 components (e.g. meat with sauce, vegetables and a side dish like potatoes, rice or pasta).
  • Page 47 Food Serving size (kg) Accessory Level Courgettes 0.2-0.3 Ceramic tray 0.3-0.4 Cut courgettes into slices. Add 30 ml (2 tablespoons) water or a knob of butter. Put them evenly into a glass bowl with lid. Cook covered. Cook until just tender. Sliced Egg 0.1-0.2 Ceramic tray...
  • Page 47 Food Serving size (kg) Accessory Level Baked Potato 0.4-0.5 Grill Insert + Halves 0.6-0.7 Ceramic Tray Cut potatoes into halves. Put them in a circle on the tray with the cut side to the grill. After cooking let stand for 2-3 minutes. Apple Pie 1.2-1.4 Baking tray...
  • Page 48 Cooking Smart Auto cook guide Food Serving size (kg) Accessory Level Plated Meal 0.3-0.35 Ceramic tray 0.4-0.45 Put on a ceramic plate and cover with microwave cling film. This programme is suitable for meals consisting of 3 components (e.g. meat with sauce, vegetables and a side dish like potatoes, rice or pasta).
  • Page 48 Cooking Smart Defrost guide Food Serving size (g) Accessory Level Meat 0.2-1.5 Ceramic tray Shield the edges with aluminium foil. Turn the meat over, when the oven beeps. This programme is suitable for beef, lamb, pork, steaks, chops, minced meat. Poultry 0.2-1.5 Ceramic tray...

  • Page 49: Manual Cooking

    Food Serving size (kg) Accessory Level Baked Potato 0.4-0.5 Grill Insert + Halves 0.6-0.7 Ceramic Tray Cut potatoes into halves. Put them in a circle on the tray with the cut side to the grill. After cooking let stand for 2-3 minutes. Apple Pie 1.2-1.4 Baking tray...

  • Page 49: Manual Cooking

    Manual cooking Microwave cooking guide • Do not use metal containers with Microwave mode. Always put food containers on the turntable. • It is recommended to cover the food for best results. After cooking is complete, let the food settle in its own steam. •...
  • Page 50 Cooking Smart Defrost guide Food Serving size (g) Accessory Level Meat 0.2-1.5 Ceramic tray Shield the edges with aluminium foil. Turn the meat over, when the oven beeps. This programme is suitable for beef, lamb, pork, steaks, chops, minced meat. Poultry 0.2-1.5 Ceramic tray...
  • Page 50 Cooking Smart Fresh vegetables • Use a glass Pyrex container with a lid. • Add 30-45 ml of cold water for every 250 g. • Stir once during cooking, and once after cooking. • Add seasoning after cooking. • For faster cooking, it is recommended to cut into smaller, even sizes. Cook all fresh vegetables using full microwave power (800 W).
  • Page 51 Manual cooking Microwave cooking guide • Do not use metal containers with Microwave mode. Always put food containers on the turntable. • It is recommended to cover the food for best results. • After cooking is complete, let the food settle in its own steam. Frozen vegetables • Use a glass Pyrex container with a lid.
  • Page 51 Food Serving size (g) Cooking time (min.) Standing time (min.) Onions Cut onions into slices or halves. Add only 15 ml (1 tbsp.) water. Peppers Cut pepper into small slices. Potatoes Weigh the peeled potatoes and cut them into similar sized halves or quarters.
  • Page 52 Cooking Smart Fresh vegetables • Use a glass Pyrex container with a lid. • Add 30-45 ml of cold water for every 250 g. • Stir once during cooking, and once after cooking. • Add seasoning after cooking. • For faster cooking, it is recommended to cut into smaller, even sizes. • Cook all fresh vegetables using full microwave power (800 W).
  • Page 52 Cooking Smart Reheating • Do not reheat large-sized foods such as joints of meat, which easily overcook. • It is safer to reheat foods at lower power levels. • Stir well or turn over during and after cooking. • Use caution for liquids or baby foods. Stir well before, during, and after cooking with a plastic spoon or glass stirring stick to prevent eruptive boiling and scalding.
  • Page 53 Food Serving size (g) Cooking time (min.) Standing time (min.) Onions Cut onions into slices or halves. Add only 15 ml (1 tbsp.) water. Peppers Cut pepper into small slices. Potatoes Weigh the peeled potatoes and cut them into similar sized halves or quarters.
  • Page 53 Baby foods & milk Cooking time Standing time Food Serving size Power (W) (sec.) (min.) Baby Food 190 g 30-40 (Vegetable + Meat) Empty into ceramic deep plate. Cook covered. Stir after cooking time. Stand for 2-3 minutes. Before serving, stir well and check the temperature carefully.
  • Page 54 Cooking Smart Reheating • Do not reheat large-sized foods such as joints of meat, which easily overcook. • It is safer to reheat foods at lower power levels. • Stir well or turn over during and after cooking. • Use caution for liquids or baby foods. Stir well before, during, and after cooking with a plastic spoon or glass stirring stick to prevent eruptive boiling and scalding.
  • Page 54 Cooking Smart Defrost Put frozen food in a microwave-safe container without a cover. Turn over during defrosting, and drain off liquid and remove giblets after defrosting. For faster defrosting, cut the food into small pieces, and wrap them with aluminum foil before defrosting. When the outer surface of frozen foods begins to melt, stop defrosting and let stand as instructed in the table below.
  • Page 55 Baby foods & milk Cooking time Standing time Food Serving size Power (W) (sec.) (min.) Baby Food 190 g 30-40 (Vegetable + Meat) Empty into ceramic deep plate. Cook covered. Stir after cooking time. Stand for 2-3 minutes. Before serving, stir well and check the temperature carefully.
  • Page 55 Grilling guide The grill-heating elements are located on the ceiling of the cooking chamber. These elements operate only when the door is closed and the turntable is rotating. When grilling food, put the food on the high rack unless otherwise instructed. Preheat the grill for 2-3 minutes with Grill mode, and, unless otherwise instructed below, grill food on the high rack.
  • Page 56 Cooking Smart Defrost Put frozen food in a microwave-safe container without a cover. Turn over during defrosting, and drain off liquid and remove giblets after defrosting. For faster defrosting, cut the food into small pieces, and wrap them with aluminum foil before defrosting. When the outer surface of frozen foods begins to melt, stop defrosting and let stand as instructed in the table below.
  • Page 56 Cooking Smart Microwave + Grill Power Temp. Accessory Level Cooking Cooking level (W) (°C) time time Food (1st side) (2nd side) (min.) (min.) Baked potatoes 180-200 Grill Insert + 10-15 Ceramic Tray Grilled 160-180 Grill Insert + 05-10 tomatoes Ceramic Tray Vegetable 180-200 Grill Insert +...
  • Page 57 Grilling guide The grill-heating elements are located on the ceiling of the cooking chamber. These elements operate only when the door is closed and the turntable is rotating. When grilling food, put the food on the high rack unless otherwise instructed. Preheat the grill for 2-3 minutes with Grill mode, and, unless otherwise instructed below, grill food on the high rack.
  • Page 57 Convection guide Convection In Convection mode, both the heating element and the side-wall fan operate together to circulate the heat inside the cooking chamber. Use this mode for biscuits, individual scones, rolls, and cakes as well as fruit cakes, choux, and soufflés. All conventional ovenproof cookware, baking tins and sheets –...
  • Page 58 Cooking Smart Microwave + Grill Power Temp. Accessory Level Cooking Cooking level (W) (°C) time time Food (1st side) (2nd side) (min.) (min.) Baked potatoes 180-200 Grill Insert + 10-15 Ceramic Tray Grilled 160-180 Grill Insert + 05-10 tomatoes Ceramic Tray 180-200 Grill Insert + 10-20...
  • Page 58 Cooking Smart Microwaves+Convection Power Temp. Accessory Level Cooking Cooking level (W) (°C) time time Food (1st side) (2nd side) (min.) (min.) Whole chicken 180-200 Grill Insert + 25-30 15-25 Ceramic Tray 1.2 kg Roast beef/ 180-200 Grill Insert + 15-20 15-20 Lamb (Medium) Ceramic Tray...
  • Page 59 Convection guide Convection In Convection mode, both the heating element and the side-wall fan operate together to circulate the heat inside the cooking chamber. Use this mode for biscuits, individual scones, rolls, and cakes as well as fruit cakes, choux, and soufflés. All conventional ovenproof cookware, baking tins and sheets –...
  • Page 59 Steam cooking guide Serving size Power level Cooking Time Food Accessory (min.) Artichokes 300 (1-2 pcs) Bowl + Insert tray + Lid Rinse and clean artichokes. Put insert tray into bowl. Set artichokes on tray. Add 1 tbsp lemon juice. Cover with lid. Stand for 1-2 minutes.
  • Page 60 Cooking Smart Microwaves+Convection Power Temp. Accessory Level Cooking Cooking level (W) (°C) time time Food (1st side) (2nd side) (min.) (min.) Whole chicken 180-200 Grill Insert + 25-30 15-25 1.2 kg Ceramic Tray Roast beef/ 180-200 Grill Insert + 15-20 15-20 Lamb (Medium) Ceramic Tray...
  • Page 60 Cooking Smart Serving size Power level Cooking Time Food Accessory (min.) Frozen Soup 8-10 Bowl + Lid Put frozen soup into steam bowl. Cover with lid. Stir well before standing. Stand for 2-3 minutes. Frozen Yeast 1½-2½ Bowl + Lid Dumpling with Jam Moist the top of filled dumplings with cold water.

  • Page 61: Quick & Easy

    Steam cooking guide Serving size Power level Cooking Time Food Accessory (min.) Artichokes 300 (1-2 pcs) Bowl + Insert tray + Lid Rinse and clean artichokes. Put insert tray into bowl. Set artichokes on tray. Add 1 tbsp lemon juice. Cover with lid. Stand for 1-2 minutes.

  • Page 61: Quick & Easy

    Quick & Easy Melting butter Cooking jam Put 50 g butter into a small deep glass Put 600 g fruits (for example mixed berries) dish. Cover with plastic lid. Heat for 30-40 in a suitable sized glass pyrex bowl with seconds using 800 W, until butter is melted.

  • Page 62: Troubleshooting

    Cooking Smart Serving size Power level Cooking Time Food Accessory (min.) Frozen Soup 8-10 Bowl + Lid Put frozen soup into steam bowl. Cover with lid. Stir well before standing. Stand for 2-3 minutes. Frozen Yeast 1½-2½ Bowl + Lid Dumpling with Jam Moist the top of filled dumplings with cold water.

  • Page 62: Troubleshooting

    You may encounter a problem using the oven. In that case, first check the table below and try the suggestions. If a problem persists, or if any information code keeps appearing on the display, contact a local Samsung service centre. Checkpoints If you encounter a problem with the oven, first check the table below and try the suggestions.
  • Page 63 Quick & Easy Melting butter Cooking jam Put 50 g butter into a small deep glass Put 600 g fruits (for example mixed berries) dish. Cover with plastic lid. Heat for 30-40 in a suitable sized glass pyrex bowl with seconds using 800 W, until butter is melted.
  • Page 63 Problem Cause Action The power turns off The oven has been cooking for After cooking for an extended during operation. an extended period of time. period of time, let the oven cool. The cooling fan is not working. Listen for the sound of the cooling fan.
  • Page 64 You may encounter a problem using the oven. In that case, first check the table below and try the suggestions. If a problem persists, or if any information code keeps appearing on the display, contact a local Samsung service centre. Checkpoints If you encounter a problem with the oven, first check the table below and try the suggestions.
  • Page 64 Troubleshooting Problem Cause Action The oven does not The oven may not work, too Put one cup of water in a heat. much food is being cooked, or microwave-safe container and improper cookware is being run the microwave for 1-2 used.
  • Page 65 Problem Cause Action The power turns off The oven has been cooking for After cooking for an extended during operation. an extended period of time. period of time, let the oven cool. The cooling fan is not working. Listen for the sound of the cooling fan.
  • Page 65 Problem Cause Action The interior light is The door has been left open for The interior light may dim or does not turn a long time. automatically turn off when the Eco function operates. Close and reopen the door or press the "Cancel"...
  • Page 66 Troubleshooting Problem Cause Action The oven does not The oven may not work, too Put one cup of water in a heat. much food is being cooked, or microwave-safe container and improper cookware is being run the microwave for 1-2 used.
  • Page 66 Troubleshooting Problem Cause Action There is water left in There may be water or steam in Let the oven cool and then wipe the oven. some cases depending on the with a dry dish towel. food. This is not an oven malfunction. The brightness inside Brightness changes depending Power output changes during...
  • Page 67 Problem Cause Action The interior light is The door has been left open for The interior light may dim or does not turn a long time. automatically turn off when the Eco function operates. Close and reopen the door or press the "Cancel"...
  • Page 67 Problem Cause Action Grill Smoke comes out During initial operation, smoke This is not a malfunction, and if during operation. may come from the heating you run the oven 2-3 times, it elements when you first use the should stop. oven.
  • Page 68 Troubleshooting Problem Cause Action There is water left in There may be water or steam in Let the oven cool and then wipe the oven. some cases depending on the with a dry dish towel. food. This is not an oven malfunction. The brightness inside Brightness changes depending Power output changes during...
  • Page 68 Troubleshooting Problem Cause Action The oven does not The oven door is frequently Do not frequently open the door cook properly. opened during cooking. unless you are cooking things that need to be turned. If you open the door often, the interior temperature will be lowered and this may affect the results of your cooking.

  • Page 69: Information Codes

    Problem Cause Action Grill Smoke comes out During initial operation, smoke This is not a malfunction, and if during operation. may come from the heating you run the oven 2-3 times, it elements when you first use the should stop. oven.

  • Page 69: Information Codes

    ) to try again. Unplug the power cord for cooling enough time, and clean the button. (Dust, The touch key is malfunction. C-d0 Water) When appear same problem, contact a local Samsung service centre. English 69 NQ50J5530BS_WT_DE68-04355G-00_EN.indd 69 4/9/2015 4:34:29 PM...

  • Page 70: Technical Specifications

    Troubleshooting Problem Cause Action The oven does not The oven door is frequently Do not frequently open the door cook properly. opened during cooking. unless you are cooking things that need to be turned. If you open the door often, the interior temperature will be lowered and this may affect the results of your cooking.

  • Page 70: Technical Specifications

    Technical specifications Technical specifications SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice. Power Source 230 V ~ 50 Hz Maximum power 3000 W Microwave...
  • Page 71 ) to try again. Unplug the power cord for cooling enough time, and clean the button. (Dust, The touch key is malfunction. C-d0 Water) When appear same problem, contact a local Samsung service centre. English 71 NQ50J5530BS_EU_DE68-04355C-00_EN.indd 71 3/10/2015 4:44:44 PM...
  • Page 71 Memo NQ50J5530BS_WT_DE68-04355G-00_EN.indd 71 4/9/2015 4:34:29 PM...
  • Page 72 Technical specifications Technical specifications SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice. 230 V ~ 50 Hz Power Source Maximum power 3000 W Microwave...
  • Page 72 ООО «Самсунг Электроникс Рус Компани» Адрес: 125009, г. Москва, Россия, ул. Воздвиженка 10, 4 этаж Please be advised that the Samsung warranty does NOT cover service calls to explain product operation, correct improper installation, or perform normal cleaning or maintenance.

This manual is also suitable for:

Nq50j3530 seriesNq50j5530bs

Table of Contents
