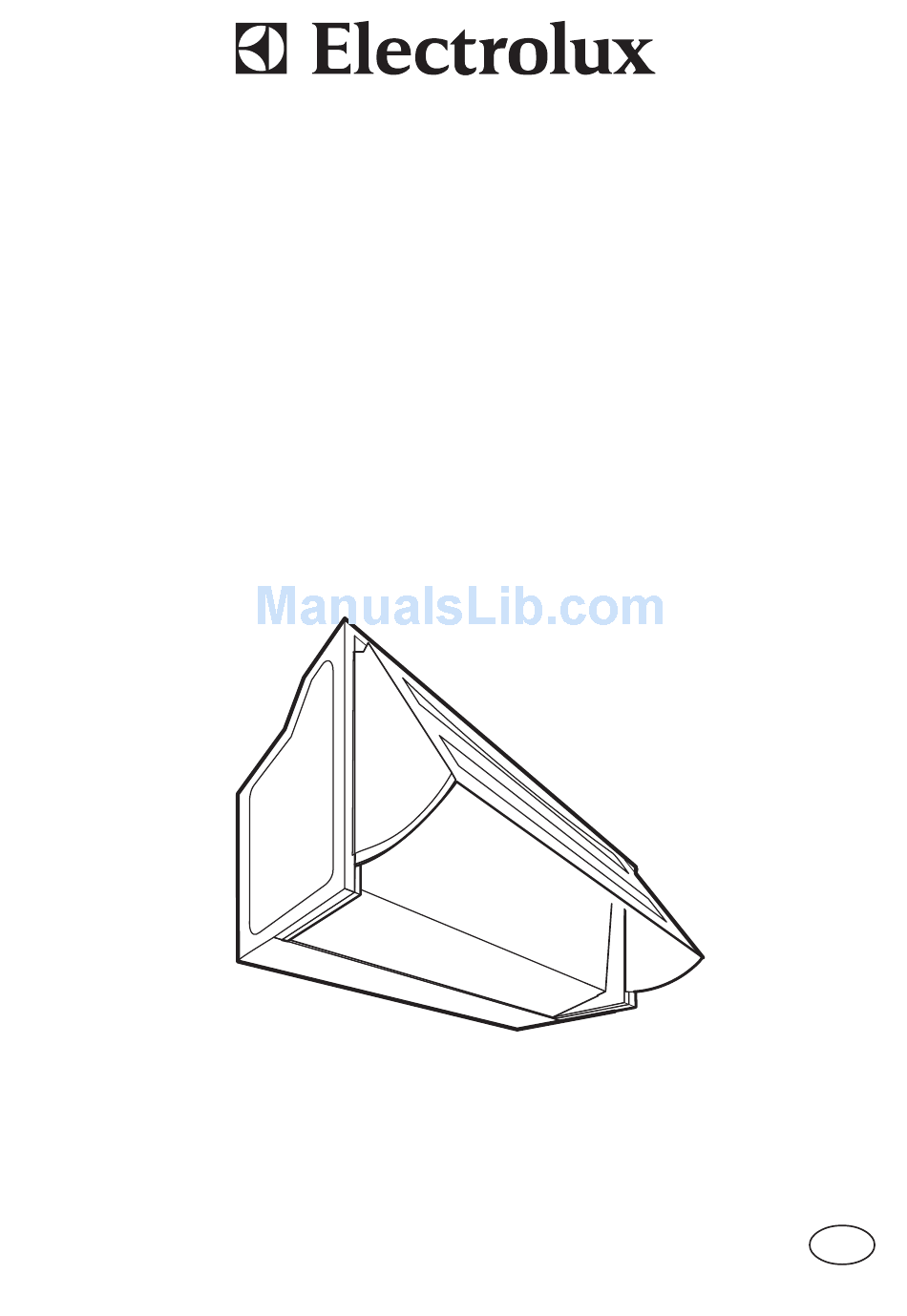

- Page 1 User Manual EFI 60011 EFI 60012 EFI 60013...
-
Page 2: Table Of Contents
Contents Safety warnings ..............................3 For the installer ................................ 3 For the user ................................4 Description of the Appliance ..........................5 Extraction mode ............................... 5 Recirculation mode ..............................5 Control Panel ................................ 6 Correct ventilation ..............................6 Maintenance and Care ............................7 Cleaning the hood .............................. -
Page 3: Safety Warnings
Safety warnings For the installer • If the hood is used in its recirculation mode, it will operate simply and safely in the above • When used as an extractor unit, the hood must conditions without the need for any of the be fitted with a hose having preferably the same aforementioned measures. -
Page 4: For The User
This appliance is marked according to the For the user European directive 2002/96/EC on Waste • The cooker hood is designed to extract Electrical and Electronic Equipment (WEEE). unpleasant odours from the kitchen, it will not By ensuring this product is disposed of correctly, you will help prevent potential negative extract steam. -
Page 5: Description Of The Appliance
Rear view fitting a charcoal filter. Attention! Hose EFI 60011 - EFI 60012: one charcoal filter Coupling EFI 60013: two charcoal filters ring Extraction mode • In this mode fumes are extracted to the outside via a hose connected to the coupling ring. -
Page 6: Control Panel
Control Panel • Best results are obtained by using a low speed for normal conditions and a high speed when odours are more concentrated. Turn the hood on a few minutes before you start cooking. The hood should be left on after cooking for about 15 minutes or until all the odours have disappeared. -
Page 7: Maintenance And Care
Maintenance and Care • The hood must always be disconnected from the electricity supply before beginning any maintenance work. • Opening the grill (EFI 60011) or the metal Cleaning the hood grease filter (EFI 60012 - EFI 60013): Move the handles upwards, then extract the •... -
Page 8: Charcoal Filter
Fig. 6 - EFI 60011 - EFI 60012 Turn the filter clockwise in order to lock the EFI 60013 = 2 charcoal filters filter into position. -
Page 9: Special Accessories
Special accessories Charcoal filter type 29 What to do if If your appliance fails to work properly please carry out the following checks. Symptom Solution The cooker hood will not start... Check that: The hood is connected to the electricity supply. Check that a fan speed has been selected The cooker hood is not working Check that: The fan speed is set high enough for the task. -
Page 10: Technical Assistance Service
Tel: + 353 (0) 1 4090751 Email: service.eid@electrolux.ie CUSTOMER CARE DEPARTMENT For general enquiries concerning your ELECTROLUX appliance or for further information on ELECTROLUX products, please contact our Customer Care Department by letter or telephone at the address below or visit our website at www.electrolux.co.uk... -
Page 11: Guarantee Conditions
Standard guarantee conditions We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that: The appliance has been correctly installed and used only on the electricity supply stated on the rating plate. -
Page 12: Technical Specifications
Technical Specifications Model EFI 60011 EFI 60012 EFI 60013 Dimensions (in cm): Height: Width: Depth: Maximum absorbed power: 180 W 220 W 380 W Motor: 100 W 140 W 2 x 150 W Lighting: 2x40 W 2x40 W 2 x 40W... -
Page 13: Mounting Accessories Included
Mounting accessories included 1 spacer 2 brackets 2 hooks 1 deflector 2 plastic washers for the spacer 2 wall plugs 1 screw 2,9x9,5 to affix the deflector/coupling ring on the outlet hole 4 screws 4.5 x 16 (to affix the cooker hood sideways) 8 screws 4.5 x 13 (to affix a wooden panel to the cabinet door). -
Page 14: Fixing A Furniture Door To The Visor
• Check that the side wall units between which to install the hood are sufficiently heavy for installing the hood. Rear view Otherwise mount the brackets to use as additional supports: a. Insert each bracket from the rear inside the hood through the opposite slots. -
Page 15: Fixing The Hood
Fixing the hood • Use template N2. Position the template on the front edges of the wall unit (right wall unit, B side) – (left wall unit, C side) WITHOUT CONSIDERING THE THICKNESS OF THE FRONT WALL UNIT DOORS, and make the holes as indicated. - Page 16 The Electrolux Group. The world´s No.1 choice. The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines,vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx.
