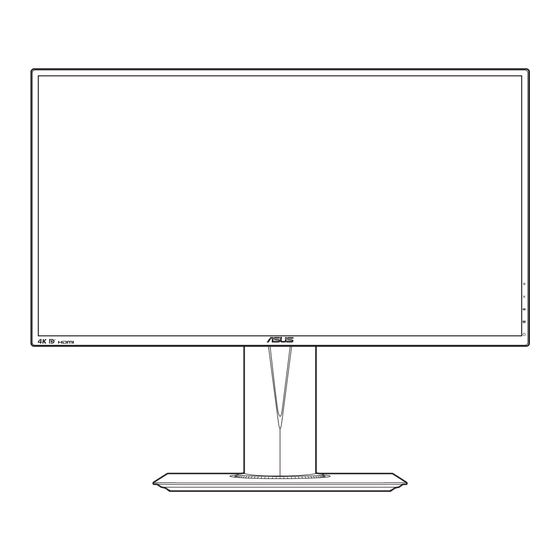

- Page 1 PG27AQ series LCD Monitor User Guide...
- Page 2 INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
-
Page 3: Table Of Contents
Contents Notices......................iv Safety.information..................v Care.&.Cleaning................... vi Takeback.Services..................vii Chapter.1:..Product.introduction 1.1. Welcome!..................1-1 1.2. Package.contents................1-1 1.3.1 Front view ............... 1-2 1.3.2 Back view ................ 1-3 1.3.3 GamePlus Function ............1-4 1.3.4 GameVisual Function ............1-5 Chapter.2:..Setup 2.1. -
Page 4: Notices
Notices Federal.Communications.Commission.Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation. -
Page 5: Safety.information
Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury. -
Page 6: Care.&.Cleaning
Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. -
Page 7: Takeback.services
These documents are not part of the standard package. Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials. - Page 8 viii...
-
Page 9: Welcome
Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a broader, brighter and crystal-clear display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual... -
Page 10: Front View
Monitor introduction 1.3.1. Front.view 5-way) button: • Turns on the OSD menu. Enacts the selected OSD menu item. • Increases/Decreases values or moves your selection up/down/left/right. • Turns on the OSD menu when the monitor enters standby mode or displays the “NO SIGNAL“ message. button •... -
Page 11: Back View
USB.3.0.upstream.port. This port is for connection with a USB upstream cable. The connection enables the USB ports on the monitor. USB.3.0.downstream.ports. These ports are for connection with USB devices, such as USB keyboard/mouse, USB flash drive, etc. For service personnel only. Kensington.lock.slot. Control.buttons. ASUS PG27AQ Series LCD Monitor... -
Page 12: Gameplus Function
1.3.3. GamePlus.Function The GamePlus function provides a toolkit and creates a better gaming environment for users when playing different types of games. In addition, Crosshair function is specially designed for new gamers or beginners interested in First Person Shooter (FPS) games. To active GamePlus: Press the GamePlus hotkey. -
Page 13: Gamevisual Function
•. sRGB.Mode: This is the best choice for viewing photos and graphics from PCs. • In the Racing mode, the following function(s) are not user-configurable: Saturation. • In the sRGB mode, the following function(s) are not user-configurable: Saturation, Color Temp., Brightness, Contrast. ASUS PG27AQ Series LCD Monitor... - Page 14 Chapter 1: Product introduction...
-
Page 15: Adjusting.the.monitor
Tilt the monitor to its maximum angle. Pivot the monitor clockwise to the angle you need. -5° ~ +20° 0° 90° It is normal that the monitor slightly shakes while you adjust the viewing angle. ASUS PG27AQ Series LCD Monitor... -
Page 16: Detaching.the.arm.(For.vesa.wall.mount)
Detaching the arm (for VESA wall mount) The detachable arm of this monitor is specially designed for VESA wall mount. To detach the arm: Have the front of the monitor face down on a table. Loosen the four screws on the back of the monitor and remove the arm/base. We recommend that you cover the table surface with soft cloth to prevent damage to the monitor. -
Page 17: Turning On The Monitor
That will enable the USB ports on the monitor to work. Turning on the monitor Press the power button . See page 1-2 for the location of the power button. The power indicator lights up in white to show that the monitor is ON. ASUS PG27AQ Series LCD Monitor... - Page 18 Chapter 2: Setup...
-
Page 19: Osd.(On-Screen.display).Menu
In this function, you can adjust the blue light filter level. Normal Mode DisplayPort 3840 x 2160@ 60Hz Racing Mode ASUS ROG PG27A Blue Light Filter Level o Level 1 Color Image Level 2 Input Select Level 3 Level 4 System Setup MOVE/ENTER BACK EXIT ASUS PG27AQ Series LCD Monitor... - Page 20 TUV Low Blue Light Certification. The Brightness function is not user- configurable. Color You can adjust Brightness, Contrast, Saturation and Color temperature from this menu. Normal Mode DisplayPort 3840 x 2160@ 60Hz Racing Mode ASUS ROG PG27A Blue Light Filter Brightness Color Contrast Image Saturation Input Select Color Temp.
- Page 21 LIGHT.IN.MOTION: Select “ON” if you want to turn on the red light on the base. •. Sound: Volume: the adjusting range is from 0 to 100. Mute: toggles the monitor sound between on and off. •. All.Reset: “Yes” allows you to restore the default settings. ASUS PG27AQ Series LCD Monitor...
- Page 22 •. DisplayPort.Deep.Sleep: Puts the DisplayPort port into deep sleep. •. HDMI.Deep.Sleep: Puts the HDMI port into deep sleep. In order to be Energy Star compliant, the default setting for DisplayPort Deep Sleep and HDMI Deep Sleep is “On”. If the monitor cannot wake up after going into deep sleep, do one of the followings: - Press any button (except ) on the monitor to wake it up.
-
Page 23: Specifications.summary
Czech, Croatian, Polish, Romanian, Hungarian, Turkish, Simplified Chinese, Traditional Chinese, Japanese, Korean, Thai, Indonesia, Persian) Accessories. DP cable, HDMI cable, USB cable, power adapter, power cord, Driver and Manual disc, Quick start guide, warranty card ASUS PG27AQ Series LCD Monitor... -
Page 24: Troubleshooting.(Faq)
Regulation.approvals Energy Star , CB, CE, CU, CCC, UL/cUL, FCC, ® RCM, BSMI, VCCI, RoHS, WEEE, J-MOSS, ErP, PSE, CEL Level 2, Windows 7 WHQL, Windows 8.1 WHQL, Windows 10 WHQL, KCC, E-Standby *Specifications.are.subject.to.change.without.notice. Troubleshooting (FAQ) Problem Possible.Solution Power LED is not ON •... -
Page 25: Supported.operating.mode
3840 x 2160 24Hz 3840 x 2160 30Hz 3840 x 2160 60Hz Note:. Do.not.support.interlace. G-SYNC.(only.for.DisplayPort.input).supported.NVIDIA.GPUs:.GeForce.GTX.TITAN.X,.GeForce.GTX. 980. Ti,. GeForce. GTX. 980,. GeForce. GTX. 970,. GeForce. GTX. 960,. GeForce. GTX. TITAN. Z,. GeForce. GTX.TITAN.Black,.GeForce.GTX.TITAN,.GeForce.GTX.780.Ti,.GeForce.GTX.780,.GeForce.GTX.770,. GeForce.GTX.760,.GeForce.GTX.750.Ti,.GeForce.GTX.750,.GeForce.GTX.745.(OEM),.GeForce.GTX. 690,.GeForce.GTX.680,.GeForce.GTX.670,.GeForce.GTX.660.Ti,.GeForce.GTX.660,.GeForce.GTX.650. Ti.BOOST..For.other.GPUs,.please.contact.the.manufactures.to.see.if.they.are.compatible. ASUS PG27AQ Series LCD Monitor...
