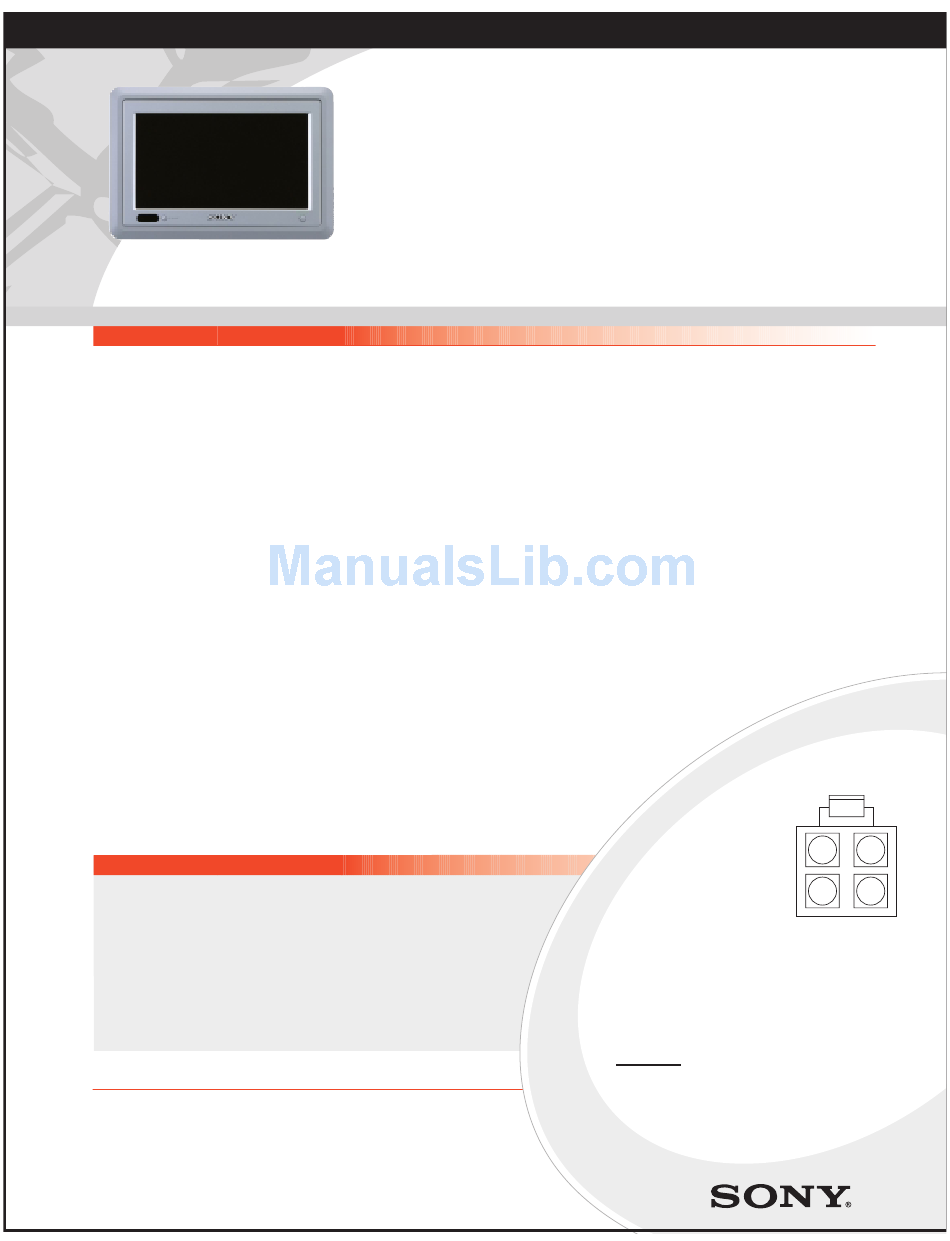

Sony XVM-H65 Product Manual

2003 SONY MOBILE
PRODUCT GUIDE
XVM-H65

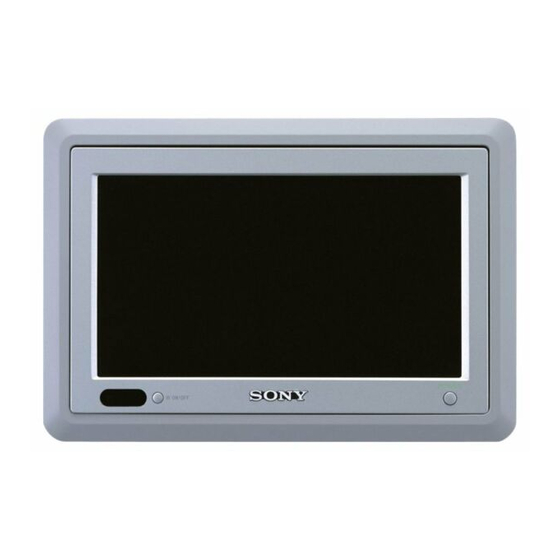

Headrest Monitor
Specifications
Monitor
System
Drive system
Picture size
Picture segment
Power requirements
Current drain
Dimensions
Operating temperature
Mass
Connection box XA-113
A/V Output:
Output Impedance:
Output Level:
Video:
A/V Input × 2
Input Impedance:
Input Level:
DC output:
Dimensions
Mass
Card remote commander RM-X122
Power requirements
Operable range
Dimensions
Mass
Supplied Accessories
Connection box XA-113 (1)
Card remote commander RM-X122 (with supplied battery) (1)
Power supply cord (1)
DC-DC cord (3 m) (1)
Stereo Mini Plug-to-Plug cable (5 m) (1)
Monitor Cable (5m) (1)
Collar (1)
Screws (4)
Operating Instructions (1)
Optional Accessories
DVD player DVX-11A, MV-101
Cordless headphones MDR-IF140
PS one™
Design and Specifications subject to change without notice.
Liquid crystal color display
TFT-LCD active matrix system
6.5 inches wide screen (16:9) 144 × 77 mm, 163 mm (5 3/4 × 3 1/8 in., 6 1/2 in.) (w/h/d)
336,960 (w 1440 × h 234) dots
12 V DC car battery (negative ground)
Approx. 700 mA
164 × 103 × 29 mm (6 1/2 × 4 1/8 × 1 3/16 in.) (w/h/d)
5 °C – 45 °C (41 °F – 113 °F)
Approx. 370 g (13 oz)
less than 220 W - less than 100pF
0 dBs ±0.3 dB (0.775 V rms) (Vol Max)
75 W 1 Vp-p
more than 10 K W - less than 1000 pF
±1.3 dBs +0/-0.3 dB (0.775 V rms)
7.5 V (max 2 A)
150 × 42 × 80 mm (6 × 1 11/16 × 3 1/4 in.) (w/h/d)
250 g (9 oz)
CR2025 lithium battery
Approx. 2.5 m (8.22 ft.)
52 × 125 × 10 mm (2 1/8 × 5 × 13/32 in.) (w/h/d)
Approx. 40 g (1 oz) (including batteries)
• 6.5 Widescreen TFT Monitor
• Thin Film Transistor Active Matrix Design
• 2 A/V Inputs, 1 A/V output
• MV interface for MV-101 DVD Player
• Wide viewing angle
• Flush mount bracket included
• 1” depth for versatile mounting
• Simple headrest mounting
• IR Headphone Transmitter
• SIRCS Output
• Supplied Wireless Remote (RM-X122)
• Power Supply for PS1
Plug shown with wires facing viewer
Pin Number Wire Color
1 Black
2 Blue
3 Yellow
4 Red
MV Interface
This connection will only function with products shipped
within the MV-7101DS Mobile DVD Dream System
Harness Plug Configuration
2 1
4 3
Description
Ground
12 VDC Trigger
12 VDC Constant
12 VDC Accessory
