Section 1 - Product Overview

Wireless Signal Strength Indicator LED

The Status/WPS LED will turn solid green when the DAP-1330 has connected successfully to an uplink wireless network and is
extending that network. If the Signal Indicator LED has a single amber bar after the connection process has finished, the DAP-1330
has established a poor quality connection. The more lit bars on the Signal Indicator LED, the better the wireless signal. To improve
the connection quality, the DAP-1330 should be relocated closer to the source wireless router.

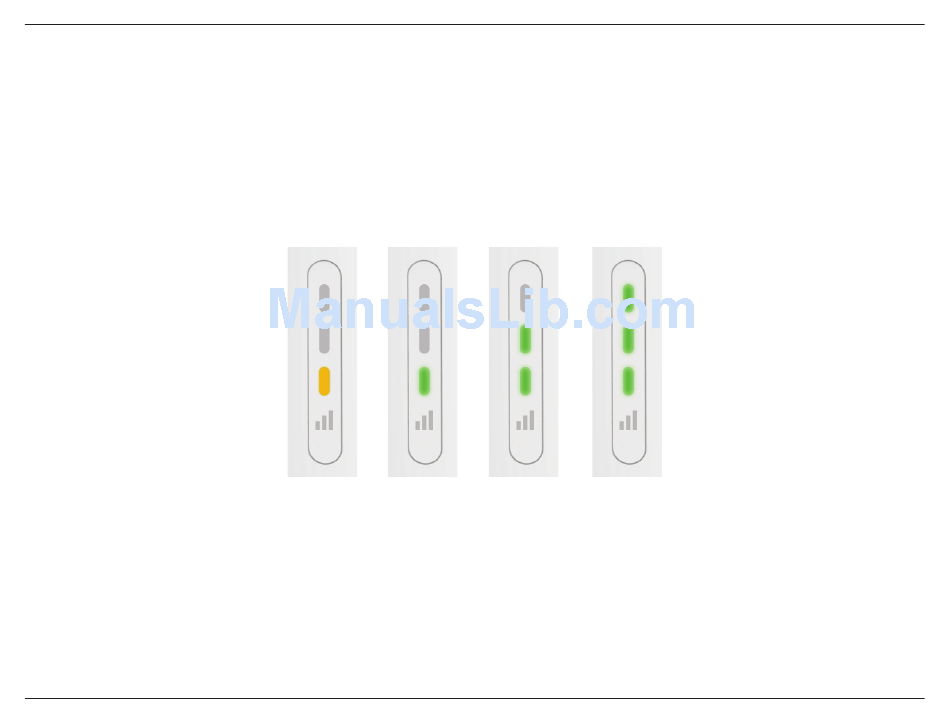

Poor Ok Good Best
